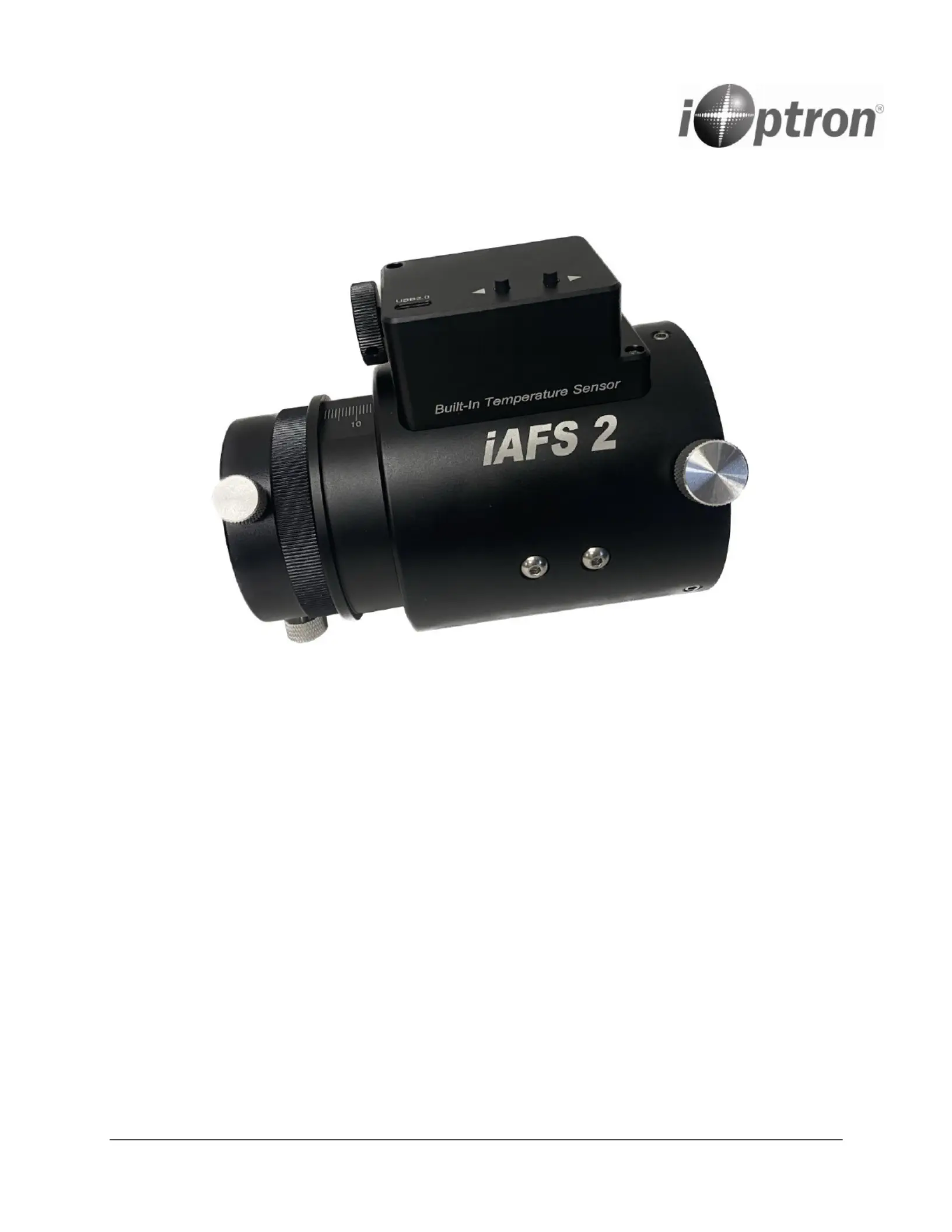

iOptron Corporation, Woburn, MA 01801
www.iOptron.com
Electronic Inline Automatic Focuser
With iLockTM Technology
Instruction Manual
Feb 2025, Version 1.0
iOptron reserves the rights to revise this instruction without notice. Actual color/contents/design may dier from those described in
this instruction.
Introducing the most versatile inline auto focuser: the iOptron iAFS
TM focuser with iLockTM
technology! Utilizing a lead worm movement is the key to the iAFS focusers patented design;
this method passively locks it at the exact position when movement is stopped, maintaining
focus for most any sized payload even as the instrument angle is changed. The iAFS
incorporates three movement control modes, USB (computer control), on board directional
buttons (for powered manual adjustments) and a manual focus wheel to override the motorized
adjustment. Other features include a built-in temperature sensor, -C ports, solid all dual USB
metal body, ngerprint resistant surface, 0.6 micron resolution, and position limiters to prevent
over runs. It comes standard with a 2 inch visual back, and optional telescope adapters to fit
various OTAs are available. The iAFS focusers will be available as the iAFS2 two inch model
and the iAFS3 three inch version.
Features:
High precision stepper motor with position over-run protection
Built-in temperature sensor
Built-in CAA
Quiet, smooth operation
Compact and lightweight
Zero backlash
Dual USB-C port for computer connection and rmware upgrade
ASCOM and INDI compatible
Manual adjustment (powered or unpowered)
Position memorizing during power o
Compatible with most OTAs with proper adapter
Package includes:
1X iFA20 AFS2 2” auto focuser w/ 2” visual back
or 1X FA30 iAFS3 3” auto focuser w/ 2” visual back
-C cable USB
Accessories:
P-FA20- CA
iAFS2 camera adapter M48X0.75
P-FA20-M0800
iAFS2 telescope adapter Askar/65PHQ and other M80X1
P-FA20-M0835
iAFS2 telescope adapter Celestron/C11 and other M83.5X1.5
P-FA20-M0900
iAFS2 telescope adapter GSO/RC6,RC8 and other M90X1
P-FA30- CA
iAFS3 camera adapter M68X1
P-FA30-M1170
iAFS3 telescope adapter GSO/RC10,12,14,16 and other M117X1
Others are coming……
3
iAFS Parts
Visual Back
Drawtube
OTA adapter (Oponal)
Locking screw
Posion screw
Motor focusing
buttons
USB-C
Manual focusing
knob
M4 screw
Attach Focuser to Scope
1. Select a proper telescope adapter, such as for RC6 telescope. FA20-M0900
2. Install telescope adapter. First, back out three (3X) Position Screws and the Locking Screw
on the iAFS body.
