Sida 1/28

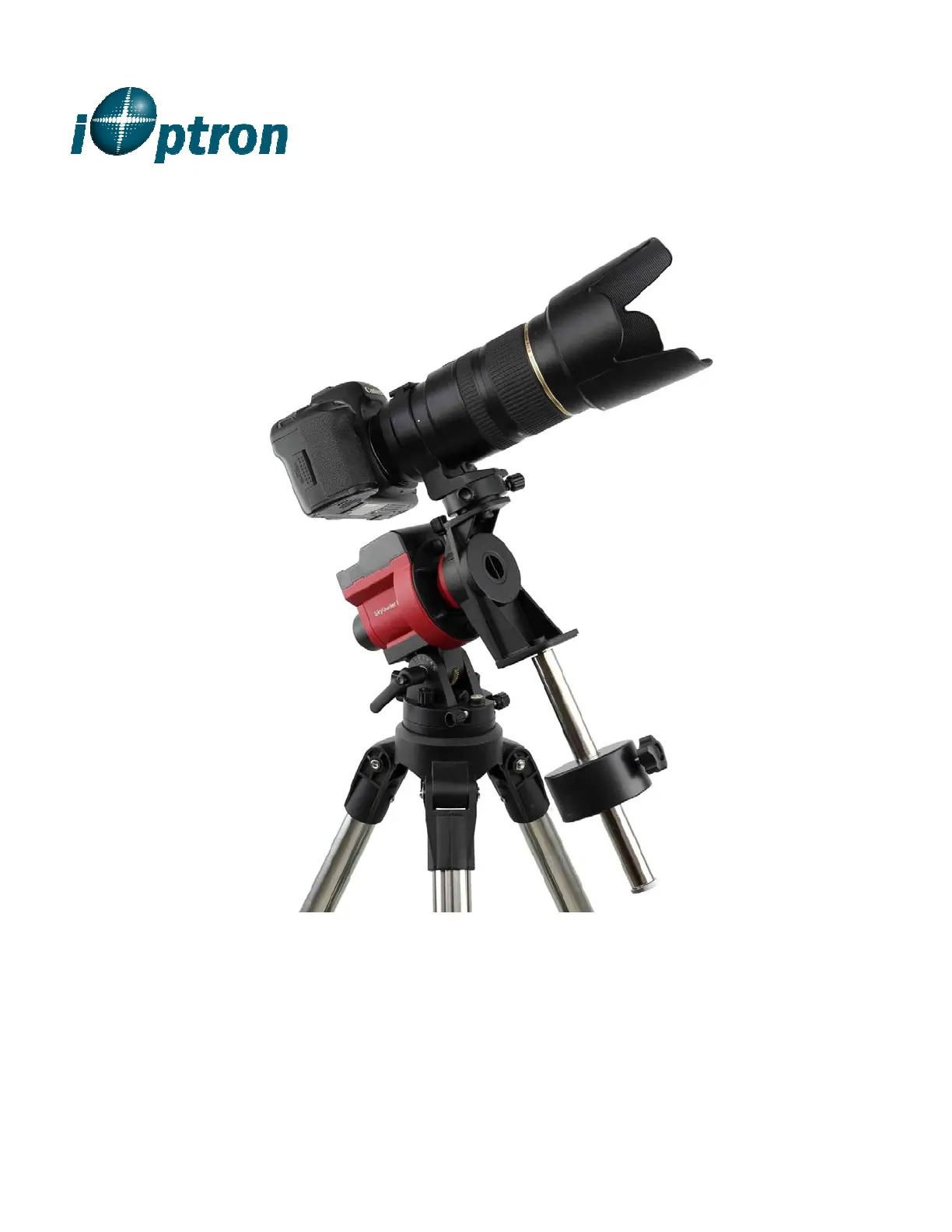

SkyGuider™ Pro Camera Mount
Instruction Manual
Product #3550, #3551 and #3552
®
2
Table of Content
Table of Content ...................................................................................................................... 2
1. SkyGuiderTM Pro Camera Mount Overview ......................................................................... 3
2. SkyGuiderTM Pro Camera Mount Assembly ......................................................................... 6
2.1. Introduction ................................................................................................................... 6
2.2. Parts List ....................................................................................................................... 6
2.3. Assembly Terms ........................................................................................................... 7
2.4. SkyGuiderTM Pro Camera Mount Assembly .................................................................. 9
3. Advanced Application ........................................................................................................ 17
3.1. Autoguide .................................................................................................................... 17
3.2. Attach a Telescope ..................................................................................................... 17
3.3. Dual Camera/Scope Mount ......................................................................................... 18
3.4. Use Optional 8408 Hand Controller ............................................................................ 18
3.4.1. Go2Nova® 8408 Hand Controller .......................................................................... 18
3.4.2. Go2Nova® 8408 Hand Controller Function ........................................................... 20
4. Maintenance and Servicing ............................................................................................... 25
4.1. Maintenance ............................................................................................................... 25
4.2. Trouble Shooting ......................................................................................................... 25
4.3. iOptron Customer Service ........................................................................................... 26
4.4. Product End of Life Disposal Instructions .................................................................... 26
4.5. Battery Replacement and Disposal Instructions .......................................................... 26
Appendix A. Technical Specifications (for #3550 only) .......................................................... 27
IOPTRON ONE YEAR TELESCOPE, MOUNT, AND CONTROLLER WARRANTY ............ 28
WARNING!
NEVER USE A TELESCOPE TO LOOK AT THE SUN WITHOUT A PROPER FILTER!
Looking at or near the Sun will cause instant and irreversible damage to your eye.
Children should always have adult supervision while observing.
Please don’t charge the battery or use USB power at or below 0°C (32°F), otherwise the
rechargeable battery might be permanently damaged.
Ver.1.0
iOptron Corp. reserves the rights to revise this instruction without notice. Actual color/contents/design may differ from those described in this
instruction.
3
1. SkyGuiderTM Pro Camera Mount Overview
Introducing The SkyGuiderTM Pro -- iOptron’s next generation camera tracking device! Leading
the camera tracker market for nearly four years, iOptron's SkyGuider Pro pushes closer to perfection.
Figure 1. SkyGuiderTM Pro mount head only
The redesigned SkyGuiderrTM Pro mount is more compact, small enough to fit on your palm,
better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera
trigger port. The improved precision polar scope maintains a fine engraved reticule, now features
adjustable illumination with different brightness levels. Using with our iOS app, quick and accurate
polar alignment is just a joy. The DEC mounting bracket allows you to balance a heavy camera and/or
lens better, or even mount a light telescope. The optional 8408 hand controller allows you to check
the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the
mount settings and control the camera trigger.
The SkyGuiderTM Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape
combind, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We
have also added a quick slew mode with both forward and reverse to help quickly reframing your
image without disrupting the cameras position.
We have made big improvements on the SkyGuiderTM Pro’s removable alt-azimuth base,
which features a precision bubble level, degree markings for the altitude and a built in post for the
azimuth control. You can also mount the SkyGuiderTM Pro head (without the base) directly to any
standard photographic tripod with 1/4” or 3/8” threads.
The DEC mounting bracket package, which includes DEC mounting bracket, counterweight
shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuide TM Pro mount suitable for a
heavier camera/lens system, even a lightweight telescope.
The SkyGuiderTM Pro is certainly a must have tool for any photographer interested in
astroscape or wide field astrophotography.
