Sida 1/16

USA: Joovy • 2919 Canton Street • Dallas, TX 75226 • Tel: (877) 456-5049 • Fax: (214) 761-1774 • Email: customerservice@joovy.com • Website: www.joovy.com

CANADA: ISSI Inc. • 4500 Thimens Blvd, Suite 100 • St-Laurent, QC, H4R 2P2 • Tel: (800) 667-4111 • Montreal: (514) 344-3045 • Email: service@issibaby.ca

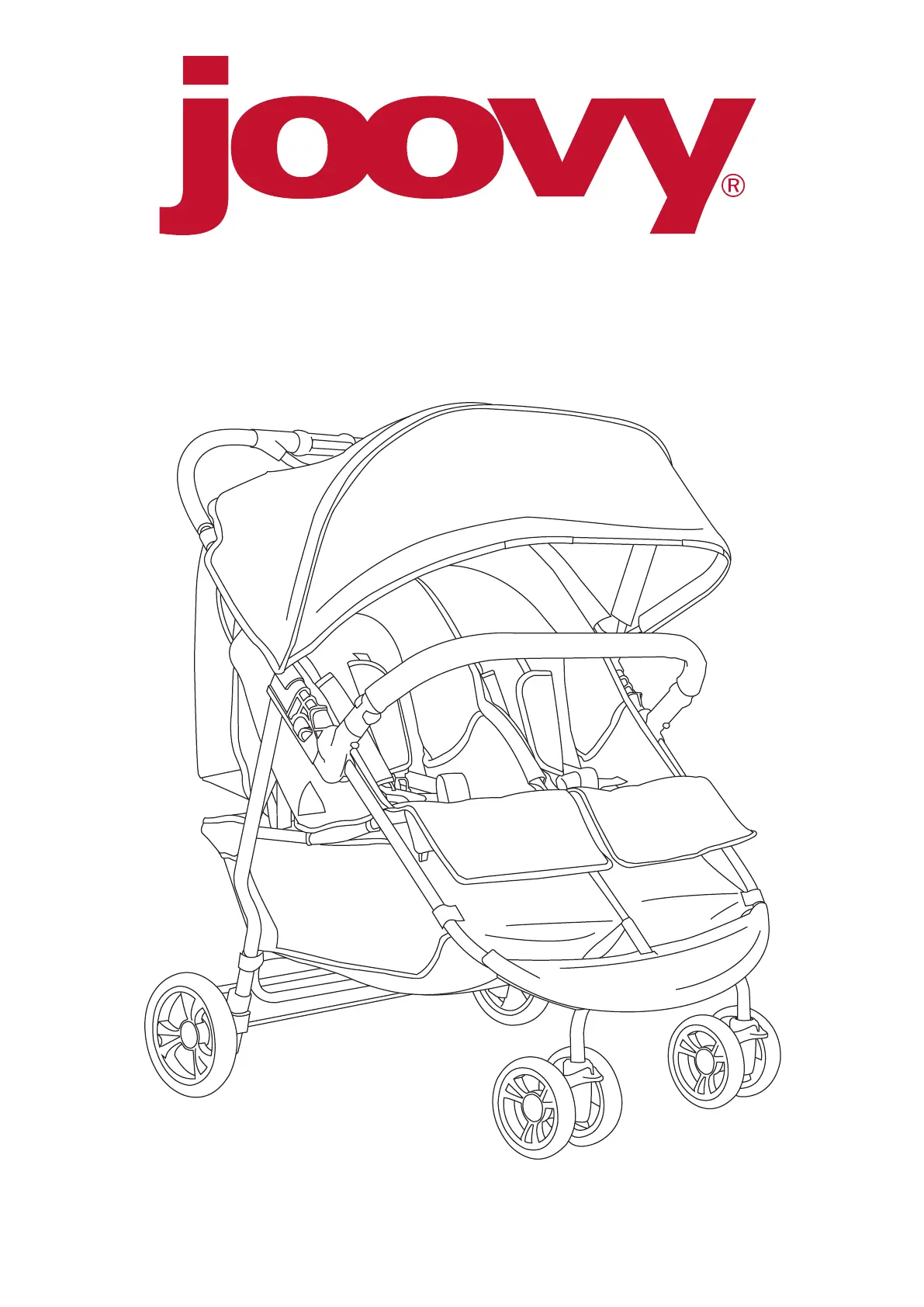

ScooterX2™

807X

EN FR ES

!WARNING

Please read these instructions carefully before use and keep them for future reference.

• Failure to follow these instructions could result in serious injury or death.

• Never leave child unattended.

• Avoid serious injury from falling or sliding out.

• Always use restraint system and ensure that all children are positioned according to these instructions.

• Be certain that the stroller is fully opened, locked securely into position, and the wheel brakes are on before

allowing children near the stroller.

• The parking device should always be engaged during the loading and unloading of children.

• The maximum weight of a child the product is designed to carry is 45 lbs. (20.41 kg) in each seat.

• The maximum height of a child the product is designed to carry is 44 inches (111.76 cm).

• Use the more upright seatback positions ONLY for children who are at least 6 months old.

• Use of the stroller with a child weighing more than 45 lbs. (20.41 kg), or two children totaling more than 90 lbs.

(40.82 kg). will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition.

• Never use this stroller to carry more than two children at the same time.

• Never allow a child to step on the footrest to get into or out of the stroller.

• Do not use the stroller on stairways or escalators.

• DonotaddanyattachmentnotspecicallyrecommendedbyJoovy.

• Keep children away from the stroller when folding or unfolding.

• Any load attached to the handle affects the stability of the stroller. Hanging purses, shopping bags, parcels, diaper

bags or other accessory items from the handlebar or any other parts of the stroller may change the balance of the

stroller and cause a hazardous unstable condition.

• The maximum weight that can be carried in the storage basket is 5 lbs. (2.27 kg). Excessive weight may result in a

hazardous unstable condition.

• The total weight that can be placed in the zipper pockets should be less than 2 lbs. (0.9 kg).

• The total weight that can be placed in the cup holders should be less than 2 lbs. (0.9 kg)

• Never carry hot beverages or open containers in the cup holders.

• The total weight that can be placed in the in-seat mesh pockets should be less than 2 lbs. (0.9 kg)

• Never allow your stroller to be used as a toy.

• Discard all packaging materials properly. Do not allow children to play with them.

• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis.

• Discontinue use of the stroller should it malfunction or become damaged.

CAUTION:Whileunfoldingthestroller,becarefultokeepyourngersfrombeingpinchedbymovingparts.

Please do not return this product to the store

If you experience any difculty with the assembly or use of this product, or if you have a question regarding these

instructions, please contact our Customer Service Department:

UNITED STATES – Joovy: (877) 456-5049, Hours 8:30 am – 5:00 pm Central Time.

CANADA – ISSI Inc.: (800) 667-4111, Hours 8:30 am – 5:00 pm Eastern Time.

Please note: Styles and colors may vary.

Assembling and Using your Stroller

1 Unpacking the Product

• Carefully remove stroller and all parts from the box and plastic bag.

• Remove any cardboard packing materials from the stroller.

• Remove everything from the box and identify the parts using (not to scale):Figure 1.1

stroller, front wheel set (2), rear wheels (2), rear axle and brake set, bumper bar, canopy, small washers (2),A: B: C: D: E: F: G:

spring washers (2), large washers (4), snap pins (2), hubcaps (2) and documents (not shown).H: I: J: K:

Extra rear wheel assembly parts may be included.

• Discard all packaging materials properly including plastic coverings.

• DO NOT allow children to play with any packaging materials.

!WARNING

Adult assembly is required for this product. This package contains small parts.

Keep small parts away from children during assembly. No Tools Required.

EN FR ES

2 Unfolding the Stroller

• Keep children away from stroller while unfolding.

• Orient the stroller with the handlebar facing upward and closest to you.

• If necessary, release the folding lock located on the right side by lifting the lock off of the extended rivet. See Figure 2.1.

• Pull upwards on the handlebar until the stroller is completely opened and the latching mechanism on each side is engaged. See Figure

2.2.Becarefulnottoscratchtheoorwhenopeningthestroller.

• Visually check and gently push downward on the handlebar to ensure that the stroller is completely opened and locked before ANY use of

the product.

CAUTION:Whileunfoldingthestroller,becarefultokeepyourngersfrombeingpinchedbymovingparts.

!WARNING

ALWAYS keep children away from the stroller when unfolding.

Possible pinching hazard – Be careful when unfolding the stroller.

3 Installing the Rear Wheel Axle and Brake Set and Rear Wheels

• In a clean, dry place rest the stroller upside down with the rear legs facing upwards.

• Locate the rear axle and brake set and slide it onto the rear legs with the link brake facing the rear of the stroller. Be sure to slide each

side all the way on until the push pins are engaged in the holes of the plastic.

You may need to push each of the push pins in to slide the plastic into place. NOTE: See Figure 3.1.

• Pull upward on each side of the rear axle to ensure it is installed properly.

• Push the bar linking the brake levers into the disengaged position. See Figure 3.2.

To Install a Rear Wheel

• Locate a small washer and slide the washer onto the axle.

• Next place a rear wheel onto the axle over the small washer.

The brake teeth on the wheel should be facing inward toward the brake lever.NOTE:

• Then place one large washer onto the axle over the wheel.

• Next slide a spring washer onto the axle.

• Take another large washer and slide it onto the axle.

• Push the washers in to expose the axle hole. Then take one snap pin and insert the straight leg into the

smallholeintheaxle.Pushitrmlyintothisholeuntiltheroundportionoftheotherlegsnapscompletely

around the outside of the axle.

The snap pin is curved (concave) to make insertion easier.NOTE:

• Repeat the SAME installation sequence of washers, wheel, and snap pin for the remaining wheel.

• Install a hubcap onto each wheel by aligning the 5 tabs on the hubcap with the 5 slots in the wheel, and

then pushing it into place. Ensure that ALL 5 snaps have engaged securely and the hubcap cannot be

pulled off.

4 Rear Wheel Brakes

• The ScooterX2 comes equipped with a linked rear wheel brake system.

• To engage the rear wheel brakes, push down on one of the brake levers or the bar that connects the levers. See Figure 4.1. The stroller

may require slight forward or rearward movement in order to line up the teeth on the brake with each wheel brake cluster.

• Check that the brakes are properly applied by attempting to push the stroller backwards and forwards.

• To release the brakes, gently lift up on one of the brake levers or the bar that connects the levers. See Figure 4.2.

!WARNING

Always make sure the wheel brakes are engaged when the stroller is not being pushed so that the stroller will not roll

away. Never leave stroller unattended, especially on a hill or incline, as the stroller may tip over or slide.

5 Installing the Front Wheels

• Position the stroller so it is resting on the rear wheels and the handlebar. Locate one front wheel set and position the wheel set with the

swivel lock tab facing upward. Insert it onto a post located at the bottom front on one side of the stroller until an audible click is heard. See

Figure 5.1.

• Pull outward on the wheel set to ensure the wheel set is installed properly.

• Repeat this procedure for the other wheel.

• To remove a front wheel set, pull the metal ring at the bottom of the front wheel housing and slide the wheel set off of the post. See Figure

5.2.

Small Washer

Rear Wheel

Large Washer

Spring Washer

Snap Pin

Large Washer

REAR WHEEL SEQUENCE
