Sida 1/9

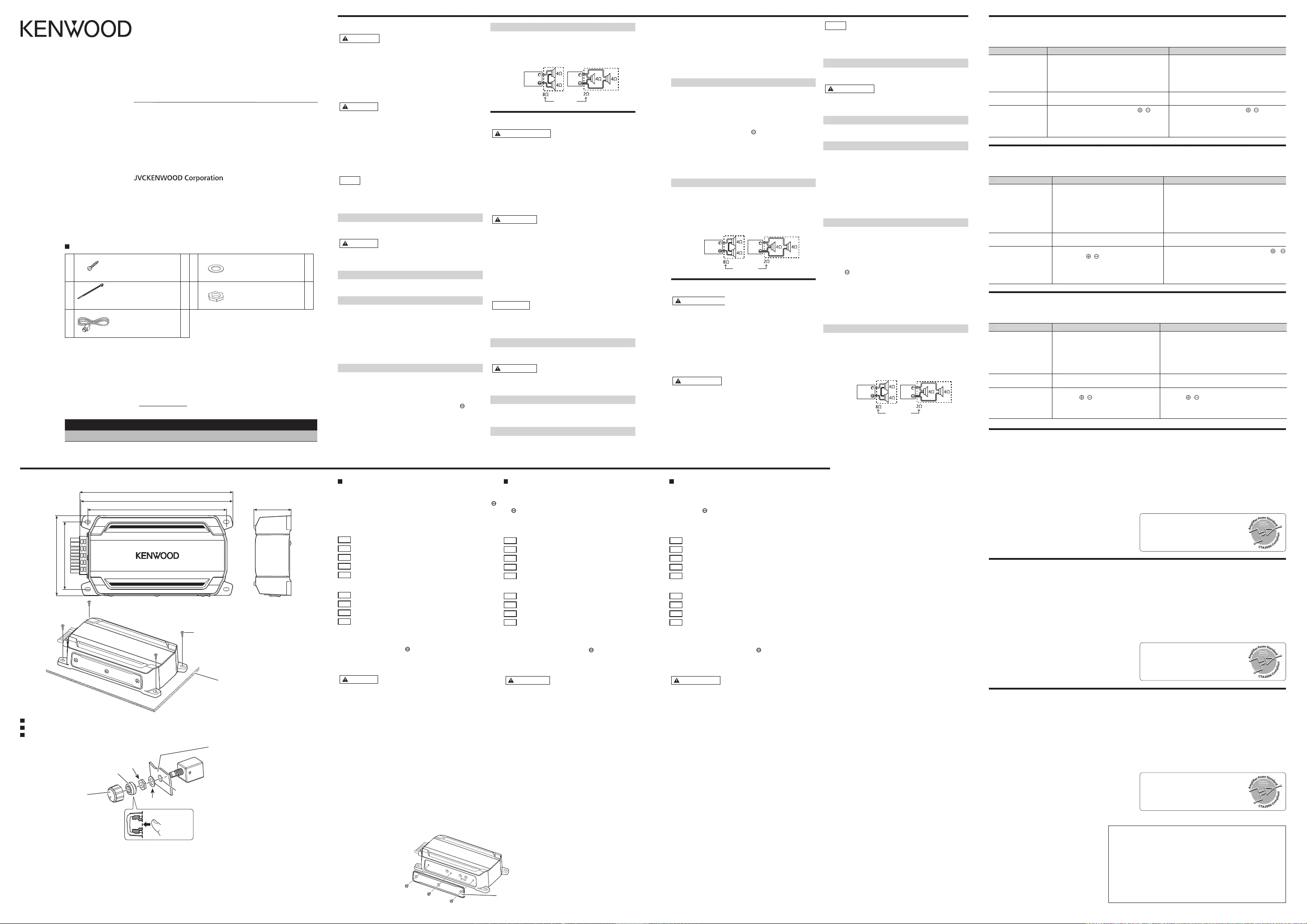

KAC-M5001
COMPACT MONO DIGITAL AMPLIFIER
INSTRUCTION MANUAL
AMPLIFICATEUR COMPACT MONO NUMÉRIQUE
MODE D’EMPLOI
AMPLIFICADOR DIGITAL COMPACTO MONOAURAL
MANUAL DE INSTRUCCIONES
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your
new power amplifi er.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for
information or service on the product.
Model KAC-M5001 Serial number
US Residence Only
Register Online
Register your Kenwood product at w ww.kenwood.com/usa
B5A-4014-10 / 01 (KN)
© 2021 JVCKENWOOD Corporation
Accessories / Accessoires / Accesorios
①
Ø4×16 mm
Self-tapping screws
Vis taraudeuses
Tornillo autorroscantes 4④Washer
Rondelle
Arandela 1
②
100 mm
(3-15/16”)
Wire band
Serre-câble
Atadura de cables 1⑤Hex nut
Écrou hexagonal
Tuerca hexagonal 1
③Remote controller
Télécommande
Controlador remoto 1
PUSH
POUSSER
EMPU ARJ
Volume control knob
Molette de réglage du volume
Mando de control de volumen
181 mm (7-1/8”)
200 mm (7-7/8”)
198 mm (7-13/16”)
48.5 mm (1-15/16”)
104 mm (4-1/8”)
88 mm (3-7/16”)
Installation board, etc.
(thickness : 15 mm or more)
Tableau d’installation, etc.
(épaisseur: 15 mm ou plus)
Tablero de instalación, etc.
(grosor: 15 mm o más)
Installation procedure
Read the instruction manual well to select the proper con-
nection and setting.
1. Remove the ignition key and disconnect the negative
terminal of the battery to prevent short circuits.
2. There are two options:
* Refer to “Connections” on the back side.
Type A: RCA INPUT connection
A-1
Connect the battery wire.
A-2
Connect the ground wire to chassis ground of vehicle.
A-3
Connect the power control wire.
A-4
Connect the speakers.
A-5
Connect the RCA cable.
Type B: SPEAKER INPUT connection
B-1
Connect the battery wire.
B-2
Connect the ground wire to chassis ground of vehicle.
B-3
Connect the speakers.
B-4
Cut off the RCA cable, then connect the correct
corresponding speaker output from the FACTORY
INSTALLED HEAD UNIT directly.
3. Attach the unit.
4.
Connect the negative terminal of the battery.
5. Remove the Dressing panel.
6. Set the unit according to the intended usage.
7.
Fix the Dressing panel with screws securely.
CAUTION
• Do not install in the below locations;
(Unstable location, In a location that interferes with driving, In a location that
gets wet, In a dusty location, In a place that gets hot, In a place that gets direct
sunlight, In a location that gets hit by hot air)
• Do not install the unit under the carpet. Otherwise heat build-up occurs and the
unit may be damaged.
• Install this unit in a location which allows heat to easily dissipate. Once installed,
do not place any object on top of the unit.
• The surface temperature of the amplifi er will become hot during use. Install the
amplifi er in a place where people, resins, and other substances that are sensitive
to heat will not come into contact with it.
• When making a hole under a seat, inside the trunk, or somewhere else in the
vehicle, check that there is nothing hazardous on the opposite side such as a
gasoline tank, brake pipe, or wiring harness, and be careful not to cause scratches
or other damage.
• Do not install near the dashboard, rear tray, or air bag safety parts.
• The installation to the vehicle should securely fasten the unit to a place in which it
will not obstruct driving. If the unit comes off due to a shock and hits a person or
safety part, it may cause injury or an accident.
• After installing the unit, check to make sure that electrical equipment such as the
brake lamps, turn signal lamps and windshield wipers operate normally.
• In order to secure the Water-proof & Dust-proof performance (IP67&IP66) of this
product, use it with the dressing panel fi rmly attached. If the dressing panel is not
installed properly, dust and water may enter and cause a malfunction.
Pr
Lire a
racco
1. Re
d
2. De
* Se r
Type
A-1
A-2
A-3
A-4
A-5
Type
B-1
B-2
B-3
B-4
3. Bra
4. Ra
5. Re
6. Ré
7.
Fix
A
• Ne pa
vants
à l’hu
à la lu
• Ne pa
risqu
• Instal
ment
• La sur
teur à
la cha
• Lors d
dans
qu’un
atten
•
Ne pa
l’airba
• Lors d
endro
heurt
un ac
• Après
élect
norm
• Afi n d
de ce
d’hab
péné
Installation / Installation / Instalación
Dressin
1. Remove the panel of the vehicle.
2. Drill a 8 mm (5/16”) hole.
3. Remove the knob and place the
rubber ring in it.
4. Insert the shaft through the drilled
hole. Place the nut and washer and
fix them.
5. Place the knob on the shaft.
6. Attach the panel.
1. Démonter le panneau du véhicule.
2. Percer un orifice de 8 mm (5/16”).
3.
Retirez la molette et placez l’anneau
de caoutchouc dans la molette.
4. Insérer l’axe à travers l’orifice
percé. Mettre en place et serrer
l’écrou et la rondelle.
5. Placer la molette sur l’axe.
6. Fixer le panneau.
1. Retire el panel del vehículo.
2. Taladre un orificio de 8 mm (5/16”).
3. Retire el mando y coloque el anillo
de goma dentro el mando.
4. Inserte el eje a través del orificio
perforado. Coloque la tuerca y la
arandela y, a continuación, fíjelas.
5. Coloque el mando en el eje.
6. Monte el panel.
8 mm (5/16”) hole
Orifice de 8 mm (5/16”)
Orificio de 8 mm (5/16”)
Rubber ring
Anneau de caoutchouc
Anillo de goma
Panel (thickness : MAX. 3.2 mm (1/8”))
Panneau (épaisseur: MAX. 3,2 mm (1/8”))
Panel (grosor: MAX. 3,2 mm (1/8”))
Installing the remote controller (③ Parts included)
Installation de la télécommande (③ Pièces comprises)
Instalación del controlador remoto (③ Partes incluidas)
⑤
①
④
