47KMFC Mount Conguration Guide
Page of 1 9
The 47KMFC xed mounting system is designed to mount to at surface applications. The
four by 64mm) bolt pattern accepts multiple styles of fasteners providing ease of tment to 2.5” (
existing vehicles while also speeding assembly. The KMFC mount accepts either 5/16” or 8mm
bolts and nuts. Three bolting congurations are designed into the mount providing the customer
with options to best t their application:
• Bolt-thru-mounting
• Bolt- -mounting to
• Stud mounting
This document addresses these congurations to provide insight into the capability of the KMFC
mounting system.
MOUNTING YOUR NEW ENCLOSURE
The use of at washers is suggested between the mounting surface and tightening
fastener. Loctite Threadlocker 271 (red) is not included but required for installation. The

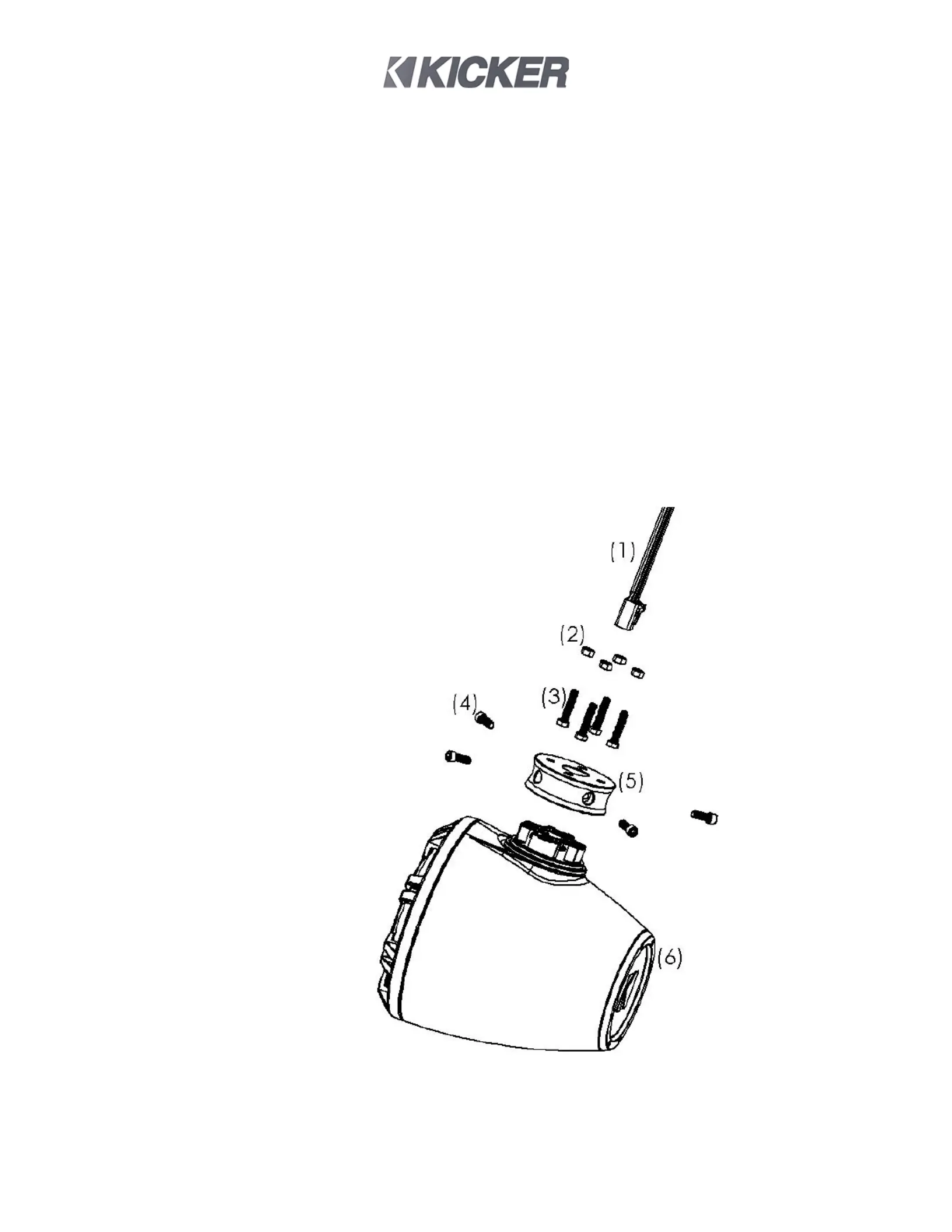

following parts identied are included and required for mounting your new enclosure.
1. Electrical Connector
2. -18UNC hex nuts 5/16”
3. -18UNC hex head bolts 1½” long 5/16”
4. -18UNC socket head bolts 7/8” long 5/16”
5. Vehicle Mount
6. Speaker Enclosure
EOP2020-CS2
5/17/2021
REV-A.2
47KMFC Mount Conguration Guide
Page of 2 9

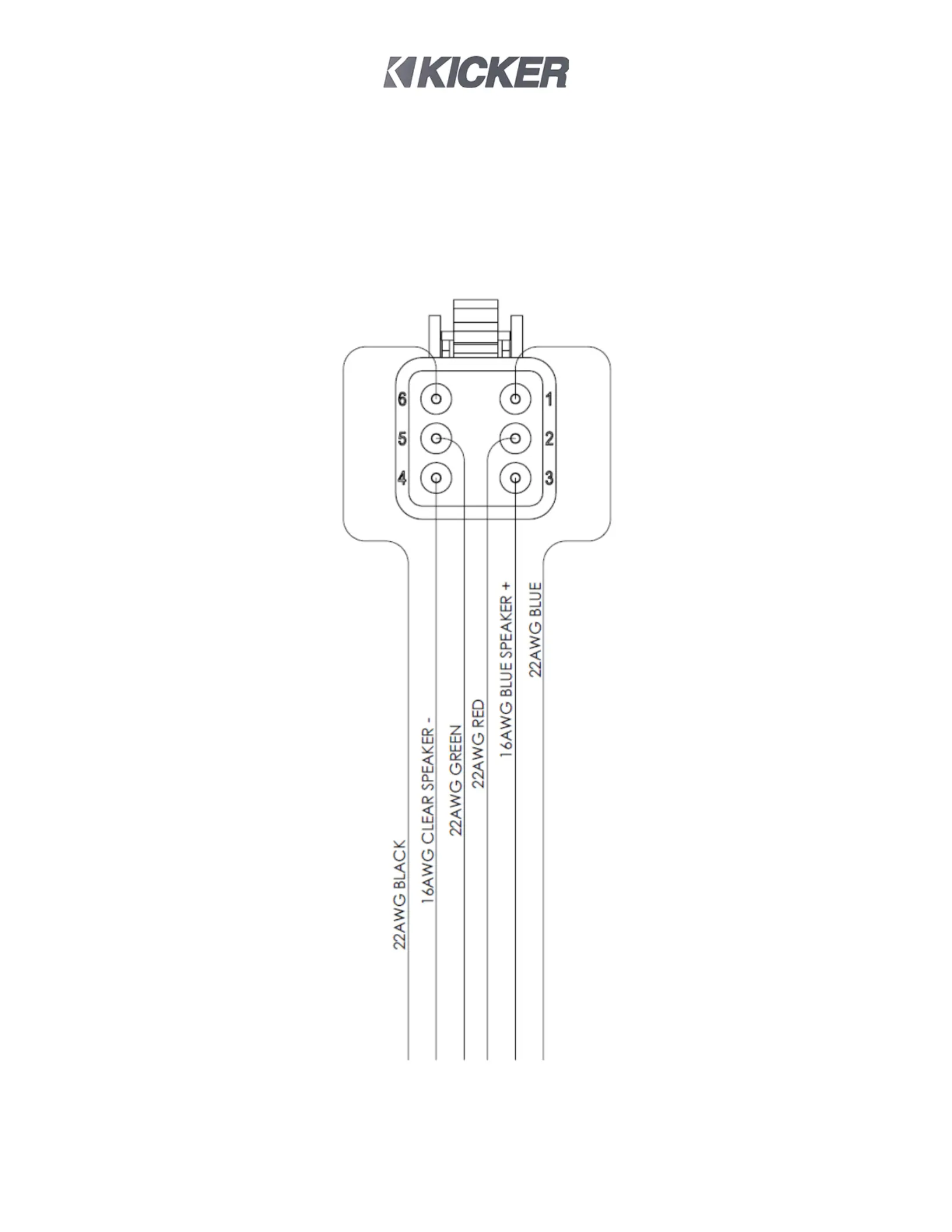

SPLICING THE ELECTRICAL CONNECTORS
A pre-pinned waterproof electrical connector is provided with your enclosure. Splice the
electrical connector to your vehicle’s audio harness using marine grade waterproof butt
connectors or another method of marine grade electrical wire splicing. See the wiring schematic
below and spice accordingly.
EOP2020-CS2
5/17/2021
REV-A.2
47KMFC Mount Conguration Guide
Page of 3 9

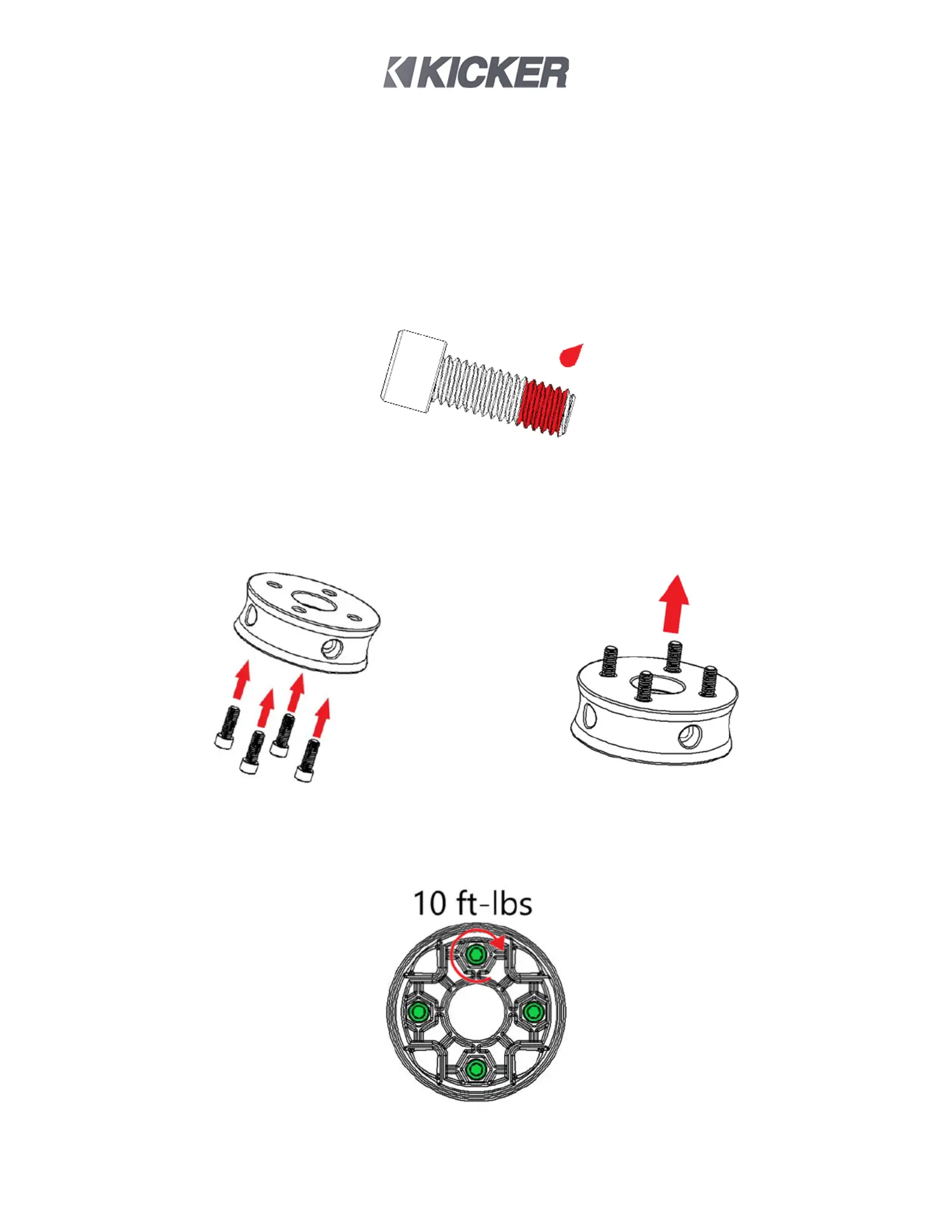

BOLT-THRU-MOUNTING
Bolt-thru-mounting of the KMFC mounting system requires use of socket head bolts
(socket head bolts for bolt-thru-mounting are not included). Thru mounting allows for the mount
to be secured to a surface that has previously been tapped with threads. Nuts may also be use in
place of tapped threads.
1. Apply Loctite Threadlocker 271 (red) to the threads of the -18UNC desired length 5/16”
socket head bolts.
2. Locate the vehicle side mounting bracket where it is to be mounted in on the vehicle and
secure it using four socket head bolts.
3. Torque fasteners to 10 ft-lbs.
