QSS COMPONENT SYSTEM

Owner’s Manual

The KICKER QSS-series component systems offer unmatched audio ﬁ delity for vehicle applications. Whether you’re

conﬁ guring the ultimate multi-speaker and subwoofer surround system or simply upgrading from dull, lifeless factory

speakers, the QSS component systems deliver the most pleasing full-range sound on the market today! Key features of

our highest-end component systems include:

Authorized KICKER Dealer:

Purchase Date:

Speaker Serial Number:

Model QSS65 QSS67

Woofer [in, mm] 6-1/2, 160 6-3/4, 165

Tweeter [in,mm] 1-3/16, 30 1-3/16, 30

Dome Material Tetoron® Tetoron®

Rated Impedance [Ω] 4 4

Peak Power Handling [ Watts] 180 200

Continuous Power Handling [Watts RMS] 90 100

Sensitivity [1W, 1m] 86dB 87dB

Frequency Response [Hz] 50–22k 40–22k

Woofer Mounting Hole Diameter [in, mm] 5-1/16, 129 5-7/16, 138

Woofer Bottom Mount Depth [in, mm] 2.5, 63.5 2.5, 63.5

Flush Mount Tweeter Hole Diameter [in,mm] 1-13/16, 46 1-13/16, 46

Flush Mount Tweeter Depth [in,mm] 1-1/8, 29 1-1/8, 29

High Pass [dB], at Frequency [Hz] 24, 2800 24, 2800

Low Pass [dB], at Frequency [Hz] 12, 2800 12, 2800

High Frequency Output Attenuation [dB] 0, +3, +6 0, +3, +6

MODELS: QSS65 / QSS67

Crossover Woofer Tweeter

Zobel Impedance correction to ﬂ atten

impedance network

Revolutionary surround design maximizes

cone area, maintains standard cutout size

Pressed polyﬁ l inserted behind the

dome for acoustic dampening

Mylar capacitors and audiophile-grade air core

inductors

Copper shorting ring on the pole piece to

reduce distortion

Dual Neodymium magnets with

tuning vent

Bi-ampliﬁ cation capable Polished back plate Dupont Tetoron composite dome

Asymmetrical circuit design Tri-tech cone design Open wire mesh-grill

Brushed aluminum base heat sink Aluminum phase plug Sealed and tuned chamber

Balanced tweeter attenuation Copper-clad aluminum coil wire Copper-clad aluminum coil wire

Heatsinked resistors for increased power-

handling

Ultra-durable Spiral Tinsel leads, woven

through the duo-wave spider

Acoustic cavity coupled to magnet

reduces internal reﬂ ections

Dedicated attenuation jumpers (0, +3 or +6

dB) for a clean connection with less resistance

Strongest available cast aluminum basket,

increasing magnetism

Enclosure volume allows for

lower frequencies, better off-axis

response

Illuminated tweeter protection Nickel-plated, spring-loaded terminals Extended Tweeter post

PERFORMANCE

2014 QSS Multilingual Rev C.indd 2

2014 QSS Multilingual Rev C.indd 2 9/24/2013 2:31:57 PM

9/24/2013 2:31:57 PM

CONFIGURATION

Before mounting and wiring the QSS component system, determine which conﬁ guration you will use for

the speakers and crossover.

QSS Speaker

Conﬁ gurations ADVANTAGES CONSIDERATIONS

Coaxial great for space-limited applications

or when separate tweeter mounting

is not possible

high frequencies may not be as

prominent | tweeter output may

need to be increased at crossover

Separates optimal sound quality and improved

sonic imaging (with proper tweeter

mounting)

trickier install | vehicle must have a

good tweeter mounting location

QSS Crossover

Conﬁ gurations ADVANTAGES CONSIDERATIONS

Conventional 2-way easy install | ideal when available

ampliﬁ er channels are limited

audio ﬁ delity not quite as high as

bi-ampliﬁ ed conﬁ guration

Bi-ampliﬁ ed optimal sound quality; more efﬁ cient

usage of ampliﬁ er power

requires at least 4 ampliﬁ er

channels | slightly trickier install

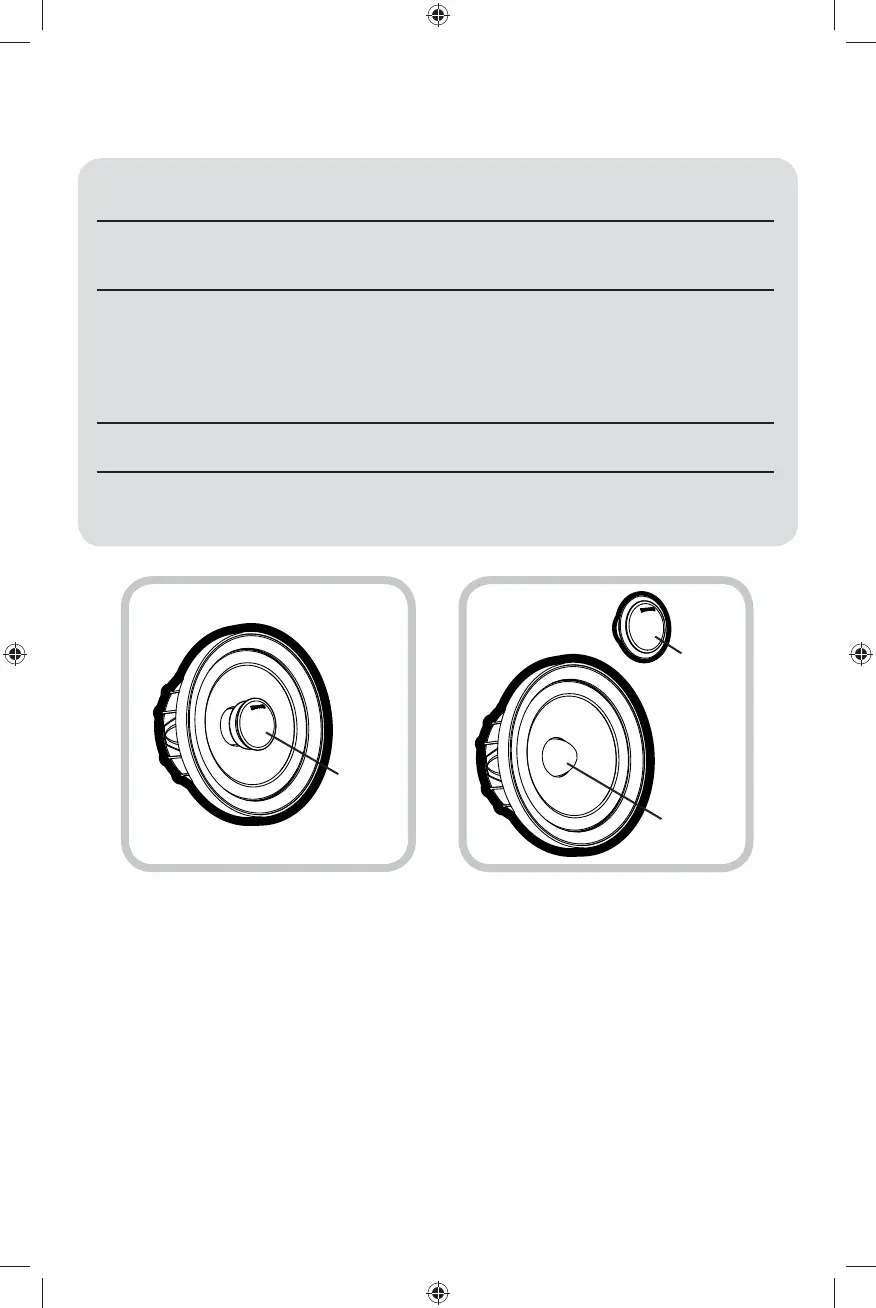

SPEAKER CONFIGURATION

The QSS component system comes packaged in a separates conﬁ guration.

To use a coaxial conﬁ guration, see and follow these steps:Fig. 1

1. Unscrew and remove the aluminum phase plug from the center of the woofer.

2. Screw the coaxial mounting adapter into the woofer in place of the phase plug.

3. Screw the tweeter into the tweeter post.

4. Thread the tweeter’s lead wires through the center of the woofer.

5. Snap the tweeter post onto the coaxial mounting adapter.

6. Rotate the tweeter clockwise for the most appealing position.

7. Secure the tweeter’s lead wires using the clip on the underside of the woofer.

Coaxial Conﬁ guration Separates Conﬁ guration

tweeter

phase plug

2014 QSS Multilingual Rev C.indd 3

2014 QSS Multilingual Rev C.indd 3 9/24/2013 2:31:58 PM

9/24/2013 2:31:58 PM
