Sida 1/40
QSS COMPONENT SYSTEM
Owner’s Manual | English
Manual del Propietario | Español
SISTEMA DE ALTAVOCES COMPONENTES QSS
Benutzerhandbuch | Deutsch
QSS-KOMPONENTENSYSTEM
Manuel d’utilisation | Française
SYSTÈME À COMPOSANTS QSS
QSS COMPONENT SYSTEM
QSS65 | QSS67
2014 QSS Multilingual Rev C.indd 1
2014 QSS Multilingual Rev C.indd 1
2014 QSS Multilingual Rev C.indd 1
2014 QSS Multilingual Rev C.indd 1
2014 QSS Multilingual Rev C.indd 1 9/24/2013 2:31:40 PM
9/24/2013 2:31:40 PM
9/24/2013 2:31:40 PM
9/24/2013 2:31:40 PM
9/24/2013 2:31:40 PM
2
QSS COMPONENT SYSTEM
Owner’s Manual
The KICKER QSS-series component systems offer unmatched audio fi delity for vehicle applications. Whether you’re
confi guring the ultimate multi-speaker and subwoofer surround system or simply upgrading from dull, lifeless factory
speakers, the QSS component systems deliver the most pleasing full-range sound on the market today! Key features of
our highest-end component systems include:
Authorized KICKER Dealer:
Purchase Date:
Speaker Serial Number:
Model QSS65 QSS67
Woofer [in, mm] 6-1/2, 160 6-3/4, 165
Tweeter [in,mm] 1-3/16, 30 1-3/16, 30
Dome Material Tetoron® Tetoron®
Rated Impedance [Ω] 4 4
Peak Power Handling [ Watts] 180 200
Continuous Power Handling [Watts RMS] 90 100
Sensitivity [1W, 1m] 86dB 87dB
Frequency Response [Hz] 50–22k 40–22k
Woofer Mounting Hole Diameter [in, mm] 5-1/16, 129 5-7/16, 138
Woofer Bottom Mount Depth [in, mm] 2.5, 63.5 2.5, 63.5
Flush Mount Tweeter Hole Diameter [in,mm] 1-13/16, 46 1-13/16, 46
Flush Mount Tweeter Depth [in,mm] 1-1/8, 29 1-1/8, 29
High Pass [dB], at Frequency [Hz] 24, 2800 24, 2800
Low Pass [dB], at Frequency [Hz] 12, 2800 12, 2800
High Frequency Output Attenuation [dB] 0, +3, +6 0, +3, +6
MODELS: QSS65 / QSS67
Crossover Woofer Tweeter
Zobel Impedance correction to fl atten
impedance network
Revolutionary surround design maximizes
cone area, maintains standard cutout size
Pressed polyfi l inserted behind the
dome for acoustic dampening
Mylar capacitors and audiophile-grade air core
inductors
Copper shorting ring on the pole piece to
reduce distortion
Dual Neodymium magnets with
tuning vent
Bi-amplifi cation capable Polished back plate Dupont Tetoron composite dome
Asymmetrical circuit design Tri-tech cone design Open wire mesh-grill
Brushed aluminum base heat sink Aluminum phase plug Sealed and tuned chamber
Balanced tweeter attenuation Copper-clad aluminum coil wire Copper-clad aluminum coil wire
Heatsinked resistors for increased power-
handling
Ultra-durable Spiral Tinsel leads, woven
through the duo-wave spider
Acoustic cavity coupled to magnet
reduces internal refl ections
Dedicated attenuation jumpers (0, +3 or +6
dB) for a clean connection with less resistance
Strongest available cast aluminum basket,
increasing magnetism
Enclosure volume allows for
lower frequencies, better off-axis
response
Illuminated tweeter protection Nickel-plated, spring-loaded terminals Extended Tweeter post
PERFORMANCE
2014 QSS Multilingual Rev C.indd 2
2014 QSS Multilingual Rev C.indd 2
2014 QSS Multilingual Rev C.indd 2
2014 QSS Multilingual Rev C.indd 2
2014 QSS Multilingual Rev C.indd 2 9/24/2013 2:31:57 PM
9/24/2013 2:31:57 PM
9/24/2013 2:31:57 PM
9/24/2013 2:31:57 PM
9/24/2013 2:31:57 PM
3
CONFIGURATION
Before mounting and wiring the QSS component system, determine which confi guration you will use for
the speakers and crossover.
QSS Speaker
Confi gurations ADVANTAGES CONSIDERATIONS
Coaxial great for space-limited applications
or when separate tweeter mounting
is not possible
high frequencies may not be as
prominent | tweeter output may
need to be increased at crossover
Separates optimal sound quality and improved
sonic imaging (with proper tweeter
mounting)
trickier install | vehicle must have a
good tweeter mounting location
QSS Crossover
Confi gurations ADVANTAGES CONSIDERATIONS
Conventional 2-way easy install | ideal when available
amplifi er channels are limited
audio fi delity not quite as high as
bi-amplifi ed confi guration
Bi-amplifi ed optimal sound quality; more effi cient
usage of amplifi er power
requires at least 4 amplifi er
channels | slightly trickier install
SPEAKER CONFIGURATION
The QSS component system comes packaged in a separates confi guration.
To use a coaxial confi guration, see and follow these steps:Fig. 1
1. Unscrew and remove the aluminum phase plug from the center of the woofer.
2. Screw the coaxial mounting adapter into the woofer in place of the phase plug.
3. Screw the tweeter into the tweeter post.
4. Thread the tweeter’s lead wires through the center of the woofer.
5. Snap the tweeter post onto the coaxial mounting adapter.
6. Rotate the tweeter clockwise for the most appealing position.
7. Secure the tweeter’s lead wires using the clip on the underside of the woofer.

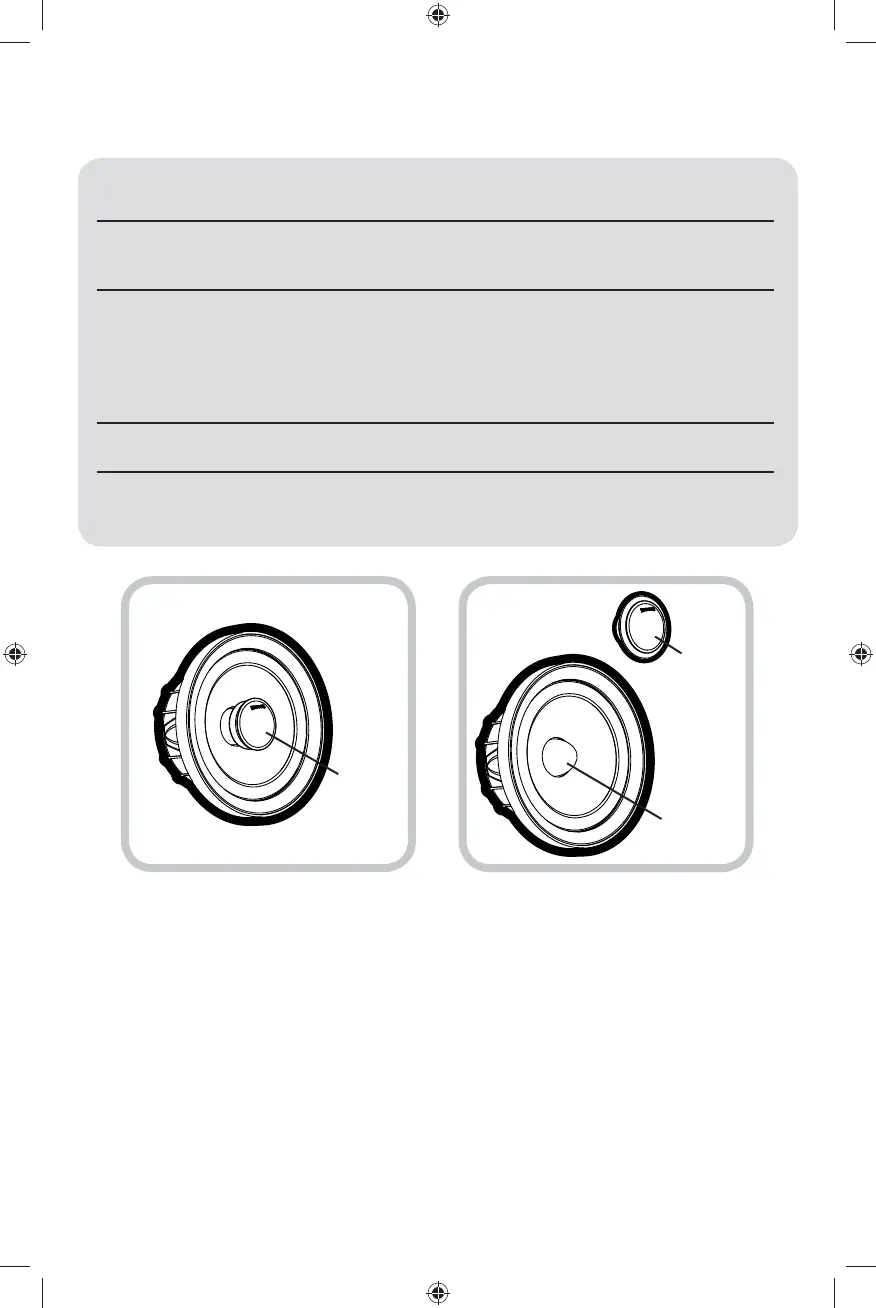

Coaxial Confi guration Separates Confi guration
tweeter
tweeter
phase plug
2014 QSS Multilingual Rev C.indd 3
2014 QSS Multilingual Rev C.indd 3
2014 QSS Multilingual Rev C.indd 3
2014 QSS Multilingual Rev C.indd 3
2014 QSS Multilingual Rev C.indd 3 9/24/2013 2:31:58 PM
9/24/2013 2:31:58 PM
9/24/2013 2:31:58 PM
9/24/2013 2:31:58 PM
9/24/2013 2:31:58 PM
