SAVE THESE INSTRUCTION

INSTALLATION AND MAINTENANCE

DANGER !!

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY

DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY

K701-1-DTSB

AUTONOMOUS

DUAL TIMED STAT

Speciﬁcations:

1 Pole 3 Wire

Power Supply: 120 VAC

Program Backup

Max Range: 1920 @ 120V (16A)

Manual Temperature Adjustment: 55-74°F (13-23°C)

Temperature Display Range: 32-122°F (0-50°C)

Differential: 1°F (.5°C)

Adjustable Display Offset: 1-18°F (1-5°C) Lower

Temperature Control Range: 40-74°F (4-23°C)

Tenant Temperature Range: 55-74°F (13-23°C)

Anti-Freeze Low setting: 40°F (4°C)

Set Back Timings: Minor, Hrs: 1,2,3,4,8,12,16

Major, Hrs:12,24,36,48,60

Setback Temperatures:

Minor, 66,62,58°F. (19,17,14°C)

Major, 55,52,40°F. (13,11,4°C)

WARNING

READ CAREFULLY - These instructions will help prevent difﬁculties that might arise during thermostat installation. Studying the instructions ﬁrst may save

considerable time and money later. Observing the following procedures will keep installation time to a minimum. Save these instructions for future use.

2 ) Up Temperature Button

4 ) Down Temperature Button

C ) Heating ON LCD Indicator

D ) Manual Setting Icon

E ) Preset Temperature Display

F ) ECO Setback Indicator

(Illuminates When Operating

with Set Temp Under 62°F/17°C)

G ) Room Temperature Display

H ) Temperature Offset Display Compensation

Features of Front Display and Controls

Product Applications

K701-1-DTSB Autonomous Dual Timed Setback is designed to be used where an Automatic timed electric heat setback is needed and a second lower setback for

longer away times. This is typically used in College Dormitory’s, Motels, Temporary housing, anywhere the tenant is not ﬁnically responsible for the cost of

heating and has an active life pattern. This guarantees and reinforces good energy saving habits and places the burden on the Tenant for the higher heating

levels and their efforts to remain above a predeﬁned reasonable and typically comfortable level.

Be safe and smart, electricity can cause severe injury or death.

If you are uncomfortable hire an electrician for the project

This Autonomous Dual Timed Setback is for small fan electric heater, baseboards, radiant ceiling, wall panel heaters, cove heaters, or any 120 Line voltage

resistance heating systems that do not have an electric motor over 1/3 hp. The thermostat will be warm to the touch on top. This is normal operation and also

provides air currents across the face of the thermostat that better help it sense room temperature.

KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com

FOR INDOOR USE ONLY

6” Leads

REV 7-27-17

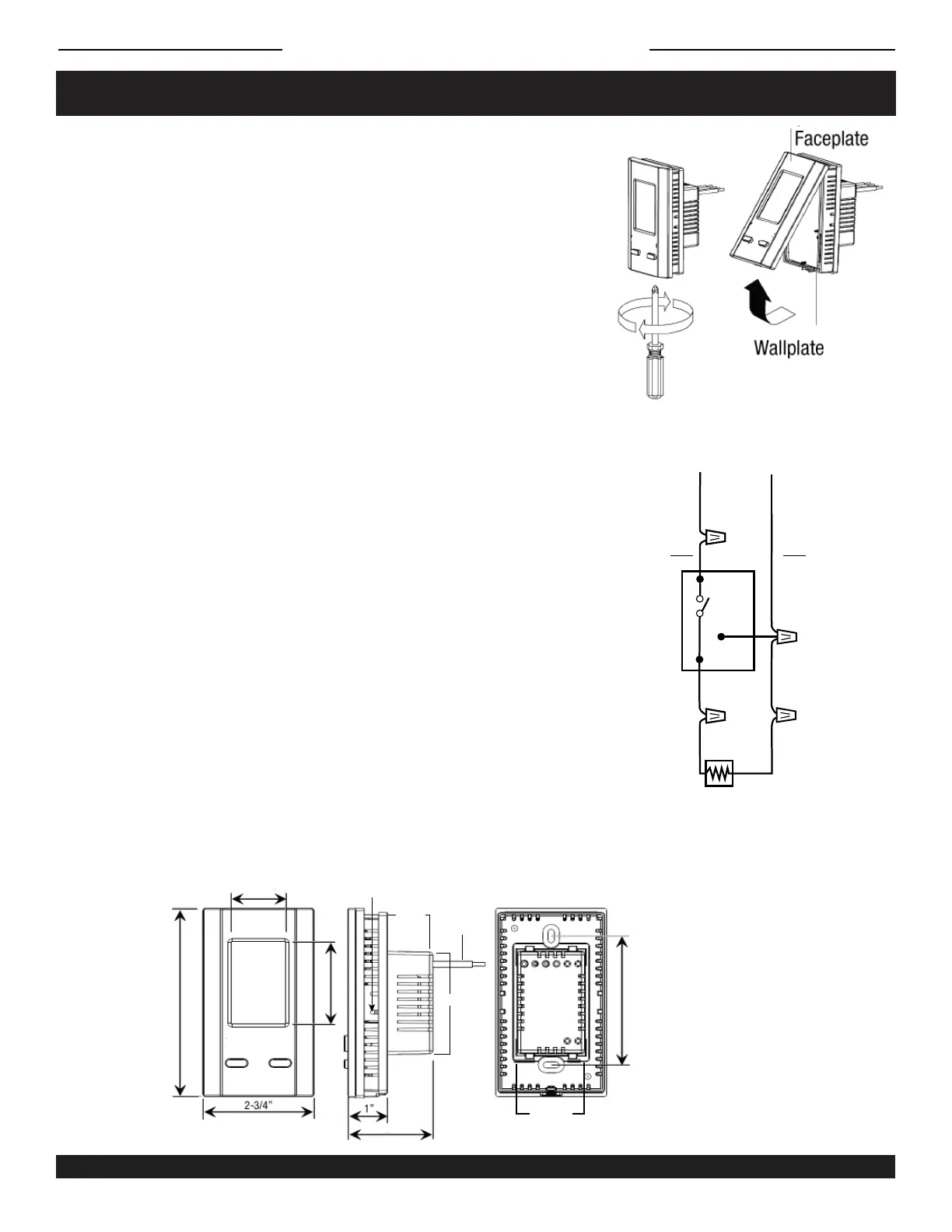

Wiring Requires a Phillips Screwdriver

1. Disconnect power supply to prevent electrical shock or damage to the product.

2. Loosen screw on the bottom of plastic housing.

3. Run line voltage wiring from the main panel to the j Box location for the thermostat

and another set off to the Heater/s you are controlling.

4. Connect output terminals to heating system in accordance with instructions from the

240 volt electric heat system.

5. Make sure your wire nuts are very tight or they can melt. Mount Stat to the J box making sure

it is COMPLETELY RECESSED into the junction without pinching wires and ﬂat to the wall without

gaps. NO WIRES SHOULD BE EXPOSED outside the metal or plastic junction box. Do not overtighten

the J Box mounting screws. Display or circuit boat could be damaged. Carefully replace cover

aligning the 3 pins that mate up to the front cover and screw the cover on with a phillips tip driver.

SAVE THESE INSTRUCTION

WIRING INSTRUCTIONS

K701-1-DTSB Wiring Diagram

KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com

REV 7-27-17

1-5/16”

5/32”

4-7/8”

2-1/16”

1-1/8”

2-11/16”

6” Leads x4

3-3/8”

1-11/16”

DO NOT USE

IN SHOWER AREAS

WHERE WATER CAN

SPLASH ON

THERMOSTAT

NOT OUTDOOR

RATED

Operation Instructions

1. The Autonomous Dual Timed Setback series thermostat default is programmed to

automatically set back to 66°F/19°C in 2 hrs. and 55°F/13°C in 48 hrs.

See Chart for other options.

Manual Temperature Adjustment Range: 55°-74°F (13-23°C)

1. Press the “Up” and or “Down” arrow key and LCD will show a ﬂashing

temperature with “Set Temp” symbol.

2. Proceed by pressing the “Up” or “Down” arrow key to set the desired temperature.

Every time you press the “Up” or “Down” arrow key, the temperature will change

the temperature value by 1°F/1°C.

3. When you’ve completed setting the desire temperature, wait 3 seconds until

the LCD stops ﬂashing and the thermostat will start operation and backlite will turn off.

When the room temperature reaches the desired setting, the thermostat will cycle

to maintain the set temperature for the time programmed.

Display Temperature Offset Compensation:

In unusual cases your Autonomous Dual Timed Setback may register “Room Temperature” higher than

what the actual temperature is. You can adjust the registering value by using Temperature Compensation value.

1. Press and hold the “Up” and “Down” arrow keys at same time for 5 seconds.

2. The initial value is 0°F/0°C. Press the “Up” or “Down” arrow key to adjust the value.

3. After adjustment value has been completed, do not press any key, wait for 10 seconds until the display

returns to normal operation.

NOTE: The TimerStat can only adjust the displayed temperature compensation downward by up to 18° F/10°C.

Reset Your Autonomous Dual Timed Setback:

In case your thermostat is not functioning correctly, (possibly due to a static charge) you can reset the unit back to the factory settings.

Locate the RESET button on the right side of the unit, lightly press the button with a pointy object and the unit will reset.

Thermostat Dimensions Reset

1 Pole 3 Wire

NO GROUND

REQUIRED

POWER SUPPLY

NEUTRAL

WHITE

LOAD

RED

HEATER

LINE

BLACK

WHITE

Manual Temperature Adjustment Range:

55°-74°F (13-23°C)

KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com

REV 7-27-17
