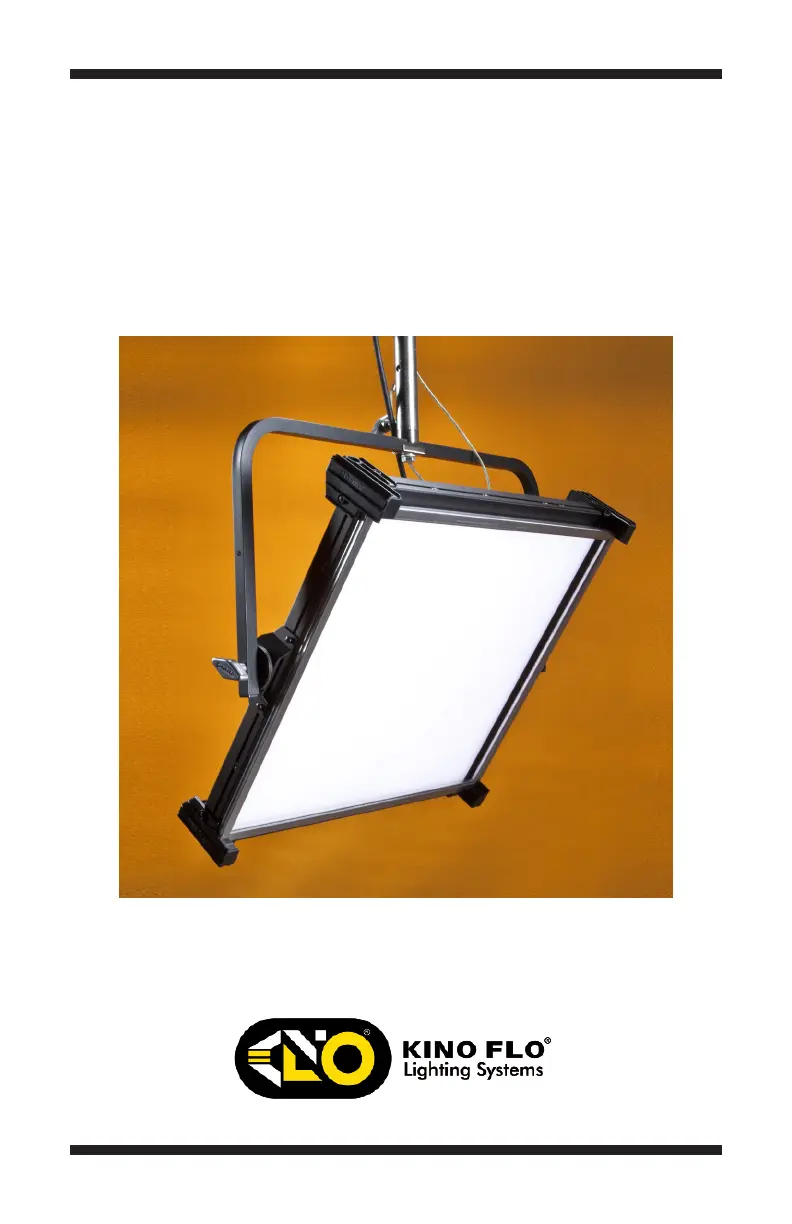

Operation Manual
Celeb 401 DMX LEDQ
Part No. 3100086 Rev 01 07-07-2015
®
Celeb 401Q DMX LED Fixtures
Included w/ all Celeb 401Q Models
CEL-401Q-120U
Celeb 401Q DMX Yoke Mount, Univ 120U
CEL-401Q-230U
Celeb 401Q DMX Yoke Mount, Univ 230U
CEL-401QP-120U
Celeb 401Q DMX Pole-Op, Univ 120U
CEL-401QP-230U
Celeb 401Q DMX Pole-Op, Univ 230U
LVR-CE490-Q
Celeb 401Q Louver-Honeycomb, 90° (Included)
GFR-CE4-Q
Celeb 401Q Gel Frame (Included)
KIT-C401Q-120U
Celeb 401Q DMX Yoke Mount Kit, Univ 120U
KIT-C401Q-230U
Celeb 401Q DMX Yoke Mount Kit, Univ 230U
Kit Contents: Dimensions:
1 Celeb 401Q DMX Yoke Mount 34.5 x 33 x 8”
1 Jr. Pin (88 x 84 x 22cm)
1 Ship Case
Weight:
52 lb
(24kg)
Celeb 401Q DMX Control Panel
A) Kelvin Preset Buttons: Kelvin buttons come preset at the factory.
Factory defaults left to right are: 2700K, 3200K, 4500K, 5500K, 6500K.
User can also use these preset buttons to store custom Kelvin settings.
B) DMX ADDRESS – Use to set DMX address. The Celeb 401Q
automatically assigns 2 channels. First Channel controls Dimming;
Second Channel controls Kelvin.
C) KELVIN / DIM: In KELVIN mode, an amber light appears to the left of
the button and Kelvin is displayed. Press the button again to change to
DIM mode. In DIM mode, a green light will appear to the left of the button
and Dim level is displayed.
D) Display: Provides Kelvin, Dim level and software revision data.
E) LOCK / RESET: LOCK In mode, an amber light is displayed to the left
of the button. In mode, the indicator light is green. To reset to RESET
factory presets, hold the button for 5 seconds. LOCK / RESET
F) On / Off: On Off = Green light displayed. = Amber light displayed.
G) Kelvin / Dimmer Knob: Manually adjusts Kelvin or Dim levels.
Press the knob to toggle between ne and coarse adjustments.
Note: AUTO TERMINATE Each Celeb 401Q DMX xture has an “ ” feature.
The last xture that does not have an XLR cable attached to the
DMX “Out” port will automatically terminate.
IMPORTANT!
The dimmer board/light console should have its channel set to LINEAR light output
response. (LINEAR response is the default setting on most dimmer boards.)
