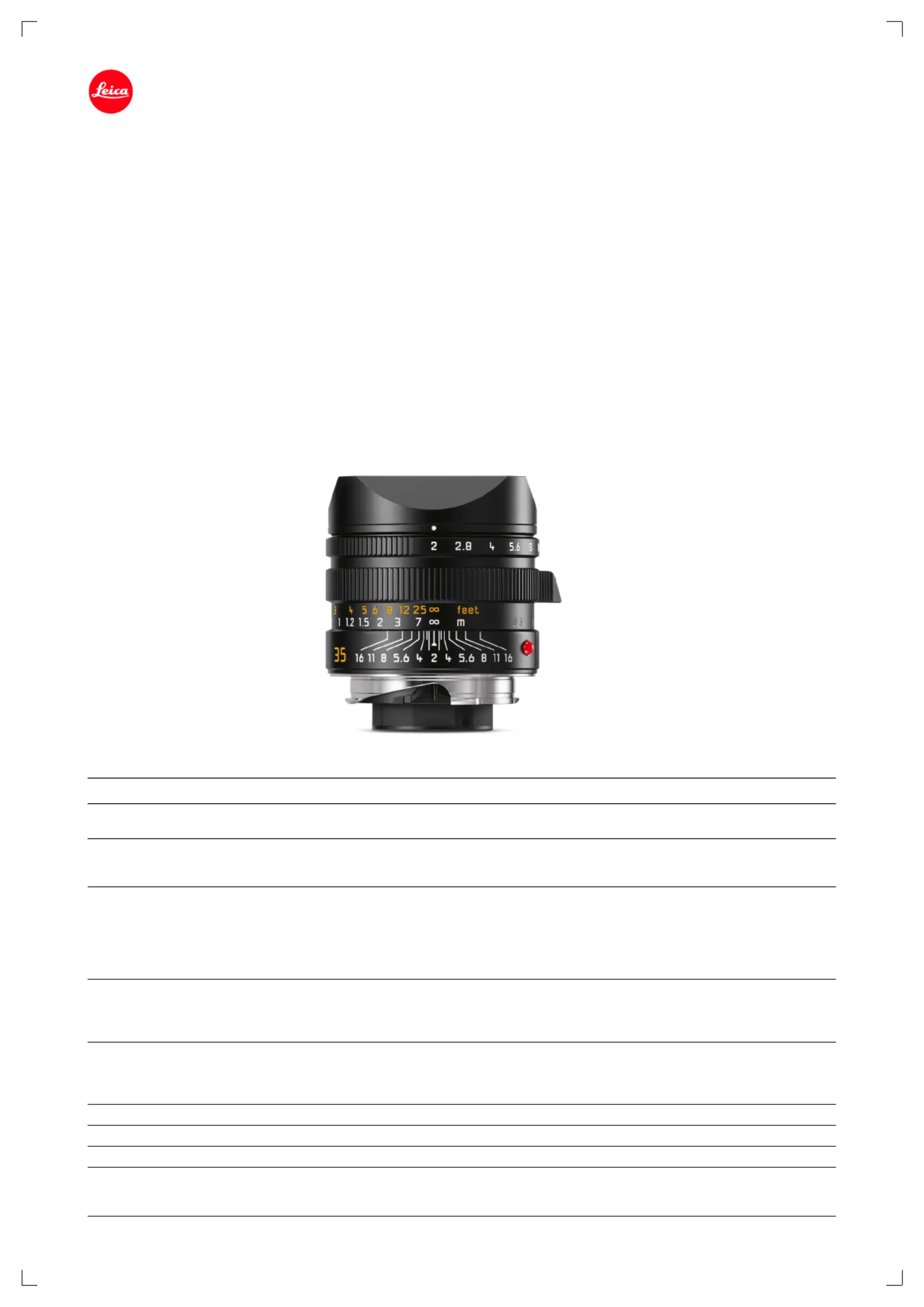

LEICA 35 mm f/2 ASPH. SUMMICRON-M

Technical Data.

Illustrations 1:1

Lens Leica Summicron-M 35 mm f/2 ASPH.

Order number Black: 11 673, silver: 11 674

Angle view

(diagonal, horizontal, vertical)

For 35 mm (24 x 36 mm): approx. 63°/54°/38°;

for M8 (18 x 27 mm): approx. 50°/42°/29°

Optical design Number of elements/groups: 7/5

Entrance pupil for bayonet: 18,4 mm

Focusing range: 0,7 m to inﬁnity

Distance setting Scala: combined meter-/feet-increments

Smallest object ﬁeld: for 35 mm: 420 x 630 mm, for M8: 315 x 472 mm

Highest reproduction ratio: 1:17,4

Diaphragm Setting/type: preset, with click-stops, half values available

Smallest aperture: f/16

Number of aperture blades: 11

Bayonet Leica M quick-change bayonet

Filter thread E39

Lens hood Available, screwable (supplied)

Dimensions and weight Lenght: approx. 35,7/54,4 mm (without/with lens hood)

Largest diameter without lens hood: approx. 53 mm

Weight: approx. 252 g/287 g (without/with lens hood and covers)

Page 2 of 7

As at January 2016

Speciﬁcations are subject to change without notice

Leica Camera AG

Am Leitz-Park 5

35578 WETZLAR

GERMANY

Telephone +49(0)6441-2080-0

Fax +49(0)6441-2080- 333

www.leica-camera.com

LEICA 35 mm f/2 ASPH. SUMMICRON-M

Aspherical lens

ENGINEERING DRAWING LENS SHAPE

Excellent sharpness, high contrast and a very good resolving power over the entire focusing range are evident at

full aperture. With its aperture stopped down modestly to f/4, this versatile lens delivers a maximum of resolving

power and contrast. It is all the more impressive because of its virtually perfect absence of distortion. That makes

it a world-class lens among fast wide-angle lenses. In spite of its high speed and its superb imaging performance,

it is surprisingly small. Every Leica M camera fitted with this lens becomes a highly compact and elegant unit.

Illustrations 1:1

0 5 10 15 20

Y' [mm]

100

[%] Aperture Stop 2.0

0 5 10 15 20

Y' [mm]

100

[%] Aperture Stop 5.6

0 5 10 15 20

Y' [mm]

100

[%] Aperture Stop 2.8

Page 3 of 7

As at January 2016

Speciﬁcations are subject to change without notice

Leica Camera AG

Am Leitz-Park 5

35578 WETZLAR

GERMANY

Telephone +49(0)6441-2080-0

Fax +49(0)6441-2080-333

www.leica-camera.com

LEICA 35 mm f/2 ASPH. SUMMICRON-M

Sagittal structures

Tangential structures

MTF GRAPHS The MTF is indicated both at full aperture and at f/5.6 at long taking distances (infinity). Shown is the contrast in percentage for 5, 10,

20 and 40 lp/mm accross the height of the 35 mm film format, for tangential (dotted line) and sagittal (solid line) structures, in white

light. The 5 and 10 lp/mm will give an indication regarding the contrast ratio for large object structures. The 20 and 40 lp/mm records

the resolution of finer and finest object structures.

MTF-GRAPHS
