LEICA SUMMILUX-M 35 f/1.4 ASPH.

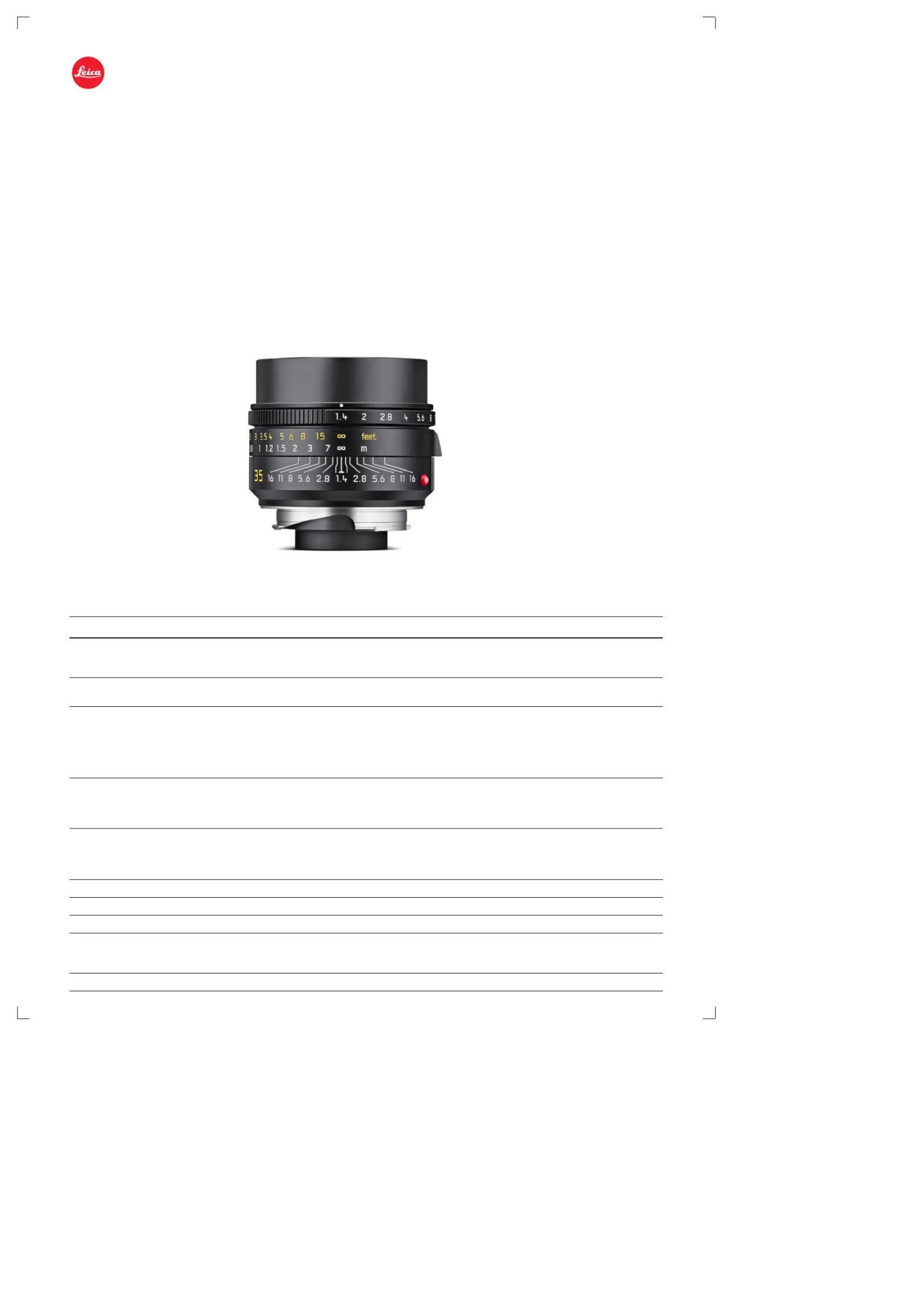

Lens Leica Summilux-M 35 f/1.4 ASPH.

Order Number

Silver, chrome-plated

Black, anodized

11 727

11 726

View angle (diagonal/horizontal/vertical)

Full-frame (24 x 36 mm) 62.5°, 53.6°, 37.2°

Lens system

Number of lenses/assemblies

Number of aspherical surfaces

Position of the entrance pupil before the

bayonet

Focus range

9/5

16 mm

0.4 m to inﬁnity

Focusing

Scale

Smallest object ﬁeld

Largest scale

Combined scale meter (m)/foot (ft)

Full-frame: 213 x 319 mm

1:8.9

Aperture

Setting/Function

Smallest aperture

Number of aperture blades

Lock blade, with half-increment lock settings

Bayonet Leica M bayonet with 6-bit encoding

Filter thread 46

Lens hood Pull-out

Dimensions

Length

Diameter

Approx. 46 mm

Approx. 58 mm

Weight Approx. 338 g

Technical Data.

Page 2 of 4 I Version date August 2022 I Subject to changes in design and production.

Leica Camera AG I Am Leitz-Park 5 I 35578 WETZLAR I GERMANY I Phone +49(0)6441-2080-0 I Fax +49(0)6441-2080-333 I www.leica-camera.com

LEICA SUMMILUX-M 35 f/1.4 ASPH.

Figure 1:1

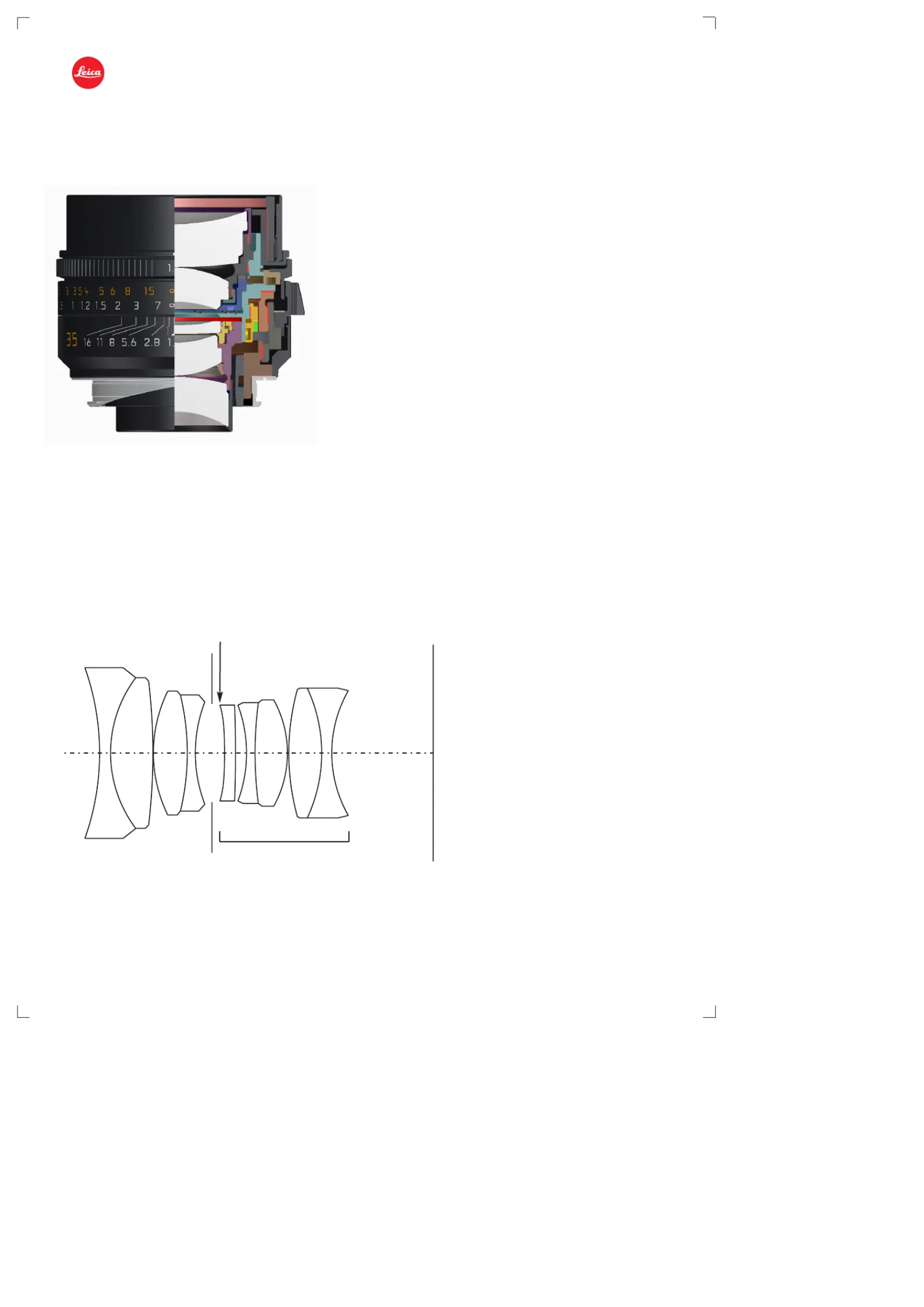

TECHNICAL DRAWING

LENS CUT

ASPH.

Flo in Elemenat g t

Page 3 of 4 I Version date August 2022 I Subject to changes in design and production.

Leica Camera AG I Am Leitz-Park 5 I 35578 WETZLAR I GERMANY I Phone +49(0)6441-2080-0 I Fax +49(0)6441-2080-333 I www.leica-camera.com

LEICA SUMMILUX-M 35 f/1.4 ASPH.

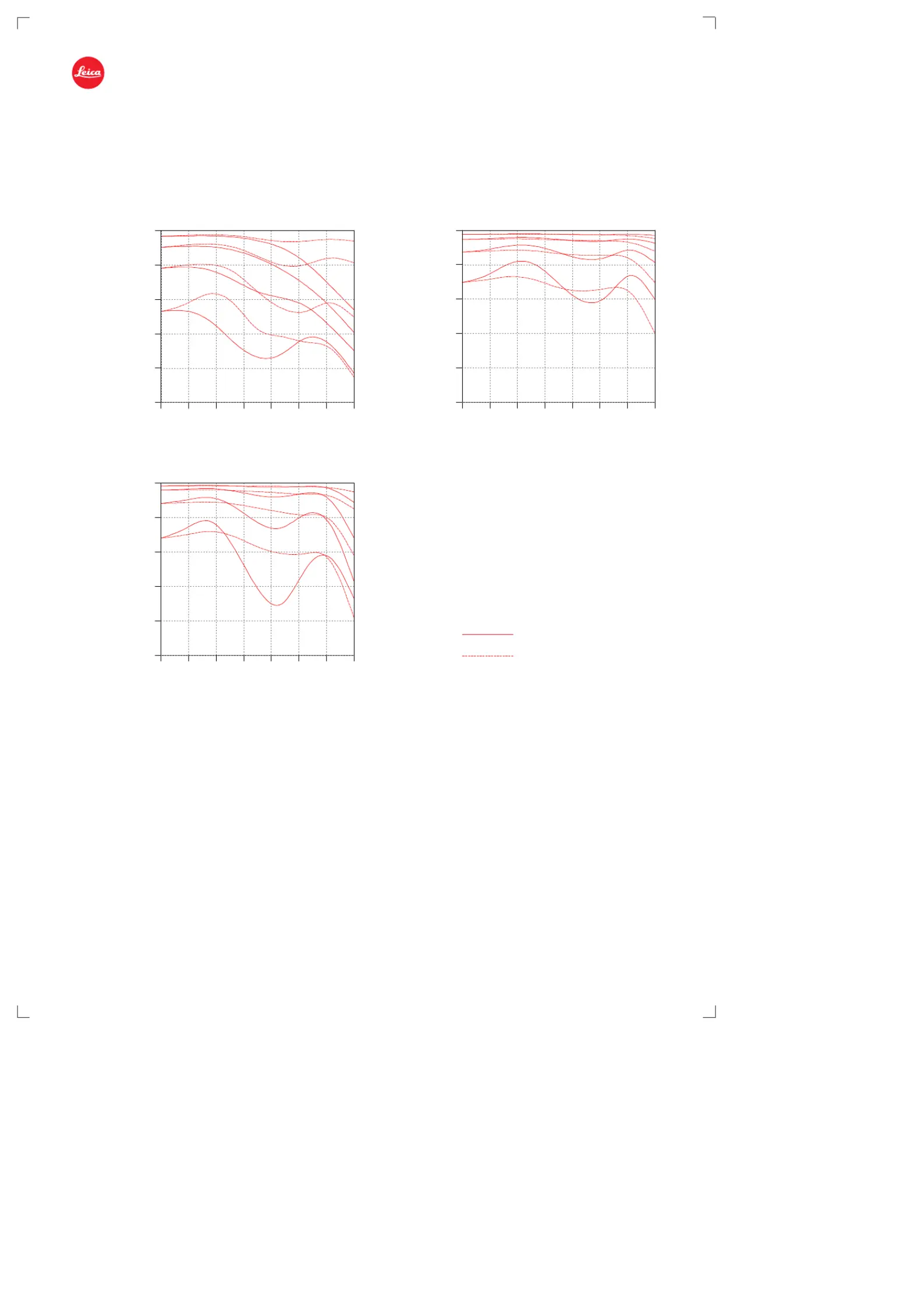

MTF DIAGRAMS

Sagittal structures

Tangential structures

MTF CURVES

The MTF is shown in each case for the max. aperture of 2.0, as we as for 2.8 and 5.6 for long focus distances (inﬁnity). The contrast is plotted in percentages for 5,

10, 20, 40 lines/mm over the height of the format for tangential (dashed line) and sagittal structures (continuous line) for white light. The plots for 5 and 10 lines/mm

oﬀer an impression of the contrast behavior for coarser object structures, while the 20 and 40 lines/mm plots document the resolution capability for ﬁne and ﬁnest

object structures.

0 3 6 9 12 15 18 21

Y'[mm]

100

[%]

0 3 6 9 12 15 18 21

Y' [mm]

100

[%]

0 3 6 9 12 15 18 21

Y'[mm]

100
