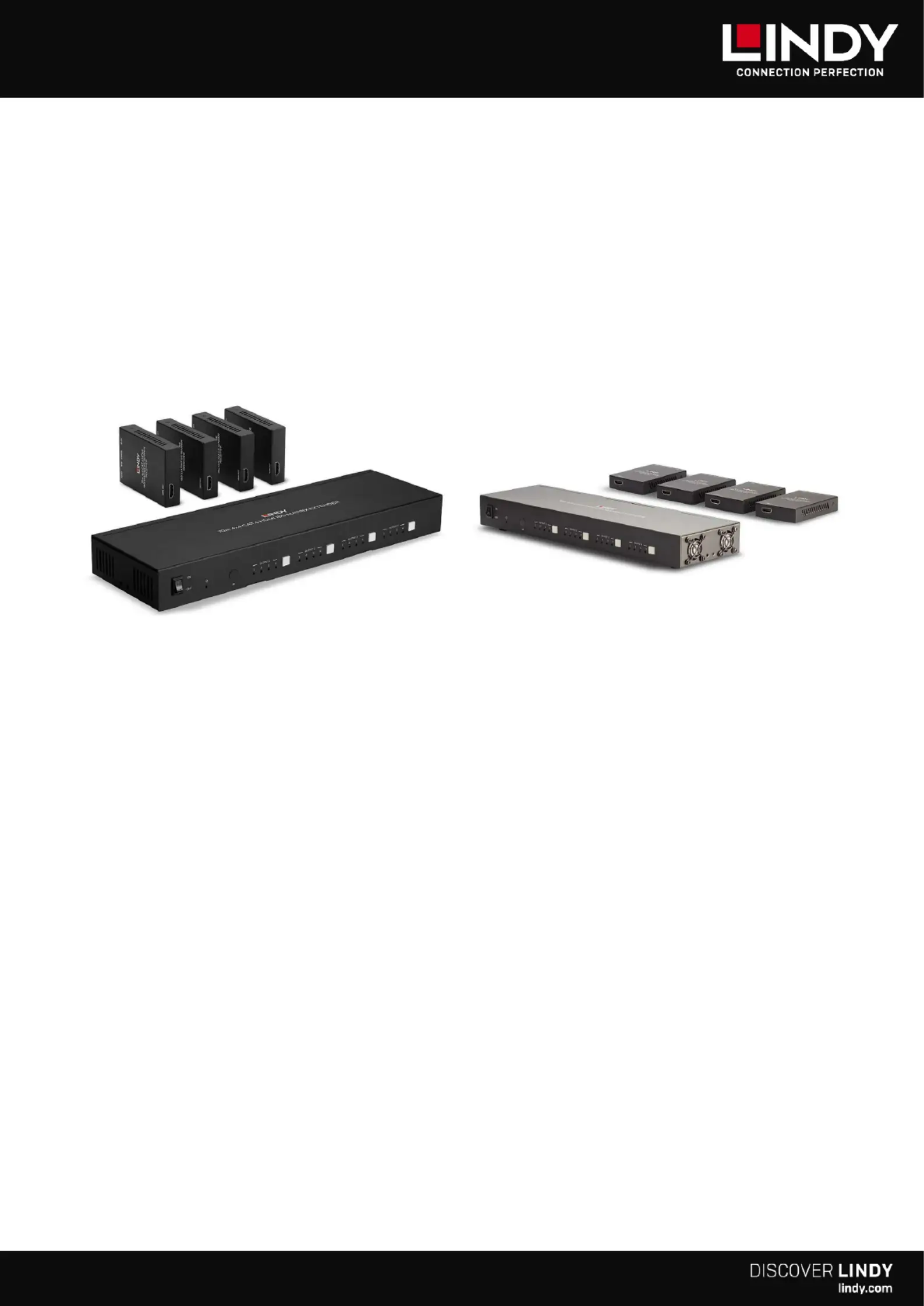

38328
70m Cat.6 4x4 HDMI 4K60 & IR Matrix Extender
Extend 4K@60Hz resolutions from 4 sources to 4 included receivers
Distribute 4K HDMI signals to up to 4 displays in multiple locations from 4 different sources
Supports resolutions up to 4K@60Hz, with additional support for HDR
Features 4 HDMI outputs on the transmitter for local monitoring, which run simultaneously with the extension output
Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation
2-year warranty
The Lindy 70m Cat.6 4x4 HDMI 4K60 Matrix Extender is a high-perfomance, professional solution for distribution of 4K HDMI
signals to multiple displays using standard Cat.6 network cables from 4 separate HDMI sources.
Professional HDMI Content Distribution
This 4x4 matrix allows for the distribution of HDMI content to 4 separate locations, using the included receivers, at up to 70m in
distance, perfect for splitting or switching content to various displays in sports bars, events or residential home cinemas. Each Cat.
6 extension output also has a simultaneous HDMI output for local monitoring for each zone, or for a larger install with closely
located displays. Each port also support simple independent downscaling to 1920x1080, for consistently ensuring peak
performance on a variety of displays. Professional EDID management ensures maximum compatibility with both the source
devices and displays.
The following distance and resolution combinations are supported:
- 70m with Cat.6 cable: 1920x1080@60Hz 4:4:4 8bit, 3D@1920x1080
- 40m with Cat.6A cable: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
•
•
•
•
•
| TECHNICAL DATA SHEET
Eye-Catching 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this matrix provides exceptional clarity of high-quality video, including
movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is supported, alongside higher peak
brightnesses and deeper blacks for an enhanced dynamic contrast. This provides an engaging visual experience for the viewer in a
variety of different applications including home cinema installations, larger distribution in educational buildings or commercial
advertising and displays.
Flexible Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be
situated at the source side on the setup, while push buttons on the main unit provide easy control at the transmitter side. RS-232
and Ethernet connections also provide the ability for integration into larger control systems. An in-built Web-Gui also ensures very
simple management using a connected PC.
Simultaneous PoC Distribution
The Cat.6 HDMI 18G Matrix also supports PoC (Power over cable) allowing for power to be distributed alongside audio and video
over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and
time-saving setup at the receiver locations.
Please
Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid
core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum
distances.
Speci cationsfi
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance: 70m (229.66ft)
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: EDID Management: Pre-set or Copy Functionality
Supported Audio: HDMI Audio Pass-through
Separate Audio Ports: -
IR Support: 20~60KHz
CEC Support: Pass-through
Serial Interface: RS-232
Transmission Protocol: -
Transmission Medium: 1 x Cat.6 each port
Laser Class (only for Fibre): -
Wavelength (only for Fibre): -
Chipset: GSV
Special Features: RS-232 & Telnet Control, Mirrored HDMI Outputs, Power over Cable, 4K to 1080 Downscaling Per Port
Connectors
Transmitter Input: 4 x HDMI Type A (Female)
Transmitter Output: 4 x HDMI Type A (Female), 4 x RJ-45 (Female), 4 x 3.5mm IR (Female), RJ-45 LAN Control (Female), 3-Pin
Phoenix Connector (Female)
Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
| TECHNICAL DATA SHEET
Receiver Output: HDMI Type A (Female)
Bi-directional Ports: -
Power: 5.5/2.1mm
Physical Properties
Dimensions (approx.) WxDxH: Matrix Extender: 320x100x36mm (12.6x3.94x1.42in), Receiver: 61x88x18mm
(2.4x3.46x0.71in)
Housing Material: Metal
Net Weight: Matrix Extender: 0.95kg (2.09lb), Receiver: 0.14kg (0.31lb)
Operating Temperature : 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20-90% RH (non-condensing)
Power Requirements: 12VDC 2.5A
Colour: Black
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 393x88x271mm (15.47x3.46x10.67in)
Gross Weight: 2.58kg (5.69lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
70m Cat.6 4x4 HDMI 4K60 Matrix Extender
4 x Cat.6 HDMI Receiver
Multi-country Power Supply (UK, EU, US & AUS)
IR Remote with CR2025 Battery
4 x IR Emitter Cable, 1.5m
4 x Receiver Cable, 1.5m
RS-232 Male to Female Cable, 1.5m
3-Pin Phoenix Connector
10 x Mounting Ears
Lindy Manual
Purchasing Information
No.: 38328
EAN: 4002888383288
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
| TECHNICAL DATA SHEET
