Sida 1/12

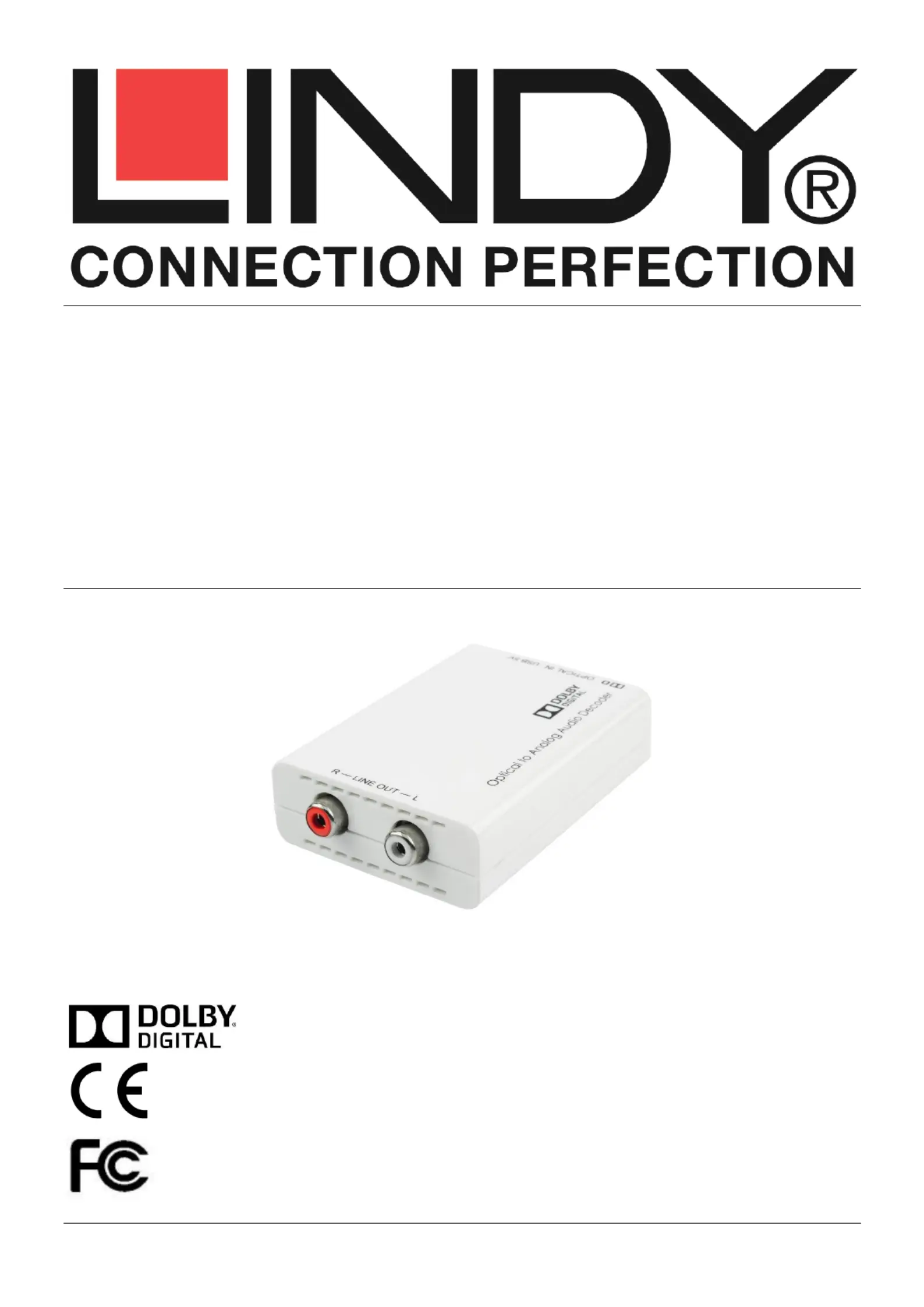

Optical Audio DAC

with Dolby® Digital Decoder

User Manual English

Benutzerhandbuch Deutsch

Manuel Utilisateur Français

Manuale Italiano

No. 70471

www.lindy.com

Tested to Comply with

FCC Standards

For Home and Oﬀice Use!

User Manual English

Introduction

Thank you for purchasing the LINDY Optical Audio DAC with Dolby® Digital Decoder. This DAC

provides the ideal solution for converting an optical digital audio signal to analogue stereo audio. With

audio sampling rate support up to 48 kHz (Dolby® Digital) / 96 kHz (LPCM) and I/O data rate support up

to 24-bit, it provides high quality sound conversion. The Dolby® Digital Decoder function guarantees that

Dolby® Digital audio signals are down-mixed to analogue stereo without loss of quality. This unit is

perfect for use in digital recording systems, computer audio systems or digital mixing consoles and can

be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-ray players

or computers without the need for a separate power supply.

Package Contents

 Optical Audio DAC with Dolby® Digital Decoder

 USB Mini-B Cable, 1m

 This manual

Features

 Optical digital audio signal input and conversion into analogue audio signal L/R output

 Supports uncompressed digital LPCM stereo or Dolby® Digital 5.1CH audio inputs

 LPCM audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)

 Dolby Digital audio sampling rates of 48 kHz

 Dolby Digital audio down-mixing to 2-channel audio

 Supports S/PDIF bitstream 24-bit of data for the left and right channels

 Compact, elegant design and easy to install

Speciﬁcation

 Optical DAC with Dolby Digital Decoder

 Input port: TOSLink Optical

 Digital Input Formats: LPCM 2CH and Dolby Digital 5.1 from Optical

 Supported LPCM Input Frequencies: 32/44.1/48/88.2/96KHz

 Supported Dolby Digital Input Frequencies: 48KHz

 Supported Audio Data Rate: 16/24 bit

 Output port: Phono Stereo L/R

 Phono Stereo L/R Output Impedance: 600 Ω

 Frequency Response: ±1db

 Total Harmonic Distortion <0.018%

 Signal to Noise Ratio >80db

 Power Consumption: 1.8W
