Sida 1/16

Symbols/Symboles/Symbole/Symboli/Symbolen/Símbolos/Símbolos/Symboler/Symboler/Symbolene/Symbolit/

Σύµβολα/Semboller/

• The followings show the symbols used for the tool. Be sure that you understand their meaning before use.

•Nous donnons ci-dessous les symboles utilisés pour l’outil. Assurez-vous que vous en avez bien compris la signification avant d’utiliser l’outil.

• Die folgenden Symbole werden für die Maschine verwendet. Machen Sie sich vor der Benutzung unbedingt mit ihrer Bedeutung vertraut.

• Per questo utensile vengono usati i simboli seguenti. Bisogna capire il loro significato prima di usare l’utensile.

• Voor dit gereedschap worden de volgende symbolen gebruikt. Zorg ervoor dat u de betekenis van deze symbolen begrijpt alvorens het

gereedschap te gebruiken.

• A continuación se muestran los símbolos utilizados con esta herramienta. Asegúrese de que entiende su significado antes de usarla.

• O seguinte mostra os símbolos utilizados para a ferramenta. Certifique-se de que compreende o seu significado antes da utilização.

• Nedenstående symboler er anvendt i forbindelse med denne maskine. Vær sikker på, at De har forstået symbolernes betydning, før

maskinen anvendes.

• Det följande visar de symboler som används för den här maskinen. Se noga till att du förstår deras innebörd innan maskinen används.

• Følgende viser de symblene som brukes for maskinen. Det er viktig å forstå betydningen av disse før maskinen tas i bruk.

• Alla on esitetty koneessa käytetyt symbolit. Opettele näiden merkitys, ennen kuin käytät konetta.

•Τα ακλουθα δείχνουν τα σύµβολα που χρησιµοποιούνται για το µηχάνηµα. Βεβαιωθείτε τι καταλαβαίνετε τη σηµασία τους

πριν απ τη χρήση.

•Aşağıdakiler makinanız için kullanılan sembolleri göstermektedir. Kullanmadan önce manalarını anladığınızdan emin olunuz.

•

GB Battery Charger

F Chargeur

D Ladegerät

I Carica batteria

NL Accuoplader

E Cargador de batería

P Carregador de bateria

DK Akku-ladeaggregat

S Batteriladdar

N Batterilader

SF Akkulataaja

GR Φορτιστής µπαταρίας

TR Pil şarj cihazı

❏Read instruction manual. ❏Læs brugsanvisningen.

❏Lire le mode d’emploi. ❏Läs bruksanvisningen.

❏Bitte Bedienungsanleitung lesen. ❏Les bruksanvisingen.

❏Leggete il manuale di istruzioni. ❏Katso käyttöohjeita.

❏Lees de gebruiksaanwijzing. ❏∆ιαβάστε τις οδηγίες χρήσης.

❏Lea el manual de instrucciones. ❏El kitabını okuyun.

❏Leia o manual de instruções. ❏

❏DOUBLE INSULATION ❏DOBBELT ISOLERET

❏DOUBLE ISOLATION ❏DUBBEL ISOLERING

❏DOPPELT SCHUTZISOLIERT ❏DOBBEL ISOLERING

❏DOPPIO ISOLAMENTO ❏KAKSINKERTAINEN ERISTYS

❏DUBBELE ISOLATIE ❏∆ΙΠΛΗ ΜΟΝΩΣΗ

❏DOBLE AISLAMIENTO ❏ÇİFT YALITIMLI

❏DUPLO ISOLAMENTO ❏

❏Indoor use only ❏Kun til indendørs brug

❏ ❏A utiliser à l’intérieur Får endast användas inomhus

❏Nur für trockene Räume ❏Må bare brukes innendørs

❏Da usare solo al coperto Saadaan käyttää ainoastaan sisätiloissa ❏

❏Alleen voor gebruik binnenshuis ❏Αποκλειστική χρήση εντς κλειστών χώρων

❏ ❏Usar sólo en interiores Yalnız kapalı mekanlarda kullanım

❏Usar só em interiores ❏

❏Ready to charge ❏Klar til opladning

❏Prêt à recharger ❏Färdig för laddning

❏Ladebereit ❏Klar til lading

❏Pronto per la carica ❏Valmis lataamaan

❏Gereed voor opladen ❏Ετοιµο για φρτιση

❏Preparación para la carga ❏Şarja hazır

❏Usar só em interiores ❏

❏Charging ❏Under opladning

❏En charge ❏Laddning

❏Akku wird geladen ❏Lading

❏ ❏In carica Lataaminen

❏Bezig met opladen ❏Φρτιση

❏Cargando ❏Şarji ediyor

❏A carregar ❏

DC1414

DC1804

電池充電器

電池充電器電池充電器

符號

閱讀此使用說明手冊時會遇到下列符號。下列所述符號供工具使用。使用前，請務必認清其含意。

請閱讀使用說明書

雙重絕緣

只能在室內使用

已需充電

正在充電

Note/Note/Achtung/Nota/Opmerkingen/Nota/Nota/Bemærk/Obs!/Merk/Huom!/Παρατήρηση/Not/

• The recycling method may differ from country to country, or state (province) to state (province). Consult with your nearest Makita

Authorized Service Center or Distributor.

• La méthode de recyclage peut varier suivant les pays ou suivant les états (régions). Consulter le Centre Makita Autorisé le plus proche

ou bien le distributeur.

• Die Art des Recycling kann von Land zu Land unterschiedlich sein. Bei Fragen wenden Sie sich an eine autorisierte Werkstatt oder an

den nächstgelegenen Makita-Kundendienst.

• Il modo di riciclare le batterie varia da paese a paese, o da zona a zona. Consultatevi con il più vicino Centro d’Assistenza o Distributore

della Makita.

• De recycle-methode kan van land tot land en zelfs van provincie tot provincie verschillen. Wend u zich hierover tot de dichtstbijzijnde

erkende Makita Service Center of Agent.

• La manera de reutilizarlas puede ser que difiera de país a país o de estado (provincia) a estado (provincia). Indague en el Centro de

Servicio Makita autorizado más cercano o recurra a su distribuidor.

• O método de reciclagem pode ser diferente de país para país ou de estado. Consulte o Serviço de Assistência MAKITA autorizado ou o

seu distribuidor mais próximo.

• Genbrugs- og indsamlingsmetoden kan være forskellig fra land til land, eller amt (kommune) til amt (kommune). Kontakt Deres

nærmeste autoriserede Makita service-center eller distributør for detaljer.

• Sättet för resursåtervinning är olika i olika länder (distrikt eller kommuner). Rådfråga den närmaste Makita-serviceverkstaden eller din

återförsäljare.

• Resirkuleringsmetoden kan variere fra ett land (bygd, by, distrikt) til et annet. Rådfør deg derfor med nærmeste service center eller

forhandler.

• Kierrätysmenetelmä on erilainen eri maissa (alueilla). Kysy tarkemmat tiedot valtuutetusta Makita-huoltamosta tai jälleenmyyjältä.

•Η µέθοδος ανακύκλωσης µπορεί να διαφέρει απ χώρα σε χώρα ή απ Πολιτεία (Νοµαρχία) σε Πολιτεία (Νοµαρχία).

Συµβουλευθείτε το πλησιέστερο Εξουσιοδοτηµένο Κέντρο Εξυπηρέτησης ή τον Προµηθευτή σας.

•Yeniden çevrıme sokma, ülkeden ülkeye veya bölgeden bölgeye değişebilir. En yakın Makita Yetkili Servis Merkezi veya Bayisine

danışınız.

•

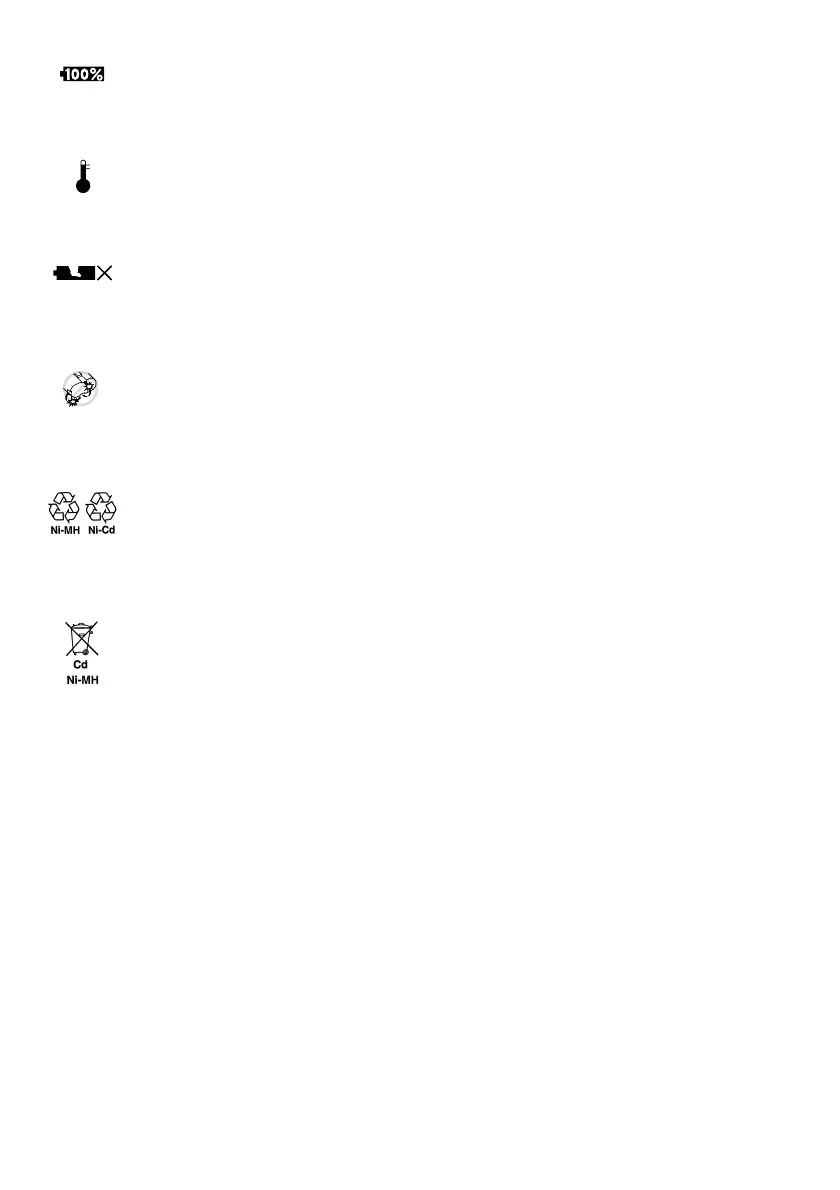

❏ Charging complete ❏ Opladning færdig

❏ Recharge terminée ❏ Laddningen avslutad

❏ Laden beendet ❏ Lading fullført

❏ ❏ Completamento della carica Lataus on valmis

❏ Opladen voltooid ❏ Φρτιση ολοκληρώθηκε

❏ ❏ Completada la carga Şarj sona erdi

❏ Carga completa ❏

❏Delay charge (too hot battery) ❏Udskyd opladning (akku for varm)

❏Charge différée (batterie trop chaude) ❏Vänta med laddning (batteriet för varmt)

❏Ladeunterbrechung (Akku zu heiß) ❏Lading forsinket (for varmt batteri)

❏Ritardare la carica (batteria troppo calda) ❏Lykkää lataamista (akku liian kuuma)

❏Opladen tijdelijk onderbroken (accu te heet) ❏

Καθυστερήστς τη φρτιση (ηολύ ζεστή µπαταρία)

❏Retardo de la carga (batería muy caliente) ❏Şarj işlemi erteleme durumunda (pil çok sıcak)

❏Atraso na carga (bateria muito quente) ❏

❏Deffective battery ❏Defekt akku

❏Batterie défectueuse ❏Defekt batteri

❏Akku defekt ❏Defekt batteri

❏Batteria difettosa ❏Viallinen akku

❏Defecte accu ❏Ελαττωµατική µπαταρία

❏Batería defectuosa ❏Bozuk pil

❏Bateria estragada ❏

❏Do not short batteries. ❏Kortslut aldrig Akku’ens poler. Brandfare!

❏Ne jamais court5circuiter les bornes d’une

batterie.

❏Försök aldrig att kortsluta batterierna.

❏Schließen Sie die Kontakte nicht kurz.

Brandgefahr!

❏Gjør aldri forsøk på å kortslutte batteriene.

❏Non ponete le batterie in corto circuito. ❏Älä yritä oikosulkea paristoja.

❏ ❏Voorkom kortsluitingen. Μη βραχυκυκλώνετε τις µπαταρίες.

❏ ❏No hacerles hacer contocircuito a las baterías. Pillere kısa devre yaptırmayınız.

❏Não ponha as baterias em curto5circuito. ❏

❏Always recycle batteries. ❏Aflever altid den brugte Akku til genbrug på et godkendt

affaldsdepot eller til Makita’s Kundeservice.

❏ ❏Recycler toujours les batteries. Förstök att lämna använda batterier till resursåtervinning

(recycling).

❏ ❏Verbrauchte Akkus stets dem Recycling zuführen. Brukte batterier bør resirkuleres, resursåtervinning.

❏Riciclate sempre le batterie. ❏Yritä kierrättää käytetyt paristot.

❏ ❏Recycle altijd de accu’s. Πάντοτε ανακυκλώνετε τις µπαταρίες.

❏Reutilizar siempre las baterías. ❏Pilleri her zaman yeniden çevrime sokunuz.

❏Recicle sempre as baterias. ❏

❏ Do not discard batteries into garbage can or the

like.

❏ En brugt Akku må ikke kastes i husholdningsaffald.

❏ Ne pas jeter de batteries dans une poubelle ou

autre récipient contenant des choses à jeter.

❏ Kasta inte använda batterier direkt i en soptunna eller

liknande.

❏ Verbrauchte Akkus nicht in den Hausmüll werfen. Brukte batterier må ikke kastes sammen med vanlig ❏

søppel e. l.

❏ Non buttate le batterie fuori uso nei cestini della

spazzatura o luoghi simili.

❏ Älä heitä käytettyjä paristoja suoraan roskiin tms.

❏ Werp de accu niet in een vuilnisemmer of iets

dergelijks.

❏ Μη πετάτε τις µπαταρίες σε δοχεία απορριµµάτων ή

στα σκουπίδια.

❏ No tirar las baterías al tarro de la basura o en

lugares parecidos.

❏ Pilleri normal çöp kutularına atmayınız.

❏ Não deite fora as baterias no caixote do lixo ou

similar.

❏

充電結束

暫緩充電（電池過熱）

電池不良

不要使電池短路。

請務必循環利用電池。

切勿將電池投棄到垃圾筒等內。

注意：

循環利用的方法隨國家或州（省）不同而異。請向距您最近的牧田授權維修服務中心或經銷處洽詢。

ENGLISH

CAUTION:

1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for battery charger.

2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) prod-

uct using battery.

3. CAUTION – To reduce risk of injury, charge only MAKITA rechargeable batteries. Other types of batteries may burst causing

personal injury and damage.

4. Non-rechargeable batteries cannot be charged with this battery charger.

5. Use a power source with the voltage specified on the nameplate of the charger.

6. Do not charge the battery cartridge in presence of flammable liquids or gases.

7. Do not expose charger to rain or snow.

8. Never carry charger by cord or yank it to disconnect from receptacle.

9. After charging or before attempting any maintenance or cleaning, unplug the charger from the power source. Pull by plug

rather than cord whenever disconnecting charger.

10. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

11. Do not operate charger with damaged cord or plug – replace them immediately.

12. Do not operate or disassemble charger if it has received a sharp blow, been dropped, or otherwise damaged in any way;

take it to a qualified serviceman. Incorrect use or reassembly may result in a risk of electric shock or fire.

13. The battery charger is not intended for use by young children or infirm persons without supervision.

14. Young children should be supervised to ensure that they do not play with the battery charger.

15. Do not charge battery cartridge when temperature is BELOW 10°C (50°F) or ABOVE 40°C (104°F).

16. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.

Charging

1. Plug the battery charger into the proper AC voltage source. The charging light will flash in green color.

2. Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same sides as their

respective markings on the charger.

3. When the battery cartridge is inserted fully, the charging light will change from green to red and charging will begin. The

charging light will remain lit steadily during charging.

4. When the charging light changes from red to green, the charging cycle is complete.

5. After charging, unplug the charger from the power source.

Refer to the table for the charging time below.

(Note)*1...18 V batteries can be charged with the charger DC1804 only.

NOTE:

• The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer’s batter-

ies.

• When you charge a battery cartridge which is new or has not been used for a long period of time, it may not accept a full

charge until after discharging it completely and recharging a couple of times.

• If you charge a battery cartridge from a just operated tool or a battery cartridge which has been exposed to direct sunlight or

heat for a long time, the charging light may flash in red color. If this occurs, wait for a while. Charging will begin after the bat-

tery cartridge cools.

• If the charging light flashes alternately in green and red, charging is not possible. The terminals on the charger or battery car-

tridge are clogged with dust or the batter y cartridge is worn out or damaged.

Trickle charge (Maintenance charge)

If you leave the battery cartridge in the charger to prevent spontaneous discharging after full charge, the charger will switch into

its “trickle charge (maintenance charge)” mode and keep the battery cartr idge fresh and fully charged.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by a Makita

Authorized Service Centers, always using Makita replacement parts.

EC-DECLARATION OF CONFORMITY ENH005-1

We declare under our sole responsibility that this product is in

compliance with the following standards of standardized doc-

uments, EN60335, EN55014, EN61000 in accordance with

Council Directives, 73/23/EEC and 89/336/EEC.

Yasuhiko Kanzaki

CE 2003

Director

MAKITA INTERNATIONAL EUROPE LTD.

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

Battery

type

Voltage 7.2 V 9.6 V 12 V 14.4 V 18 V *1 Capacity

(Ah)

Charging

time

(minutes)

Number

of cells 6 8 10 12 15

Ni-Cd battery

cartridge

7000, 7100 9000, 9100/A, 9120 1200/A, 1210, 1220 1420 — 1.3 30

7001 9001, 9101/A 1201/A — — 1.7 40

7002 9002, 9102/A, 9122 1202/A, 1222 1422 1822 2.0 45

Ni-MH battery

cartridge

7033 9033, 9133 1233 1433 1833 2.2 50

7034 9034, 9134 1234 1434 1834 2.6 60

— 9135/A 1235/A/F 1435/F 1835/F 3.0 70

Produktspecifikationer

Varumärke:	Makita
Kategori:	Batteriladdare
Modell:	DC1414

Behöver du hjälp?

Om du behöver hjälp med Makita DC1414 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Batteriladdare Makita Manualer

Makita DC18RD Bruksanvisning

4 Oktober 2024

Makita DC1414 Bruksanvisning

26 September 2024

Makita DC24SC Bruksanvisning

26 September 2024

Makita DC1822 Bruksanvisning

25 September 2024

Makita ADP04 Bruksanvisning

21 September 2024

Makita DC40RA Bruksanvisning

18 September 2024

Makita DC10SB Bruksanvisning

14 September 2024

Makita DC18RE Bruksanvisning

21 Augusti 2024

Makita DC18SE Bruksanvisning

10 Augusti 2024

Makita DC18SD Bruksanvisning

28 Juli 2024

Batteriladdare Manualer

Nyaste Batteriladdare Manualer

Nitecore UHX1 PRO Bruksanvisning

27 Oktober 2024

Nitecore EMR05 TAC Bruksanvisning

26 Oktober 2024

Xblitz XC1 Bruksanvisning

25 Oktober 2024

Bosch GAA12V-21N Bruksanvisning

24 Oktober 2024

Panasonic CF-VCB331 Bruksanvisning

24 Oktober 2024

Ryobi One+ RC18627 Bruksanvisning

21 Oktober 2024

Alecto BL-179 Bruksanvisning

19 Oktober 2024

Tronic KH 971 Bruksanvisning

18 Oktober 2024

Graupner Ultramat 12 Bruksanvisning

17 Oktober 2024

Graupner ULTRA DUO PLUS 30 Bruksanvisning

16 Oktober 2024
