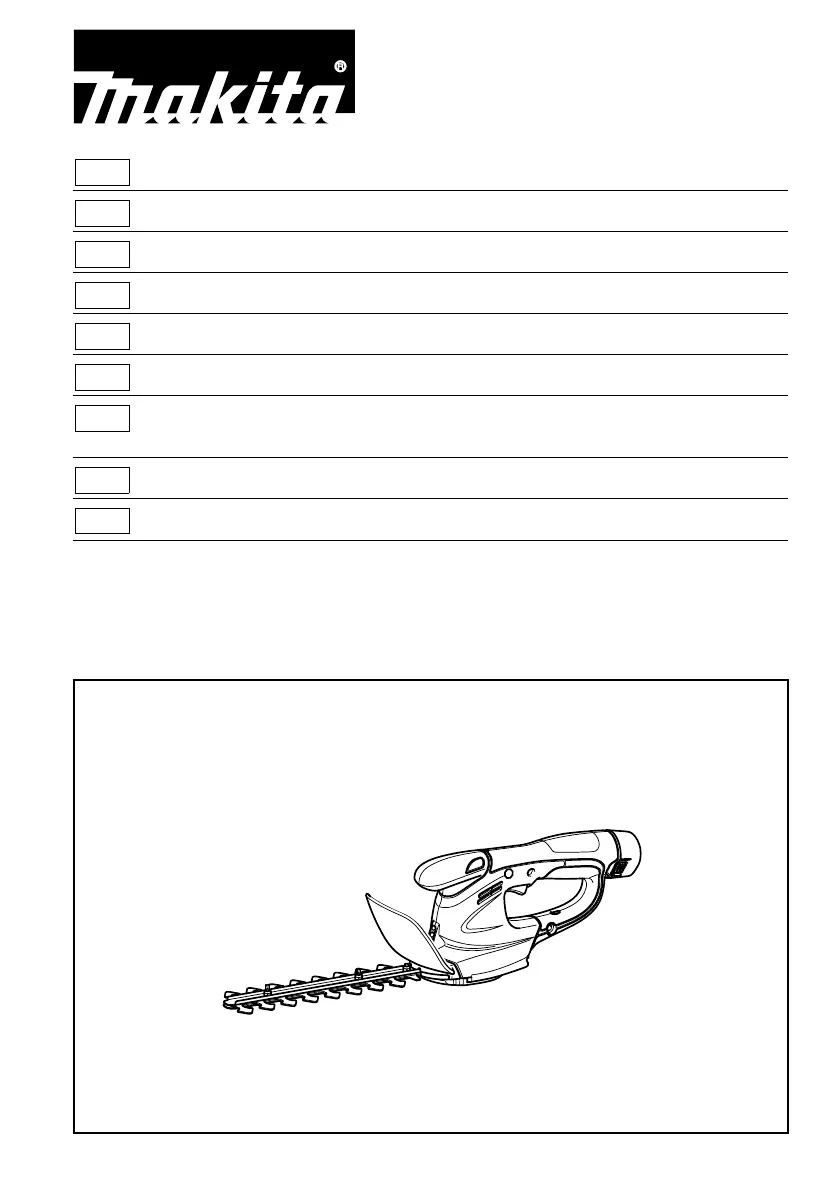

Model No.
Description
PRODUCT
CONCEPT AND MAIN APPLICATIONS
P 1/ 8
UH200D (HU01*)
Cordless Hedge Trimmer 200mm (7-7/8)
Model UH200D is 200mm Cordless hedge trimmer
powered by 10.8V/ 1.3Ah Li-ion battery BL1013.
Its main features are:
Lightweight and compact design for easy handling
Optional Grass shear blade kit can convert this model
into Model UM164D Cordless grass shear.
This product is available in the following variations.
All models also include the accessories listed in "Standard equipment".
Model No. type quantity Charger
UH200DW BL1013
(Li-ion 1.3Ah) DC10WA
1
UH200DWE 2
Battery
UH200DZ No No
Specification
Standard equipment
Optional accessories
Note: The standard equipment for the tool shown above may differ by country.
Chip receiver ..................................................... 1
Blade cover ........................................................ 1
Battery
Specification
Weight according to
EPTA-Procedure 01/2003 : kg (lbs)*4
Capacity: Ah
Cell
Voltage: V
No load speed: min =spm-1 *2
*2 spm= stroke per minute
*3: Indicates maximum diameter of the branch that can be received
between adjacent two blade teeth. (See the figure on right.)
*4 with hedge trimmer blade, chip receiver
Model
Overload protection
1.2 (2.7)
10.8
1.3
Li-ion
1,250
UH200D
Yes
*1 without chip receiver
TECHNICAL INFORMATION
Dimensions : mm (")*1
Width (W)
Height (H)
Length (L) 460 (18-1/8)
120 (4-3/4)
130 (5-1/8)
Blade length: mm (") 200 (7-7/8)
Tooth spacing: mm (") 26 (1)
W
L
H
Maximum branch
diameter : mm (")*3 8 (5/16)
Battery BL1013
Charger DC10WA
Grass shear blade kit (*5with a bottle of lubricant grease)
Hedge trimmer blade kit (*6with a bottle of lubricant grease)
Extension handle kit*5
Chip receiver set*6
Accessory kit for use as a hedge trimmer*6 (including Blade cover, etc.)
Accessory kit for use as a grass shear*5 (including Base frame, etc.)
*5 for use as a grass shear
*6 for use as a hedge trimmer
*1: Model number for North and Central American countries
P 2 8/
Repair
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
[1] LUBRICATIONS
Fig. 1
Item No.
Apply the following lubricant to protect parts and product from unusual abrasion.
Description
Crank
Helical gear 47
Housing complete (L)
Gear 12-31 Gear teeth with which Helical gear 47 and DC motor
gear engage
Drum portions where Blade contact
17 Pin 6 (with notch) Drum portion for smooth rotation of Helical gear 47
18 24 26 Washer 6 Whole portion
a little
2g
Lubricant AmountPortion to lubricate
18
24
17
26
21
21
23
23
Pin 6
1.5g
a little
Makita grease N No.2
Molybdenum disulfide
Drum portion for smooth rotation of 25 Gear 12-31
25
25
Makita grease N No.2
Shear blade assembly
P 3 8/
Fig. 2
Repair
[2] DISASSEMBLY/ASSEMBLY
[2]-1. Gear 12-31, Helical gear 47
DISASSEMBLING
(1) Remove Blade, Crank and Housing set (R) as illustrated in .Fig. 2
3. Loosen two M4 Countersunk
head screws, and then remove
Shear blade assembly.
Under cover
complete
4. Remove Crank complete and Dust guard.
Dust guard
2. Remove Under cover complete.
Shear blade
assembly
M4 Countersunk head screw
Crank complete
Lock lever
Under cover
complete
1. With pressing Lock lever, turn Under cover complete
to the unlocked position as drawn below.
Unlocked position
Set plate
5. Remove Set plate with slotted screwdriver. 6. Separate Housing set (R) by unscrewing five 3x16 Tapping screws.
Fig. 3
Helical gear 47
1. Remove Helical gear 47 and Gear 12-31 from Housing set (L). 2. After removing Washer 6 and Pin 6 which
functions as a shaft for the Helical gear 47,
remove 2 pcs. of Pin 4 by pressing with
Arbor press. Helical gear 47 can be replaced.
Gear 12-31
Pin 6 (with a notch)
Washer 6
Arbor press
(2) After removing Housing set (R), Helical gear 47 and Gear 12-31 can be removed. ( )Fig. 3
Helical gear 47
Housing set (L) Pin 4
(2pcs.)
Housing set (R)
Housing set (L)
3x16 Tapping screw
(5pcs.)
