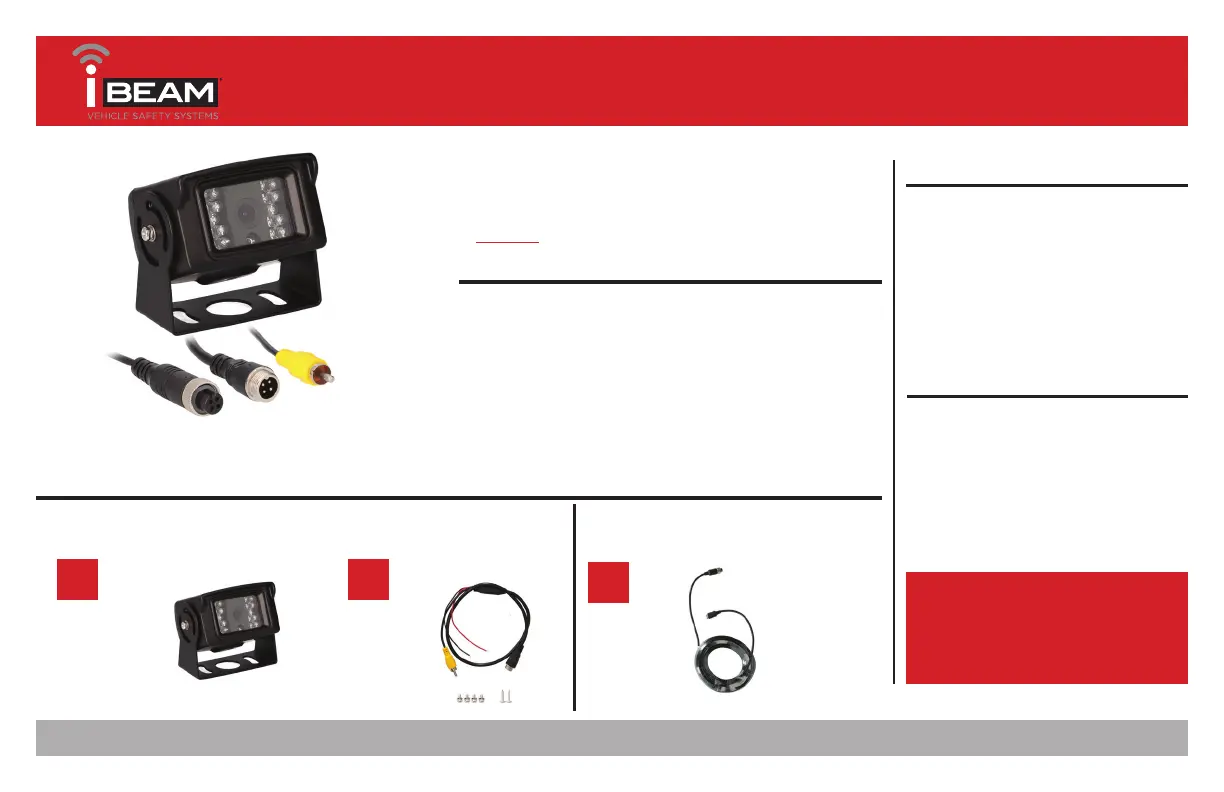

©COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
iBEAMUSA.comiBEAM Vehicle Safety Systems ®REV. 04/30/2021 INSTTE-CCM1
Attention! When testing the aftermarket
equipment, ensure that all factory equip-
ment is connected before cycling the key to
ignition.
TE-CCM1
INSTALLATION INSTRUCTIONS
#IBEAMSAFETY
Camera 2 ....................................................................
Wiring......................................................................3
Specifications..........................................................4
TABLE OF CONTENTS
TOOLS REQUIRED
• Wire stripper
• Tape
• Digital Multi-meter
Commercial Heavy Duty Camera
With Microphone
Visit for more detailed informatuon about the product and up-to-date vehicle specific iBEAMUSA.com
applications.
Product Features
• Heavy duty metal housing
• 18 IR LEDs for night viewing
• Selectable parking lines
• PAL and NTSC selectable
• Microphone for audio
Part Components
A) Camera B) 4-pin to RCA adapter and hardware C) Extension (Sold separately)
A B C
386-257-1187
|
iBEAMUSA.com
2
Camera install
1. There are two loops on the camera. If
there is a not a need for parking lines,
the loop will need to be cut. (Default
lines on) If the video format needs to be
changed, the loop will need to be cut.
(Default NTSC)
• Green - parking lines
• White - PAL or NTSC format
2. Depending on your installation needs,
the camera wire does have a grommet
inline to use to help with sealing the
entry place to the vehicle. iBEAM also
suggest using some silicon to better help
with water from entering the vehicle.
3. Once installed use the provided stainless
screws (Figure B) to secure base in place
with the camera. This can also be done
before mounting and tightened once
mounted. (Figure C)
Figure A Figure B
Figure C
INSTALLATION
REV. 04/30/2021 INSTTE-CCM1 3
Figure A
Monitor
Monitor
TE-CEX10, TE-CEX20, TE-HEX10 or TE-HEX20
needed and sold separately
TE-CEX10, TE-CEX20, TE-HEX10 or TE-HEX20
needed and sold separately
BLACK - Ground
RED - 12V
WIRING
Wiring
Depending on the monitor that the camera will
be connected to, there can be two different
ways of wiring.
1. Figure A - Connecting to a 4-pin
comnmercial monitor. Using the iBeam
commercial camera extension (sold
separately) part # TE-CEX10, TE-CEX20,
TE-HEX10 or TE-HEX20 depending on your
desired length.
2. Figure B - Connecting to a RCA connection
style monitor. Using the supplied RCA to
4-pin adapter, connect the desired length
of commercial camera extension listed
above.
• RED wire connect to 12V accessory
or reverse trigger depending on your
need for the camera.
• Black wire connect to ground.
• YELLOW RCA to video input on
monitor
• WHITE RCA to audio on monitor
Figure B
