Introduction

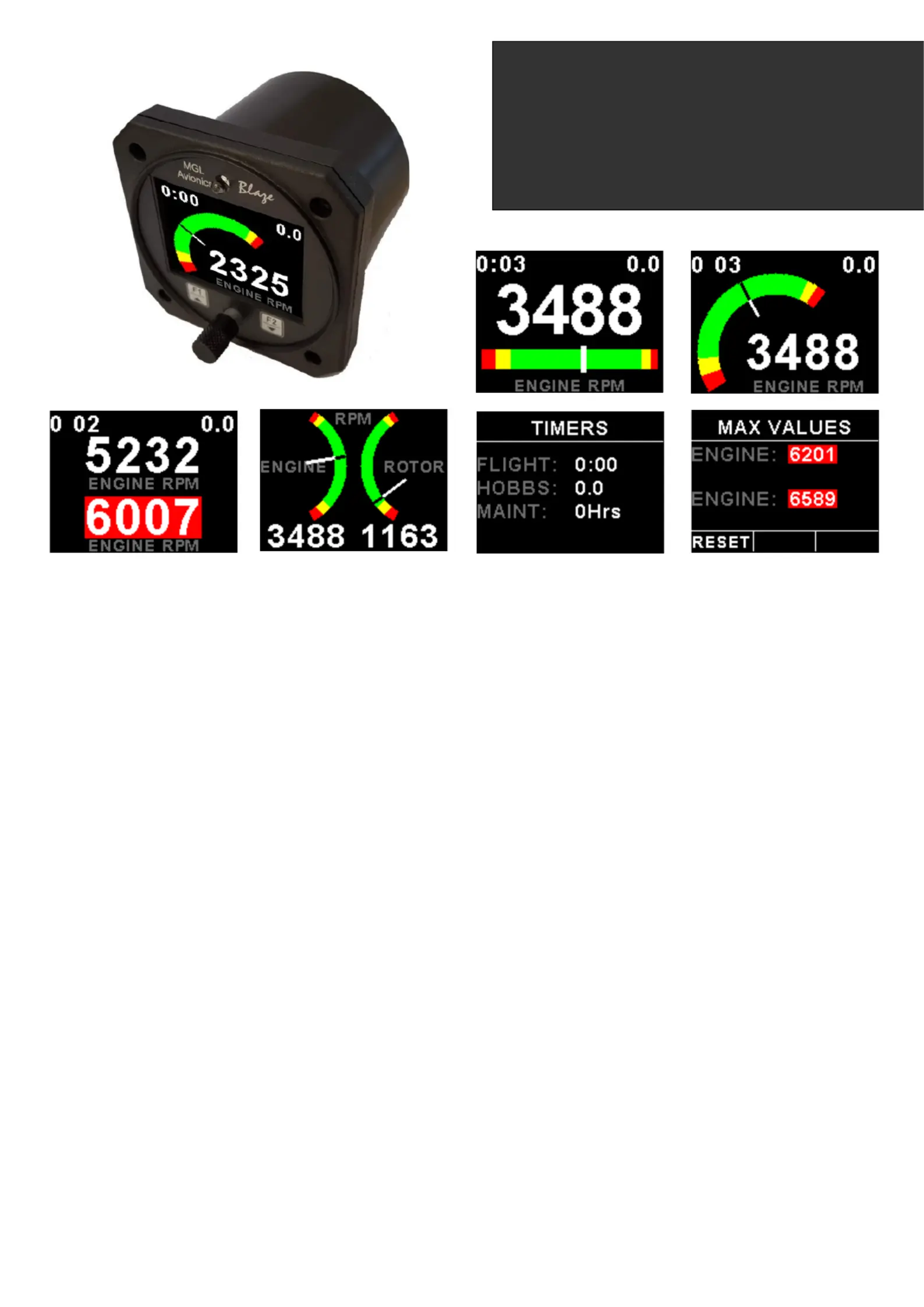

The RPM-2 is a 3 1/8” sunlight readable color display instrument providing two universal RPM inputs that is primarily
intended to measure engine and/or rotor RPM.
The display can be configured to display single or dual RPM or it can be configured to display engine and rotor RPM as
used in helicopters and gyroplanes.
The RPM-2 also has a maximum values display screen as well as a handy magneto check function to easy diagnose
magneto problems.
The RPM-2 includes a number of timers such as a Hobbs meter which can be password protected and can be set to the
current engine time, an engine running and flight timer as well as a programmable maintenance timer to schedule routine
engine maintenance.
The RPM-2 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This
allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
1 Features
•Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable color LCD
display
• Single or dual RPM display screens
• Dedicated dual rotor / engine tachometer
• Includes a settable Hobbs meter which can be password protected
• Includes an engine running and flight timer
• Includes a programmable maintenance timer for scheduled routine engine maintenance
• Includes a magneto check function
• Records maximum RPM reached for each channel
• Optional external RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus
• Standard 3 1/8” aircraft enclosure (can be front or rear mounted)
• The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the
menu system
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• An external output activates when a alarm condition has been reached
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Blaze RPM-2
Universal Engine / Rotor RPM Indicator
Operating Manual – English 1.00
Blaze RPM-2 Operating Manual Page 2

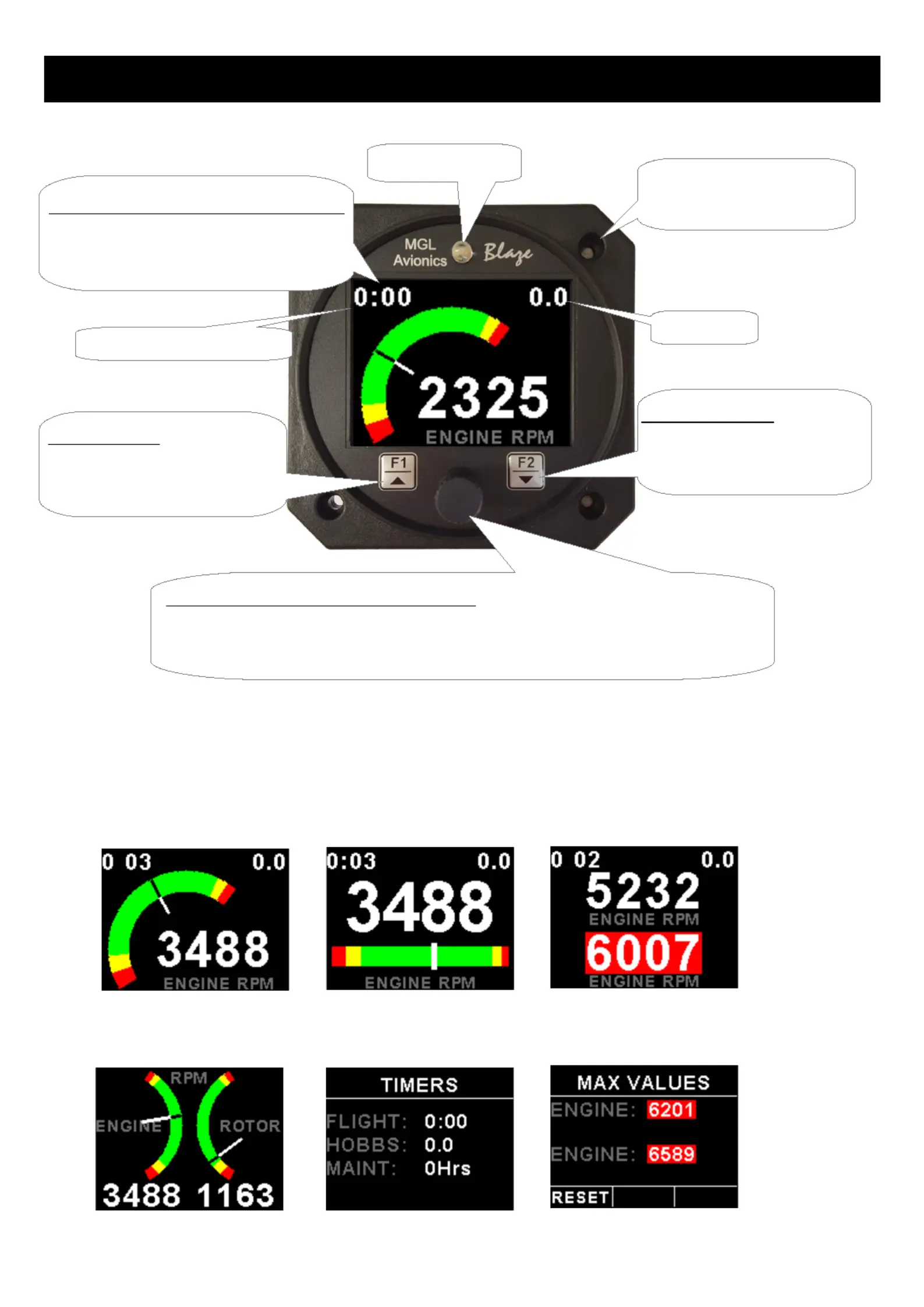

2 Layout
3 Main Displays
The RPM-2 can be setup to display single or dual RPM. The main display screen can be selected in the “RPM SETUP”
menu. The Timers display and Max Values display can be selected by rotating the rotary control during the normal display.
Single - Arc Single - Bar Dual RPM
Engine / Rotor Timers Display Max Values
F2 / Down Button:
Menu System: Softkey button
Normal Display: Enable magneto
check function
Sunlight readable color graphic display:
The backlight can automatically adjust
to the ambient light or it can be manually
adjusted in the menu system
Rotary Control (Up/Down) & Enter Button:
Press the rotary control during the normal display screens to access the menu system.
Rotate anti/clockwise for up/down menu scrolling. Rotate the rotary control during the
normal display mode to view the Timers and Max Values display.
F1 / Up Button:
Menu System: Softkey button
Normal Display: Start / Stop the
flight timer (Manual flight only)
3 1/8” enclosure.
Can be front or rear mounted
Duration of flight since take-off
Hobbs Meter
Ambient light sensor
Blaze RPM-2 Operating Manual Page 3
3.1 Timers display
This display can be accessed by rotating the rotary control during the normal display
mode. The flight, Hobbs and Maintenance Timers are shown.
3.2 Maximum Values display
This display can be accessed by rotating the rotary control during the normal display
mode. Press the F1/Up button when the max values display is showing to reset the
maximum values to the current RPM values.
3.3 Magneto check function
Press the F2/Down button once you have reached your normal run-up RPM. The display
will show the RPM deviation from when the magneto function was activated. Any
RPM drops will be displayed as a negative RPM value, a positive reading indicates an
increase in RPM.
Switch the mag to left or right. The RPM-2 should display a negative (drop in) RPM.
Then switch the mags to “Both”. The RPM-2 reading should go back to zero or near
zero. A problem should show up as an excessive drop in one mag and the return to
zero or close to zero incorrectly.
The RPM-2 will return to the normal display after 60 seconds or if any key is pressed.
3.4 Start / Stop flight display
Press the F1/Up button during the normal display mode
to manually start/stop a flight. This key is only active if
the RPM-2 is setup to select the manual flight option
under the “TIMERS” setup menu.
Note: The maximum values are stored in non-volatile
memory and are recalled on power-up.
