Sida 1/4
KJ L M O Q RN P S
Parabolic Dish
Antenna Feed
Feed Bracket
Back Plate
Pole Clamp
Case Holder
RF Cable
Self-Bonding Tape Slice
M8 U-Bolt
M6x20 Bolt
M4x12 Bolt
M4 Wing Nut
M4 Serrated Washer
M6 Nut
M6 Spring Lock Washer
M6 Washer
M8 Nut
M8 Spring Lock Washer
M8 Fender Washer
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
1
1
1
1
1
1
2
2
2
5
4
2
5
5
5
5
4
4
4

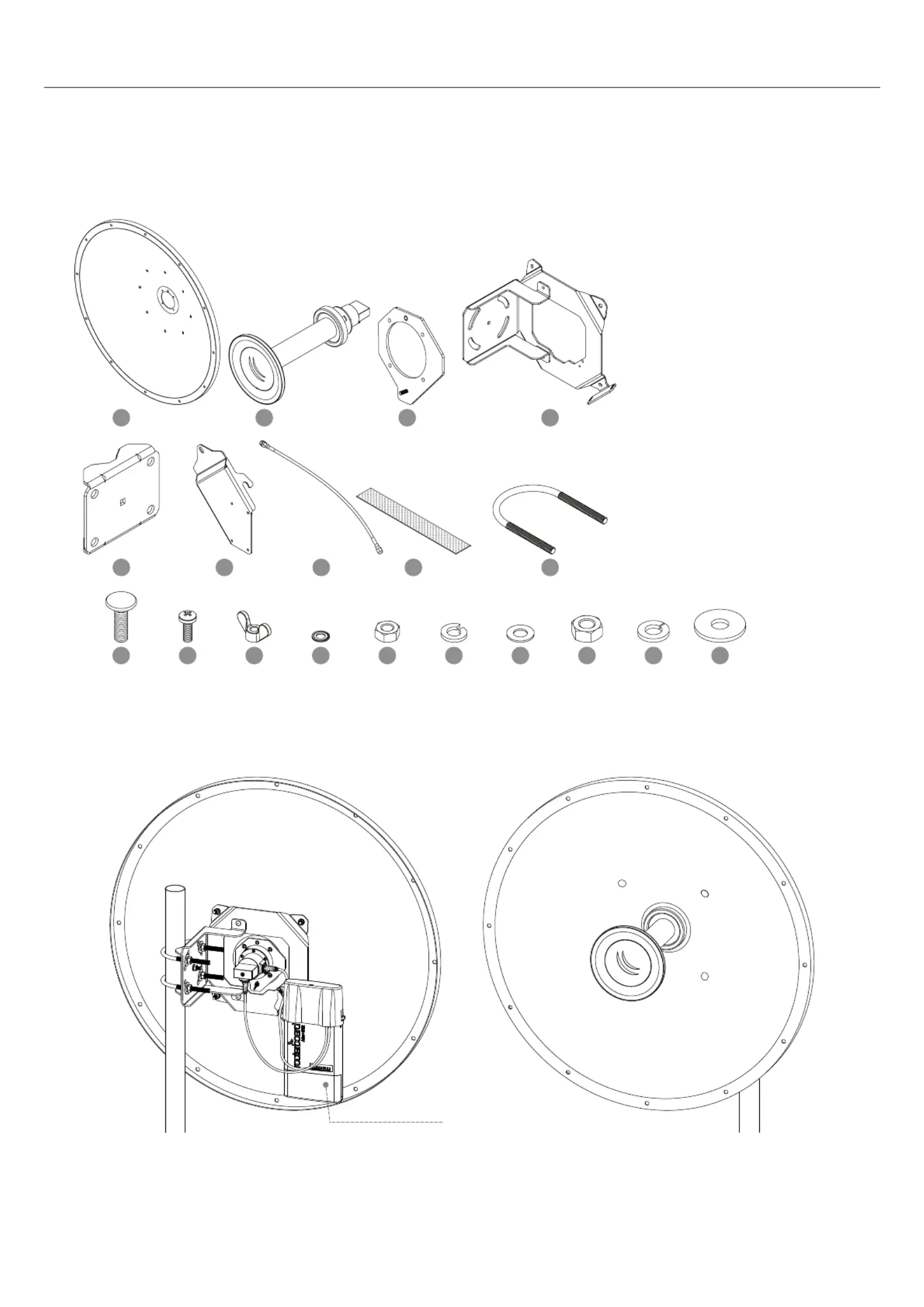

ITEM DESCRIPTION QTY
MikroTik Antenna assembly preview
MikroTik Antenna assembly preview back* MikroTik Antenna assembly preview front
A B C D
E F G H I
MikroTik Antenna D-5G-30D3
Quick setup guide and warranty information
Package contents
MikroTik Radio
*The preview is valid if a MikroTik RB900 series outdoor device
(sold separately) is installed.
Installation Guide
0. Items Required
• 10mm Wrench 13mm Wrench • • PH2 Screw Driver •
• This guide is written to be used with a MikroTik RB900 series outdoor
device (sold separately) •

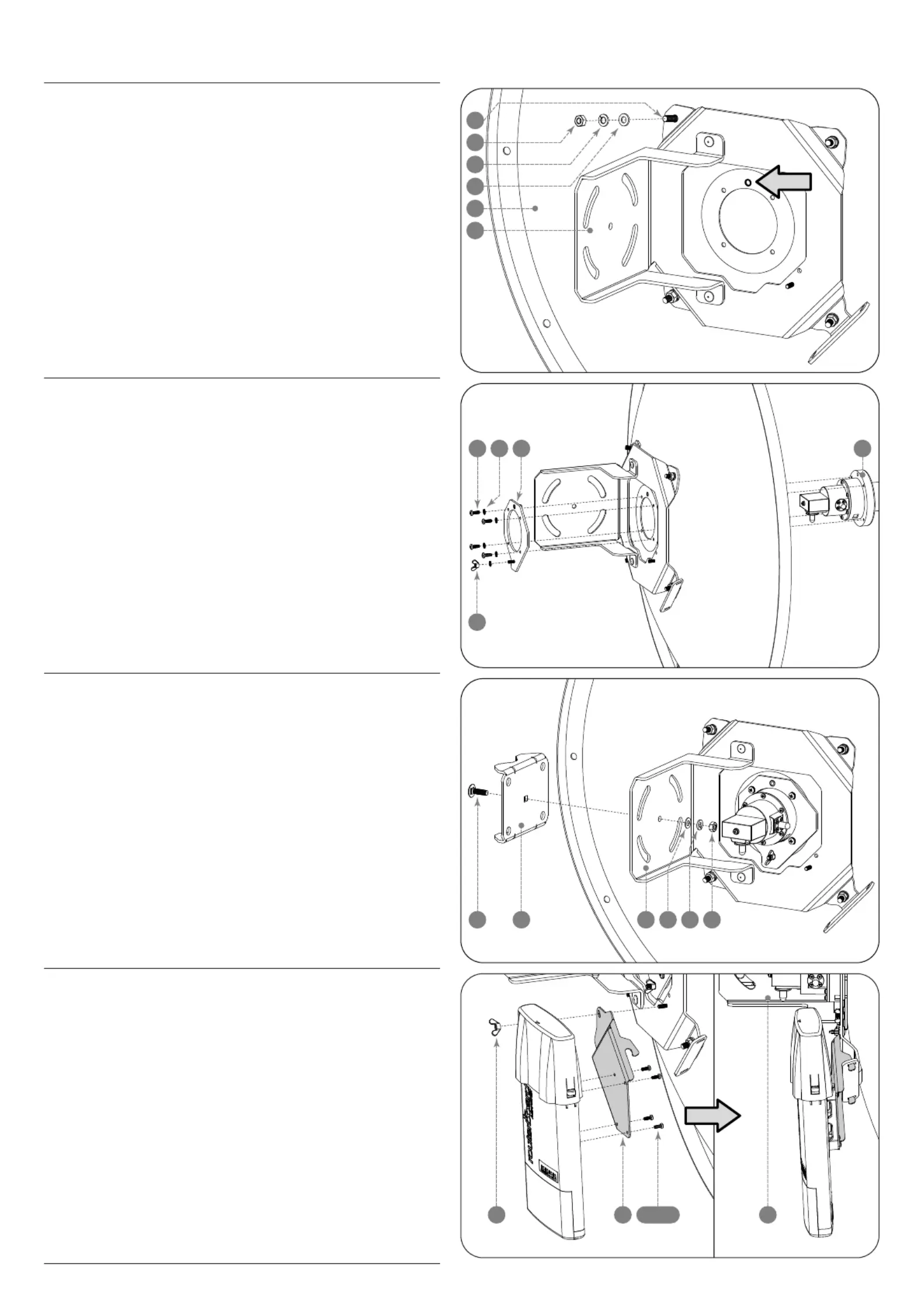

1. Install Back Plate to Parabolic Dish
Install Back Plate [D] to Parabolic Dish [A] using:
[J] M6x20 Bolt x 4 pcs;
[P] M6 Washer x 4 pcs;
[O] M6 Spring Lock Washer x 4 pcs;
[N] M6 Nut x 4 pcs.
Important:
• Back Plate [D] must be aligned respecvely to a bore in the
Parabolic Dish [A] - see Fig. 1;
• M6 Nut [N] ghtening torque must be approximately 5 Nm.
2. Install Antenna Feed
Install Antenna Feed [B] to Parabolic Dish [A] using:
[C] Feed Bracket x 1 pc;
[K] M4x12 Bolt x 4 pcs;
[M] M4 Serrated Washer x 4 pcs.
Install grounding fasteners:
[L] M6 Wing Nut x 1 pc;
[M] M4 Serrated Washer x 1 pc.
Important:
• Antenna Feed [B] and Feed Bracket [C] must be aligned respecvely
to the alignment bore in the Parabolic Dish [A] - see Fig. 2;
• M4x12 Bolt [N] ghtening torque must be approximately 2 Nm.
3. Install Pole Clamp
Install Pole Clamp [E] to Back Plate [D] - see Fig. 3, using:
[J] M6x20 Bolt x 1 pc;
[P] M6 Washer x 1 pc;
[O] M6 Spring Lock Washer x 1 pc;
[N] M6 Nut x 1 pc.
Important:
• Do not ghten M6 Nut [N] firmly unl step 7.
FIG. 1
N
O
P
A
D
J
FIG. 2
L
C BMK
FIG. 3
J E O ND P
D
FIG. 4.2FIG. 4.1
M3x8FL
4. Aach MikroTik Radio to Back Plate
Aach a to Case Holder [F] using:MikroTik RB900 series outdoor device
[-] M3x8 Bolt x 4 pcs (Comes with MikroTik Radio) - see Fig. 4.1.
Aach Case Holder [F] to Back Plate [D] by fing Case Holder’s hinges
into the Back Plate’s flange - see Fig. 4.2. Secure Case Holder using:
[L] M4 Wing Nut x 1 pc.
Important:
• M3x8 Bolt [-] ghtening torque must be approximately 1.5 Nm.
H
V
FIG. 5
H
G
Ø = 70mmMAX FIG. 6
R QI S
FIG. 7
Q N D
5. Install RF Cables
Remove the cover from MikroTik Radio and install the RF Cables [G].
Connect vercal polarizaon (arrow V) to CH0, horizontal polarizaon
(arrow H) to CH1 - see Fig. 5.
Insulate the RF Cable [G] ends which are connected to Antenna Feed [B]
by using: [H] Self-Bonding Tape Slice x 2pcs.
• Remove the plastic liner from both sides;
• Stretch the tape to 2/3 of its width;
• Apply half-lapped layers clockwise.
The RF Cable [G] ends which are connected to MikroTik Radio are insulated
by the cover.
Fit back the MikroTik Radio cover.
Important:
• RF Cables [G] connector ghtening torque must be approximately 0.5 Nm.
6. Aach Antenna to Pole
MikroTik Antenna D-5G-30D3 is design to fit the pole diameter up
to 70mm( 2.75”).
Aach MikroTik Antenna to pole as shown in Fig. 6 using:
[I] M8 U-Bolt x 2 pcs;
[S] M8 Fender Washer x 4 pcs;
[R] M8 Spring Lock Washer x 4 pcs;
[Q] M8 Nut x 4 pcs.
Important:
• Do not ghten M8 Nuts [Q] firmly unl step 7.
7. Adjust Azimuth and Elevaon
The Azimuth and Elevaon can be adjusted if M8 Nuts [Q] are slightly
loosen. In order to set the azimuth rotate the antenna around the pole
- see Fig. 7. The elevaon can be set by turning Back Plate [D].
Aer seng the azimuth and elevaon, ghten firmly the corresponding
fasteners - see Fig. 6.
Important:
• M6 Nut [N] ghtening torque must be approximately 5 Nm.
• M8 Nuts [Q] ghtening torque must be approximately 20 Nm.
