Sida 1/4
A B C D E
F G H KJ LI
M O Q VT XRN P WU YS
Parabolic Dish
Antenna Feed
Feed Bracket
Back Plate
Alignment Bracket
Pole Bracket
Pole Clamp
Case Holder
RF Cable
Self-Bonding Tape Slice
M10x130 Bolt
Adjusting Mechanism
M6x20 Bolt
M4x12 Bolt
M4 Wing Nut
M4 Serrated Washer
M6 Nut
M6 Washer
M6 Fender Washer
M6 Spring Lock Washer
M10 Square Washer
M10 Jam Nut
M10 Fender Washer
M10 Spring Lock Washer
M10 Nut
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
1
1
1
1
1
1
2
1
2
2
4
2
16
4
2
5
20
12
8
16
4
4
4
4
4

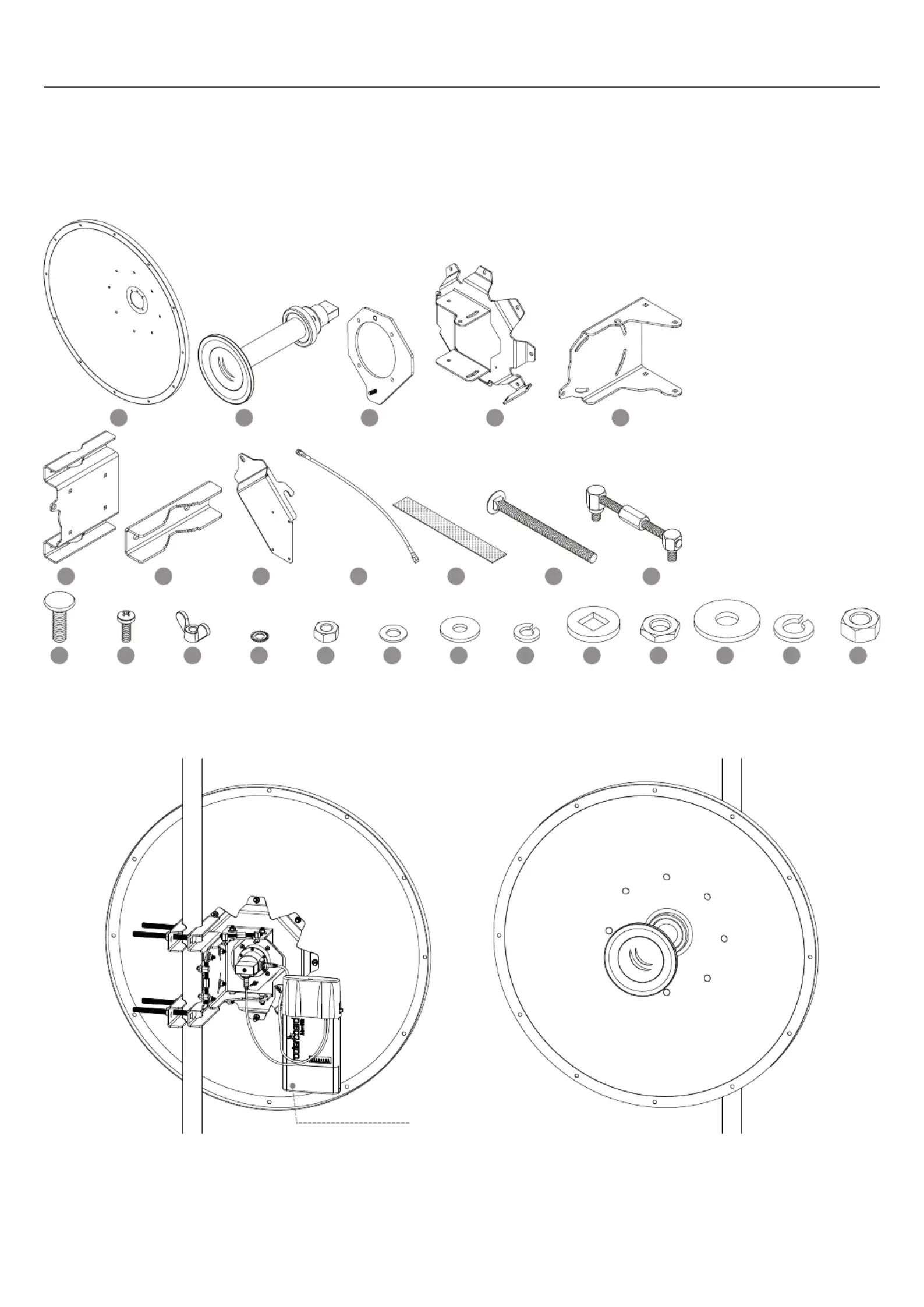

ITEM DESCRIPTION QTY
MikroTik Antenna assembly preview
*The preview is valid if a MikroTik RB900 series
outdoor device (sold separately) is installed.
MikroTik Radio
MikroTik Antenna assembly preview back* MikroTik Antenna assembly preview front
MikroTik Antenna D-5G-30D3-PA
Quick setup guide and warranty information
Package contents
Q
T
R
A
D
M
FIG. 1
Installation Guide
0. Items Required
• • • PH2 Screw Driver •10mm Wrench 17mm Wrench
• This guide is written to be used with a MikroTik RB900 series outdoor
device (sold separately) •

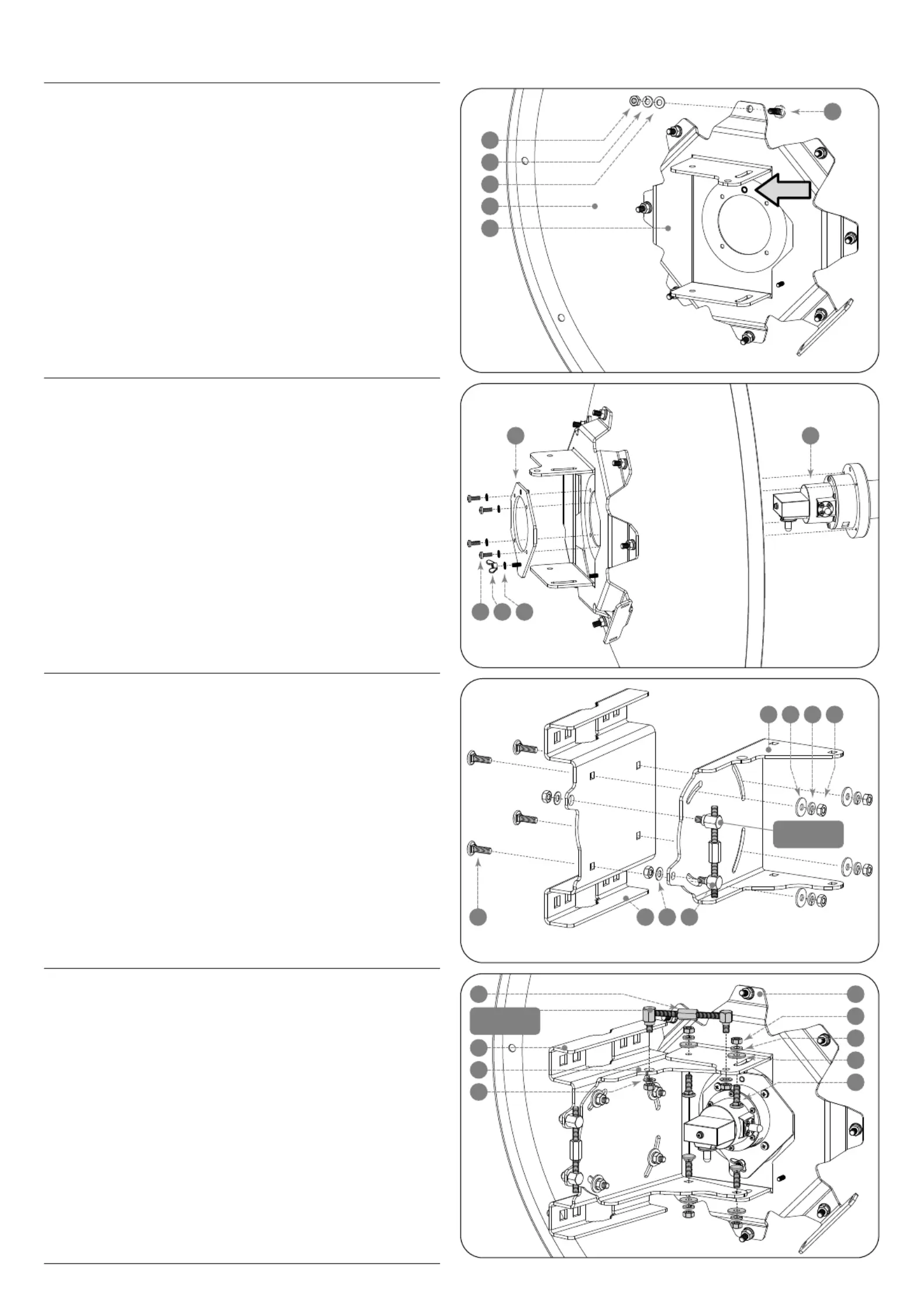

1. Install Back Plate to Parabolic Dish
Install Back Plate [D] to Parabolic Dish [A] using:
[M] M6x20 Bolt x 8 pcs;
[R] M6 Washer x 8 pcs;
[T] M6 Spring Lock Washer x 8 pcs;
[Q] M6 Nut x 8 pcs.
Important:
• Back Plate [D] must be aligned respectively to a bore in the
Parabolic Dish [A] - see Fig. 1;
• M6 Nut [Q] tightening torque must be approximately 5 Nm.
2. Install Antenna Feed
Install Antenna Feed [B] to Parabolic Dish [A] using:
[C] Feed Bracket x 1 pc;
[N] M4x12 Bolt x 4 pcs;
[P] M4 Serrated Washer x 4 pcs.
Install grounding fasteners:
[O] M6 Wing Nut x 1 pc;
[P] M4 Serrated Washer x 1 pc.
Important:
• Antenna Feed [B] and Feed Bracket [C] must be aligned respectively
to the hole in the Parabolic Dish [A] - see Fig. 2;
• M4x12 Bolt [N] tightening torque must be approximately 2 Nm.
3. Assemble Alignment and Pole Brackets
Assemble Alignment [E] to Pole Bracket [F] using:
[M] M6x20 Bolt x 4 pcs;
[S] M6 Fender Washer x 4 pcs;
[T] M6 Spring Lock Washer x 4 pcs;
[Q] M6 Nut x 4 pcs.
Install Adjusting Mechanism [L] using:
[R] M6 Washer x 2 pcs;
[Q] M6 Nut x 2 pcs.
Important:
• Mount Alignment Mechanism's [L] bolt with larger shank diameter
through the corresponding hole in the Pole Bracket [F] - see Fig. 3;
• Secure Alignment Mechanism [L] by tightening M6 Nuts [Q] to
approximately 5 Nm;
• Do not tighten other fasteners rmly until step 10.
4. Assemble Brackets to Back Plate
Assemble Alignment [E] and Pole Bracket [F] to Back Plate [D] using:
[M] M6x20 Bolt x 4 pcs;
[S] M6 Fender Washer x 4 pcs;
[T] M6 Spring Lock Washer x 4 pcs;
[Q] M6 Nut x 4 pcs.
Install Adjusting Mechanism [L] using:
[R] M6 Washer x 2 pcs;
[Q] M6 Nut x 2 pcs.
Important:
• Mount Alignment Mechanism's [L] bolt with larger shank diameter
through the corresponding hole in the Alignment Bracket [E] - see Fig. 4;
• Secure Alignment Mechanism [L] by tightening M6 Nuts [Q] to
approximately 5 Nm;
• Do not tighten other fasteners rmly until step 9.
N O P
C B
FIG. 2
TS QEC
LRFM
BOLT WITH
LARGE SHANK
FIG. 3
L
RM
S
T
Q
BOLT WITH
LARGE SHANK
E
F
D
FIG. 4

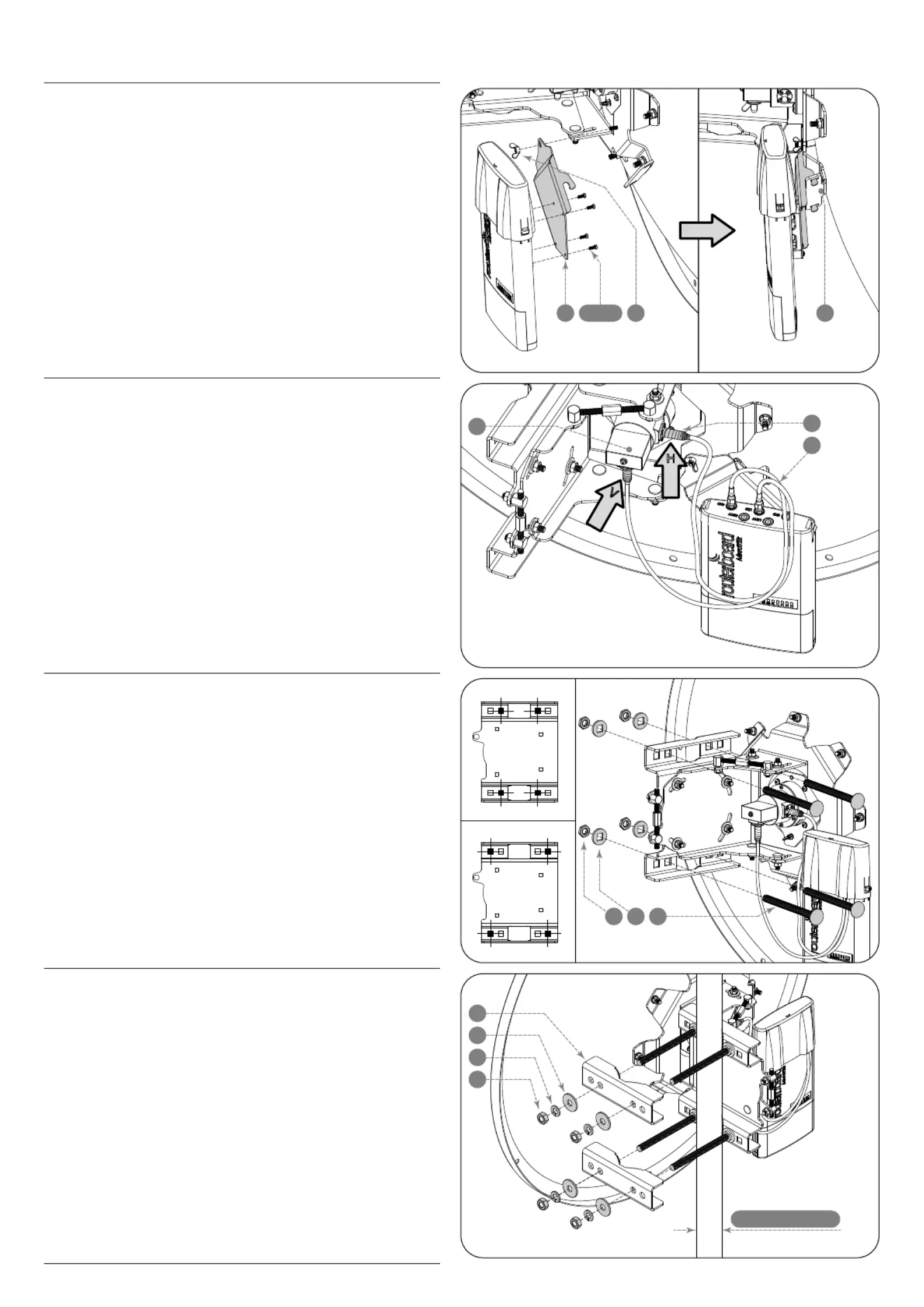

5. Attach MikroTik Radio to Back Plate
Attach a MikroTik RB900 series outdoor device to Case Holder [H] using:
[-] M3x8 Bolt x 4 pcs (Comes with MikroTik Radio) - see Fig. 5.1.
Attach Case Holder [H] to Back Plate [D] by tting Case Holder’s hinges
into the Back Plate’s ange - see Fig. 5.2. Secure Case Holder using:
[O] M4 Wing Nut x 1 pc.
Important:
• M3x8 Bolt [-] tightening torque must be approximately 1.5 Nm.
6. Install RF Cables
Remove the cover from MikroTik Radio and install the RF Cables [I].
Connect vertical polarization (arrow V) to CH0, horizontal polarization
(arrow H) to CH1 - see Fig. 6.
Insulate the RF Cable [I] ends which are connected to Antenna Feed [B]
by using: [J] Self-Bonding Tape Slice x 2pcs.
• Remove the plastic liner from both sides;
• Stretch the tape to 2/3 of its width;
• Apply half-lapped layers clockwise.
The RF Cable [I] ends which are connected to MikroTik Radio are insulated
by the cover.
Fit back the MikroTik Radio cover.
Important:
• RF Cables [I] connector tightening torque must be approximately 0.5 Nm.
7. Install Pole Fasteners
Determine the pole diameter which MikroTik Antenna will be attached to.
• If the pole diameter is less than 60mm( 2.375”) use the hole pattern from
Fig. 7.1 to install the M10x130 Bolts [K];
• If the pole diameter is 60 - 100mm (max) use the hole pattern from Fig. 7.2.
Install M10x130 Bolt [K] x 4 pcs using:
[U] M10 Square Washer x 4 pcs;
[V] M10 Jam Nut x 4 pcs.
Important:
• M10 Jam Nut [V] tightening torque must be approximately 4 Nm.
8. Attach Antenna to Pole
MikroTik Antenna is design to t the pole diameter up to 100mm( 3.9”).
Attach MikroTik Antenna to pole as shown in Fig. 8 using:
[G] Pole Clamp x 2 pcs;
[W] M10 Fender Washer x 4 pcs;
[X] M10 Spring Lock Washer x 4 pcs;
[Y] M10 Nut x 4 pcs.
Important:
• M10 Nuts [Y] tightening torque must be approximately 25 Nm.
M3x8H O
FIG. 5.1
FIG. 5.2
D
H
V
J
I
FIG. 6
B
IF POLE Ø < 60mm
IF POLE Ø > 60mm
V U K
FIG. 7.3FIG. 7.2
FIG. 7.1
Ø = 100mmMAX
G
W
X
Y
FIG. 8
