Sida 1/10

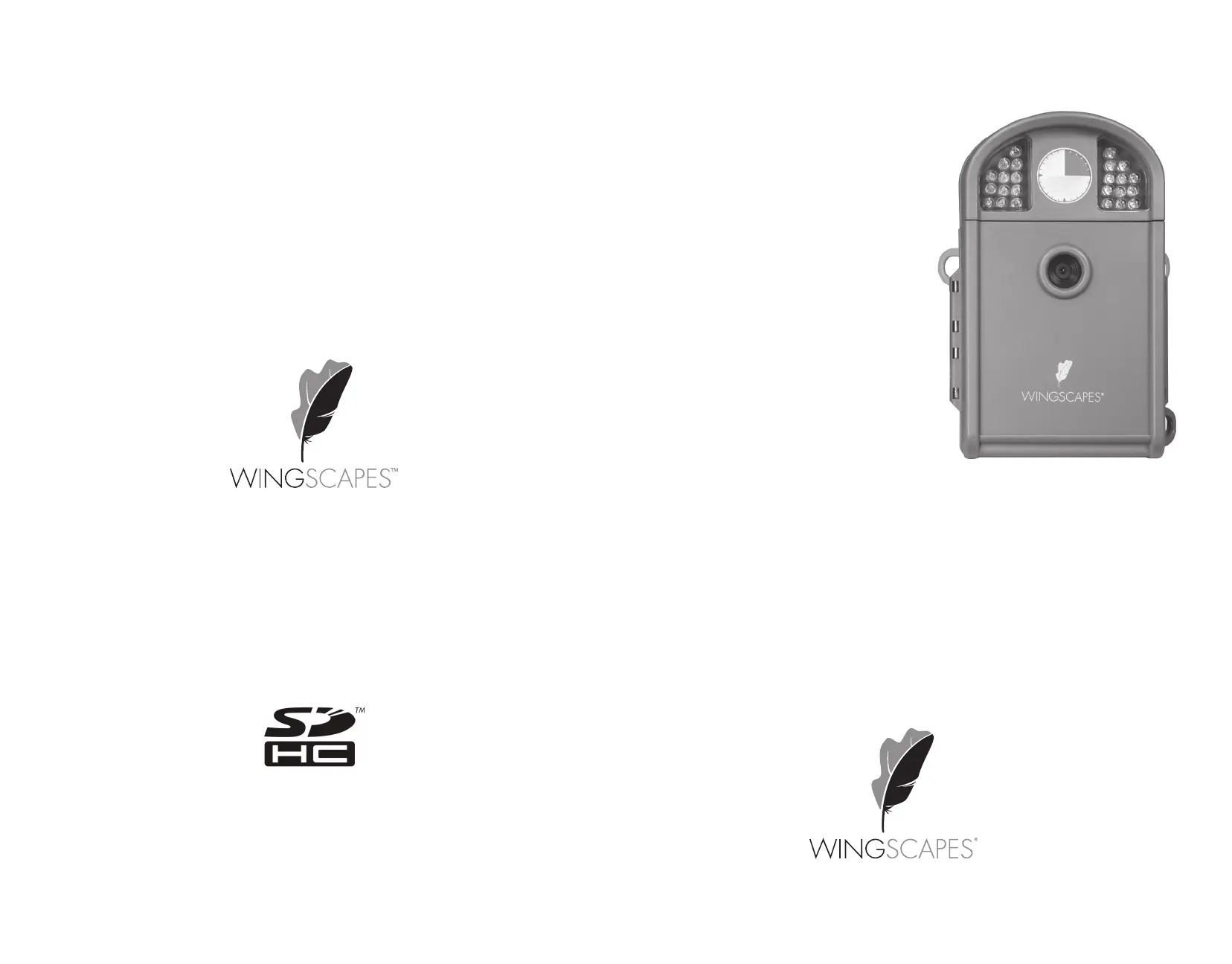

wingscapes.com | 888.811.WING

This product is covered by one or more of the following US Patents: 6735387, 6768868, 6834162. Other patents pending.

WARNING! This product may contain lead, a chemical known to the state of California to cause cancer,

birth defects and other reproductive harm.

TimelapseCam Pro®

User’s Guide

For Models:

WCT-00126 TimelapseCam Pro

12/04/15

Page 19

TimelapseCam Pro User Guide

Page 2

TimelapseCam Pro User Guide

Memory & Storage

Your camera supports external SD memory card ONLY and will accept up to a 32GB card. Using large

memory cards can slow the camera response. The camera cannot capture any photo or video without

external memory. Please insert an SD memory card to operate camera. Estimates are based on the

most common types of memory cards that can be purchased at electronic stores, ofﬁce supply stores,

or online. Estimates may vary based on camera settings or environmental conditions.

Important

Always turn the unit o when inserting or removing an SD memory card to avoid damage and ensure

that the camera properly updates the memory information.

Auto Mode

SD Card Size: 2 GB 16 GB

ENHANCED 6080 x 3420 900 7200

HIGH 4224 x 2376 1600 12800

MEDIUM 3008 x 1692 3650 29200

LOW 2112 x 1188 10900 87200

Video Mode

SD Card Size: 2 GB 16 GB

HD 1280 x 720 300 2400

FHD 1920 x 1080 150 1200

Actual capacity will vary based on image properties.

Warnings & Regulations

Wingscapes, a division of Plastic Research and Development Corporation

TimelapseCam PRO

FCC Statements

Note: changes and modiﬁcations not expressly approved by the party responsible could void

the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS

TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

NOTE: This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause

harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- lncrease the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This product may not comply with California Proposition 65 standards, known to the state of California to cause

birth defects or other reproductive harm.

ERA S E A LL IM A GES

( F O RM AT CA RD)

P RO G R A M

S E C U RI T Y CO D E

IM PRINT I N F O T E M PE R A T U R E

U N I T

VI D EO Q U A L I T Y PHO T O QU AL IT Y M A N A G ED

M E M O RY

A C CO NNECT ED?

IM PRINT I N F O

CA MERA NA M E

VI D EO L ENG T H

WI - FI SD CA R D?

Wingscapes TimelapseCam Pro

DEFAULT SETTINGS

DATE/TIME: 01/01/16 11:11pm

TIME LAPSE INTERVAL: 10 SECONDS

TIME LAPSE PROGAMS/DAY: 2 PROGRAM

T.L. PROGRAM #1 START TIME: 6 AM

T.L. PROGRAM #1 STOP TIME: 9 AM

T.L. PROGRAM #2 START TIME: 4 PM

T.L. PROGRAM #2 STOP TIME: 7 PM

Page 18

TimelapseCam Pro User Guide

Page 3

TimelapseCam Pro User Guide

Camera Accessories (sold seperately)

Moultrie Mobile® Compatibility

Your camera is compatible with our Moultrie Mobile®

cellular service when combined with the

Field Modem MV1.

Please visit www.moultriemobile.com

for more information.

NOTE: Camera rmware update may be required

for full Moultrie Mobile functionality.

Using the Moultrie Camera Power Panel

Place near the tree where the camera is mounted.

Place for best exposure to sun. To attach to a

tripod secure the power panel to the tripod

angled upward for best exposure. Just plug the

Power Panel into the camera’s External Power Port.

This will extend the life of your camera in the ﬁeld.

Note: Leave internal batteries in the camera

during use. The Camera Power Panel needs

4 hours of sunlight to fully power the camera.

Using the Moultrie Battery Box

Extend the eld life of your camera with a

long-lasting, rechargeable external power source.

Place near the tree where the camera is mounted.

Just plug the Battery Box into the camera’s

External Power Port. This will extend the life of

your camera in the ﬁeld.

Using the Moultrie AC Adapter

Keep your camera running with the constant power of

an AC adapter. Plug into a standard 110-240VAC

50-60Hz electrical outlet and then connect to the

External Power Port on your Wingscapes camera.

Note: Leave internal batteries in the camera during

use. In the event of power loss to the outlet into which

the AC adapter is plugged, the internal batteries will

keep your camera running.

Menu Map

UPGRADE FIRMWARE: NO

PROGRAM SECURITY CODE: 00000

AC CONNECTED?: NO

WI-FI SD CARD?: NO

CAMERA NAME: TIMELAPSECAM

IMPRINT INFO: YES

PHOTO QUALITY: HIGH (10 MP)

MANAGED MEMORY: DO NOT OVERWRITE

ERASE IMAGES: NO

RESET TO FACTORY DEFAULTS: NO

S E T U P M O D E

< O P T I O N S >

R E S E T T O

F A C T O R Y D E F A U L T S

D A T E & T I M E

PH O T O O R

V I D E O

T . L . P R O G R A M # 1

S T O P

T . L . P R O G R A M # 2

S T A R T

T . L . P R O G R A M # 2

S T O P

U P G R A D E

F I R M W A R E

T . L . P R O G R A M S

PER D A Y

T I M E L A P S E

I N T E R V A L

T . L . P R O G R A M # 1

S T A R T
