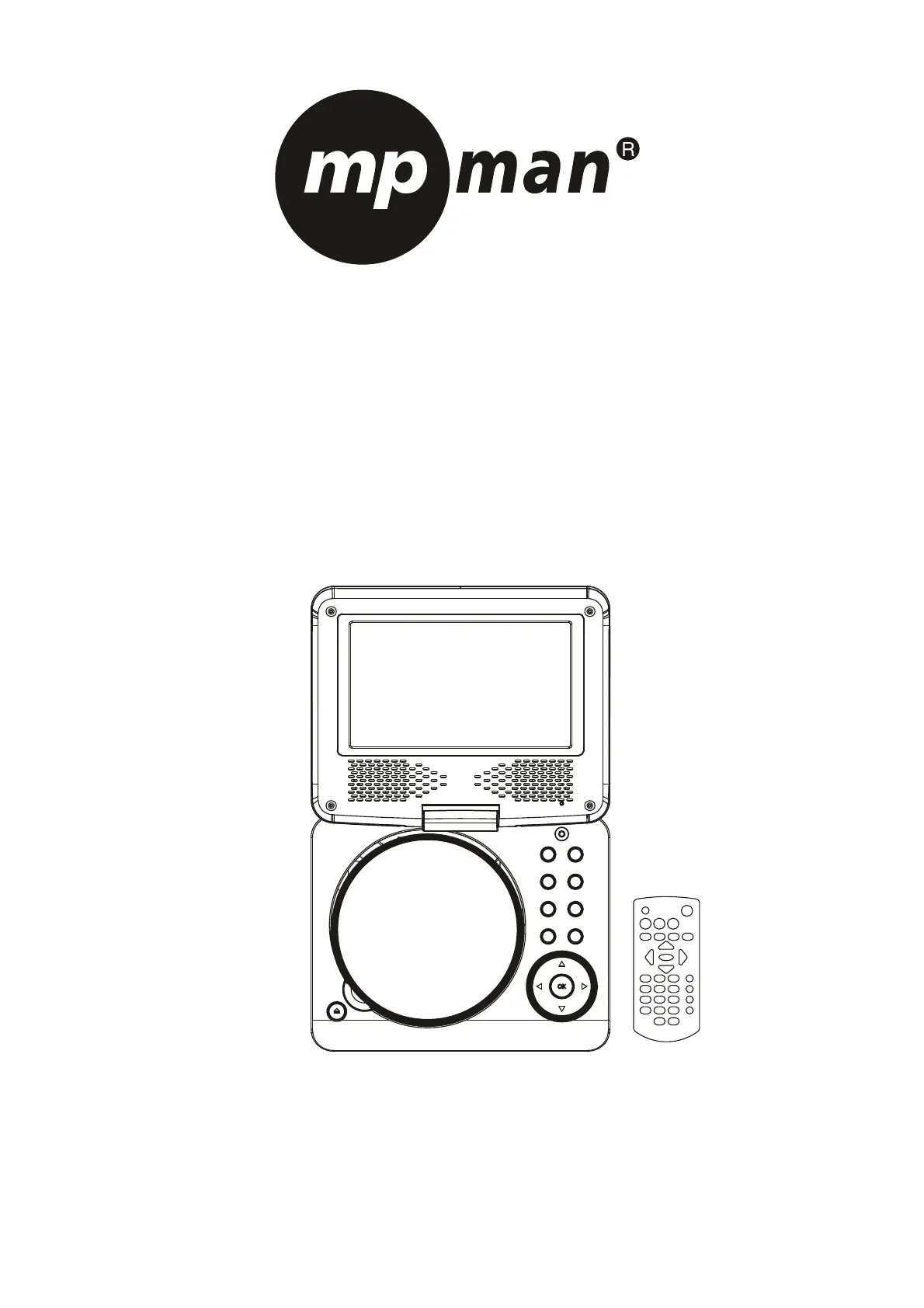

Operating Manual
PORTABLE LCD DVD PLAYER
Model: PDVS7228
READ THESE INSTRUCTIONS INCLUDED IN THIS IM THOROUGHLY PRIOR TO CONNECTING AND OPERATING.
PLEASE RETAIN THIS MANUAL IN CASE YOU MAY NEED IT FOR FUTURE REFERENCE.
THE ILLUSTRATIONS & GRAPHICS HEREIN ARE FOR REFERENCE ONLY AND SUBJECT TO CHANGE WITHOUT NOTICE.
GB-1
OVERVIEW OF THE DVD PLAYER:
1. DISC COVER OPEN KEY
2. DISC TAKEN AREA
3. DISC COVER
4. NAVIGATION LEFT KEY
5. NAVIGATION DOWN KEY
6. TFT SCREEN
7. SPEAKERS
8. PREV & F_BWD KEY
9. NEXT & F_FWD KEY
10. PLAY/PAUSE KEY
11. STOP KEY
12. VOLUME- KEY
13. VOLUME + KEY
14. SETUP KEY
15. DVD/USB/SD KEY
16. NAVIGATION UP KEY
17. NAVIGATION RIGHT KEY
18. OK KEY
19. DC IN JACK
20. SD/MMC CARD SLOT
21. POWER ON/OFF SWITCH
22. A/V OUT JACK
23. PHONE JACK
24. USB PORT
25. CHARGE INDICATOR/REMOTE
SENSOR/POWER INDICATOR
26. BUILT-IN BATTERY
REMOTE CONTROL UNIT
1. SCREEN ON/OFF & BRI/COL button
2. TITLE button
3. MENU button
4. PREV & F_BWD button
5. NEXT & F_FWD button
6. NAVIGATION UP button
7. NAVIGATION LEFT button
8. OK/PLAY/PAUSE button
9. NUMERIC buttons
10. PROGRAM/ANGLE button
11. VOLUME- button
12. MUTE button
13. SETUP button
14. DISPLAY button
15. STOP&USB/SD/MMC CARD button
16. NAVIGATION RIGHT button
17. NAVIGATION DOWN button
18. SUBTITLE button
19. AUDIO button
20. SEARCH button
21. REPEAT button
22. ZOOM/SLOW button
23. VOLUME+ button
GB-2
CONNECT DVD PLAYER TO OTHER
APPLIANCES
It is recommended you connect the player to a
multi-system TV.
Ensure that this player and other appliances (TV set
and amplifier) that will be connected to the player
are set to OFF mode and that the AC/DC adapter is
disconnected from the wall outlet.
Avoid blocking ventilation holes of the connected
appliances and make sure air around there can
circulate freely.
Read carefully and follow the instructions before
connecting other appliances.
Observe the color coding when connecting audio
and video cables, for instance connect yellow plug
to the yellow jack, the red plug to the red jack and
so on. If the RCA adapter is supplied only, the
audio/video RCA cable is required. Plug one end of
the RCA adapter to the unit. Then connect the
audio/video RCA cable to the RCA adapter and the
television.
AU D IO R AU D IO L VIDEO IN S-VIDEO YUV INPUT
AV AUDIO/VID E O INPUT
CHARGE THE BUILT-IN BATTERY
The player is with a rechargeable lithium battery.
Before using the battery, please make sure it is
charged. If not, charge it first. Slide the power switch
to OFF position and then connect one end of the
supplied adapter to the wall outlet and the other end to
the unit for charging the built-in battery.
Note:
1. The battery only could be charged at powering off
mode.
2. If the unit is not in use for a prolonged period of time,
it is recommendable to charge the built-in battery
each three months.
CONNECTING TO A CAR ADAPTOR
The car power adaptor is designed for use with
vehicles that have a 12V, negative ground electrical
system.
WARNING:
Disconnect the car power adaptor when not in use.
Not in use in 24V vehicles.
CAUTIONS:
Use the unit only with the recommended car power
adaptor, use with other car power adaptor might
damage the unit.
The recommended car power adaptor is for use
with this unit only. Do not use it with other
equipment.
In the interests of road traffic safety, do not operate
the unit or view video software while driving a
vehicle.
Make sure the unit is fastened securely to prevent
from moving outside of the vehicle in an accident
When the inside of the cigarette lighter socket is
dirty with ashes or dust, the plug section may
become hot due to poor contact. Be sure to clean
the cigarette lighter socket before use.
After use, disconnect the car power adaptor from
both the unit and cigarette lighter socket.
FUSE REPLACEMENT
FUSE
POSITIVE(+) CAP
NOTE: Don't throw out the positive(+) cap when
replace the fuse.
OPERATIONS
PREPARATION
Power on the TV set and select video input mode.
Power on the audio system which is connected to the
player.
GET STARTED
1. Slide POWER ON/OFF switch to turn on the player.
2. Press disc cover Open button to open the disc tray.
3. Place a disc onto the disc tray.
4. Close the disc tray by hand and the playback starts
automatically.
5. When a menu screen appears on the TV, press the
navigation buttons or press the numeric buttons to
select a preferred track number, then press OK
button to start playback.
ADJUST THE VOLUME
Press the VOLUME +/- buttons to increase or reduce
the volume.
MUTE
While the power is on, the audio output of the main
unit is to be switched off by pressing the button. Press
it again to resume sound output.
A/V cable TV SET
To the cigarette lighter socket
