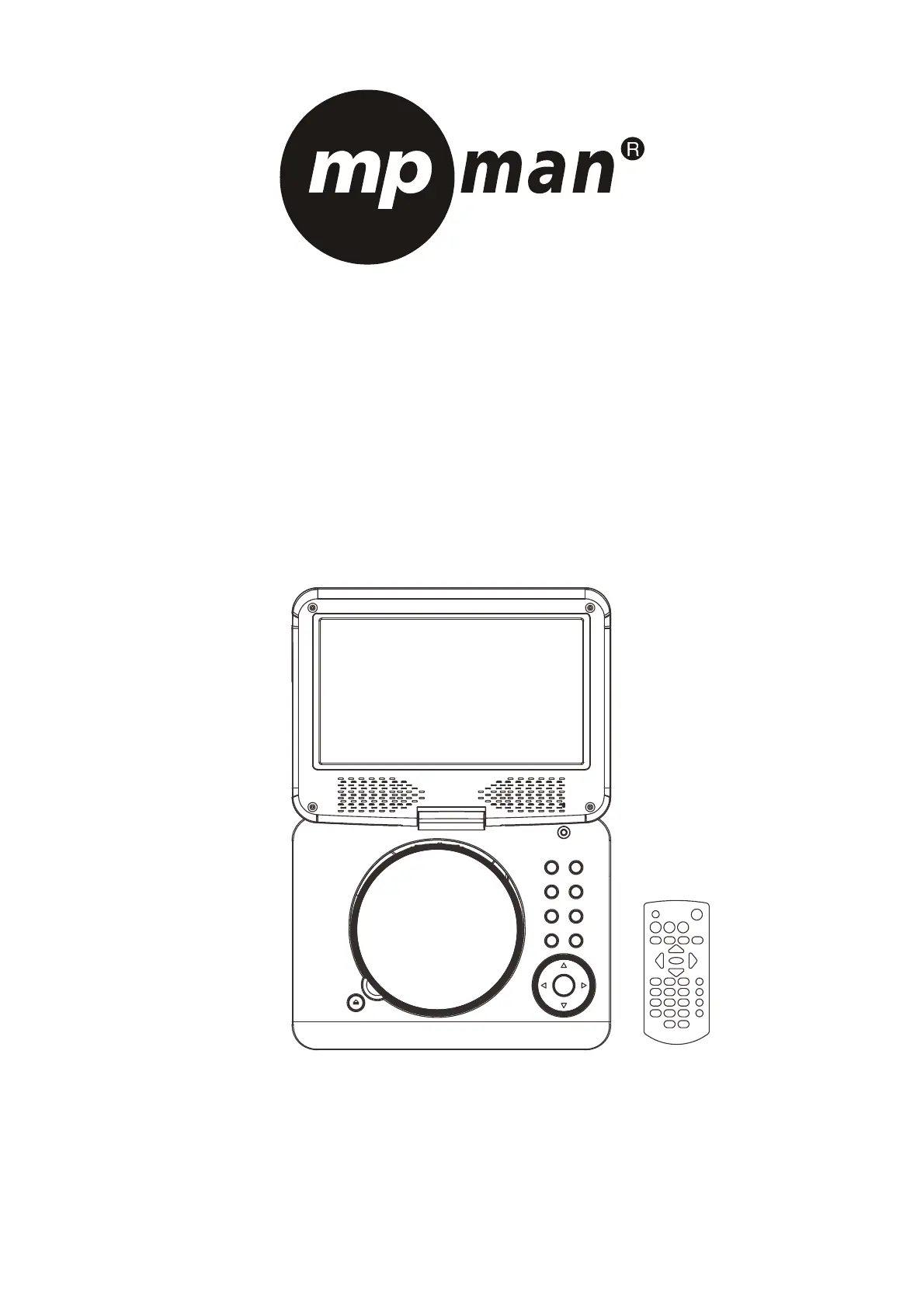

Operating Manual

PORTABLE LCD DVD PLAYER

Model: PDVS900

READ THESE INSTRUCTIONS INCLUDED IN THIS IM THOROUGHLY PRIOR TO CONNECTING AND OPERATING.

PLEASE RETAIN THIS MANUAL IN CASE YOU MAY NEED IT FOR FUTURE REFERENCE.

THE ILLUSTRATIONS & GRAPHICS HEREIN ARE FOR REFERENCE ONLY AND SUBJECT TO CHANGE WITHOUT NOTICE.

GB-1

OVERVIEW OF THE DVD PLAYER:

1. DISC COVER OPEN KEY

2. DISC TAKEN AREA

3. DISC COVER

4. NAVIGATION LEFT KEY

5. NAVIGATION DOWN KEY

6. TFT SCREEN

7. SPEAKERS

8. PREV & F_BWD KEY

9. NEXT & F_FWD KEY

10. PLAY/PAUSE KEY

11. STOP KEY

12. VOLUME- KEY

13. VOLUME + KEY

14. SETUP KEY

15. DVD/USB/SD KEY

16. NAVIGATION UP KEY

17. NAVIGATION RIGHT KEY

18. OK KEY

19. DC IN JACK

20. SD/MMC CARD SLOT

21. POWER ON/OFF SWITCH

22. A/V OUT JACK

23. PHONE JACK

24. USB PORT

25. CHARGE INDICATOR / REMOTE SENSOR /

POWER INDICATOR

REMOTE CONTROL UNIT

1. SCREEN ON/OFF & BRI/COL button

2. TITLE button

3. MENU button

4. PREVIOUS & F_BWD button

5. NEXT & F_FWD button

6. NAVIGATION UP button

7. NAVIGATION LEFT button

8. OK/PLAY/PAUSE button

9. NUMERIC buttons

10. PROGRAM/ANGLE button

11. VOLUME- button

12. MUTE button

13. SETUP button

14. DISPLAY button

15. STOP&USB/SD/MMC CARD button

16. NAVIGATION RIGHT button

17. NAVIGATION DOWN button

18. SUBTITLE button

19. AUDIO button

20. SEARCH button

21. REPEAT button

22. ZOOM/SLOW button

23. VOLUME+ button

10 21

1 2 3 4 5

1011

1213

1415

GB-2

CONNECT DVD PLAYER TO OTHER

APPLIANCES

It is recommended you connect the player to a

multi-system TV.

Ensure that this player and other appliances (TV set

and amplifier) that will be connected to the player are

set to OFF mode and that the AC/DC adapter is

disconnected from the wall outlet.

Avoid blocking ventilation holes of the connected

appliances and make sure air around there can

circulate freely.

Read carefully and follow the instructions before

connecting other appliances.

Observe the color coding when connecting audio

and video cables, for instance connect yellow plug to

the yellow jack, the red plug to the red jack and so on.

If the RCA adapter is supplied only, the audio/video

RCA cable is required. Plug one end of the RCA

adapter to the unit. Then connect the audio/video

RCA cable to the RCA adapter and the television.

AUDIO R AUDIO L VID E O IN

S-V ID EO YUV IN PUT

AV AU D IO /V IDEO INPUT

CHARGE THE BUILT-IN BATTERY

The player is with a rechargeable lithium battery. Before

using the battery, please make sure it is charged. If not,

charge it first. Slide the power switch to OFF position

and then connect one end of the supplied adapter to

the wall outlet and the other end to the unit for charging

the built-in battery.

Note:

1. The battery only could be charged at powering off

mode.

2. If the unit is not in use for a prolonged period of time,

it is recommendable to charge the built-in battery

each three months.

CONNECTING TO A CAR ADAPTOR

The car power adaptor is designed for use with vehicles

that have a 12V, negative ground electrical system.

WARNING:

Disconnect the car power adaptor when not in use. Not

in use in 24V vehicles.

CAUTIONS:

y Use the unit only with the recommended car power

adaptor, use with other car power adaptor might

damage the unit.

y The recommended car power adaptor is for use with

this unit only. Do not use it with other equipment.

y In the interests of road traffic safety, do not operate

the unit or view video software while driving a

vehicle.

y Make sure the unit is fastened securely to prevent

from moving outside of the vehicle in an accident

y When the inside of the cigarette lighter socket is dirty

with ashes or dust, the plug section may become hot

due to poor contact. Be sure to clean the cigarette

lighter socket before use.

y After use, disconnect the car power adaptor from

both the unit and cigarette lighter socket.

FUSE REPLACEMENT

FUSE

POSITIVE(+) CAP

NOTE: Don't throw out the positive(+) cap when

replace the fuse.

OPERATIONS

PREPARATION

Power on the TV set and select video input mode.

Power on the audio system which is connected to the

player.

GET STARTED

1. Slide POWER ON/OFF switch to turn on the player.

2. Press disc cover Open button to open the disc tray.

3. Place a disc onto the disc tray.

4. Close the disc tray by hand and the playback starts

automatically.

5. When a menu screen appears on the TV, press the

navigation buttons or press the numeric buttons to

select a preferred track number, then press OK

button to start playback.

ADJUST THE VOLUME

Press the VOLUME +/- buttons to increase or reduce

the volume.

MUTE

While the power is on, the audio output of the main unit

is to be switched off by pressing the button. Press it

again to resume sound output.

SKIP AHEAD OR BACK

Press PREVIOUS button during play to skip previous

chapter (DVD) or a track (CD), Press NEXT button

during play to skip next chapter (DVD) or a track (CD).

BRIGHTNESS AND COLOR ADJUSTMENT

During playback, press SCREEN ON/OFF&BRI/COL

button repeatedly to adjust brightness and color

respectively via navigation right/left button. Press and

hold this button to turn on/off the screen.

A/V cable

TV SET

To the cigarette lighter socket
