8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com URL: www.muxlab.com
© MuxLab Inc. 94-000613-B SE-000597-B
Specifications
Environment Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p,
1080i/p. Line level analog audio.
Devices DVD players, satellite receivers, plasma displays, projectors, monitors, up-
converters, amplifiers, switchers, home theatre and other equipment
supporting HDTV component video and/or analog audio.
Transmission Transparent to the user
Bandwidth Video: 60 MHz, 3 dB roll off
Analog audio: 20 Hz to 20 kHz
Maximum Input 1.1 Vp-p
Insertion Loss per Pair
(Video)
0.1 dB for 0.1 MHz
Gradually increasing to 3.0 dB over the frequency range
Insertion Loss per Pair
(Audio)
Less than 2 dB per pair over the frequency range
Return Loss (Video) Greater than 15 dB over the frequency range
Common Mode Rejection
Ratio (Video)
-55 dB max.
Common Mode Rejection
Ratio (Audio)
Greater than 60 dB at 1 kHz
Greater than 40 dB over the frequency and distance range
Max. Distance Color via
Cat 5E/6 UTP/STP Cable
480i/p: 1,000 ft (305 m)
720p and 1080i: 500 ft (152 m)
Analog Audio: 3,250 ft (990 m)
Cable:
Cat 5E/6 UTP/STP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: Coax Impedance: 75 ohms at 1 MHz
Connectors 500052: Three RCA-M connectors: Green (Y), Blue (Pb), Red (Pr)
500053: Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr)
One (1) RCA-F connector for analog audio
RJ45S for twisted pair
Pin Configuration
Reverse polarity sensitive
Red (Pr): Pins 7(R) & 8(T) Green (Y): Pins 3(R) & 6(T)
Blue (Pb): Pins 1(R) & 2(T) Analog Audio: Pins 4(R) & 5(T)
Temperature Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure ABS fire retardant plastic
Dimensions 500052: 2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm)
500053: Plus 6” (15 cm) cable lead for video
Weight 2.9 oz (81 g)
Regulatory FCC, CE, RoHS
Warranty Lifetime
Order Information 500052 Component Video / Analog Audio Balun, M
500053 Component Video / Analog Audio Balun, F

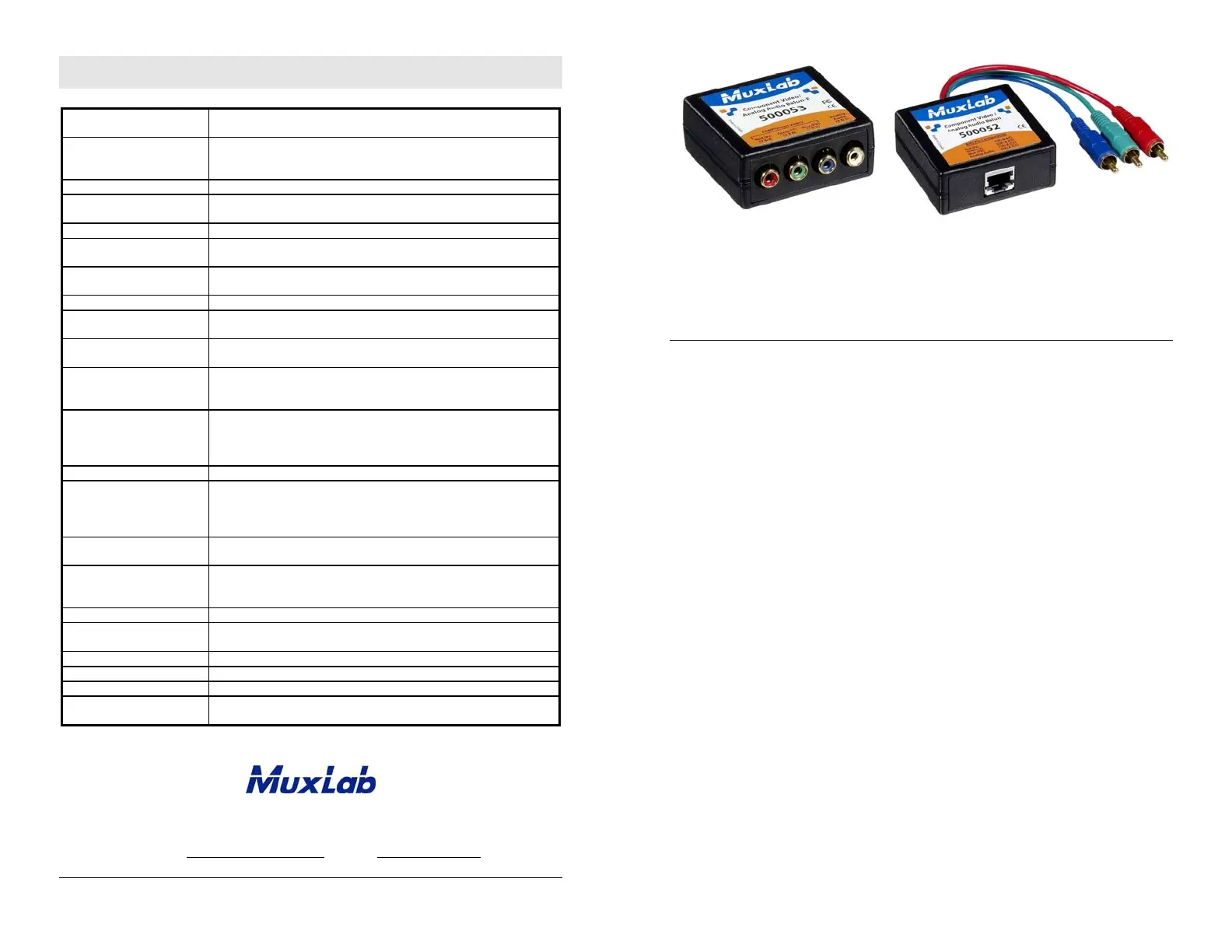

Component Video / Analog Audio Balun
500052, 500053
Quick Installation Guide
Overview
The Component Video/Analog Audio Balun (500052, 500053) allows one component
video (YPbPr or RGB) signal and one Analog Audio signal to be transmitted via a cost-
effective unshielded twisted pair (UTP) cable.
Used in pairs, the Component Video/Analog Audio Balun supports 480i/p, 720p and
1080i/p resolution for hi-definition (HDTV) video applications.
The product allows four coaxial cables to be replaced by one Category 5E/6 twisted pair
cable allowing standard structured cabling techniques to be used for more efficient
cabling.
© MuxLab Inc.
Installation
One (1) pair of baluns is needed to complete one component (YPbPr/RGB) connection
via Cat 5E/6 twisted pair. To install the baluns, perform the following steps:
1. Identify the pin configuration of the baluns. Three (3) twisted pairs are required for
video and one (1) twisted pair is required for optional analog audio. The pin
configuration follows the EIA/TIA 568A/B standard. The Component
Video/Analog Audio Balun is reverse polarity sensitive. Please ensure that wiring
is straight-through (Ring to Ring, Tip to Tip).
2. Plug one (1) balun into the component video coaxial cable output of the video
source according to the color code of the RCA cable leads.
3. Plug the second balun into the component video coaxial cable input of the video
screen or receiver at the remote end.
4. Complete the connection between the two baluns, using standard Cat 5E/6 twisted
pair cable and connecting hardware, terminated on RJ45 plugs at both ends. Ensure
that there are no split pairs or taps.
5. If analog audio is to be connected (optional), connect an RCA lead between the
balun and the analog audio equipment at both ends.
6. Power-on the component video equipment. Check the image quality and refer to
the troubleshooting table below if the image quality is unsatisfactory. The
following diagram shows a typical installation.
Troubleshooting
The following tables describe some of the symptoms, probable causes and possible
solutions in respect to the installation of the Component Video/Analog Audio Balun:
Video Symptom Probable Cause Possible Solutions
No continuity in video
link
Verify cable continuity between pairs of
baluns.
Power off Check power supplies of video equipment.No video
Improper connection
and/or swapped pairs
Check that baluns are connected to correct
video inputs and outputs.
Unusual colors Reversed polarity Check wiring and ensure straight-through
polarity.
Background pattern EMI interference
Identify possible radiating frequency
sources (i.e., wireless LANs, switching
power supplies). Try to isolate them from
the video connection. Use shielded twisted
pair grounded at both ends.
Smearing Exceeded distance Verify cable grade. Use higher grade cable
if necessary.
Exceeded distance Verify cable grade. Use higher grade cable
if necessary. Increase contrast on monitor.
Weak contrast
Unusual link attenuation Verify cable distance using ohmmeter or
cable tester.
Image not stable Defective link or
equipment Verify video equipment interface integrity.
Horizontal bars moving
slowly
Substantial crosstalk
between multiple video
sources
Consecutively turn off other video sources
to determine which video source is the
cause of interference.
Snowy picture Distance is near limit
Verify cable grade. Use higher grade cable
if necessary. Reduce color intensity at
monitor.
Audio Symptom Probable Cause Possible Solutions
EMI interference Check that wiring is not too close to
transformers and ballasts.
Poor audio quality
Split pair Ensure that the UTP pairs are not split and
that each pair of wires is twisted.
No power Check your audio system for power.
Open circuit Check wiring to ensure continuity.No audio
Defective balun Change baluns for another pair.
Audio phase cancellation Reversed wires Check for straight-through wiring.
Audio weak Distance specifications
exceeded
Check DC loop resistance and verify if
distance spec is exceeded. Reduce cable
length or eliminate high-loss components.
If you still cannot diagnose the problem, please call MuxLab Customer Technical
Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588
(International).
