MuxLab HDMI Wall-Plate Extender Kit Bruksanvisning
MuxLab
AV extender
HDMI Wall-Plate Extender Kit
Läs nedan 📖 manual på svenska för MuxLab HDMI Wall-Plate Extender Kit (2 sidor) i kategorin AV extender. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2
Specifications
Environment
HDMI 1.4a (3D)
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
HDMI.
Transmission
Transparent to the user
Bandwidth
340MHz
Signals
HDMI 1.4 a protocol
Connectors
HDMI receptacle.
One (1 ) RJ45S for Cat5e/6 unshielded or shielded twisted pair.
HDMI cables not included.
Max. Distance*
*Based on a maximum length
of 6.6 ft (2m) of HDMI cable
per end
Cat 5e/6: 230 7ft ( 0 m) up to 1080P Deep Color
131 ft (40 m) for 4K; 3840 x 2160/24, 25 &30 Hz.
When installed in an electrically noisy environment, STP cable must be
used. Also, cross-connection reduces the effective distance depending on
the grade of twisted cable used.
RJ45 Pin Configuration
Reverse Polarity Sensitive
Use EIA/TIA 568 A or B,
straight-through wiring.
RJ45
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable
One (1) Category 5e or better twisted pair cables required.
Power Supply
One (1) 110-240V/5VDC power supply with interchangeable blades
Power Consumption
6W
Temperature
Operating: 0º to 40º C. Storage:-20º to 85º C. Humidity: up to 95% non-
condensing.
Enclosure
Metal Wall- Plate one gang
Dimensions
1.69 ” ” x 4.33” x 1.50 ( 43 x 110 x 38 mm). Choose 1.97” (50 mm) deep back
box to allow for Cat 5E/6 wiring connection.
Weight
1.6 LB 0.7 Kg ( )
Mounting
Screws included
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500451- -US -WP HDMI Wall Plate Extender Kit, HDBT Lite, US
500451- -US-WP RX - S HDMI Wall Plate Receiver, HDBT Lite, U
500451- -US-WP TX -HDMI Wall Plate Transmitter, HDBT Lite, US

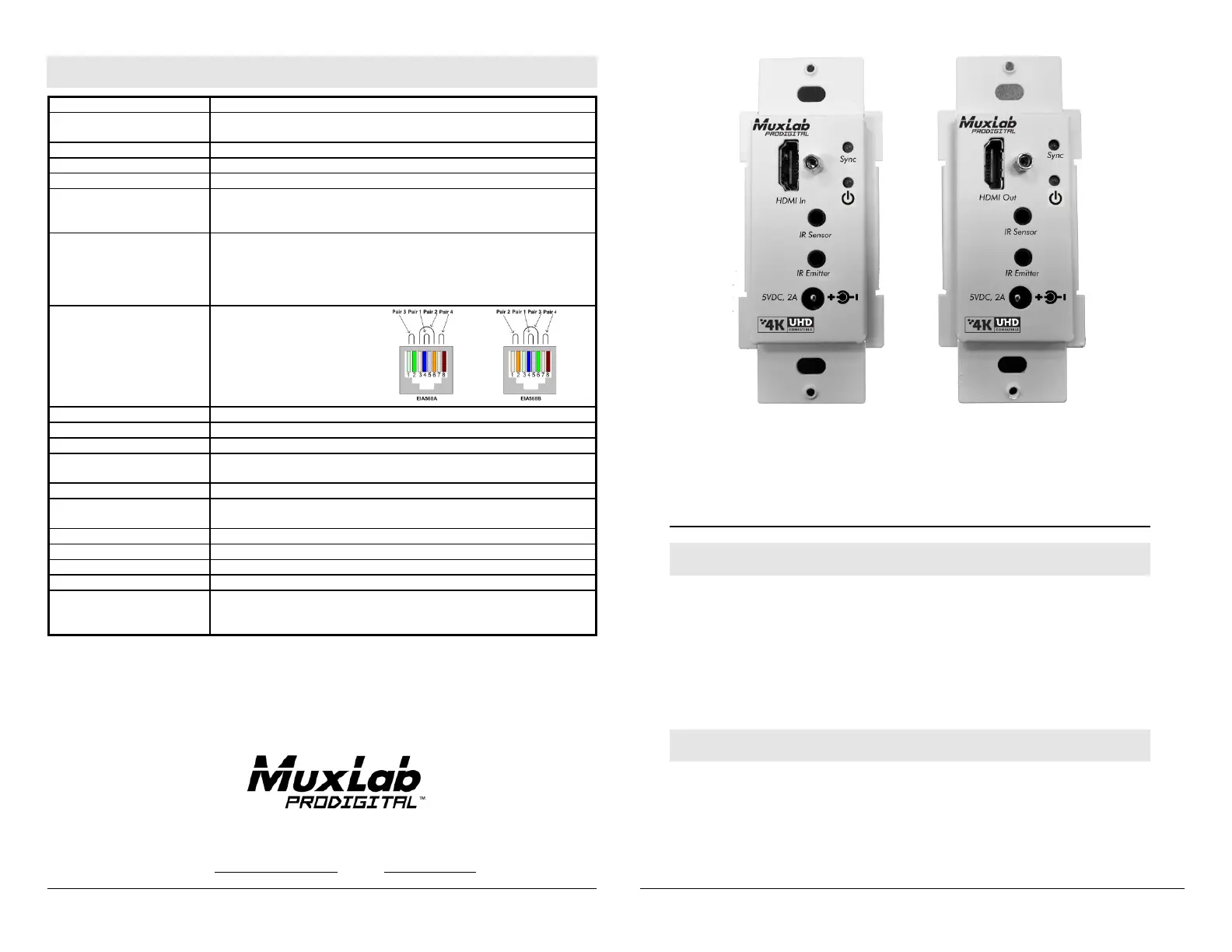

HDMI Wall-Plate Extender Kit
(500451- -US) WP
Quick Installation Guide
Overview
The HDMI Wall Plate - Extender Kit (500451- -USWP ) allows HDMI equipment to
be connected up to 23 70 ft ( 0m) @ 1080P via one (1 ) Cat5e/6 unshielded twisted
pair cables in a point- -to point configuration. The kit comes with one (1) Transmitter
and one (1) Receiver.
Applications include; commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, medical
information systems.
Pre- Installation Check
Identify the connectors on the Transmitter (Source side) and Receiver (Display
side). The Source side has an HDMI In connector. The Display side has an HDMI
Out connector. Both products have two LED indicators for Power and RJ45 Sync,
IR Sensor and Emitter and a Power Supply connector.
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905- - 0588 Fax: (514) 905 0589
Toll Free (North America): (877) 689- 5228
E-mail: videoease@muxlab.com URL: www.muxlab.com
© MuxLab Inc. 2015 - 7 - - 7 -A 94 000 97 A / SE 000 97 © MuxLab Inc. 2015 1
Installation
Verify that the distance between the HDMI Transmitter and Receiver are within MuxLab
specifications (see Specifications table).
1. Identify the pin configuration of the baluns. The pin configuration follows the
EIA/TIA 568A/B standard. The HDMI Wall- Plate Extender Kit is reverse
polarity sensitive. Please ensure that wiring is straight through (Ring to Ring,
Tip to Tip).
2. To install the HDMI Transmitter or Receiver in a single back box, choose a back
box with a depth of 1.97 50” ( mm)
or more or a mud ring. Connect the RJ45 plug
into the rear of the extender. Secure the extender with the 2 front screws.
In order to install the Transmitter, please follow the steps below:
1. Connect the
Transmitter to the HDMI video source with an HDMI compliant
cable.
2. Connect the Cat5e (or higher) grade UTP cables to the RJ45 Link connectors on
Transmitter.
3.
Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.
4. Connect the Cat5e (or higher) grade UTP cables to the RJ45 Link connectors of
the Receiver.
5.
Connect the 5 VDC power supply first to the Receiver and then plug the power
supply into an AC power outlet. Then connect the 5 VDC power supply to the
Transmitter and plug the power supply into an AC power outlet. If power is
present, then the green power LED of the Transmitter and Receiver will be ON.
Note: -Power the HDMI Wall Plate Extender Balun only after all
connections are made.
6. Power on the HDMI equipment and verify the image quality
7. This product support bidirectional IR Control.
Note: You can differentiate the IR Sensor and the IR Emitter by looking
at the 3.5 mm plug. The IR Sensor is using a Stereo Plug (3
Contacts) and the IR Emitter a mono plug (2 Contacts).
8. Position the IR Sensor so that it is directed to the hand-held remote control. For
a clear IR signal reception, aim the hand-held remote control to the top of the IR
Sensor enclosure.
9. Position the IR Emitter as close as possible to the source’s IR Sensor (i.e. DVD
player). For a clear IR signal reception, the IR Emitter can be glued on the
source’s IR Sensor. The IR Emitter’s signal is transmitted from the side of the
enclosure.
10. The following diagram shows the final configuration.
Troubleshooting
The following tables describe some of the symptoms, probable causes and possible solutions
in respect to the installation of the HDMI Extender Kit. Wall-Plate
Picture/
Sound
Power
LED
Sync
LED
Probable Cause
Possible Solution
No Image
OFF
OFF
No power
Check power connections
No Image
ON
OFF
Wiring
Check continuity
Check correct wiring
No Image
ON
ON
Synchronization
Power off the source and the
display. Cycle power of the
HDMI Extender and power
on the devices.
Flickering Image
ON
ON
Synchronization
Check cable length
Choppy Sound
ON
ON
Synchronization
Check cable length
Noise in image
ON
ON
Weak signal
Check cable length
Verify that the HDMI cables
are certified HDMI 1.3a
Image Flicker when
powering up
equipment nearby
ON
ON
Interference
Use STP cables.
IR not functioning
ON
ON
Remote control not
directed to the IR
Sensor or IR Emitter
not directed to the
source.
Make sure the IR Sensor is
directed towards the remote
and the IR Emitter to the
equipment
IR not functioning
ON
ON
Interference from
sunlight, Fluorescent,
Neon or Halogen
lights
Place the IR equipment away
for the interfering light
IR not functioning
ON
ON
Interference from RF
radiation from the TV
Place the IR equipment away
for the RF radiation
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877- -689 5228 (toll 0588 (International).- - -free in North America) or (+1) 514 905
© MuxLab Inc. 2015 2 © MuxLab Inc. 2015 3
