1
Noise Engineering
Fractio Solum
CV-controlled clock divider and multiplier with
intuitive ratio display.
Type Voltage controlled
clock divider/
multiplier
Size 4 HP
Depth 0.8 inches
Power 2x5 Eurorack
+12 mA 50
-12 mA 14
+5 mA 0
Overview
Fracto Solum is a simple and easy-to-use clock divider/multiplier. Patch a clock to the In
jack, dial in a fraction with the encoder, and you’re o! CV over ratio opens up an extra
level of clocking and sequencing power. FS also includes a mute feature, a reset input,
x2 and /2 outs that further divide and multiply the selected ratio by 2, and a BOC output
that outputs a trigger each time the division starts a cycle.
Etymology
Fractio -- from latin: “fraction”
Solum -- from latin: “foundation”
“Foundation of fractions”
2

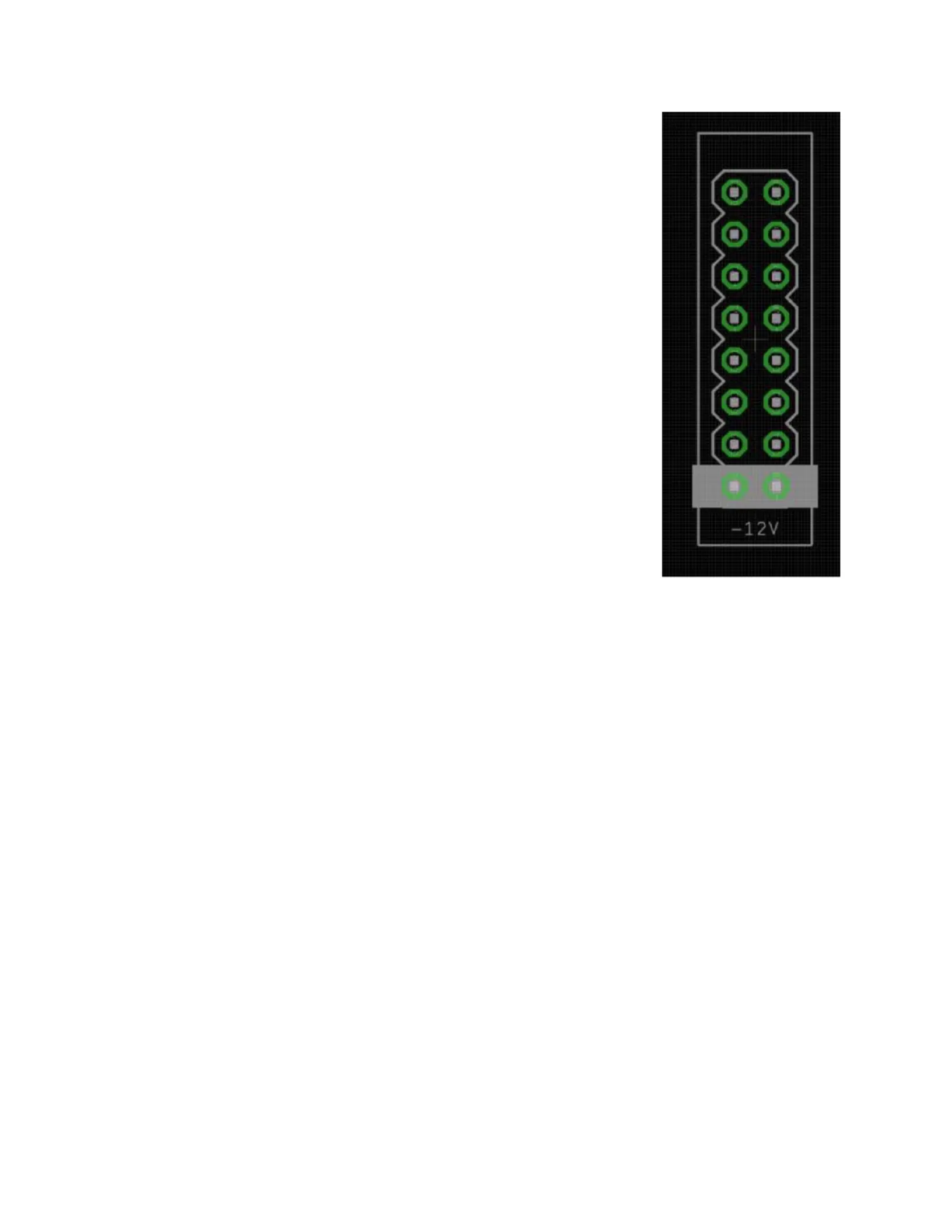

Power
To power your Noise Engineering module, turn o your case. Plug
one end of your ribbon cable into your power board so that the red
stripe on the ribbon cable is aligned to the side that says -12v and
each pin on the power header is plugged into the connector on the
ribbon. Make sure no pins are overhanging the connector! If they
are, unplug it and realign.
Line up the red stripe on the ribbon cable so that it matches the
white stripe and/or -12v indication on the board and plug in the
connector.
Screw your module into your case BEFORE powering on the
module. You risk bumping the module’s PCB against something
metallic and damaging it if it’s not properly secured when powered
on.
You should be good to go if you followed these instructions. Now
go make some noise!
A nal note. Some modules have other headers -- they may have
a dierent number of pins or may say NOT POWER. In general,
unless a manual tells you otherwise, DO NOT CONNECT THOSE
TO POWER.
Warranty
Noise Engineering backs all our products with a product warranty: we guarantee our
products to be free from manufacturing defects (materials or workmanship) for one year
from the date of the original retail purchase (receipt or invoice required). The cost of
shipping to Noise Engineering is paid by the user. Modules requiring warranty repair will
either be repaired or replaced at Noise Engineering's discretion. If you believe you have
a product that has a defect that is out of warranty, please contact us.
This warranty does not cover damage due to improper handling, storage, use, or abuse,
modications, or improper power or other voltage application.
Input and output
voltages
FS’s trigger inputs will trigger from any signal over +2v. The
CV input expects only positive voltage, 0v to +5v. The
outputs send triggers at about +5v.

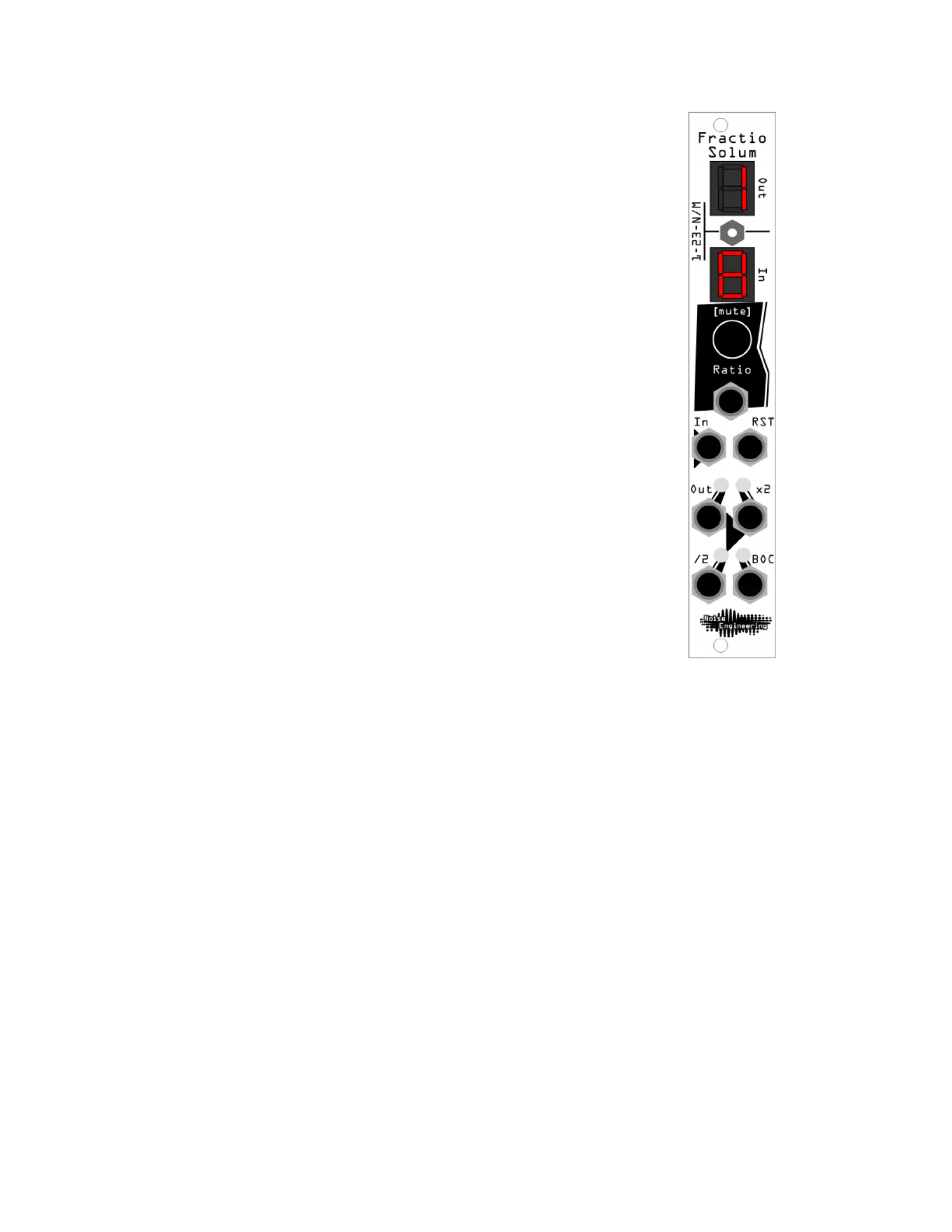

Interface
Out/In (display): These two numbers indicate the selected
clock ratio. The display can be thought of as a fraction: for
instance, if ¾ is displayed, 3 triggers will be output at the
Out jack for every 4 triggers that are input at the In jack.
Ratio: Sets the division/multiplication ratio.
Ratio (press): Activates a mute on all outputs. Pressing
again unmutes the clock while keeping everything in time
and phase.
In: Clock input.
RST: Reset input. Resets the clock cycle to the beginning.
Out: Clock output based on ratio shown on the Out/In
displays.
x2: Identical to Out but twice the rate.
/2: Identical to Out but half the rate.
BOC: Outputs a trigger at the beginning of each clock cycle, based on the /2 output.
This means that the main Out jack will complete two cycles every time BOC res.
1-23-N/M: Selects a subset of ratios that can be selected with the encoder or CV. See
tables on the next page for a full lists of ratios.
3
