Sida 1/4

TF 45c August 2013

REMOVE EXCESS SEALANT AND MASKING

Excess sealant must be removed promptly with a suitable clean-up solvent

recommended for use on both the counter/benchtop and stainless steel to ensure

damage does not occur.

PLUMBING & TAPWARE

IMPORTANT - Connections to plumbing should always be done by a licensed plumber.

Fit supplied basket wastes to sink bowls. Install tapware according to manufacturers

instructions.

If 2 or more individual basins/bowls are under-mounted, a minimum distance of 3 ½” (90mm) is required

between the basins/bowls. The counter/benchtop supplier is to determine the support method required.

DO’s

• Clean with soap & water (towel dry)

• Clean along the grain of the Stainless Stee

• Use a soft brush or sponge (old tooth brush)

• Wipe over with a glass cleaner (Windex is very good)

• Polish with a metal polish paste (Autosol / Brasso)

• Use a Liquid cleaner (Bon-Ami or Jiff)

• Use a granulated stainless steel cleaner (Essteele)

DO NOT’s

• NEVER use Steel wool

• Beware of harsh liquid cleaners

• Beware of grit within cloths and mineral deposits within water

• Avoid prolonged exposure to acids from Fruit, Fruit juices, Salts, Spirits, Bleach, Tea-bags

• Avoid prolonged contact with ordinary steel which can rust Tin Cans, Steelwool

• Do not keep harsh (acids or chlorine) chemicals under sink / laundry tub

• Do not leave chlorine/chloride chemicals on stainless steel surface

• Do not leave liquid soaps & cleaners to dry on stainless steel

• Do not use bleaches (White King, Domestos, Clorox)

MATERIALS FOR FITTING THE UNDERMOUNT SINK:

• Oliveri sink includes mounting clips, basket wastes and other

accessories (depending on model).

• These Installation Instructions

• Level to check counter/benchtop & sink is installed level

• Flat head screwdriver (large - to tighten basket wastes)

• Suitable sealant and fastening materials (neutral-cure silicone sealant

and structural epoxy or hardware)

• Masking material to protect counter/benchtop and sink from excess

sealant

• Clamping Mechanism (such as threaded rod and timber bearers)

• Additional Mounting Hardwareifttingintothinnermaterial.The

instructions for bolting the sink require a minimum counter/benchtop

thickness of 25mm / 1”. Different hardware or packing materials will be

needed for thin counters/benchtops.

It is essential that the installation is waterproof and carried out in accordance with these instructions.

Tasman Sinkware will not be held responsible for any damage caused by leakage or faulty installation.

CARE INSTRUCTIONS FOR YOUR OLIVERI STAINLESS STEEL SINK

AVOID CONTACT WITH ROUGH OR DIRTY SURFACES as new polished stainless steel will show scratches!

INSTALLER - PLEASE READ & FOLLOW THESE

INSTALLATION INSTRUCTIONS

Please retain for consumer as care instructions are included

IT IS HIGHLY RECOMMENDED THE ACTUAL SINK BE PRESENT AT TIME OF CUTTING

Any advice, recommendation, information, assistance or service provided by Tasman Sinkware in

relation to goods manufactured by it or their use and installation, is given in good faith and is believed by

Tasman Sinkware to be appropriate and reliable. However, any advice, recommendation, information,

assistance or service is provided by Tasman Sinkware without responsibility or liability.

FOR UNDERMOUNT SINKS

CHECK MODEL

The model number on the sink

packaging must match the model

of sink the customer ordered.

Do not install if incorrect.

AVOID CUTS

The perimeter and punch-outs on

the sink may contain sharp edges.

Handle the sink carefully to avoid

personal injury.

CHECK THE CONDITION

Inspect the sink for any visible

defects. Do not install the sink if

defects are found. Contact your

sink retailer / point of purchase.

AVOID SCRATCHES

Stainless steel can be scratched if proper

care is not taken during installation.

Do wnload cutout

template les

(PDF, & F) DWG DX

from our website.

ASIA PACIFIC DISTRIBUTORS

New Zealand - Dux Industries Ltd

Phone: 0800 367 389

Singapore - Sim Siang Choon

Phone: 6266 6632

Hong Kong - Deacon & Co Ltd

Phone: 2369 6111

NORTH AMERICA

SalesOfce

Tasman Sinkware North America

Corona CA

Email: northamerica@oliverisinks.com

UNITED KINGDOM DISTRIBUTOR

A.C. Toon Ltd

Phone: 01246 223900

Email: sales@actoon.co.uk

AUSTRALIA

HeadOfce&

Manufacturing Plant

Tasman Sinkware Pty Ltd

Regency Park SA

Phone: +61 8 8348 6444

Fax: +61 8 8348 6495

Email: sinkware@tasbuildpro.com.au

www.oliverisinks.com

Tasman Sinkware

is a division of

Fletcher Building

TF 45c August 2013

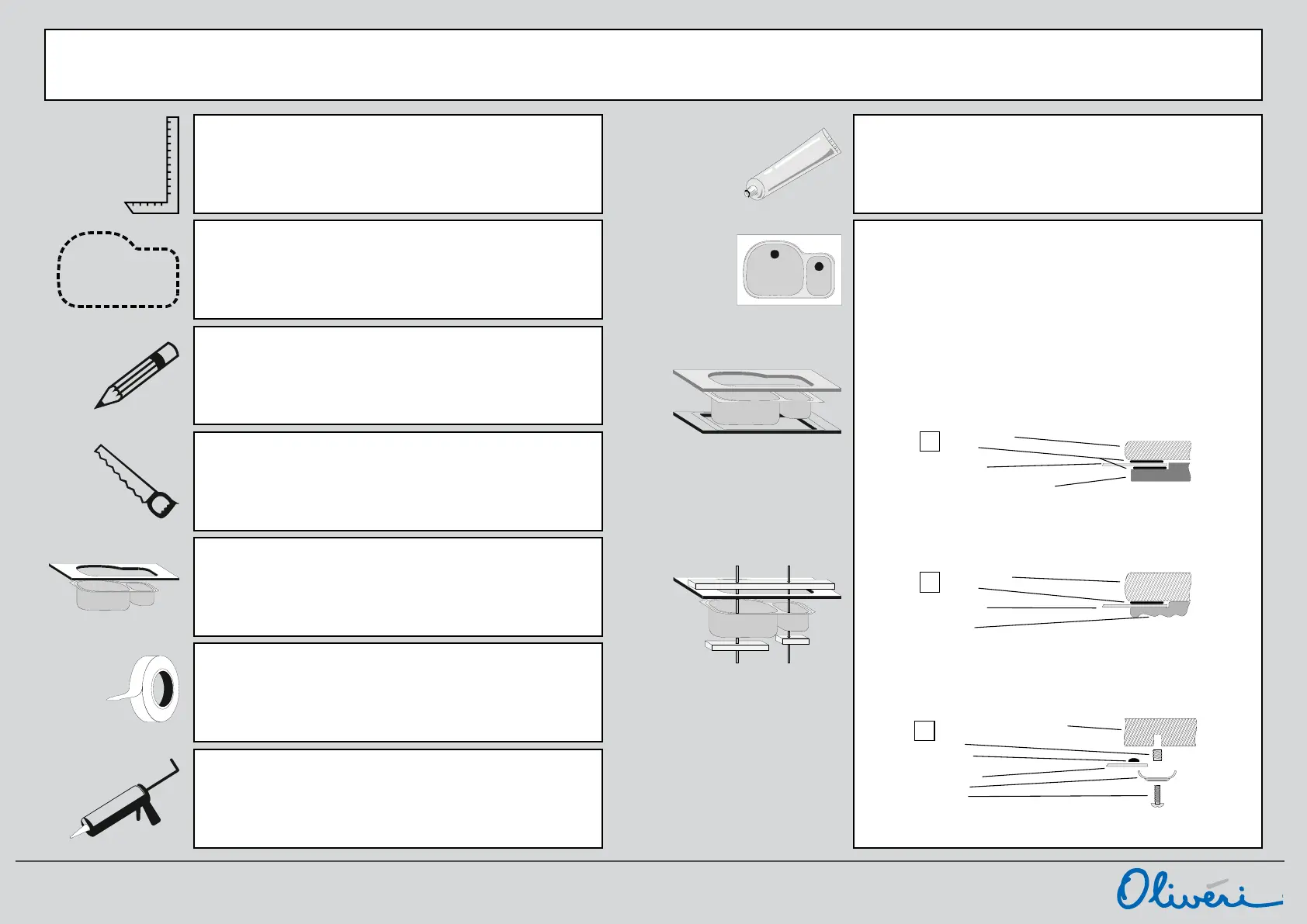

FOLLOW THESE STEPS TO INSTALL THE OLIVERI UNDERMOUNT SINK

IF COUNTER / BENCHTOP IS SUPPLIED WITH CUT-OUT, SKIP STEPS MARKED WITH*

CHECK SPACE

Ensure there is adequate space for tapware (including a splashback

ifspecied).Checkspaceforinstallation(underneath)andoperation

(above). Particular care must be taken when a thick splash back is

used (it may interfere with tapware location and operation). Ensure the

cabinetwillnotfoulthesinkmountingangeorbasins.

ADDITIONAL FASTENING

The sealant alone may appear to bond the sink to the counter/

benchtop. However, when installing your Oliveri undermount sink, it

is important to always use methods A, B or C (below) to locate the

sink securely in the counter/bench top in conjunction with the sealant

manufacturer’s instructions.

FITTING THE SINK

Position and align the sink correctly in the cutout (some threaded rod

and timber bearers will help to clamp the sink in place) and either

‘A’ Sandwich Method: RECOMMENDED FOR BOTH THIN AND

THICKCOUNTER/BENCHTOP.Firmlyxasupportboardinto/over

thecabinetandcutthesinkholesothatthesinkangewillsitabove

theedgeoftheboard.Slightlyrouttheedgesothatthesinkangewill

situshwiththetopsurface.Testfort.Installsinkandsealbetween

angeandsupportboard.Applysealanttotheundersideedgeofthe

cutout on counter/benchtop material and position it over the support

board to sandwich the sink in place. Fasten the counter/benchtop

securely.

‘B‘ Bond: For minimum 1” / 25mm thick material. Bond it to the

underside of the counter/benchtop with a structural high strength epoxy

compound. NOT RECOMMENDED TO BE USED WHEN FITTING

SINK TO THINNER COUNTER/BENCHTOPS.

‘C‘ Bolt: For minimum 1” / 25mm thick material. Bolt it to the counter /

benchtop using “molly” assemblies. Care must be taken during drilling

and tightening to avoid cracking. NOT RECOMMENDED TO BE USED

WHEN FITTING SINK TO THINNER COUNTER/BENCHTOPS.

Ifyouhaveanydoubts,conrmthecorrectmountingmethodfor

your material by consulting the counter/benchtop supplier.

TEMPLATE *

Cut out templates for your Oliveri sink are available online at

oliverisinks.com.Usetheproductmodelnumbertondthetemplate.

Some sink templates apply to both left-hand and right-hand

modelssinks. Ensure template is correct way around for your model.

MARK CUT OUT *

Carefully mark out the template (or follow drawing instructions) making

allowance for any additional polishing back that is required after cutting.

NOTE: THE TEMPLATE IS THE EXACT FINISHED CUT-OUT SIZE

REQUIRED.

CUT & FINISH HOLE *

Drill pilot holes to accept an appropriate cutting tool for the counter/

benchtop material (wear suitable personal protection equipment). Cut

insidethemark,allowingsufcientroomforanypolishingback.

Note: Accuracy is essential to ensure the bowl / basin and

accessoriestcorrectly.

TRIAL FIT THE SINK

Carefully position the sink against counter/benchtop to make sure it

tsthecut-outcorrectly.Ifthetisnotcorrect,removethesinkand

proceedwithremedialwork.Performanothertrialtaftercorrections

have been made.

MASKING

To prevent sealant overrun, it is recommended that both the inside

edge of the basin and the edge of the cut-out is covered with a suitable

masking tape.

APPLY SEALANT

Apply suitable sealant recommended for both the counter/benchtop

material being used and for stainless steel. Neutral-cure sealant will

not damage stainless steel. It may be easier to apply sealant after

preparing your clamping equipment. Do not allow the sealant to dry

before the sink is clamped to the counter/benchtop.

Above shows sandwich method

where sink is clamped between a

lower support board (with routed

edge) and the upper counter /

benchtop using method A.

Above shows how threaded rod

and timber bearers may be used

to clamp the sink in place while

fastening to the counter / benchtop

using methods B and C.

Do not overtighten as this may

damage the sink.

Counter / benchtop

Sealant

Sink flange

Support board with routed edge

(such as timber)

Counter / benchtop

Sealant

Sink flange

Epoxy

1” Counter / benchtop with hole drilled

Molly

Sealant

Sink flange

Saddle

Screw
