Sida 1/4
© Tasman Sinkware
TF 45c August 2013
REMOVE EXCESS SEALANT AND MASKING
Excess sealant must be removed promptly with a suitable clean-up solvent
recommended for use on both the counter/benchtop and stainless steel to ensure
damage does not occur.
PLUMBING & TAPWARE
IMPORTANT - Connections to plumbing should always be done by a licensed plumber.
Fit supplied basket wastes to sink bowls. Install tapware according to manufacturers
instructions.
If 2 or more individual basins/bowls are under-mounted, a minimum distance of 3 ½” (90mm) is required
between the basins/bowls. The counter/benchtop supplier is to determine the support method required.
DO’s
• Clean with soap & water (towel dry)
• Clean along the grain of the Stainless Stee
• Use a soft brush or sponge (old tooth brush)
• Wipe over with a glass cleaner (Windex is very good)
• Polish with a metal polish paste (Autosol / Brasso)
• Use a Liquid cleaner (Bon-Ami or Jiff)
• Use a granulated stainless steel cleaner (Essteele)
DO NOT’s
• NEVER use Steel wool
• Beware of harsh liquid cleaners
• Beware of grit within cloths and mineral deposits within water
• Avoid prolonged exposure to acids from Fruit, Fruit juices, Salts, Spirits, Bleach, Tea-bags
• Avoid prolonged contact with ordinary steel which can rust Tin Cans, Steelwool
• Do not keep harsh (acids or chlorine) chemicals under sink / laundry tub
• Do not leave chlorine/chloride chemicals on stainless steel surface
• Do not leave liquid soaps & cleaners to dry on stainless steel
• Do not use bleaches (White King, Domestos, Clorox)
MATERIALS FOR FITTING THE UNDERMOUNT SINK:
• Oliveri sink includes mounting clips, basket wastes and other
accessories (depending on model).
• These Installation Instructions
• Level to check counter/benchtop & sink is installed level
• Flat head screwdriver (large - to tighten basket wastes)
• Suitable sealant and fastening materials (neutral-cure silicone sealant
and structural epoxy or hardware)
• Masking material to protect counter/benchtop and sink from excess
sealant
• Clamping Mechanism (such as threaded rod and timber bearers)
• Additional Mounting Hardwareifttingintothinnermaterial.The
instructions for bolting the sink require a minimum counter/benchtop
thickness of 25mm / 1”. Different hardware or packing materials will be
needed for thin counters/benchtops.
It is essential that the installation is waterproof and carried out in accordance with these instructions.
Tasman Sinkware will not be held responsible for any damage caused by leakage or faulty installation.
CARE INSTRUCTIONS FOR YOUR OLIVERI STAINLESS STEEL SINK
AVOID CONTACT WITH ROUGH OR DIRTY SURFACES as new polished stainless steel will show scratches!
INSTALLER - PLEASE READ & FOLLOW THESE
INSTALLATION INSTRUCTIONS
Please retain for consumer as care instructions are included
IT IS HIGHLY RECOMMENDED THE ACTUAL SINK BE PRESENT AT TIME OF CUTTING
Any advice, recommendation, information, assistance or service provided by Tasman Sinkware in
relation to goods manufactured by it or their use and installation, is given in good faith and is believed by
Tasman Sinkware to be appropriate and reliable. However, any advice, recommendation, information,
assistance or service is provided by Tasman Sinkware without responsibility or liability.
FOR UNDERMOUNT SINKS
CHECK MODEL
The model number on the sink
packaging must match the model
of sink the customer ordered.
Do not install if incorrect.
AVOID CUTS
The perimeter and punch-outs on
the sink may contain sharp edges.
Handle the sink carefully to avoid
personal injury.
CHECK THE CONDITION
Inspect the sink for any visible
defects. Do not install the sink if
defects are found. Contact your
sink retailer / point of purchase.
AVOID SCRATCHES
Stainless steel can be scratched if proper
care is not taken during installation.
Do wnload cutout
template les
(PDF, & F) DWG DX
from our website.
ASIA PACIFIC DISTRIBUTORS
New Zealand - Dux Industries Ltd
Phone: 0800 367 389
Singapore - Sim Siang Choon
Phone: 6266 6632
Hong Kong - Deacon & Co Ltd
Phone: 2369 6111
NORTH AMERICA
SalesOfce
Tasman Sinkware North America
Corona CA
Email: northamerica@oliverisinks.com
UNITED KINGDOM DISTRIBUTOR
A.C. Toon Ltd
Phone: 01246 223900
Email: sales@actoon.co.uk
AUSTRALIA
HeadOfce&
Manufacturing Plant
Tasman Sinkware Pty Ltd
Regency Park SA
Phone: +61 8 8348 6444
Fax: +61 8 8348 6495
Email: sinkware@tasbuildpro.com.au
www.oliverisinks.com
Tasman Sinkware
is a division of
Fletcher Building
© Tasman Sinkware
TF 45c August 2013

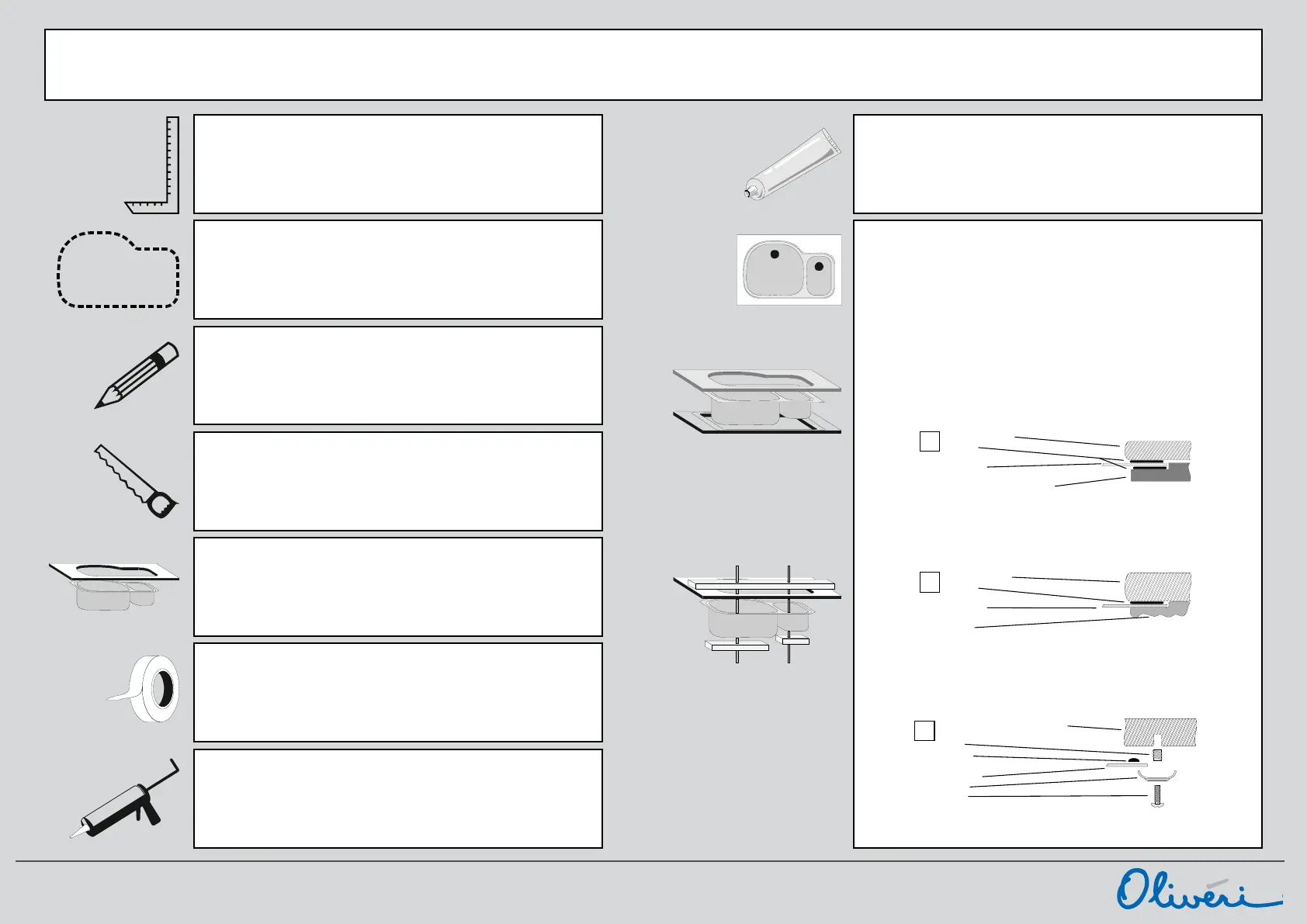

FOLLOW THESE STEPS TO INSTALL THE OLIVERI UNDERMOUNT SINK
IF COUNTER / BENCHTOP IS SUPPLIED WITH CUT-OUT, SKIP STEPS MARKED WITH*
CHECK SPACE
Ensure there is adequate space for tapware (including a splashback
ifspecied).Checkspaceforinstallation(underneath)andoperation
(above). Particular care must be taken when a thick splash back is
used (it may interfere with tapware location and operation). Ensure the
cabinetwillnotfoulthesinkmountingangeorbasins.
ADDITIONAL FASTENING
The sealant alone may appear to bond the sink to the counter/
benchtop. However, when installing your Oliveri undermount sink, it
is important to always use methods A, B or C (below) to locate the
sink securely in the counter/bench top in conjunction with the sealant
manufacturer’s instructions.
FITTING THE SINK
Position and align the sink correctly in the cutout (some threaded rod
and timber bearers will help to clamp the sink in place) and either
‘A’ Sandwich Method: RECOMMENDED FOR BOTH THIN AND
THICKCOUNTER/BENCHTOP.Firmlyxasupportboardinto/over
thecabinetandcutthesinkholesothatthesinkangewillsitabove
theedgeoftheboard.Slightlyrouttheedgesothatthesinkangewill
situshwiththetopsurface.Testfort.Installsinkandsealbetween
angeandsupportboard.Applysealanttotheundersideedgeofthe
cutout on counter/benchtop material and position it over the support
board to sandwich the sink in place. Fasten the counter/benchtop
securely.
‘B‘ Bond: For minimum 1” / 25mm thick material. Bond it to the
underside of the counter/benchtop with a structural high strength epoxy
compound. NOT RECOMMENDED TO BE USED WHEN FITTING
SINK TO THINNER COUNTER/BENCHTOPS.
‘C‘ Bolt: For minimum 1” / 25mm thick material. Bolt it to the counter /
benchtop using “molly” assemblies. Care must be taken during drilling
and tightening to avoid cracking. NOT RECOMMENDED TO BE USED
WHEN FITTING SINK TO THINNER COUNTER/BENCHTOPS.
Ifyouhaveanydoubts,conrmthecorrectmountingmethodfor
your material by consulting the counter/benchtop supplier.
TEMPLATE *
Cut out templates for your Oliveri sink are available online at
oliverisinks.com.Usetheproductmodelnumbertondthetemplate.
Some sink templates apply to both left-hand and right-hand
modelssinks. Ensure template is correct way around for your model.
MARK CUT OUT *
Carefully mark out the template (or follow drawing instructions) making
allowance for any additional polishing back that is required after cutting.
NOTE: THE TEMPLATE IS THE EXACT FINISHED CUT-OUT SIZE
REQUIRED.
CUT & FINISH HOLE *
Drill pilot holes to accept an appropriate cutting tool for the counter/
benchtop material (wear suitable personal protection equipment). Cut
insidethemark,allowingsufcientroomforanypolishingback.
Note: Accuracy is essential to ensure the bowl / basin and
accessoriestcorrectly.
TRIAL FIT THE SINK
Carefully position the sink against counter/benchtop to make sure it
tsthecut-outcorrectly.Ifthetisnotcorrect,removethesinkand
proceedwithremedialwork.Performanothertrialtaftercorrections
have been made.
MASKING
To prevent sealant overrun, it is recommended that both the inside
edge of the basin and the edge of the cut-out is covered with a suitable
masking tape.
APPLY SEALANT
Apply suitable sealant recommended for both the counter/benchtop
material being used and for stainless steel. Neutral-cure sealant will
not damage stainless steel. It may be easier to apply sealant after
preparing your clamping equipment. Do not allow the sealant to dry
before the sink is clamped to the counter/benchtop.
Above shows sandwich method
where sink is clamped between a
lower support board (with routed
edge) and the upper counter /
benchtop using method A.
Above shows how threaded rod
and timber bearers may be used
to clamp the sink in place while
fastening to the counter / benchtop
using methods B and C.
Do not overtighten as this may
damage the sink.
Counter / benchtop
Sealant
Sink flange
Support board with routed edge
(such as timber)
A
Counter / benchtop
Sealant
Sink flange
Epoxy
B
1” Counter / benchtop with hole drilled
Molly
Sealant
Sink flange
Saddle
Screw
C
