Sida 1/2
Unit:mm(inch)
Keep birds and small animals off the
detector to reduce false alarms.
Stop rain and snow streaming in front
of the detector to keep the
sensitivity.
No. 77032-00-15747-1204
5-8-12 Ogoto, Otsu, Shiga, 520-0101 Japan
TEL +81(0)77 579 8670 FAX +81(0)77 579 8190 http://www.optex.co.jp/e/
OPTEX CO., LTD. (ISO 9001 Certied / ISO14001 Certied)
OPTEX INCORPORATED (USA)
http://www.optexamerica.com/
OPTEX (EUROPE) LTD. (UK)
http://www.optex-europe.com/
(ISO9001 Certified)
OPTEX SECURITY SAS (FRANCE)
http://www.optex-security.com/
OPTEX KOREA CO., LTD. (KOREA)
http://www.optexkorea.com/
OPTEX SECURITY Sp. z o.o. (POLAND)
http://www.optex.com.pl/
OPTEX (DONGGUAN) CO., LTD. http://www.optexchina.com
/
SHANGHAI OFFICE (CHINA)
83(3.3)
452(17.8)
138(5.4)
390(1.5)(WALL)
265(10.4
)(POLE2 )
222(8.7)(POLE1 )
84(3.3
)(WALL)
DIMENSIONS
BATTERY O P E R AT E D P H OTOELECTRIC DETECTOR
SPECIFICATIONS
Specications and design are subject to change without prior notice.
* The value is based on the condition that it is used within the
 ambient temperature range of 20 to 25°C. (LSH-20 p1-x2 pcs)
** Using batteries other than those recommended may shorten the battery life.
Alarm output
Alarm period
D.Q output
Low battery
output
Tamper output
(cover, back box,
main unit)
Alarm indicator
(Receiver)
Level indicator
(Receiver)
Power indicator
(Transmitter)
Low battery indicator
Output
Model SL-350QFR SL-350QNR
Maximum detection range
Maximum arrival distance
Detection method
Selectable beam frequency
Interruption time
Power source
Current draw
Battery life
Operating temperature
Operating humidity
Alignment angle
Dimension
Weight
International protection
100 m/350 ft.
1000 m/3500 ft.
Quad infrared beam interruption detection
Variable between 50/100/250/500 ms (
4 steps)
Recommend: 3.6 V, 13.0Ah
LSH20 lithium batteries manufactured by SAFT
Operating range: 3.2 V - 4.0 V lithium batteries
Transmitter: 2 or 4 units, Receiver: 2 or 4 units
745µA
Transmitter: 420 µA + Receiver: 325 µA
(at 25°C, 3.6 VDC)
Transmitter: Approx. 4 years
Receiver: Approx. 5 years
Form C-Solid State Switch: 3.6 VDC, 0.01 A
2 sec (±1) (Nominal)
Form C-Solid State Switch: 3.6 VDC, 0.01 A
(Receiver only
)
N.C. (mechanical switch): 3.6 VDC, 0.01 A
N.C. (contact output): 3.6 VDC, 0.01 A
Opens when cover, main unit or back box is removed.
Alarm: ON
Light receiving: OFF
Not Light receiving: OFF
Light receiving: Flickering or OFF
Power ON: ON
Power OFF: OFF
Voltage reduction: Flickering
-20°C - +60°C (-40°F - 140°F)
95 % (
max. )
±90° Horizontal, ±10° Vertical
H x W x D mm
(inch )
:
452 (17.9) x 83 (3.3) x 138
(5.4)
3300 g (Total weight of Transmitter +
Receiver, excluding accessories)
IP65
4 channels
Indicator
*
**
Anti Bird Cap ABC-4
Align optical axis automatically.
(receiver only)
Beam Alignment Unit BAU-4
Extension cables between the back
box and the main unit when
installing to the beam tower.
Extension Cable with
Connector EC-4
Conceal the back side of pole
mounted detector.
Back Cover BC-4
Conceal the gap between detectors
mounted back to back.
Pole Side Cover PSC-4
Cable length: 500 mm (19.7 inch)
/
−
BATTERY OPERATED PHOTOELECTRIC DETECTOR
4ch. beam frequencies selectable model
Standard model
Work Smart,
"ENJOY WIRELESS"
-LONG DISTANCE : 100m / 350ft. -
-LONG BATTERY LIFE : 4 to 10 years -
-LONG TERM DURABILITY : IP65 -
OPTIONS
AX-100TFR 30m / 100ft.
AX-200TFR 60m / 200ft.
Battery operated photoelectric detector
SHORT RANGE MODELS
Up to
150mm
Patent
pending
Patent
pending

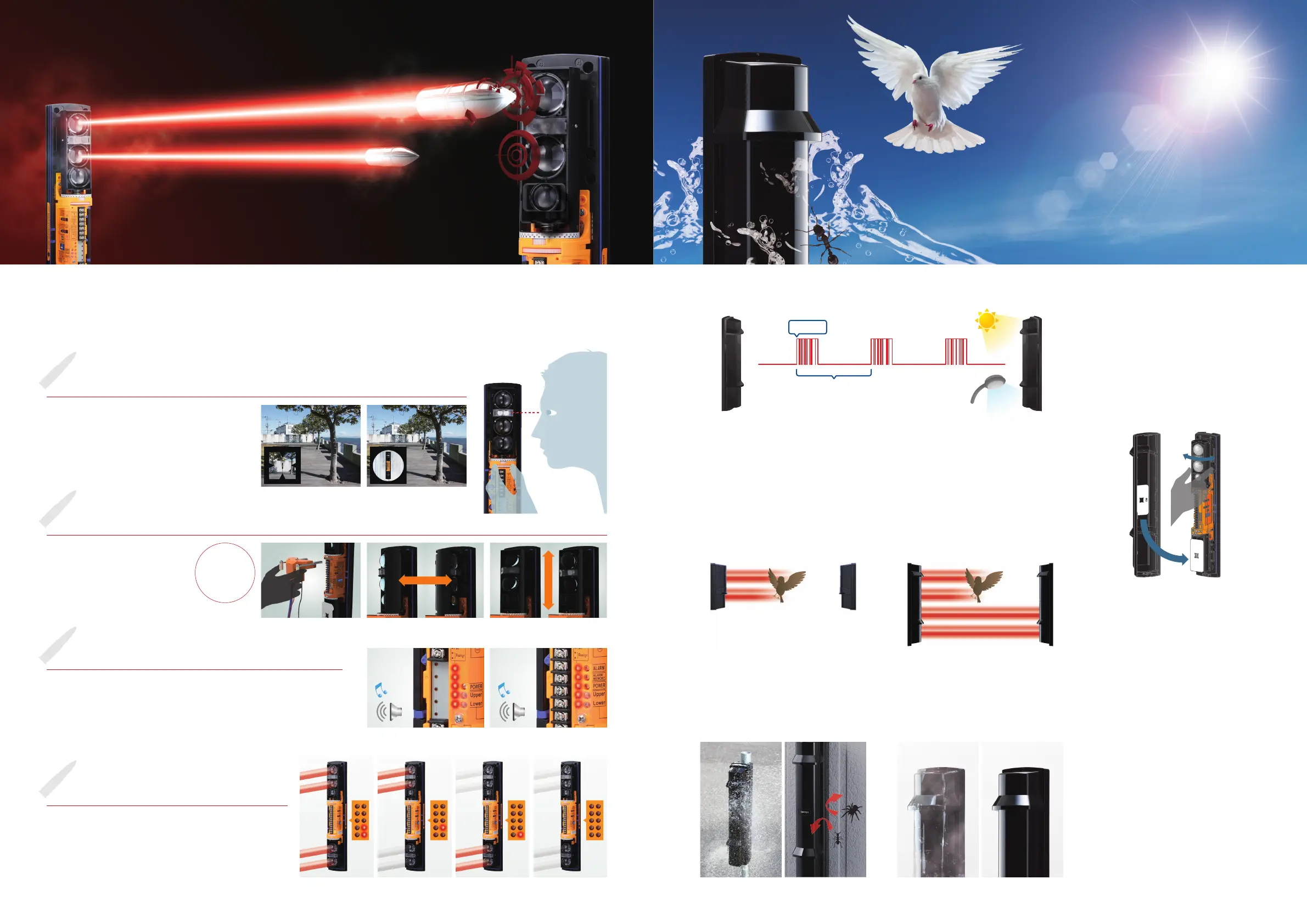

Basic performance
Revolution in the perimeter
security industry. LONG BATTERY LIFE
Sniper viewfinder Weather protection IP65
Spacious back box
Advantage of wireless system
Various mounting patterns
Wall Pole（SINGLE） Pole（SINGLE） Pole（DOUBLE） Beam Tower
Form C(N.C./N.O.) output
Battery saving function
99% beam blocking stability
Intermittent output function
4 selectable beam frequencies (SL-350QFR only)
Beam interruption adjustment function
D.Q.circuit (enviromental disqualification)
Triple tamper function (front cover, back box and wall)
High grade aspherical lens
False alarms would be reduced if we can make perfect alignment at the
first step. This new telescopic lens has a high level of visibility for optical
alignment work. Even when it is the long distance, it can make perfect
installation in short period and
ensure stable performance.
The actual performance of product is
highly dependent on not only product
quality but also installation quality.
Smart line series are protected from interruption
caused by insects, dirt sander or humidity.
The following figure shows the
dimensions of the wireless
transmitter installation space in
the back box.
Note that transmitter with
greater dimensions are not
applicable.
ABC-4 BC-4 PSC-4
COST REDUCTION SAVE TIME
Transmitter Receiver
Conventional Sniper viewnder
Flexible location
3
Wireless stylish design4
Low installation costs
1
Quick & easy installation
2
Free from lightning damage
5
Go to the
next job!
Wired Wireless
Please see the last page for more information on the optimal products.
Optex offers a less expensive and more efficient
solution with SL-350QFR/SL-350QNR.
Typical perimeter systems require expensive
trenching or much time for installation.
Expensive wire conduit runs and concrete work is
unnecessary, allowing installers to save time and
money.
Wired Wireless
30m
Short range
Wired WiredWireless Wireless
60m
Middle range
100m
Long range
60%
DOWN
20%
DOWN
40%
DOWN
Dig
Install
Adjust
2
3
1
Low current consumption
Transmitter 420µ (0.42mA)Ａ
Receiver 325µA (0.325mA)
182mm
66.2mm
39mm
Install
Adjust
1
2
12
6
9
8 4
7 5
3
11 1
10 2
of
Time
Approx. 4 years Max. 10 years
years
4
Approx.
years
8
Approx.
years
10
Approx.
years
5
Approx.
EC-4
A.G.C.(Automatic Gain Control) circuit
Patent
pending
When using LSH (3,6V,13Ah) batteries
manufactured by SAFT.
Receiver
Repeater
SL-350QFR
(100m model)
SL-350QFR
(100m model)
AX-100/200TFR
(30m/60m model) Any PC application
WIRELESS-READY Any control panel
The SL-350QFR and SL-350QNR, our wireless
ready, battery operated photoelectric detectors
are designed to work with most manufacturer`s
wireless transmitters, and the back box has
enough space to accomodate them.
They are easy deployable and adaptable to any
control systems currently installed.
