Sida 1/16
VX-402, VX-402REC
MULTI STABILIZED OUTDOOR DETECTOR
Standard model Voice Warning model
N .59-1004- 4 0707-11o
2 YEAR WARRANTY
FEATURES
CONTENTS
Voice Warning Function
(VX-402REC Only)
Easy Recording with Built-in
microphone or External apparatus
(VX-402REC Only)
Limited Detection Range Function
Size Judging Function
Bright Light Disturbance Immunity
Detection Area Extension Function
Directional Detection Function
VX-402REC is capable of delivering two kinds of audible messages
to an intruder. This has been proven as an effective means of
deterring BREAK-INS.
The VX-402REC detector records warning messages by either of
two different ways: speak direct to its built-in microphone or connect
an external sound source to the detector.
The detection range of the VX-402 can be limited to avoid detecting
unwanted objects. By limiting the detection range, false alarms due
to unwanted movement ( i.e. cars, persons or animals outside the
protected area ) can be reduced.
VX-402 is designed to discriminate between large and small
animals. By utilizing this ability, false alarms due to small animals
can be reduced.
VX-402 is equipped with Double Conductive Shielding (Patent
Listed). This shielding greatly reduces the chance of false alarms
due to car headlights, sunlight and other ambient light sources.
The detection area can be easily extended by using its slave units.
VX-402 can distinguish movement direction by using slave units.
This function increases the operational reliability and allows for use
in new applications (Directional Security).
1.INSTALLATION HINTS
2.DESCRIPTION AND OPERATION
3.INSTALLATION
4.WIRING
5.RECORDING
6.SETTING & ADJUSTMENTS
7.FUNCTIONS
8.OPERATION TEST
9.TROUBLE SHOOTING
10.SPECIFICATIONS
11.DIMENSIONS
2
3
4
5
6
7
10
13
14
16
16
-1-

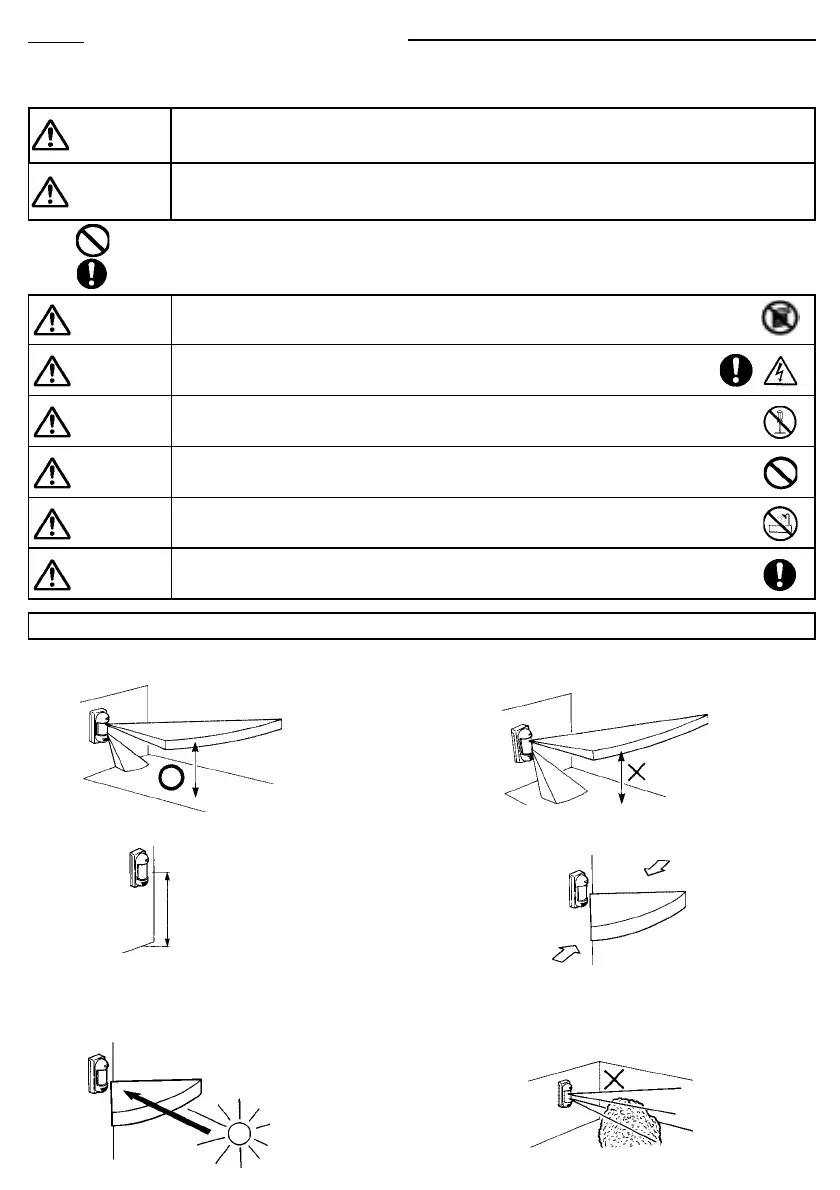

Safety-Related Precautions
•Before installation, make sure to read this instruction manual carefully for safe and effective product
operation.
•After reading this installation manual, make sure to keep it in a convenient place for future use.
If the sensor is installed with some angle to the ground,
operational reliability of the sensor may be decreased.
1.INSTALLATION HINTS
5.Avoid pointing the sensor towards moving objects
(i.e. swaying trees, bushes, flags,etc.). If moving
objects are unavoidable, please refer to
Trouble Shooting reference for proper installation.
3.Mount the sensor so that a majority of traffic flow is
across the detection pattern.
4.VX-402 is designed to protect any light disturbances.
However, too much light may cause unstable
condition with the sensor, such as; strong sunlight
directed or reflected exactly into the sensor's field
of view. It is recommended to avoid such installation.
2.Installation height is 0.8m-1.2m (2.7ft-4ft)
This icon denotes a situation involving the risk of serious
injury or damage to property if the warning given is ignored.
Caution
This icon denotes a situation involving the risk of serious
injury or even death, if the warning given is ignored.
Warning
This icon indicates actions to be avoided. Details of the actions to be
avoided are written beside or near icon.
This icon indicates instructions that should be strictly followed.
Never use this product for any application except purpose for detecting
moving target such as a human or a car. In addition, never use for any
activation for a shutter or other. It may cause hazards.
Clean and inspect the device periodically for safe operation.
If any defect is detected, ask your local supplier to repair the device.
To avoid the risk of electric shock, never touch the main body of the product
with wet hands. (Also, if the product is wet after rain do not touch it.)
Never attempt to connect the terminals to units which reguire higher
power supply or current draw than its rating. It increases the risk of fire or
damage to the product.
Never attempt to disassemble or modify the product, which
increases the risk of fire or damage of the product.
Avoid applying water in directly from brackets, houses, or otherwise
splashing water directly onto the product. It increases the risk of damaging
the product.
Warning
Warning
Warning
Warning
Caution
Caution
-2-
1.Install the sensor perpendicular to the ground to
making upper detection area parallel to the ground.
Parallel
0.8m-1.2m
(2.7ft-4ft)
2.DESCRIPTION AND OPERATION
-3-
Pole Mount Bracket M4 x 12
Plate
M4 x 6
Mounting Screw
T4 x 20
Te r minals
Pyro Electric Sensor
(Do not touch)
Speaker (VX-402REC only)
Plate Lock Screw
Lock Screw
Cover
LED Indicator
DIP Switch A
(Page 9)
Lens Holder
Lens
Cover
Area Masking Plate
(Page 8)
DIP Switch B
(Page 9)
Detection Length
Adjustment Switch
(Page 9)
Sensitivity Select
Switch (Page 9)
There are switches only for
VX-402REC in this portion (Page 6, 9)
