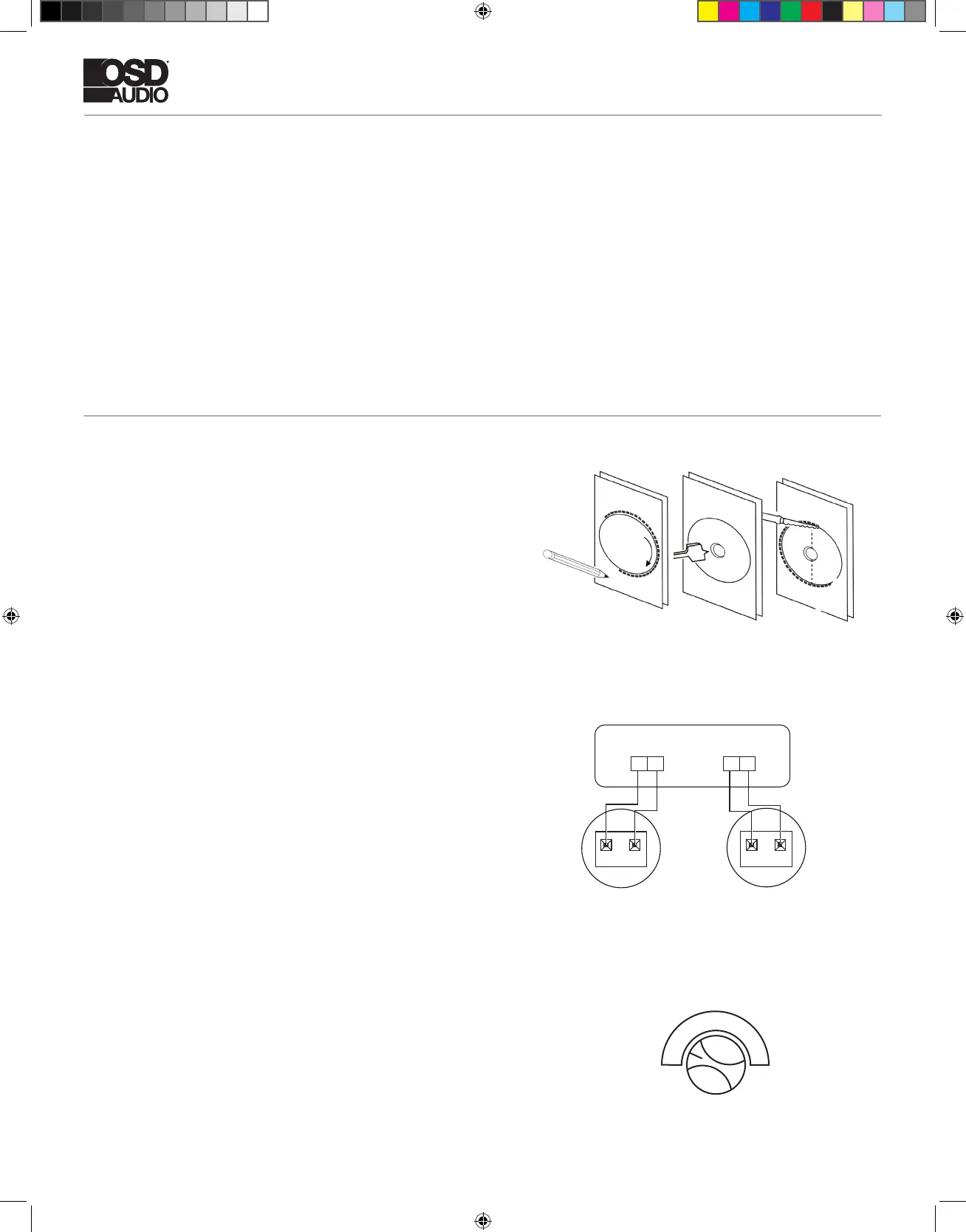

ICE630ST INSTALL GUIDE
Preparation:
Installation:
Tools For Installation Speaker Wire Guide
Considerations
Cut Out
- Pencil
- Drill
- Tape Measure
- Wire Cutter
- Phillips Screwdriver
- Utility Knife
- Safety Eye Wear
- Gloves
- Sandpaper
- Where is the best place to install the speakers?
- Where do the speakers sound the best?
- Separate the speakers 6 - 10 feet apart.
NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.
Trace along the included template. Cut along the traced line using a
drywall saw or rotary drill. Use a piece of sandpaper to sand down the
cut out edge for a smoother contour. (See Diagram 1.)
18AWG minimum - for distances up to …………………. 10 ft
16AWG - from …………………………………..…... 10 to 50 ft
14AWG - from …………………………………...… 50 to 100 ft
Diagram 1
Connection
Transformer Settings
When connecting any speakers to the amplier always make sure
the power is off. Locate the connection terminals on the back of
your amplier. Always make sure to connect audio out from the
back of your amplier to the speakers.
(See Diagram 2.)
NOTE: Not all Amplier can safely play more than one pair of
speakers at once. Please refer to your amplier owner’s manual for
impedance and wattage compatibility.
Choose the correct setting on the dial for your particular application.
(See Diagram 3.)
NOTE: Tap settings & dial may differ slightly from diagram
depending on model.
Left Out
Left Speaker
Amplier
Right Out
Right Speaker
- -
+ +
--
++
Diagram 2
Diagram 3
8�
30W 15W
7.5W
ICE630ST manual.indd 1 8/10/22 10:30 AM
All OSD Audio speaker products have (10) Year Limited Warranty against defects in materials and workmanship. Proof of purchase
must accompany all claims. During the warranty period OSD Audio will replace any defective part and correct any defect in
workmanship without charge for either parts or labor OSD Audio may replace returned speakers with a product of equal value and
performance. In such cases, some modication to the mounting may be necessary and are not OSD Audios responsibility.
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be
performed by OSD Audio. The unit must be returned to OSD Audio at the owner’s expense and with prior written permission.
Accidental damage and shipping damage are not considered defects, nor is damaged resulting from abuse or from servicing
performed by an agency or person not specically authorized in writing by OSD Audio
OSD Audio sells products only through authorized dealers and distributors to ensure that customers obtain proper support and
service. Any OSD Audio product purchased from an unauthorized dealer or other source, including retailers, mail over dealers and
on-line sellers will not be honored or serviced under existing OSD Audio warranty policy. Any sale of product by an unauthorized
source or other manner not authorized by OSD Audio shall void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases,
repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service
at RMA@audiogeargroup.com for a Returned Merchandise Authorization (RMA) number# then the unit must be shipped to OSD
Audio at the owner’s expense, along with a note explaining the nature of service required. Be sure to pack the speaker(s) in a
corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) •
Any products that have been altered or modied • Any product whose identifying number of decal, serial #, etc. has been altered,
defaced or removed • Normal wear and maintenance.
ICE630ST INSTALL GUIDE
WARRANTY
ICE630ST Manual 8/22
Specs
6.5” 70V Commercial Ceiling Speaker W/ Backcan
Woofer: 6.5” PP Cone with Rubber Surround
Tweeter: 1/2” PEI Dome
Power: 100W
Sensitivity: 88 db 1w/1m
Frequency: 60Hz-20kHz
Impedance: 8 Ohms/ 70V
Transformer Settings: 30W/ 15W/ 7.5W & 8 Ω
Diameter & Depth: 9 1/2” x 5 1/2”
Cutout Diameter: 7 7/8”
OSD Audio | Brea, CA | osdaudio.com

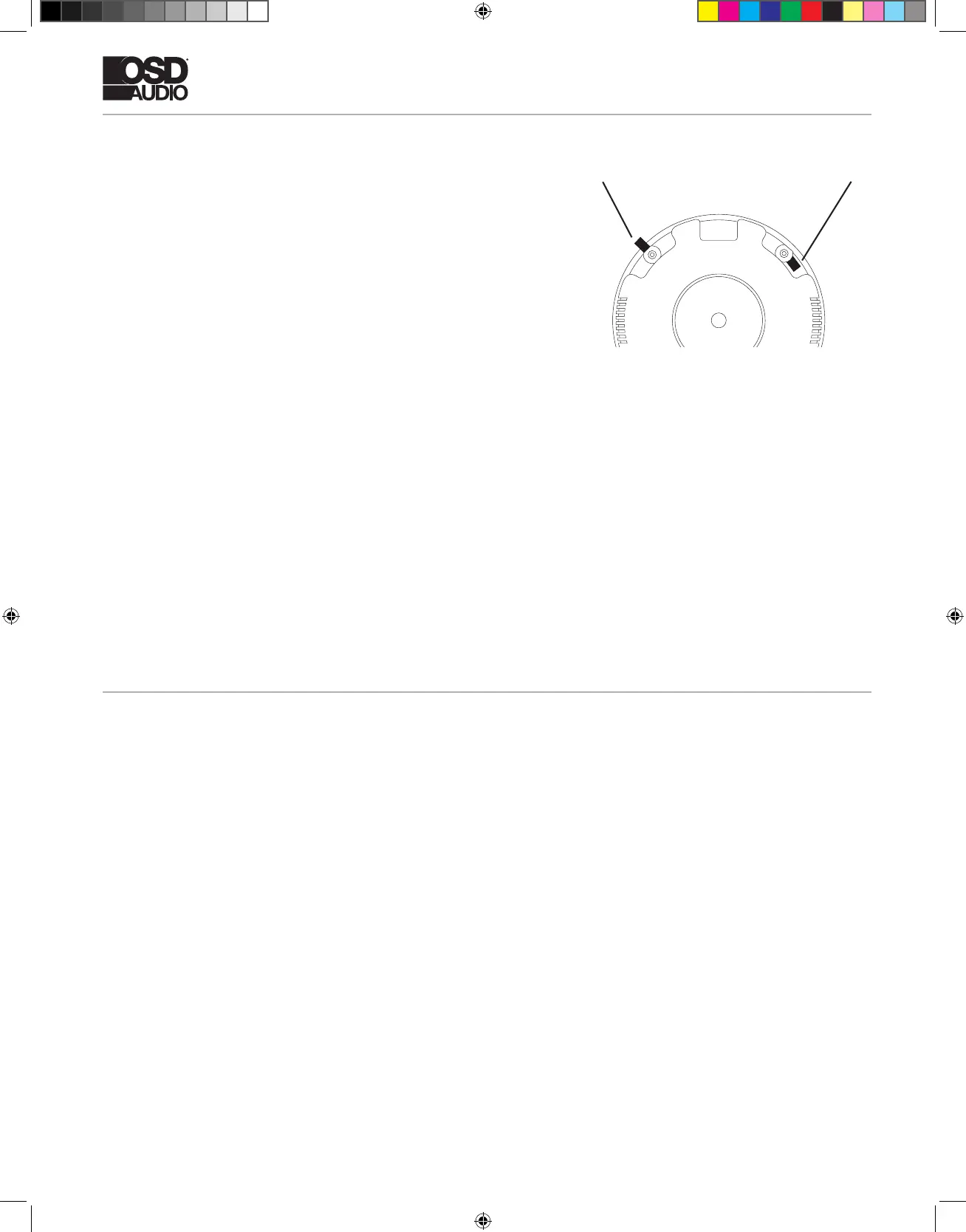

Mounting
Tighten the mounting brackets by simply turning the screws on
the front of the speaker bafe slowly clockwise. The quick-turn
mounting system and frame will “sandwich” or clamp around the
dry-wall to hold the speaker securely in place once fully tightened
to the locked position.
(See Diagram 4.)
Open PositionLocked Position
Diagram 4
ICE630ST manual.indd 2 8/10/22 10:30 AM
