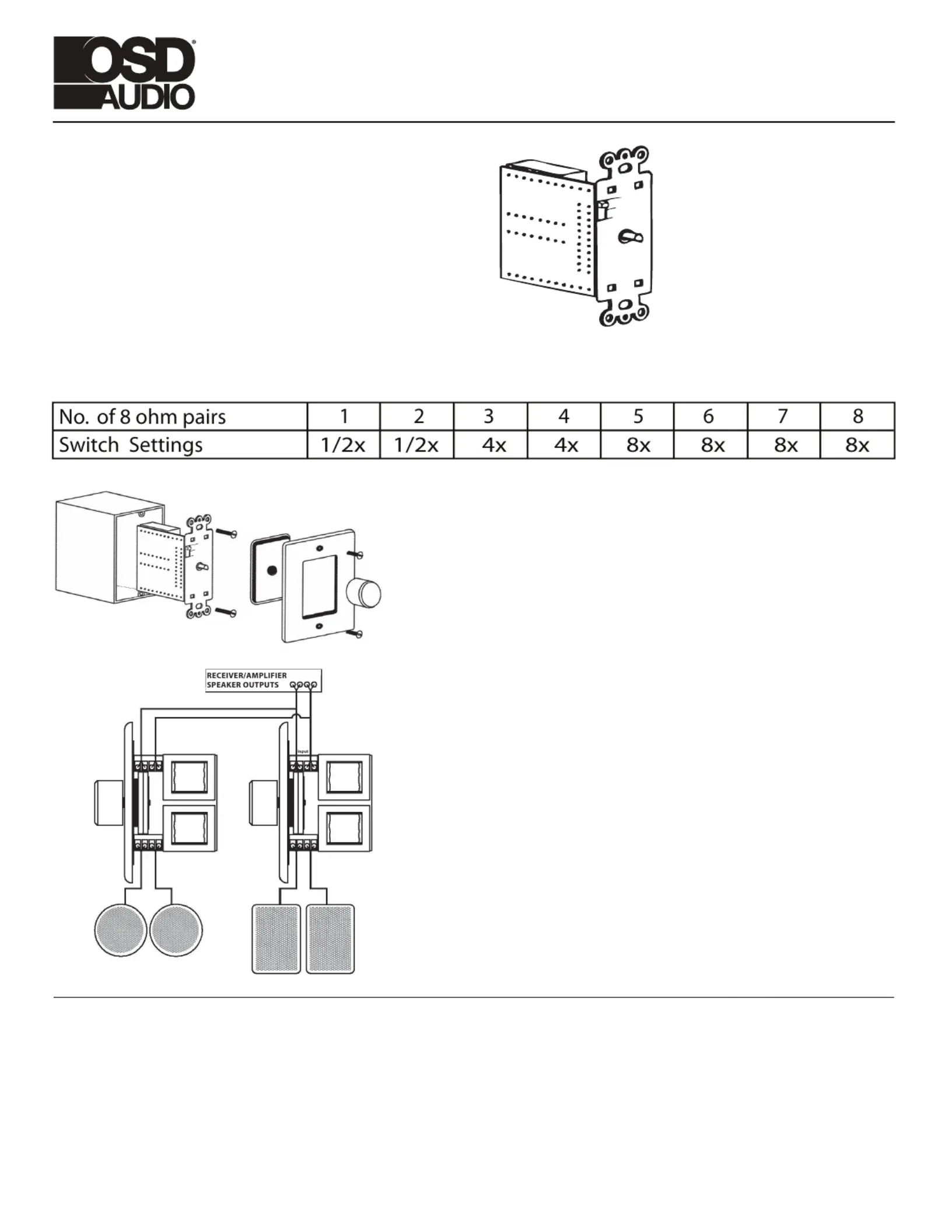

Installation Instruction for the SVC Series

- Red/Black = right speaker Red = positive [ + ] Black = ground [ - ]

- White/Green = left speaker White = positive [ + ] Green = ground [ - ]

OSD AUDIO • 775 Columbia Street • Brea • CA 92821 • osdaudio.com

To prevent from overloading

and damaging the amplifier,

the switch must be set

correctly to match the

impedance of the speaker

system to a level equal to or

greater than the impedance

of the amplifier.

Find out the minimum impedance of the amplifier. This

information may be found in the manual or on the back of

amplifier, near the speaker terminals. It is measured in

ohms.

Determine the correct switch setting using the chart

below.

Figure out the total number of speaker pairs to be used.

Set the switch. Make sure that each volume control’s

switch setting is consistent throughout the whole system.

Make sure to use the integral strain reliefs where appropriate when

routing the cable in the J-box.

Route the cable into the volume control J-box in a way that allows

for easy access to the connectors on the SVC

Strip the insulation off the end of each of the eight individual wires

( four from the amplifier and four to the speakers ) at about 1/4”.

Twist exposed ends together.

Connect the speakers wires to the connector labeled Output

L [ + , - ] and R [ + , - ]. Speaker wires typically use the

following color configuration.

Insert the volume control into the J-box. Mount carefully, making

sure that no wires are pinched or shorted.

SVC Series

Impedance Matching Stereo Volume Control

Mark the input and output cables accordingly for easy installation.

OSD Audio will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for five years

from the date of original purchase. This warranty does not cover damages in shipment, failures caused by other products not supplied by OSD Audio or failures due to accident, misuse, or

alteration of the equipment. This warranty is extended only to the original purchaser, and a purchase receipt, invoice, or other proof or original purchase date will be required before

warranty repairs are provided.

Mail in service can be obtained during the warranty period by emailing RMA@audiogeargroup.com. A Return Authorization(RMA) number must be obtained in advance and be marked on

the outside of the shipping carton.

This warranty gives you specific legal rights, and may have other rights ( which vary from state to state ). If a problem with this product develops during or after the warranty period please

contact OSD Audio, your dealer, or any factory-authorized service center.

OSD Audio Limited Warranty

Connect the leads from amplifier to the volume control connector

according to the labeled Input L [ + , - ] and R [ + , - ].

Input

Out pu t

1/2x

Input

Output

L+ L- R- R+ L+ L- R- R+

L+ L- R- R+

Out put
