DSP Series
“ IMPRESSIVE … can handle the most dynamic low-frequency sound passages … a great value for the higher-end user looking
for a subwoofer that can really pump out clear and tight deep bass in any size room without spending a fortune.”
– Robert Silva, about.com
Advanced High-Power Class-D™ Amplifiers deliver massive
amounts of high-current power with minimal distortion.
DSP-3100: 600 watts Dynamic Peak/200 watts RMS.
DSP-3200: 900 watts Dynamic Peak/300 watts RMS.
DSP-3400: 900 watts Dynamic Peak/300 watts RMS.
Forward-Firing Drivers with Advanced CAP™ Carbon/
Aramid-Fiber Polypropylene Cones. Advanced cone material
combines exceptional stiffness/low mass with excellent internal
damping for tremendous freedom from unwanted resonances.
Advanced Suspension Design and Large Magnet Structures
encourage extended cone excursion while maintaining superb
control over cone movement.
High-Efficiency Dual-Ported Design. High-velocity low-
noise ports with critically flared openings serve to reduce
turbulence distortion. Front-ported design accommodates
installation flexibility.
Removable Grilles with SVS™ Slot Ventilation System
allow release of the enormous air pressure generated by
these high-output designs.

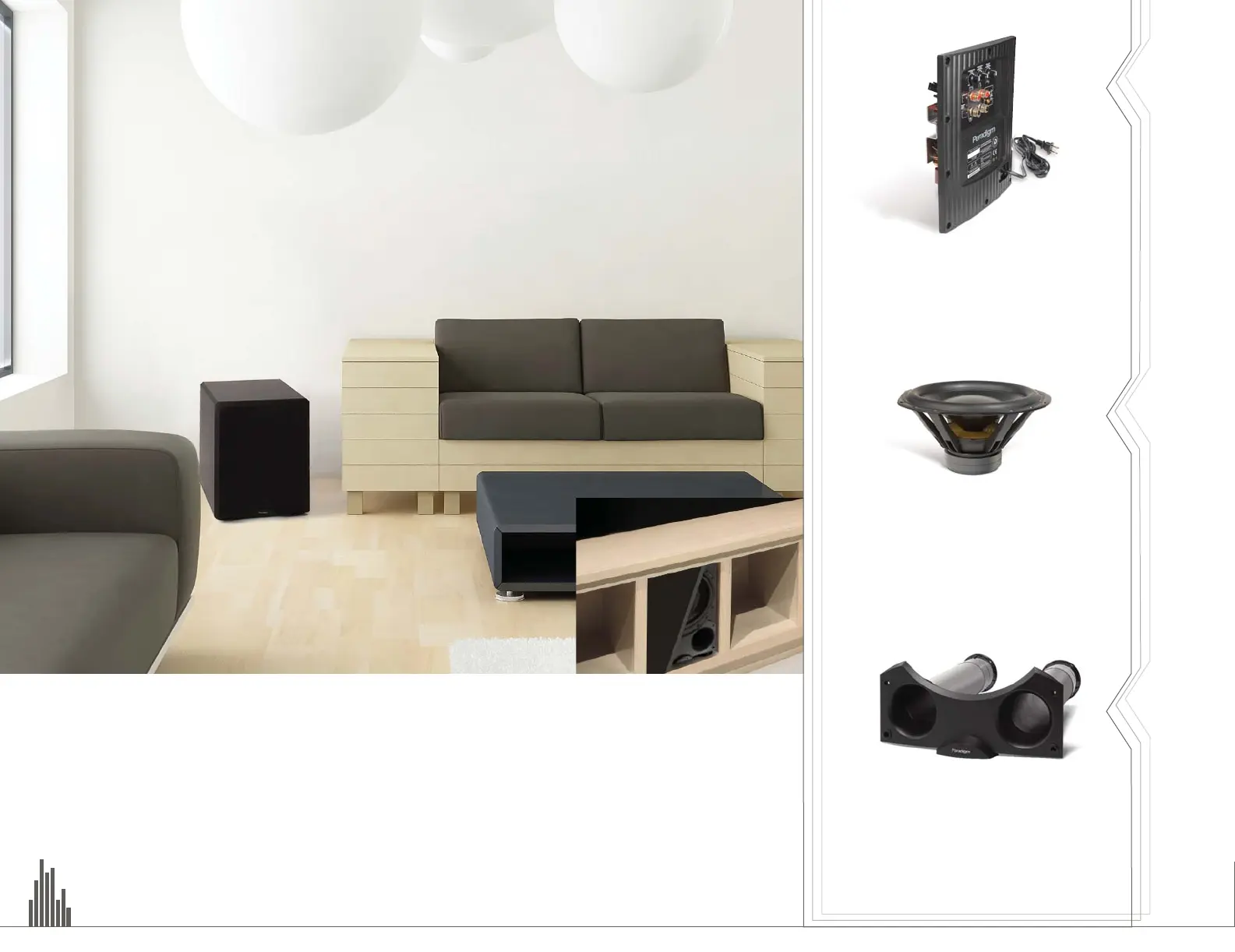

Shown: DSP-3400
21
Discreet installation: DSP-3400 inside a cabinet
Acoustically Inert MDF Enclosures serve to limit unwanted
panel resonances and vibrations, ensuring clean, clear and very
articulate bass performance.
lowest frequency
Typical Subwoofer Response
0 db
0 Hz 200 Hz
90+ db
highest frequency
Paradigm’s (DSP) Digital Signal Processing
Paradigm’s Proprietary Digital Signal Processing (DSP) Design boasts
sophisticated algorithms which “shape” frequency response, ensuring
accurate, consistent and musical bass performance without audible
distortion, even when the subwoofers are playing at the loudest levels
(see graph below).
Optional Paradigm Perfect Bass Kit™digital room correction system.
Full details on page 26.
22
www.p a r a d i g m . c o m
DSP-3100
DSP-3200
DSP-3400
Big Bass for a Small Space
High-power DSP Series subwoofers are the result of Paradigm’s multi-year
R&D effort to achieve exceptional high performance while accommodating
the growing desire for installation flexibility. Not everyone wants a high-
performance subwoofer on full display, so models are front-firing and front-
ported with removable grilles, making them ideal for “hidden” installations.
For those who want it all … exceptional high performance (including the
sonic benefits of digital signal processing!), a smaller footprint, flexible
placement options and killer price points, DSP subwoofers fit the bill.
Black Ash
Control Facilities:
• Auto On/Off
• Subwoofer Level
• Subwoofer Cut-Off Frequency
(continuously variable 35 Hz – 150 Hz);
Bypass Option
• Sub/Sat Phase Alignment (0° or 180°)
• USB Port/PBK Interface
Input Facilities:
• Line-level Inputs
DSP-3100 DSP-3200 DSP-3400
Single driver, bass reflex, dual high-velocity
low-turbulence resistive ports, built-in amplifier,
USB Port/PBK Interface
600 watts Dynamic Peak/
200 watts RMS Sustained
Auto-On/Off, soft clipping
255-mm (10 in) CAP™cone, ceramic/ferrite magnet,
50-mm (2 in) 4-layer voice-coil, AVS™die-cast
heatsink chassis
24 Hz (DIN)
Variable 35 Hz – 150 Hz; Bypass option
Variable 0°– 180°
RCA. (L/R-Mono) for L/R line out or Sub-Out/LFE-Out
of receiver/processor or other line-level source
Single driver, bass reflex, dual high-velocity
low-turbulence resistive ports, built-in amplifier
USB Port/PBK Interface
900 watts Dynamic Peak/
300 watts RMS Sustained
Auto-On/Off, soft clipping
305-mm (12 in) CAP™cone, ceramic/ferrite magnet,
50-mm (2 in) 4-layer voice-coil, AVS™die-cast
heatsink chassis
22 Hz (DIN)
Variable 35 Hz – 150 Hz; Bypass option
Variable 0°– 180°
RCA. (L/R-Mono) for L/R line out or Sub-Out/LFE-Out
of receiver/processor or other line-level source
Single driver, bass reflex, dual high-velocity
low-turbulence resistive ports, built-in amplifier
USB Port/PBK Interface
900 watts Dynamic Peak/
300 watts RMS Sustained
Auto-On/Off, soft clipping
355-mm (14 in) CAP™cone, ceramic/ferrite magnet,
50-mm (2 in) 4-layer voice-coil, dual spiders,
AVS™die-cast heatsink chassis
19 Hz (DIN)
Variable 35 Hz – 150 Hz; Bypass option
Variable 0°– 180°
RCA. (L/R-Mono) for L/R line out or Sub-Out/LFE-Out
of receiver/processor or other line-level source
Design
Amplifier: High-Current,
Discrete Output
Amplifier Design Features
Bass Driver
Low-Frequency Extension*
Subwoofer Cut-Off Frequency
Sub/Sat Phase Alignment
Line-Level Inputs
DSP Series
41.3 cm x 31.1 cm x 42.5 cm
16-1/4 in x 12-1/4 in x 16-3/4 in
18.2 kg/40 lb each
Black Ash
46.4 cm x 35.6 cm x 49.5 cm
18-1/4 in x 14 in x 19-1/2 in
24.5 kg/54 lb each
Black Ash
56.5 cm x 40.0 cm x 53.2 cm
22-1/4 in x 15-3/4 in x 21 in
29.5 kg/64.8 lb each
Black Ash
Height, Width, Depth
(height includes feet; depth
includes grille and amplifier)
Weight (unpacked)
Finish
