www.peavey.com

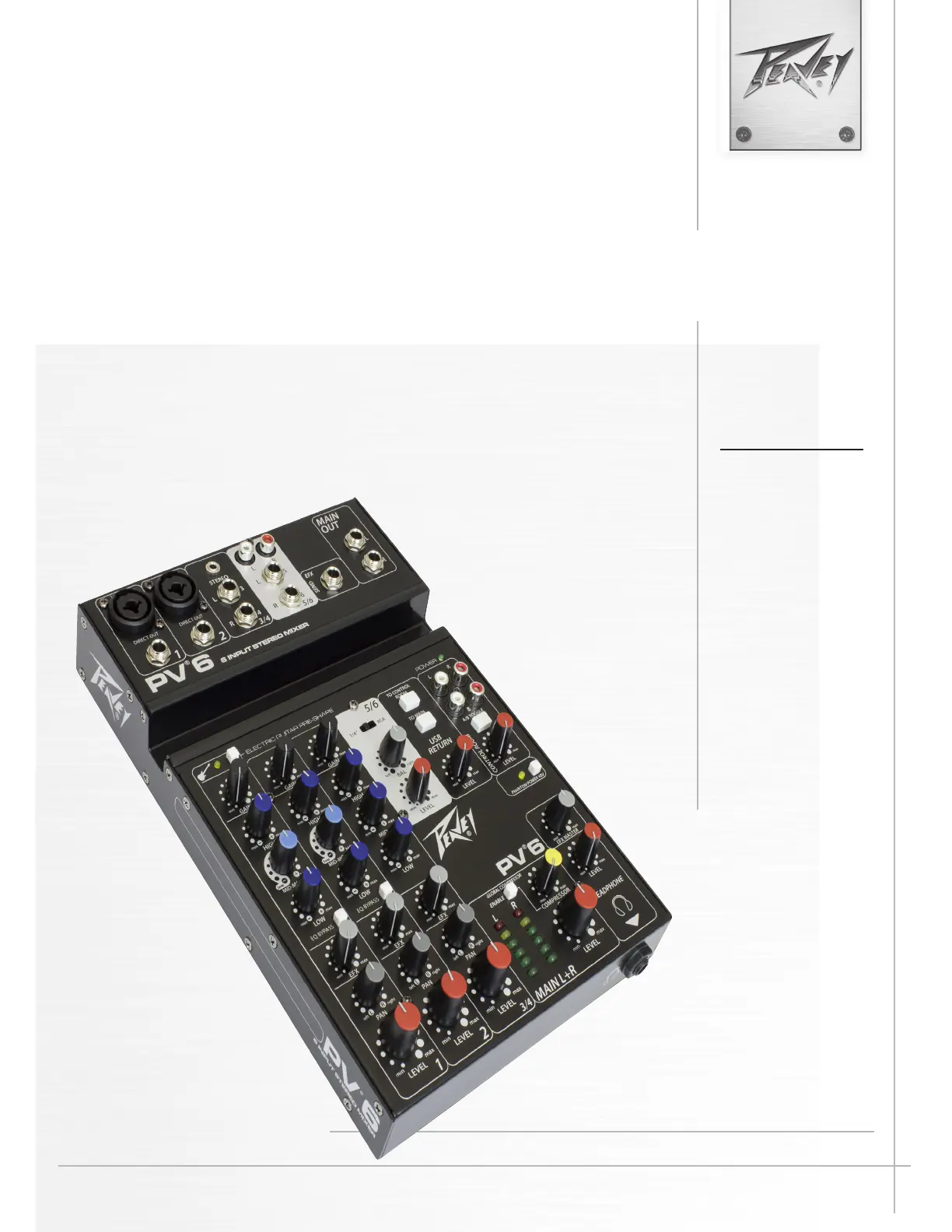

PV®6 • PV®6BT

Compact Mixer

Operating

Manual

FCC/ICES Compliancy Statement

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS Standard(s).

Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, that may cause undesired operation.

Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de

brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement.

Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void

the user’s authority to use the equipment.

Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm-

ful interference in a residential installation. This equipment generates, uses, and can radiate radio frequen-

cy energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try and correct the interfer-

ence by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution

The equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment.

PV®6 and PV®6BT

Compact Mixers

Introducing the next level in world class non-powered mixer performance. e all new PV series mixing consoles include Peavey's

reference-quality mic preamps that deliver an incredible 0.0007% THD, making the PV series mixers excellent for live or recording ap-

plications. e PV 6 BT includes 2 channels of reference-quality mic preamps, 2 direct outputs for recording, 2 stereo channels, media

channel with Bluetooth wireless input, high quality digital eects, streaming USB out, 48 volt phantom power, dual selectable control

room outputs, compression, one channel of on board selectable guitar preamp, 3-band EQ per channel with bypass, eects level per

channel, signal clip indicators, and a stereo master LED meter bridge. is amazingly versatile mixer is at home both in the studio as

well as live applications. Its modern features such as Bluetooth allow seamless connection to almost any "smart" device. Direct outs

allow easy connection to most DAW interfaces for recording; in addition, the PV 6 BT can stream audio directly to a PC. EQ bypass

allows the user to compare the EQ'd signal to the original signal with the push of a button. Compression keeps signals with dicult

levels under control, and Peavey's exclusive guitar-shape adjusts the EQ and preamp specically for guitar. e all new PV series mix-

ers represent the pinnacle of performance and value. Combine Peavey's legendary reliability with our 5 year warranty, and you can be

assured of years of quality reliable service!

FEATURES (both models):

• 2 Combination 1/4" balanced / XLR inputs feeding Silencer™ preamps

• Stereo 1/4"/ 3.5mm input channel with input gain, EQ, Eects send and Pan / Balance

• Switchable 1/4" / RCA (/ Bluetooth PV6 BT only) stereo input with input balance and level control

• 3-band EQ on all channels

• 2 Channels of Peavey's Exclusive Mid-Morph

• LED clip and signal present indication

• EQ Bypass on mic channels

• Dual selectable control room outputs

• Global 48V phantom power

• 1/4" balanced Main stereo ouputs

• Rugged console design

• Built-in stereo compressor with enable switch

• Stereo pan control per channel

• 2 Channels of direct out

• Stereo USB-B streaming audio in and out

• High quality master LED meter bridge

• Studio quality headphone output

• Peavey's exclusive on-board 1 Meg Ω guitar input

• Control room output with level control

• Electric Guitar Pre-Shape switch

• External universal input power supply

PV6BT ADDITIONAL FEATURES:

• Bluetooth wireless stereo audio input

• Efx Mute switch

PV6 ONLY:

• Efx master level feeding balanced 1/4" output

ENGLISH

Installation Note:

is unit must have the following clearances from any combustible surface: top: 8", sides: 12", back: 12"
