Description

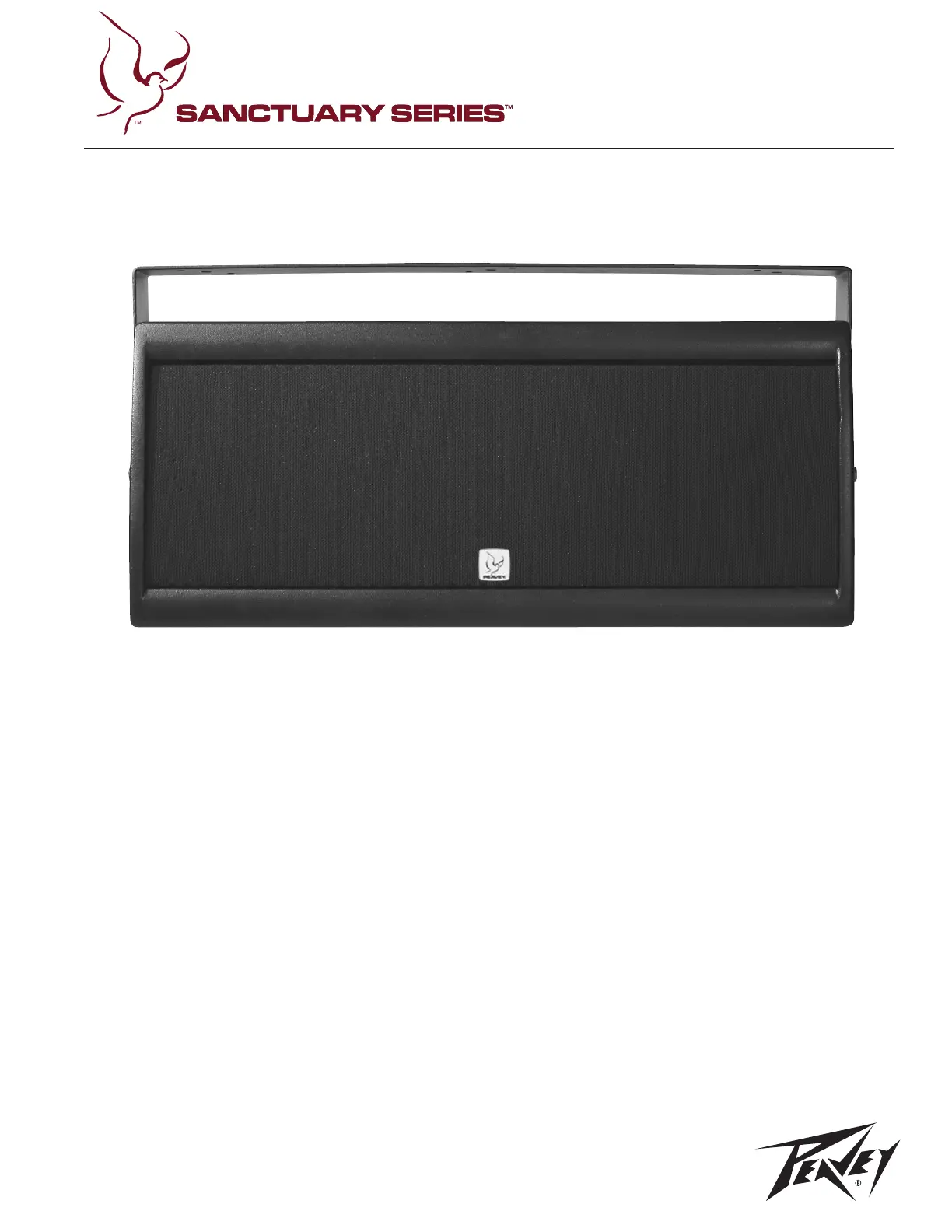

The new SSE enclosure series features high
power ratings with custom components, a
sleek look and a unique, snap-in metal
grille. The SSE 26 is a two-way system
featuring the highly acclaimed Peavey 14XT
titanium compression driver with a Sound
Guard IV tweeter protection network and
two maximum-performance 6.5" woofers. It
is rated at 300 Watts program and 600
Watts peak. This lightweight speaker system
is ideal for smaller venues where space is at
a premium. Connections include a 4-pin
twist-lock connector or a paralleled
two-position terminal block for additional
cabinets. The SSE Series is available in
black, white and natural finishes.
Features
• Two-way sound reinforcement
enclosure
• Designed for permanent installations
• Two premium 6.5" woofers
• Peavey 14XT™ titanium compression
driver
• Sound Guard™ IV tweeter protection
network
• Mounting point for VersaMount™ 35
bracket
• Available in three finishes: black,
white or natural
• 300 Watts program/600 Watts peak
power handling
• 100 Hz to 17 kHz
• 94 dB at 1W/1m
• 8 Ohms
Frequency response, 1 meter on-axis,
swept-sine in anechoic environment:
100 Hz to 17 kHz (±3 dB)
Usable low frequency limit (-10 dB
point):
80 Hz to 21 kHz
Power handling:
Full Range:
300 W program
600 W peak
Sound pressure level, 1 Watt, 1 meter in
anechoic environment:
Full Range:
94.0 dB SPL (2.83 V input)
Maximum sound pressure level (1
meter):
Full Range:
115.8 dB SPL continuous
121.8 dB SPL peak
SPECIFICATIONS
SSE™ 26
2
Radiation angle measured at -6 dB
point of polar response:
500 Hz to 1.6 kHz:
Horiz. 135° +/- 50°
Vert. 75° +/- 35°
1.6 kHz to 5 kHz:
Horiz. 110° +/- 70°
Vert. 125° +/- 90°
5 kHz to 16 kHz:
Horiz. 80° +/- 20°
Vert. 80° +/- 20°
Directivity factor, Q (Mean):
7.70 +/- 4.99
Directivity index, Di (Mean):
7.69 dB +/- 3.49 dB
Transducer complement:
Low Frequency Section:
Two 6.5" premium Peavey woofers+
High frequency section:
Peavey 14XT™ titanium compression driver
on a 90° x 90° conical Horn
Box tuning frequency:
Low Frequency Section: 100 Hz
Harmonic distortion:
1% rated power
Second Harmonic:
100 Hz: 0.09%
1 kHz: 0.09%
Third Harmonic:
100 Hz: 1.19%
1 kHz: 0.14%
10% rated power
Second Harmonic:
100 Hz: 0.34%
1 kHz: 0.37%
Third Harmonic:
100 Hz: 1.67%
1 kHz: 0.22%
Crossover frequency (internal passive):
Low Frequency - High Frequency:
1.8 kHz
Impedance (Z):
Full Range:
Nominal: 8.0 Ω
Minimum: 9.1 Ω
Input connections:
One 4-pin twist-lock connector in parallel
with one two-position terminal strip
Enclosur finish:e materials &
Trapezoidal, dado-joined 13 mm birch
finished with a textured acrylic
polyurethane, with a full-length metal grille
covered with acoustical-grade grille cloth.
Av natur finishes.ailable in black, white or al
Mounting provisions:
(1) Mounting acket and br associated
hardwar SS This e for attaching to E 26.
bracket will allow for horizontal mounting to
walls and ceilings.
Bolts are M6 x 1.0mm x 30mm length
(4) 1/4"-20 threaded mounting points on
back to accommodate use of VersaMount™
35 adjustable mounting bracket
Dimensions (H W x x D):
Front:
23.25" x 9.93" x 9.47"
591 mm x 252 mm x 240 mm
Rear:
23.25" x 5.23" x 9.47"
5 1 mm91 mm x 33 mm x 240
Net weight:
2 lbs. (1 kg)8 2.7
Fr responseequency
This measurement is useful in determining
ho accur giv repr an w ately a en unit oduces
input signal. The equency esponse of fr r the
SSE 26 is measured at a distance of 1 meter
using a 1 Watt (into the nominal impedance)
sw sho figure ept-sine input signal. As wn in
1, the selected drivers in the SSE 26
combine to give a smooth frequency
response from 100 Hz to 7 1 kHz.
Directivity
Beamwidth is derived from the -6 dB points
fr figurom the polar plots (see e 3), which are
measured in a whole-space anechoic
envir Dir are onment. Q and ectivity Index
plotted for the on-axis measurement
position. These are specifications provide a
refer cover char of ence to the age acteristics
the unit and provide insight into proper
placement and installation in the chosen
environment. The blending of the
components of the SSE 26 exhibit a
desir dir (figures able beamwidth and ectivity
3 & 4) suitable for sound reinforcement
applications.
Power handling
Ther ar differe e many ent oaches appr to
power handling ratings. Peavey rates this
loudspeaker system's er handling pow using
a full-range form of the AES Standard
2-1984. Using audio band 20 Hz to 20 kHz
pink noise with peaks of four times the RMS
level, this strenuous test signal assures the
user that every portion of this system can
withstand today's high technology music.
This rating is contingent upon having a
minimum of 3 dB ailable av amplifier
headroom.
Harmonic distortion
S thir distor vs.econd and d harmonic tions
fr ar figurequency e plotted in es 5 & 6 for two
pow lever els. en cent 0%) of T per (1 rated
input power and either one percent (1%) of
r powated input er or att, 1 W whichever is
greater. tion is ead om the aph Distor r fr gr as
the ence een the differ betw fundamental
signal (frequency response) and the desired
harmonic. As an example, a tion distor curve
that is down 40 dB from the fundamental is
equiv distortion.alent to 1%
Mounting
Caution: Before attempting to mount this
speake , consult a certified structural r
engineer. The speaker may fall due to
improper installation, resulting in serious
injur proper NOTy and ty damage. DO
suspend or mount any other product or
device om this E 26 fr SS enclosur Thee.
maximum e angle 45°. Use enclosur only
Grade 5 hardware or bette . All associated r
rigging is the esponsibility of r others.
Architectural & engineering
specifications
The loudspeaker system shall have an
operating bandwidth of 100 Hz to 17 kHz.
The nominal output el shall be 94.0 lev dB
when measured at a distance of a meter with
an input of 1 Watt. The nominal impedance
shall be 8.0 ohms. The maximum program
pow 300 Wer handling shall be atts, with a
peak er input of at least pow 600 Watts and a
minimum amplifier headroom of 3 dB. The
nominal radiation geometry shall be 115
degrees in the horizontal plane and 110
degrees in the vertical plane. The outside
dimensions shall be 23.25 inches high by
9.93 inches wide by 9.47 inches deep. The
weight shall be 28 lbs. The loudspeaker
system shall be a model E SS 26.
SPECIFICATIONS
SSE™ 26
3
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
40
50
60
70
80
90
100
110
dB SPL (re 20 Pa)
Amplitude Response (1W 1m On-Axis)
Figure 1
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
1
10
100
Q & Directivity Index
Q
Figure 4
20
10
Di
0
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
30
40
60
80
100
140
180
300
360
Beamwidth (Degrees)
Beamwidth
Vertical
Horizontal
Figure 3
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
1
2
3
5
10
20
30
50
100
Impedance
Z
( )
Figure 2
