MODELS WMJ 018, WMJ 018S, WMJ 022, WMJ 022S
wall
arm
flush
mount
tube
fiber washer
Jumbo Mount
(cutaway)
retaining
collar
fiber washer
Jumbo Mount TV/Monitor
Mount attaches to wall arm
as shown. Flush mount tube,
fiber washers, and retaining
collar are included with
Jumbo Mount.
ASSEMBLY VIEW
See page 2 for specifications / Jumbo Mount compatibility.
1 1/2 - 11.5 NPS
12
305
6
153
1.0
25
4
102
2
51
C
L
C
L
11 HOLES DIA.
.344
SIDE VIEW FRONT VIEW
ALL DIMENSIONS: INCH
MM = CENTER LINE
C
LTYP. = TYPICAL
TYP.
TYP.
TYP.
Peerless Industries, Inc.
3215 W. North Ave. phone: (708) 865-8870
Melrose Park, IL 60160 fax: (708) 865-2941
ISSUED: 3-8-95 SHEET NO:128-9503-2 07-29-04 page 1 of 2
TECHNICAL DATA SHEET
WALL ARM FOR JUMBO MOUNTS
Architects specifications:
The Wall Arm shall be a Peerless model _______ and shall be attached where indicated
on the plans. It shall have a 1 1/2 - 11.5 NPS threaded fitting to accept a Peerless flush
mount tube. It shall be constructed of 12 and 14 gauge cold rolled steel and finished in
black or silver fused epoxy. It shall be U.L. Listed. Assembly and installation shall be done
according to the instructions provided by the manufacturer.
models: WMJ 022,
WMJ 022S
22.5
572
models: WMJ 018,
WMJ 018S
18
457
R
MODELS: WMJ 018, WMJ 018S, WMJ 022, WMJ 022S
concrete
anchor
plastic
sleeve
wood
screw
128-9503-2 page 2 of 2

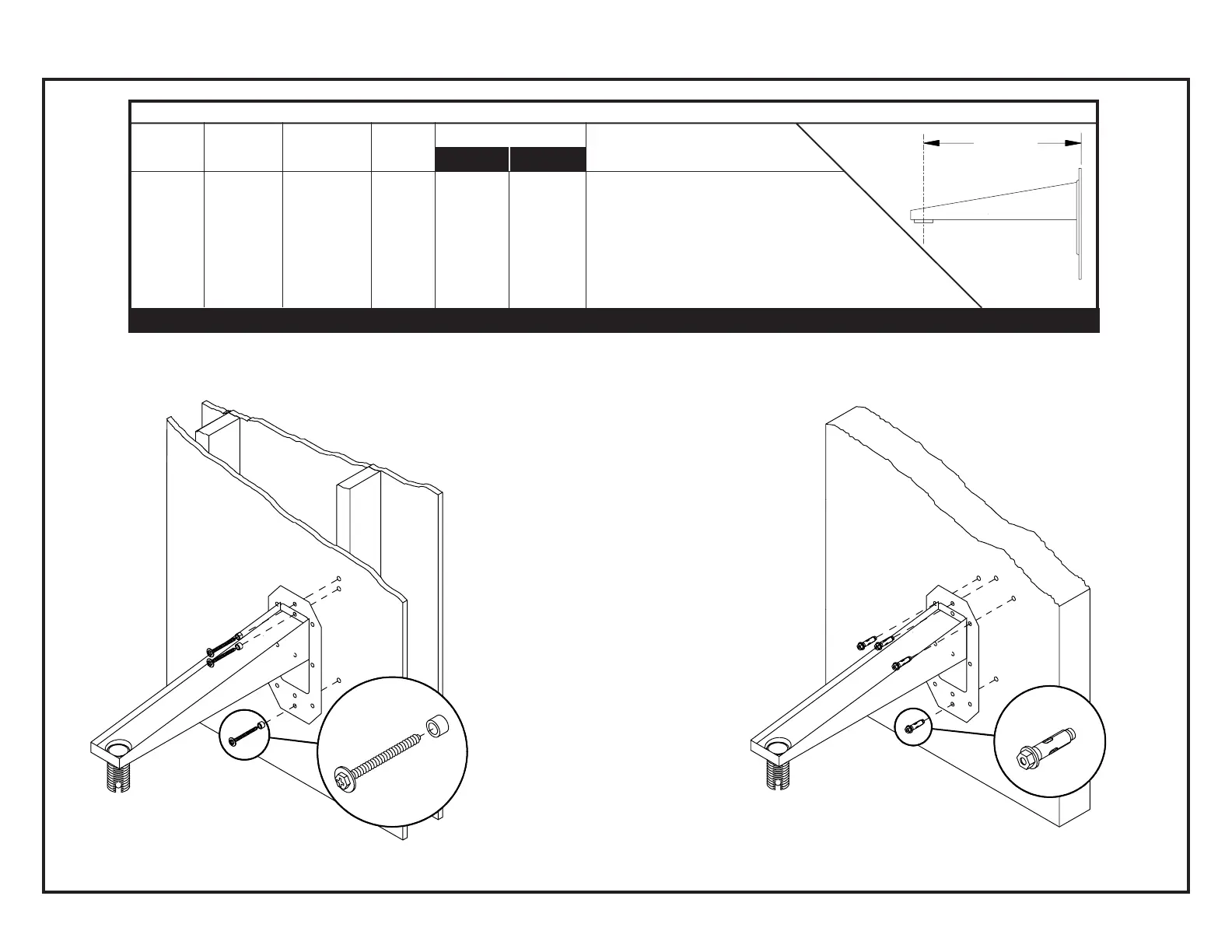

Concrete Wall InstallationWood Stud Wall Installation
Wall Arms include three wood screws
and plastic sleeves (left) for attachment to
a wood stud wall. For attachment to a
concrete wall additional fastener package
ACC 210 must be ordered.
(57 kg)
(57 kg)
Reach
18"
22.5"
(68 kg)
(68 kg)
150 lb
150 lb
125 lb
125 lb
Concrete Wood
WARNING: WEIGHT OF TV or MONITOR NOT TO EXCEED MAXIMUM LOAD CAPACITY!
Model
Number
WMJ 018,
WMJ 018S
WMJ 022,
WMJ 022S
Max. Load Capacity
Compatible Jumbo Mount Models
JM 2630, JM 2640, JM 2640D
JM 2630, JM 2630S, JM 2640, JM 2640S,
JM 2640D, JM 2640DS, JM 2650, JM 2650S,
JM 2650D, JM 2650DS, JM 2655, JM 2655S
WALL ARM FOR JUMBO MOUNTS - SPECIFICATIONS
Reach
(4.3 kg)
(4.6 kg)
Shipping
Weight
Weight
9.4 lb
10.2 lb
(6 kg)
(6 kg)
(457 mm)
(571 mm)
© 2004 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
12 lb
13 lb
