PRODUCT SPECIFICATION camera solutions
ES40/ES41 Series Positioning System
ESPRIT® SE STANDARD AND PRESSURIZED MODELS
Product Features
• Receiver, Pan/Tilt, and Enclosure with Integrated Optics Package (IOP)
or Pressurized Integrated Optics Cartridge (IOC), NTSC/PAL
• Day/Night, 540 TVL, Autofocus, 128X Wide Dynamic Range (WDR),
Motion Detection, Image Enhancement, and Electronic Image
Stabilization
• Integrated Window Wiper with Configurable Delay and Shut-Off
(ES41 Models)
• Preset Positioning Accuracy ±0.1, Variable Speed Pan: 0.1° to
100°/Sec with Proportional Pan
• Window Blanking, Multishaped
• Internal Scheduling Clock
• On-Screen Compass, Tilt, and Zoom Display
• Autotracking
• Tilt Range of +36° to –85° from Horizontal
• Password Protection
Pelco’s ES40/ES41 Esprit® SE Positioning System features a
receiver, pan/tilt, enclosure, and either an Integrated Optics Package
(IOP) or a pressurized Integrated Optics Cartridge (IOC) in a single,
easy-to-install system. Options include IOP or IOC models with or
without wiper.
For a wide range of applications, the offers a high ES40/ES41 Series
resolution, color/black-white camera (540 TVL) with an infrared cut
filter, 432X zoom (36X optical, 12X digital), electronic image
stabilization, and wide dynamic range. A powder-coated, aluminum
construction makes the ideal for either indoor or ES40/ES41 Series
outdoor applications. The system has an absolute operating
temperature range of –45° to 50°C (–50° to 122°F). Within two hours
after power-up, the entire unit can de-ice and be operational from a
temperature of –25°C (–13°F).
The ES40/ES41 Series variable pan and tilt speeds range from 0.1 to
40 degrees per second in manual pan mode, and 0.1 to 20 degrees per
second in manual tilt. Pan preset and turbo speeds are 100 degrees
per second in wind speeds of 80 kph (50 mph) and 50 degrees per
second in the 145 kph (90 mph) wind-speed profile. Tilt preset speed
is 30 degrees per second. The is capable of ES40/ES41 Series
360 degrees of continuous pan rotation. The tilt range allows for
horizontal viewing of +36 to –85 degrees. There are 256 configurable
preset positions with a preset accuracy of 0.1 degree.

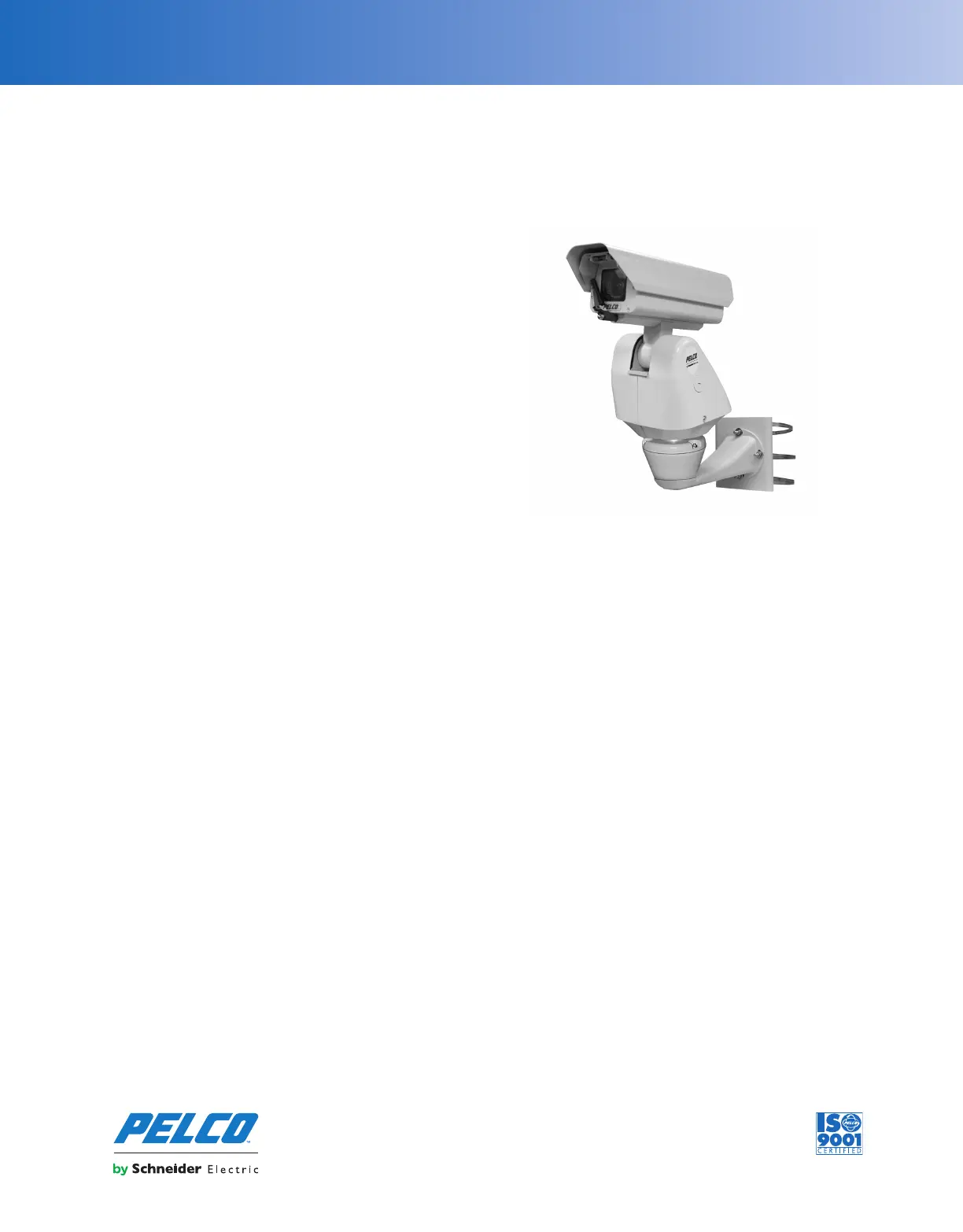

ESPRIT SE IOP SYSTEM WITH WIPER
(SHOWN WITH WALL MOUNT AND POLE ADAPTER)
The ES40P/ES41P system’s IOC contains dry nitrogen pressurized to
10 psig, which protects the environment inside the cartridge
eliminating internal condensation and corrosion. Sensors
strategically placed in the cartridge send an “Alert” message if
changes in pressure, temperature, and humidity are beyond factory-
set acceptable limits. The sensors also allow for instant on-screen
display of temperature, pressure, and dew point. The IOC is factory
assembled and installed in the systems. All labor ES40P/ES41P
intensive procedures of setting up the camera, lens and charging the
unit with dry nitrogen are eliminated. The miniature size of the
cartridge decreases the future need for maintenance and increases
the overall reliability of the pressurized unit.
The ES41 Series includes a window wiper. The wiper is completely
integrated into the enclosure and does not interfere with the viewing
range of the system. The wiper can be configured to delay between
wipes and to automatically shut off after a specified period. The wiper
design also allows for easy replacement of the wiper blade. A built-in
heater, window defroster/defogger, sun shroud, and insulation
blanket are standard features on the units, which also ES40/ES41
include open collector auxiliary outputs that function for two seconds
before deactivating.
The systems are available with an input voltage of 24 VAC or with a
selectable power source of 120/230 VAC. The also ES40/ES41 Series
has a power-up recovery mode that allows the user to specify what
operation the system will resume whenever the power is cycled.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C1323 / NEW 6-5-12
TECHNICAL SPECIFICATIONS
ADDITIONAL PRODUCT FEATURES
• Deterrent Surveillance
• Integral Multiprotocol (Coaxitron
®, RS-422 Pelco D and Pelco P Protocols)
Receiver/Driver
• Digital Position and Zoom Control and Feedback Using Pelco D Protocol
• Integral Camera Enclosure
• Operational in 145 kph (90 mph) Winds, Can Withstand Wind Velocity up
to 209 kph (130 mph)
• Pan Preset Speed of 100°/Sec in 80 kph (50 mph) Winds and 50°/Sec in
145 kph (90 mph) Winds
• Variable Scan Speeds (1° to 40°/Sec)
• Translator Boards for Selected Competitive Protocols
• Easy to Install: Quick and Simple Electrical Connections
• 24 VAC or 120/230 VAC Selectable
• Full Continuous-Duty Warranty
• 850 nm and 950 nm Active IR Illumination Focus Algorithms
• 256 Configurable Presets with Labels
• Auto, Frame, and Random Scan
• Configurable Power-Up Mode, Park, Manual Limit Stops (Pan), and Scan
Limit Stops (Pan)
• Patterns: Up to 8, On-Screen, User-Defined Configurable Patterns;
Includes Pan, Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each
• Window Blanking: Up to 8, Four-Sided, User-Defined Shapes
• 10-Inch Integrated Enclosure with Pre-Assembled IOP Camera
• Sun Shroud, Heater/Window Defroster, and Insulation All Standard
• 1 Auxiliary Output
• Electronic Image Stabilization
• Image Enhancement
• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, Czech, and Asian language package:
Chinese, Japanese, Korean)
• Software Update and Setup
• Configurable Locations of Labels and On-Screen Displays
• Configurable Zoom Speeds
• Low Lux Noise Reduction (reduces noise in low light)
• Autosensing Protocol (Coaxitron®, RS-422 Pelco P and Pelco D,
Sensormatic®, Vicon®); Accepts Other Control Protocols with Optional
Translator Card
PRESSURIZED INTEGRATED OPTICS CARTRIDGE (IOC)
• Pressurized to 10 psig, Nominal (Sea Level, 21°C [70°F])
• Internal Sensors for Temperature, Dew Point, and Pressure
• On-Screen Alert for High and Low Temperature, High and Low Pressure,
and High Humidity
• 4 Alert On-Screen Display Modes
• 4 Acknowledge Modes
• Pressurized Relief Valve
• Meets IP67 Standards
ELECTRICAL
Input Voltage 24, 120, or 230 VAC, 50/60 Hz; switch
selectable for 120/230 VAC inputs
Input Voltage Range ±10%
Power Consumption Maximum 70 VA per system
Heater and Defroster Thermostatically controlled
Electrical Connections 2 power source connections made at mount
location with wire splices and 1 ground wire
splice; 1 BNC receptacle and 4 wire splices at
mount location for RS-422 Pelco D and Pelco P
protocols; 2 wire splices for open collector
auxiliary output
Aux 2 Open collector output with 2-second
activation; connected relay must require no
more than 32 VDC and 40 mA to energize relay
coil; wire length between Esprit SE and relay
must be less than 30 m (100 ft)
Video Coaxial Cable
Wiring Distances Cable Type* Maximum Distance
RG59/U 229 m (750 ft)
RG6/U 305 m (1,000 ft)
RG11/U 457 m (1,500 ft)
*Minimum cable requirements: 75-ohms impedance; all copper center
conductor; all copper braided shield with 95% braid coverage.
MECHANICAL
Pan Movement 360° Continuous pan rotation
Vertical Tilt Unobstructed +36° to –85°
Variable Pan/Tilt Speed
Pan 0.1° to 40°/sec variable-speed operation,
100°/sec turbo
Tilt 0.1° to 30°/sec variable-speed operation
Preset Speeds
Pan 100°/sec
Tilt 30°/sec
Camera Mounting Integrated camera sled assembly
Latches One link-lock, No. 3 stainless-steel latch; can
be secured with padlock (not supplied)
GENERAL
Construction Die-cast, extruded and sheet aluminum;
stainless steel hardware
Finish Gray polyester powder coat
Viewing Window 5.84 mm (0.23") thick, optically clear,
polycarbonate with proprietary impact-
resistant UV rated coating
Operating Temperature –45° to 50°C (–50° to 122°F) for sustained
system operation or 60°C (140°F) absolute
maximum; within two hours after power-up,
the entire unit can de-ice and be operational
from a temperature of –25°C (–13°F)
Operating Environment Will remain operational in 145 kph (90 mph)
wind conditions;
withstands 209 kph (130 mph)
Weight With With
Pedestal Adapter Wall Mount
Unit
Standard with IOP 9.0 kg (20 lb) 9.9 kg (22 lb)
With Wiper and IOP 9.5 kg (21 lb) 10.4 kg (23 lb)
Standard with IOC 9.5 kg (21 lb) 10.4 kg (23 lb)
With Wiper and IOC 10.0 kg (22 lb) 11.0 kg (24 lb)
Shipping
Standard with IOP 11.3 kg (25 lb) 12.6 kg (28 lb)
With Wiper and IOP 11.7 kg (26 lb) 13.1 kg (29 lb)
Standard with IOC 11.7 kg (26 lb) 13.1 kg (29 lb)
With Wiper and IOC 12.3 kg (27 lb) 13.6 kg (30 lb)
TECHNICAL SPECIFICATIONS
CAMERA/OPTICS
Signal Format NTSC, PAL
Scanning System Progressive or 2:1 interlace
Image Sensor 1/4-inch CCD
Effective pixels
NTSC 768 (H) x 494 (V)
PAL 752 (H) x 582 (V)
Horizontal Resolution >540 TV lines
Lens f/1.4 (focal length, 3.3 ~ 119 mm optical)
Zoom 36X optical, 12X digital
Zoom Speed (optical range) 3.2/4.6/6.6 seconds
Horizontal
Angle of View 57.2° at 3.3 mm wide zoom;
1.7° at 119 mm telephoto zoom
Focus Automatic with manual override
Maximum Sensitivity
at 35 IRE
NTSC 0.02 lux at 1/2 sec shutter
0.55 lux at 1/60 sec shutter (color)
0.018 lux at 1/2 sec shutter (color)
0.00018 lux at 1/2 sec shutter (B-W)
PAL 0.02 lux at 1/1.5 sec shutter
0.45 lux at 1/50 sec shutter (color)
0.015 lux at 1/1.5 sec shutter (color)
0.00015 lux at 1/1.5 sec shutter (B-W)
Sync System AC line lock, phase adjustable using remote
control, V-Sync
White Balance Automatic with manual override
Shutter Speed Automatic manual
NTSC 1/2 ~ 1/30,000
PAL 1/1.5 ~ 1/30,000
Iris Control Automatic with manual override
Gain Control Automatic/OFF
Video Output 1 Vp-p, 75 ohms
Video Signal-to-Noise Ratio >50 dB
Electronic Image Stabilization Integrated
Wide Dynamic Range 128X
CERTIFICATIONS/RATINGS/PATENTS
IOP MODELS
• CE, Class B
• FCC, Class B
• UL/cUL Listed
• C-Tick
• Meets NEMA Type 4X and IP66 standards
• U.S. Patents 340,940 and 5,224,675
IOC MODELS
• CE, Class B
• FCC, Class B
• UL/cUL Listed
• C-Tick
• Meets NEMA Type 4X and IP66 standards
• Meets IP67 standards (Pressurized IOC)
• U.S. Patent D472,260
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
13.3 33.9
(5.2) (13.3)
9.9
(3.9)
44.3
37.0
(17.5)
(14.6)
24.9
(9.8)
19.7 20.0
(7.7) (7.9)
9.1
(3.6)

Produktspecifikationer

Varumärke: Pelco
Kategori: Kamera
Modell: Esprit ES41

Behöver du hjälp?

Om du behöver hjälp med Pelco Esprit ES41 ställ en fråga nedan och andra användare kommer att svara dig


Kamera Pelco Manualer

Pelco

Pelco Esprit ES41 Bruksanvisning

9 September 2024

Kamera Manualer

Nyaste Kamera Manualer

Anker

Anker Prime Bruksanvisning

8 December 2024
Ring

Ring Spotlight Cam Plus Battery Bruksanvisning

8 December 2024
Bushnell

Bushnell TrailScout 119835 Bruksanvisning

8 December 2024
Bushnell

Bushnell Trail Sentry 119204 Bruksanvisning

8 December 2024
Bushnell

Bushnell Trail Sentry 119505 Bruksanvisning

8 December 2024
Bauhn

Bauhn ADPC35-1024-E Bruksanvisning

7 December 2024
Polaroid

Polaroid Originals Lab Bruksanvisning

6 December 2024
Pyle

Pyle PLMRCDV72BK Bruksanvisning

6 December 2024
Pyle

Pyle Gear Pro Quest GDV995BK Bruksanvisning

6 December 2024
Pyle

Pyle PLMRCMR50 Bruksanvisning

6 December 2024
