8 Faucet
H-Pipe Tower
Installation Instructions
Avenue T-Pipe and H-Pipe Towers
Form No. Z2609
Rev. 10.25.22
4 Faucet
T-Pipe Tower
Printed in USA 2

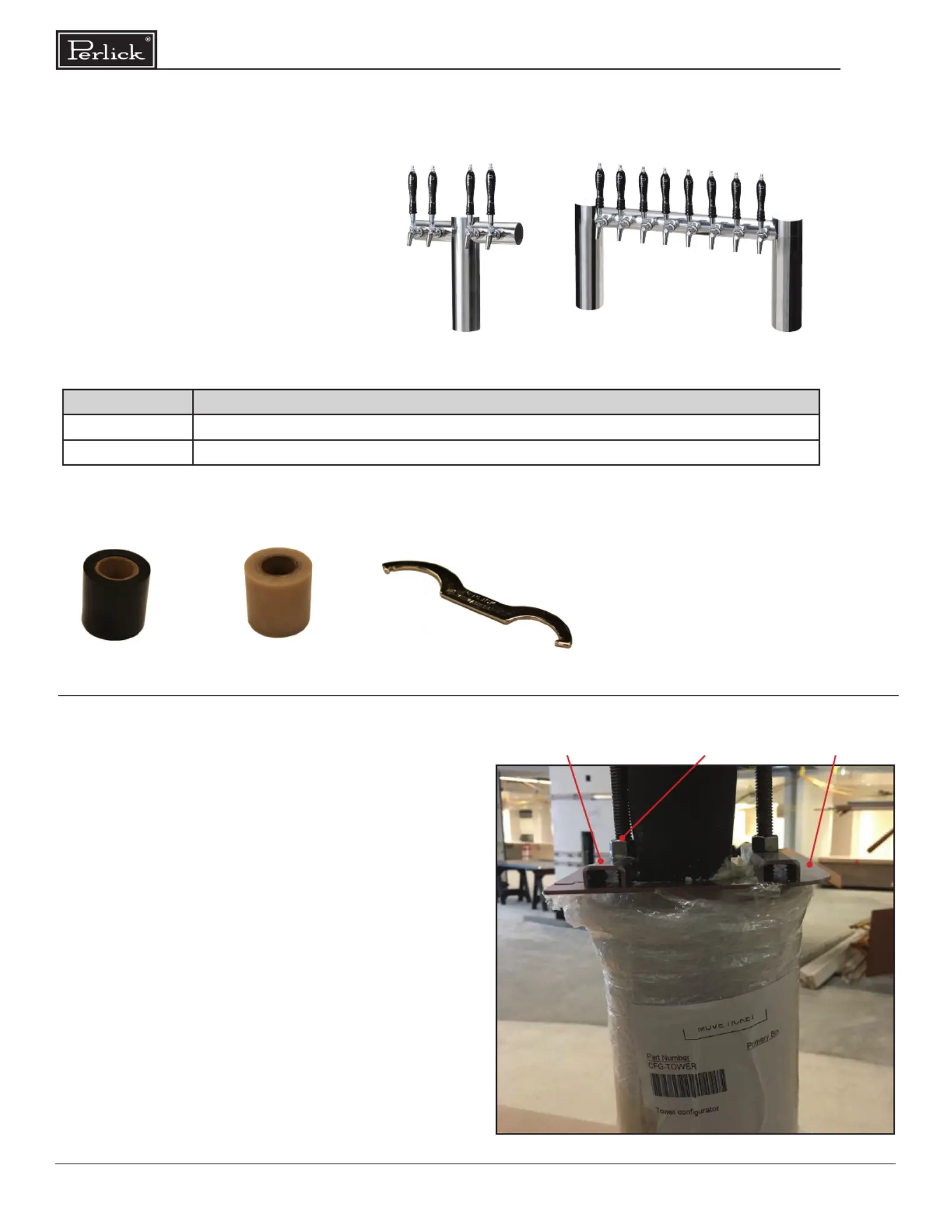

Avenue T-Pipe and H-Pipe Tower Installation Instructions
Installation of T-Pipe and H-Pipe Towers
Parts Bag Included with Tower:
Preparing for Installation:
Black Poly-tape Clear poly-tape Spanner wrench
Parts bag contents include –
Included with Tower:
T-Pipe Tower (L) or H-Pipe Tower (R)
(Faucets and tap handles shown are
not included)
Other Parts Needed for Installation: The parts required will vary depending on the installation.
PART NO. DESCRIPTION
63486 Coolant Line Connector Kit
C33037 Clamp, SS - Stepless
1. The towers are shipped with the Mounting
hardware installed, which includes two at
Mounting Plates (hockey stick shaped), two Hold
Down Brackets (U channel shaped), and two Hex
Nuts.
2. Remove the two Hex Nuts and all brackets.
Hold Down Bracket Hex Nut Mounting Plate
(Figure 1)
3 Printed in USA

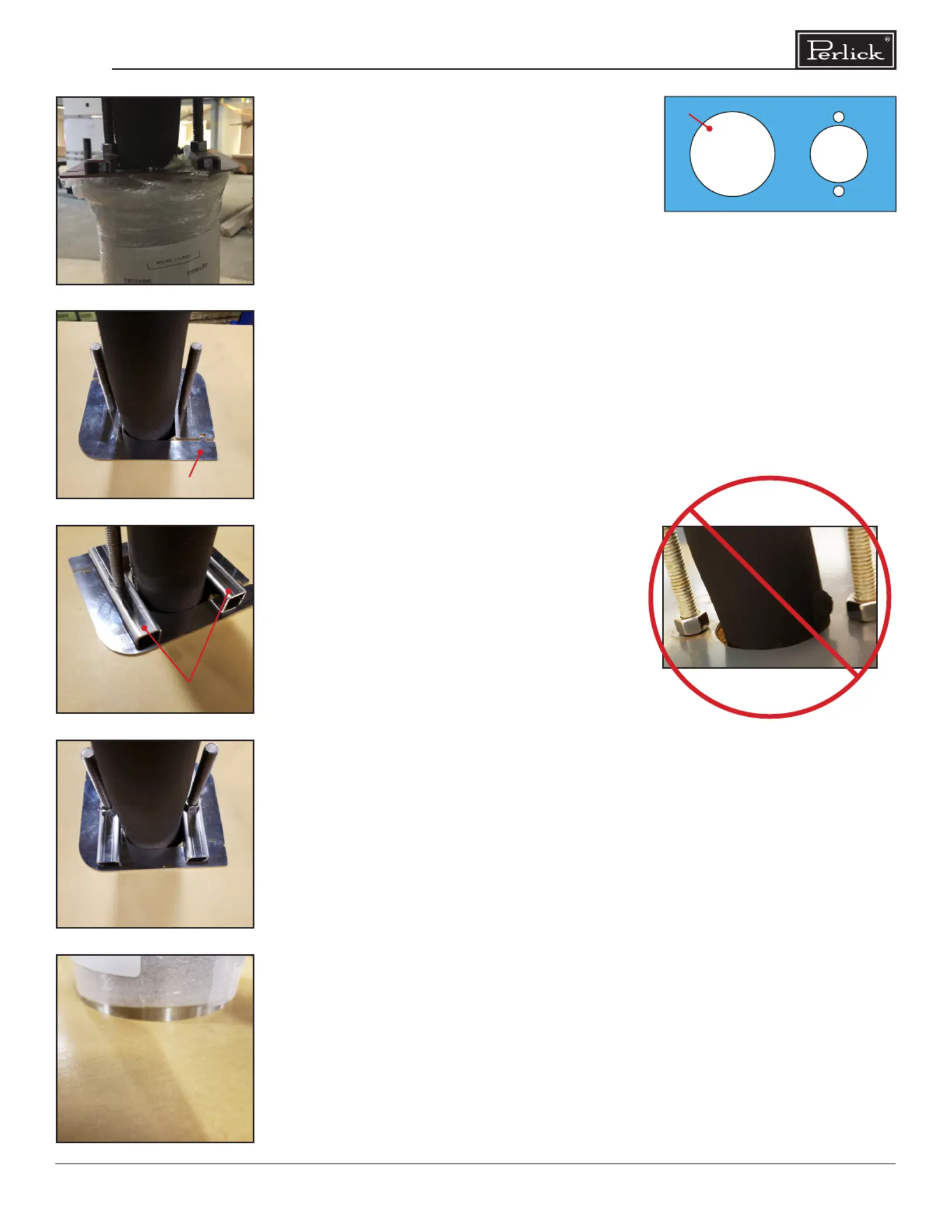

Avenue T-Pipe and H-Pipe Tower Installation Instructions
1. Drill one (1) 3.5” diameter hole per base.
Position tower centered over hole.
Do not drill extra holes for threaded Note:
rods and trunk housing. (See )Figure 2a
( View from underneath)Figure 2:
2. Install mounting plates.
Note: If underside of countertop is steel, skip to step 3
(Figure 3: View from underneath)
3. Install support brackets.
Note: Support brackets must be used in all
installations of tower. (See )Figure 4a
(Figure 4: View from underneath)
4. Install nuts.
Note: Interlock mounting plates before tightening the nuts. After hand tightening
the nuts with the mounting plates ush and interlocked, tighten nuts between one
and one and-a-half turns with wrench.
(Figure 5: View from underneath)
5. After tightening the nuts on the bottom side, make sure tower is securely
fastened by pushing and pulling on the outermost faucet like an aggressive bar
tender may push or pull.
Note: Depending on bar top material, sealant may be required.
(Figure 6: View from top - protective shipping material still on the tower)
(Figure 2)
(Figure 3)
(Figure 4)
(Figure 5)
(Figure 6)
Mounting Plate
Support Bracket
Do not mount without support brackets
(Figure 2a)
YES NO
3.5” hole
(Figure 4a)
