Assembly of PureID DIY Cables
© PureLink GmbH 2015
1
I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | E-mail: info@purelink.de | Internet: www.purelink.de
Manual
for creating solderless DIY HDMI cabling included in the PureID series
ID-CAB-PURE
ID-CAB-ULTRA
© 2015 PureLink GmbH All rights reserved.
Manual
Assembly of PureID DIY Cables
© PureLink GmbH 2015
2
I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | E-mail: info@purelink.de | Internet: www.purelink.de
Step 1
Prepare The Cable
The PureLink HDMI Do-It-Yourself cables use a unique technology for manufacturing your own HDMI cables. The
HDMI cable consists of 5 twisted pairs, 4 separate wires and a drain wire, used for grounding. The four blue colored
pairs are meant for transmission of TMDS signals, the twisted pair with silver aluminium foil is for Ethernet (HEAC)
and Audio Return Channel (ARC). Our compatible cables are “ID-CAB-PURE“ and “ID-CAB-ULTRA“. All parts needed
for manufaturing are included in our starter-kit “ID-STARTER“ or available separately.

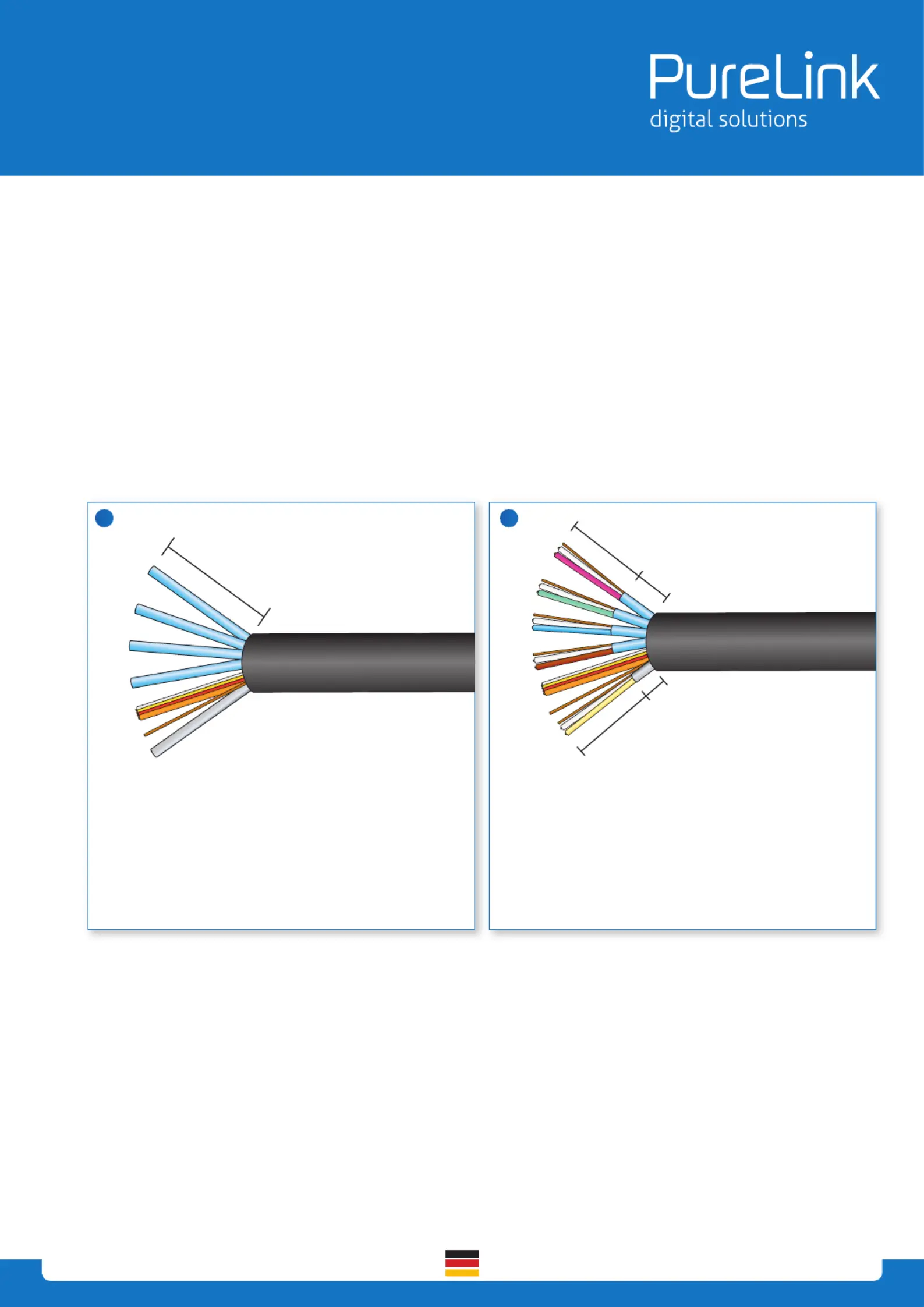

First remove the insulation of the cable, then cut
the outer jacket with a sharp knife, strip the cable
jacket for about 3cm and remove the outer metal
braiding.
Remove about 2 cm aluminium foil around the ve
twisted pairs. It´s important to keep 1cm blue alu-
minium foil around the twisted pairs. You need to
be able to recognize the diernt pairs & wires in the
next step. Remove the silver foil around the single
wires so that only 6mm of silver foil is left.
1 2
3cm
2cm 1cm
2,4cm
0,6cm
Manual
Assembly of PureID DIY Cables
© PureLink GmbH 2015
3
I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | E-mail: info@purelink.de | Internet: www.purelink.de
Step 2
Insert Wires

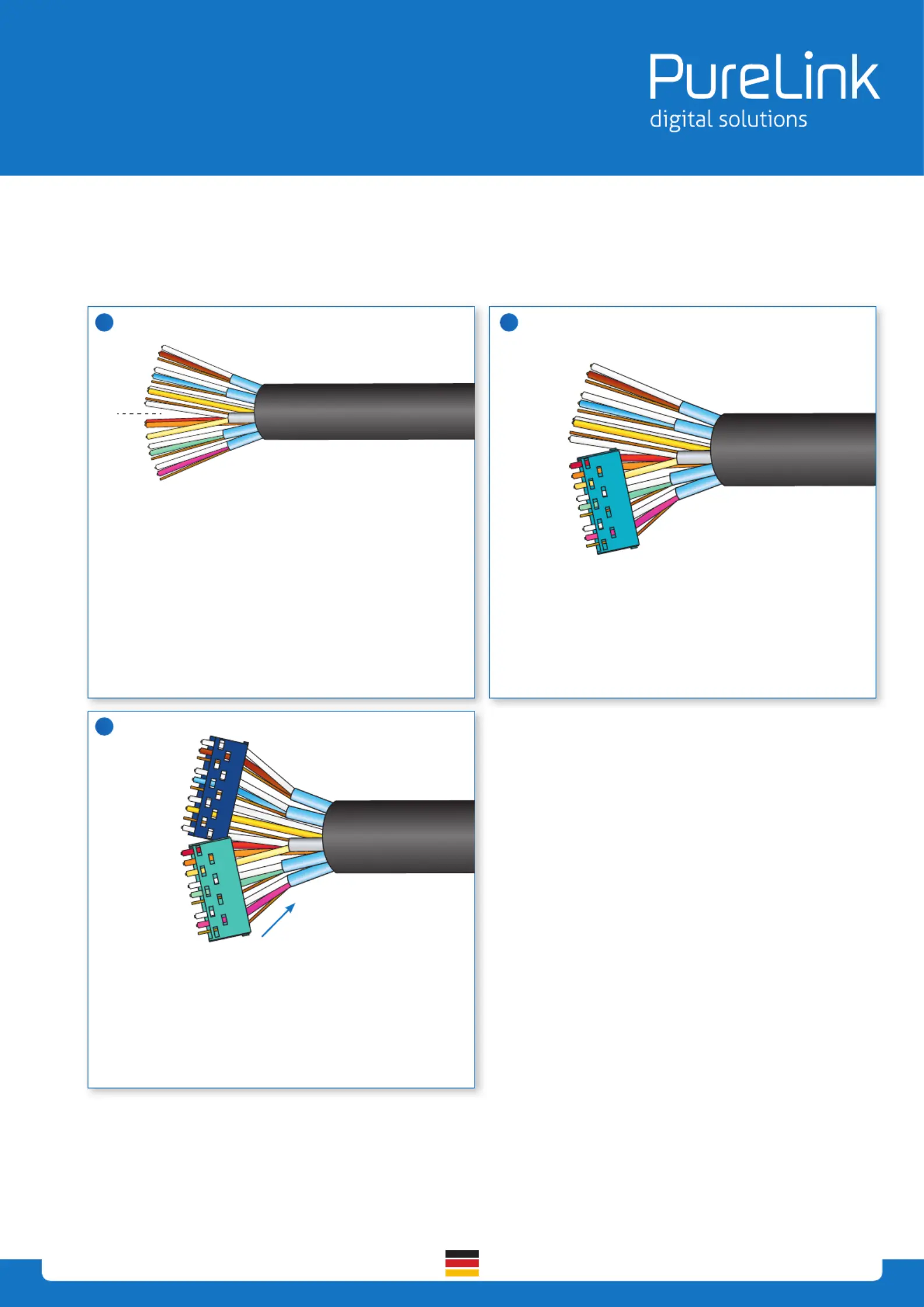

Arrange the wires for the green 9-hole cablehol der,
like shown in the pin-assignment table on page 4.
Pay Close attention: Mis-wiring (also of the twi-
sted pairs!) will lead to product failure and/or total
blackout. Therefore it‘s VERY IMPORTANT to a ensure
the right assignment of all wires.
Insert the wires into the green holder. Check the
position with the assignment chart.
Repeat these steps for the blue 10-pin holder. After
completing this step, slide the holders against the
foil wrapping so they are on top of each other and
align them to t the compression guide.
1
3
2
