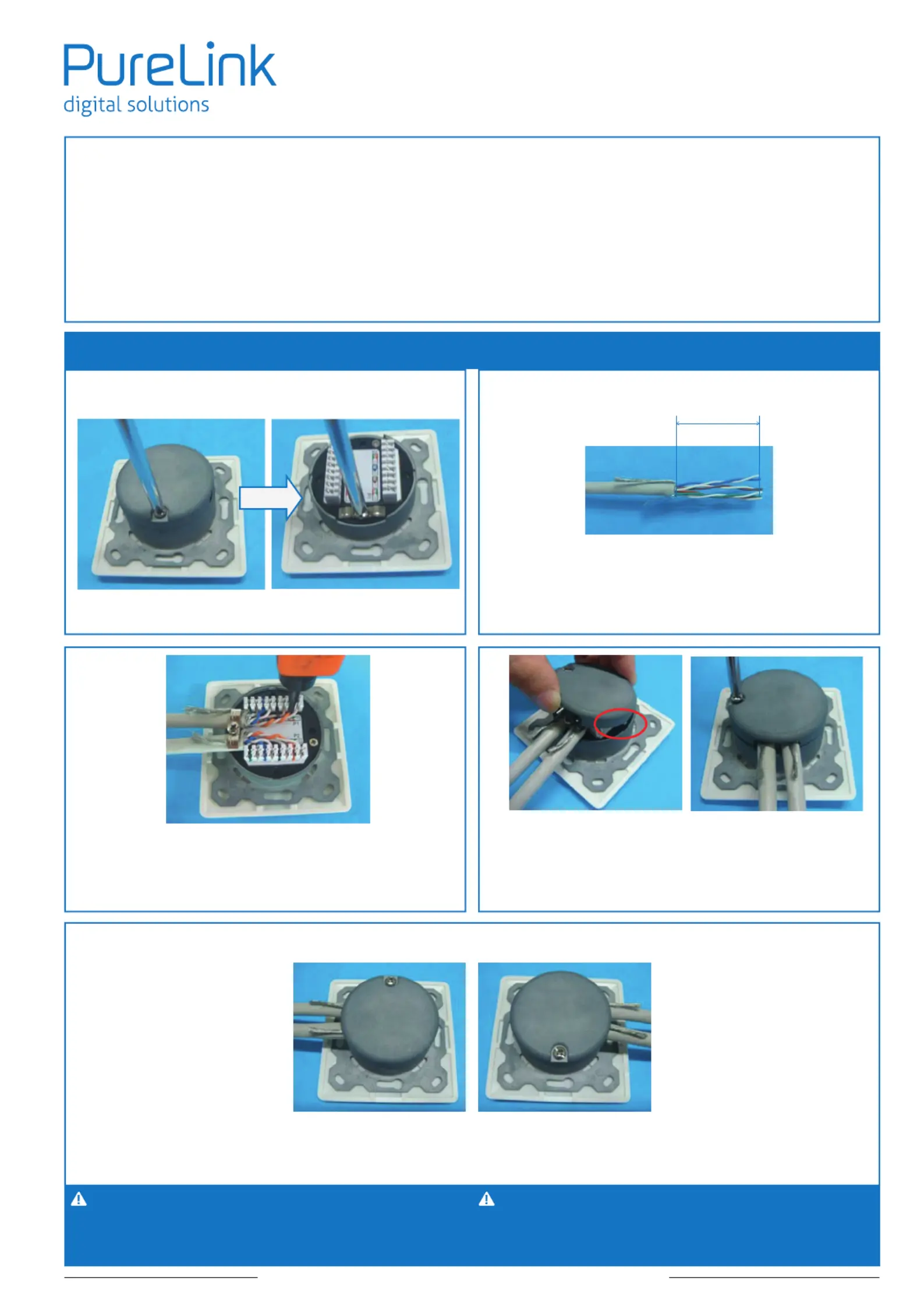

Cat.6 A Wallplate | User Guide Item No.
MCA200
1.
3.
5.
2.
4.
User Guide
T568A
Pin 1
Color-coding information for
T568A & T568B wiring.
White / Green
Pin 2 Green
Pin 3 White / Orange
Pin 4 Blue
Pin 5 White / Blue
Pin 6 Orange
Pin 7 White / Brown
Pin 8 Brown
T568B
Pin 1 White / Orange
Pin 2 Orange
Pin 3 White / Green
Pin 4 Blue
Pin 5 White / Blue
Pin 6 Green
Pin 7 White / Brown
Pin 8 Brown
30mm
Strip 30mm cable jacket approximately,
and separtate the wires into 4 pairs
It´s done.
Place the cable(s) underneath the M-shape cabe holder properly,
make sure the fiol or braid shield contact with the cable holder,
and then fasten the screw.
Follow the wiring instruction to puch the wires by KRONE impact
tool.
Adjust the gap on the cover to fit the cables. Latch the snag (the
circle in the figure above) to the hole on the body and then fasten
the screw.
SAFETY INSTRUCTION
Avoid connection errors - read installation instructions carefully before connecting!
Unplug the RJ45 Plug only when without voltage. Unplugging of device under voltage
(e.g. POE) may damage the contacts. Only be installed by qualified personnel. The safety
requirements must be observed.
SICHERHEITSHINWEIS
Anschlussfehler vermeiden - vor dem Anschluss Montageanleitung sorgfältig lesen!
Ziehen des RJ45 Steckers nur bei Geräten ohne Spannung. Ausstecken unter Spannung
(z.B. POE) kann zu Schäden an den Kontakten führen! Die Installation ist nur von Fachpersonal
durchzuführen. Hierbei sind Sicherheitsanforderungen zu beachten.
PureLink GmbH | Von-Liebig-Str. 10 | 48432 Rheine | Germany | www.purelink.de
