User Manual
PT-E-HD10
To avoid EMI issue, complete STP Cat6 cable is strongly recommended!
User Manual

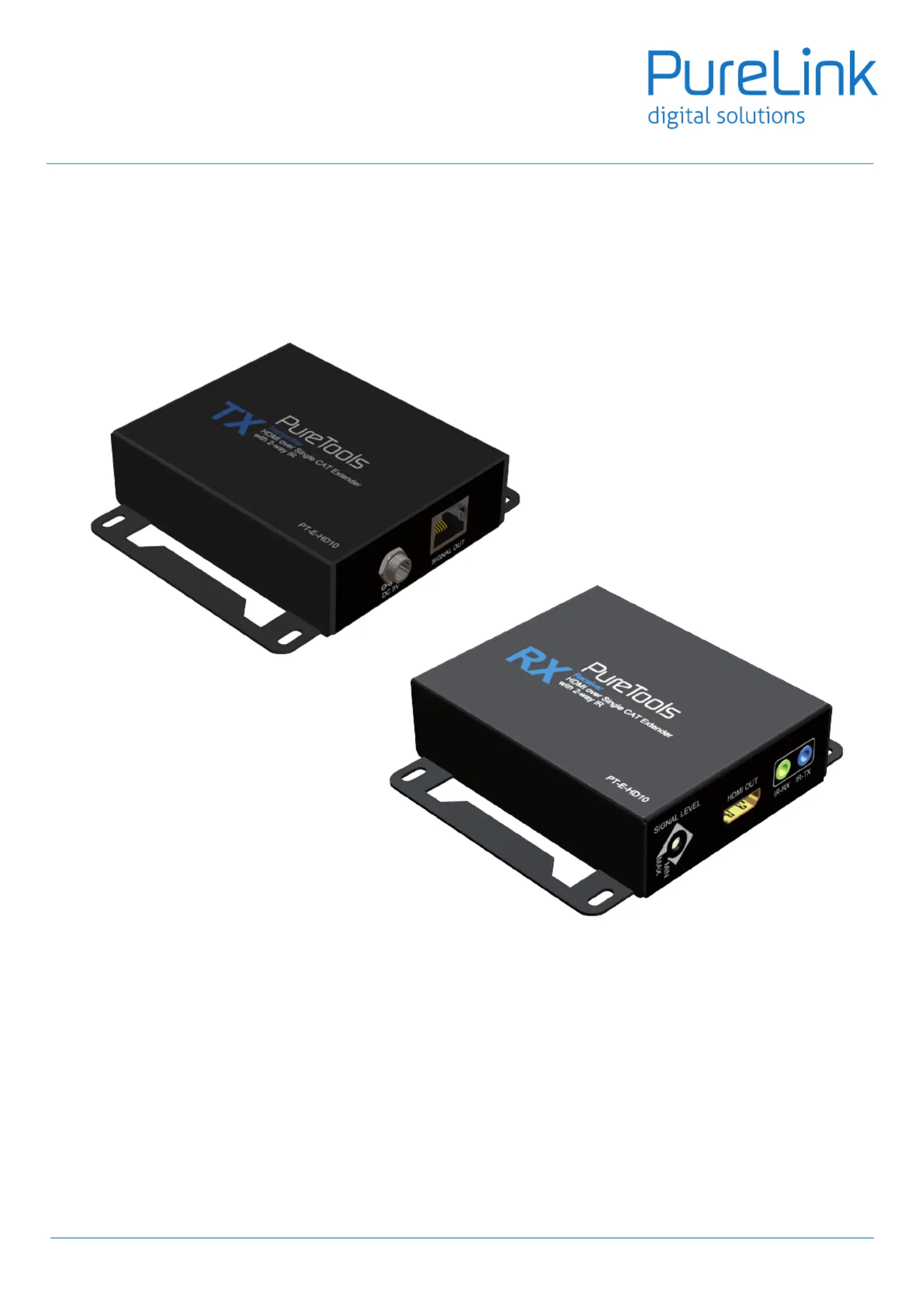

HDMI™ over Single Cat.X Extender with 2-way IR
Model PT-E-HD10
Designed in Germany
© 2016 PureLink GmbH All rights reserved.
User Manual
PT-E-HD10
The PT-E-HD10 HDMI™ over Single Cat.X Extender with 2-way IR has been tested for conformance to safety re-
gulations and requirements, and has been certied for international use. However, like all electronic equipments,
the PT-E-HD10 should be used with care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice 2 ..................................................................................
2. Introduction ....................................................................................... 3
3. Features ........................................................................................... 3
4. Specication ....................................................................................... 4
5. Package Contents 5
..................................................................................
6. Connection Diagram 5 ................................................................................
7. Panel Description 6-7 ................................................................................
8. IR Pass-Through 8 ....................................................................................
9. Hardware Installation 9 ..............................................................................
10. EDID Learning 9 ......................................................................................
11. Notice ............................................................................................10
12. Warranty .........................................................................................11
2
User Manual
PT-E-HD10
• Support HDMI Deep Color & full 3D
• Extend the transmission up to 50m (165ft) from the HDMI source at HD 1080i or 720p 24-bit
• Extend the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit
• Extend the transmission up to 20m (65ft) from the HDMI source at Full HD 1080p 36-bit
• HDCP 1.1 compliant
• Minimize the cable skew by adjustable 8-level equalization control
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
• DTS-HD and Dolby True HD high bit rate audio support
• Support full frequency IR signal from 20KHz to 60KHz
• Bi-directional IR path
• Allows cascading
• Wall mounting housing design for easy and robust installation
• Perfectly integrated with other HDMI over Cat.X series products
3. Features
The PT-E-HD10 HDMI™ over Single Cat.X Extender with 2-way IR boosts up your video/audio transmission dis-
tance up to 50m (165ft) in HDTV 1080i format, and 40m (130ft) in HDTV 1080p format. PT-E-HD10 also supports
the most advanced 3D video format complaint with HDMI specication and therefore guarantees the highest 3D
video compatibility on the market. With only one cost eective Cat.X cable, users can readily extend HDTV sources
from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant dis-
play monitors including HDMI or DVI enabled TV sets or LCD PC monitors. With the advanced design for the latest
HDMI technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP supports and compatibility are all
further insured. This exibility makes HDCP compliant DVD players or PS3 transmit utmost high quality video and
audio with a greater distance at the minimal cost, when integrating several components apart. In addition, PT-E-
HD10 is also equipped with bi-directional IR pass-through path. This bonus feature allows users to boost IR control
distance up to 100m (330 ft) and makes IR control possible through only single Cat.X cable including HDMI signals.
The PT-E-HD10 includes two units: transmitting unit PT-E-HD10-TX and receiving unit PT-E-HD10-RX. The trans-
mitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one
cost eective Cat.X cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and recon-
structing IR signals. The transmission distance between the sending and receiving units can be up to 50m (165ft)
at HD 720p or 1080i; or 40m (130ft) at Full HD 1080p. With an 8-level equalization rotary control on the receiving
unit, users can adjust the equalization strength to the received HDMI signals accordingly, and therefore optimize
the transmission distance between source and destination!
1. The claimed transmission distance here is subject to the grade of installed cable(s), source device and dis-
play.
2. For over CAT5/COAX transmission, the cable(s) has to be solid, not stranded. Any keystone jack along the
transmission path will kill the transmission performance signicantly!
2. Introduction
3
