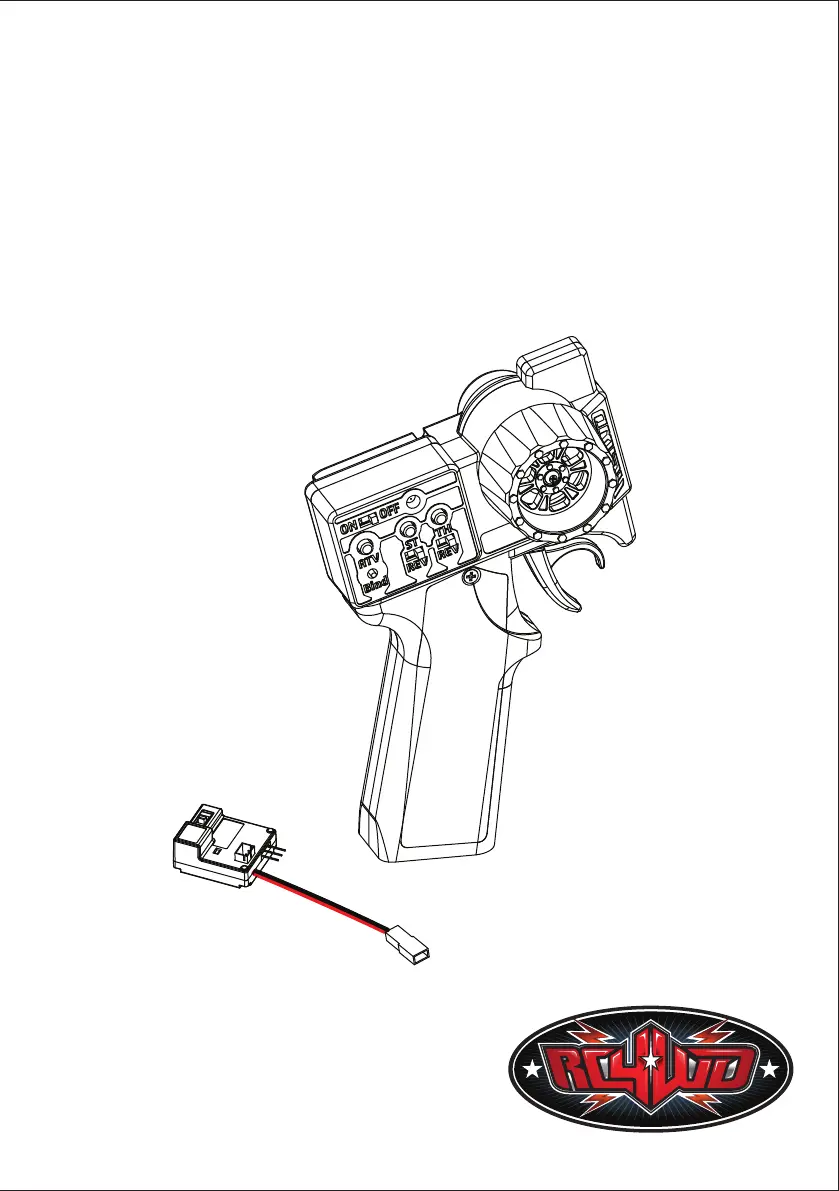

RC4WD XR2 Ultimate Micro Radio
and ESC/Receiver
i
Warranty
RC4WD non-electrical products are warranted to be free of defects in materials and workmanship
when new. Our limited warranty does not cover damages due to normal wear and tear, user error of
assembly or installation, user modifications, user's failure to perform routine maintenance, addition of
aftermarket parts or option parts. This warranty lasts 30 days after arrival for original purchaser.
In the event of a defect under this warranty, RC4WD will, at our discretion, replace the product,
provided our inspection indicates that an original defect exists. RC4WD reserves the right to replace
any product which is no longer available with a product of comparable value and function. If RC4WD
determines the repair is not covered under warranty guidelines, we will contact you to discuss your
options. If you have any questions, please contact us via email at support@rc4wd.com.
RC4WD warranties its electronics for 30 days from date of arrival. This covers all electrical items
except items that are already noted on the individual product page.
BATTERY CHARGING
Model
Input
Output
RC4WD 2s Lipo Balance Charger
DC5V 1~2A
DC7.4V 800mA
SPECIFICATIONS
Rating Voltage
Battery Capacity
Discharge Rate
7.4V
850mAh
25C
SPECIFICATIONS
1. Only charge batteries that are cool to the touch and are not
damaged (swollen, bent, broken or punctured).
2. Connect the charger to USB 2.0 compatible charging block
(ie. cell phone charger)
3. Plug the battery's balance port (white plug) into the charger's
connector. The LED will be red when it is charging.
4. The charger will have a bright red LED when charging. When
charging is complete the LED light will dim and turn off.
5. Always unplug the battery from the charger immediately
upon completion of charging.
CAUTION: Overcharging a battery may cause a fire.
LiPO BATTERY
IMPORTANT: To prevent battery from leaking, overheating or exploding, carefully follow these instructions! Misuse
of battery may lead to leakage, heat generation or explosion. Battery may become hot during use. Battery
temperature may exceed 25C (77F) even under normal operation and may cause burns or alter the shape of some
materials.
Failure to follow instructions associated with this symbol risks injury or even death!
lf battery liquid enters the eye, immediately flush continuously with clean running water and seek medical
treatment. Serious and permanent eye damage may occur.
Do not leave battery and charger unattended
This charger is designed to charge only 7.4V 850mAh 2S LiPo Battery.
Do not use this charger with other batteries. RC4WD can not guarantee
compatibility with other batteries. Never let children operate unsupervised
while charger is in use. Adult supervision is recommended at all times.
The charger is for indoor use only. Do not use in case of high humidity
conditions or condensation.
Do not attempt to open or modify the charger’s case.
Do not let objects or liquids penetrate the charger’s cooling vents.
The charger may get hot during use. Use the charger in a well ventilated area, away from people and electrically
conductive or inflammable materials.
If the battery has suspicious reactions during the charge or discharge, such as overheating, venting or leaking,
immediately disconnect the battery and store it in a safe location, away from people and inflammable materials.
1
