D44 Axle Parts List
Attention
All D44 axles require Axial axle ring gear/differential/locker and pinion gear shaft to
function.
D44 Narrow Front axle (SCX10 Width)
Z-S1030 D44 Differential Housing
Z-S1023 D44 Narrow Front Axle Tubes
Z-S1029 D44 Axle C Hub
Z-S0955 D44 Steering Knuckles
Z-S0989 XVD Shafts for D44 Narrow Front Axle
Z-S1022 D44 Lower Link Mounts for SCX10
Z-S1071 D44 Panhard Mount for SCX10 CMS
Z-S1024 D44 Narrow Front Axle Upper Link Mount
Z-S1072 D44 Link Set for SCX10 CMS
Bearings
6 * 5 x 11 x 4mm (Z-S0683)
4 * 10 x 15 x 4mm (Z-S0837)
Note:
When installing this axle in the SCX10 chassis you will need the RC4WD SCX10 CMS kit
(Z-S0923)
D44 Narrow Rear axle (SCX10 Width)
Z-S1030 D44 Differential Housing
Z-S1021 D44 Narrow Rear Axle Tubes
Z-S1073 D44 Rear Axle Bearing Caps
Z-S0899 D44 Narrow Straight Rear Axle Shafts
Z-S1022 D44 Lower Link Mounts for SCX10
Z-S0971 D44 Rear Axle Upper Link Mount (Black)
Bearings
2 * 5 x 11 x 4mm (Z-S0683)
2 * 10 x 15 x 4mm (Z-S0837)
2 * 5 x 10 x 4mm (Z-S0686)
RC4WD.com 1 D44 Axle
D44 Wide Front Axle (Wraith/AR60 Width)
Z-S1030 D44 Differential Housing
Z-S1027 D44 Wide Front Axle Tubes
Z-S1029 D44 Axle C Hub
Z-S0955 D44 Steering Knuckles
Z-S1020 XVD Shafts for D44 Wide Front Axle
Z-S1026 D44 Lower Link Mounts for Wraith
Z-S1074 D44 Panhard Mount for Wraith CMS
Z-S1028 D44 Wide Front Axle Upper Link Mount
Z-S1075 D44 Link Set for Wraith CMS
Bearings
6 * 5 x 11 x 4mm (Z-S0683)
4 * 10 x 15 x 4mm (Z-S0837)
Note:
When installing this axle in the Wraith you will need the RC4WD Wraith CMS kit (Z-S0647)
D44 Wide Rear Axle (Wraith/AR60 Width)
Z-S1030 D44 Differential Housing
Z-S1025 D44 Wide Rear Axle Tubes
Z-S1073 D44 Rear Axle Bearing Caps
Z-S0990 D44 Wide Straight Rear Axle Shafts
Z-S1026 D44 Lower Link Mounts for Wraith
Z-S0971 D44 Rear Axle Upper Link Mount (Black)
Bearings
2 * 5 x 11 x 4mm (Z-S0683)
2 * 10 x 15 x 4mm (Z-S0837)
2 * 5 x 10 x 4mm (Z-S0686)
RC4WD.com 2 D44 Axle

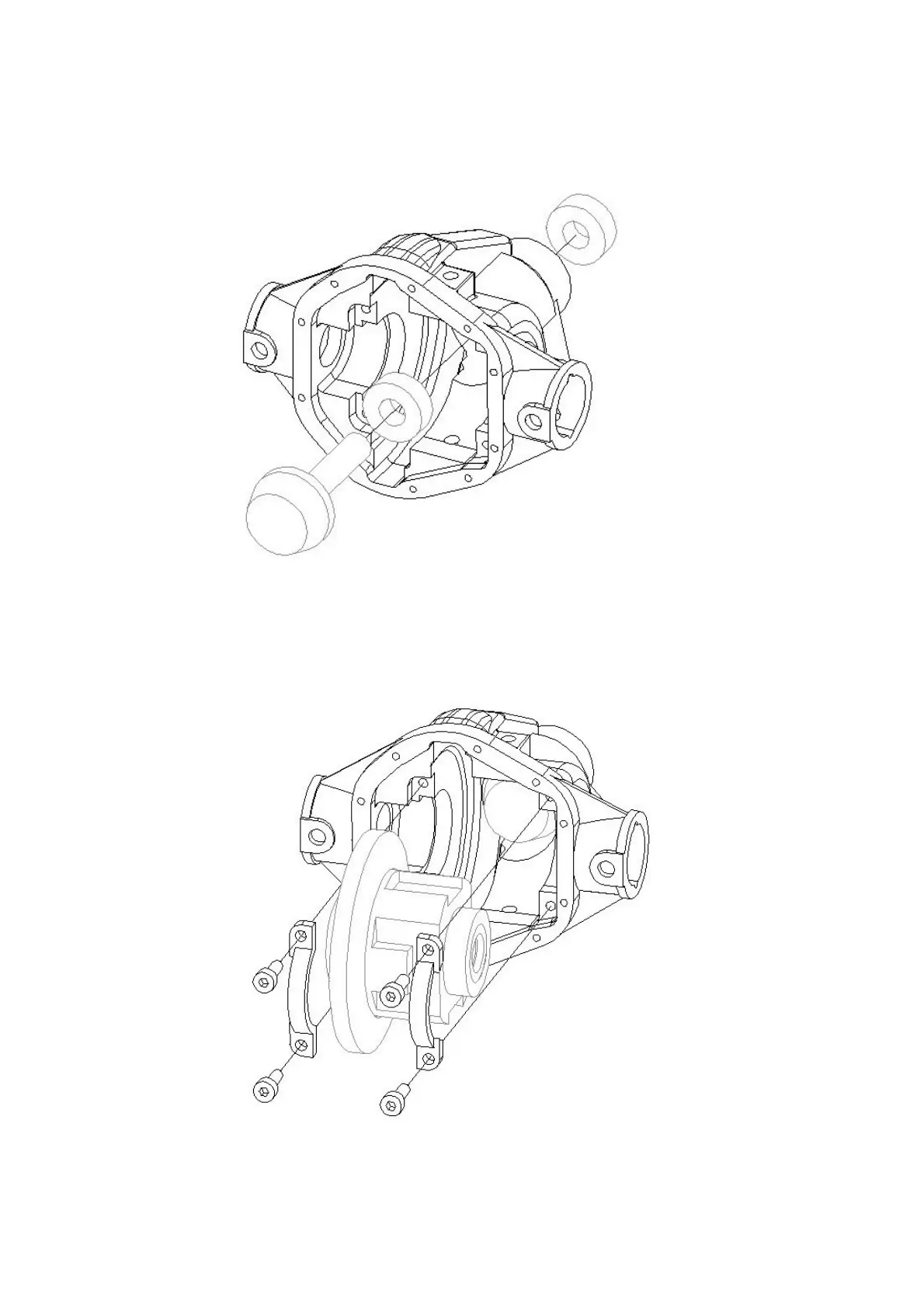

D44 Diff Housing Assembly
RC4WD.com 3 D44 Axle
Z-S0130
5 x 11 x 4mm
bearing
Axial pinion gear shaft
M2 x 6mm
Axial ring gear
assembly with
10 x 15 x 4mm
bearings
