RACK-UP® SERIES

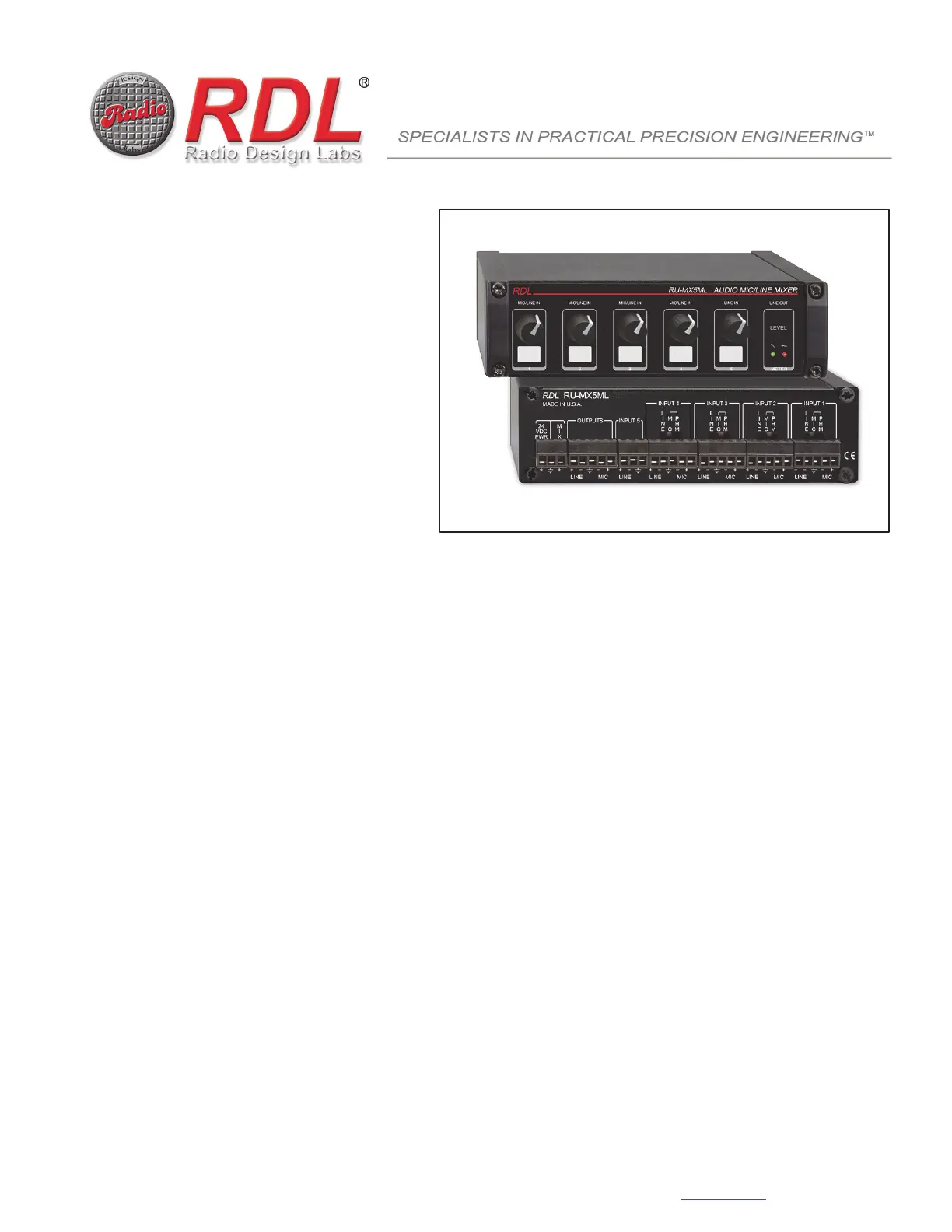

Model RU-MX5ML

Audio Mic/Line Mixer

 Mic or Line Level Audio Mixer

 Five Channel Audio Mixer with Expansion Capability

 Inputs and Outputs on Detachable Terminal Blocks

 Switchable 24 V Phantom for Each Mic Input

 Balanced Mic and Line Outputs

 Expansion Bussing Capability

 Output Level dual-LED VU Metering

 Studio-Quality, Low-Noise Performance

The RU-MX5ML is part of the group of RDL RACK-UP products. The compact design permits high-density installations, with three products

mounted in a single rack unit. The RU-MX5ML may be used alone, or mounted using a wide variety of RACK-UP series options.

APPLICATION: The RU-MX5ML is the ideal choice in many applications where a combination of

balanced mic and/or balanced or unbalanced line-level signals needs to be mixed with the ability for

additional expansion. All connections are made using detachable terminal blocks on the rear panel.

Four of the RU-MX5ML inputs can accept either mic or line inputs. The fifth input is for line level

sources.

24 V phantom is individually switch selectable for each mic input. The output from one RU-MX5ML

may connect to the MIX input of another RU-MX5ML to expand mixing capabilities. The output

section provides both a balanced line (+4 dBu) and balanced microphone level (-45 dBu) output. Both

outputs may be used at the same time. Audio levels are adjustable on the front panel. The output is

equipped with a front-panel dual-LED VU meter that follows standard VU ballistics. A green LED

illuminates at 15 dB below +4 dBu. The intensity of the green LED progresses from minimum at -11

dBu to full intensity at +4 dBu. The adjacent red LED illuminates at +4 dBu.

Audio levels are adjustable on the front panel. A convenient label area is provided below each fader

knob. A label tab included with the mixer may be professionally labeled using a commercial lettering

machine, or the user may write on the tab. The tab locks into a pocket behind the front panel

laminate to produce a professionally labeled appearance.

The RU-MX5ML operates from ground-referenced 24 Vdc external power, connected through a

rear-panel detachable terminal block.

Wherever a mixer is needed to provide superior audio clarity, user adjustments, reliability,

compactness and unsurpassed versatility, the RU-MX5ML is the ideal choice. Use the RU-MX5ML

individually, or combine it with other RDL products as part of a complete audio/video system.

RDL 



 659 6th St. 



 Prescott, AZ., USA 86301 



 



 (928) 443-9391 FAX (928) 443-9392 



 www.rdlnet.com

RACK-UP® SERIES

Model RU-MX5ML

Audio Mic/Line Mixer

MIC/LINE IN

1 METER2 3 4 5

LEVEL

LINE INMIC/LINE IN MIC/LINE IN MIC/LINE IN LINE OUT

C M

SET SWITCH TO "LINE" TO SELECT

THE LINE-LEVEL SOURCE CONNECTED

TO THE LINE INPUT TERMINALS

SET SWITCH TO "MIC" TO SELECT

THE DYNAMIC MICROPHONE CONNECTED

TO THE MIC INPUT TERMINALS

SET SWITCH TO "PHM" TO SELECT

THE CONDENSER MICROPHONE CONNECTED

TO THE MIC INPUT TERMINALS

(PROVIDES 24 V PHANTOM TO THE MIC)

RU-MX5ML

MADE IN U.S.A.

RDL

SIGNAL

SOURCE

UNBALANCED

FROM

SIGNAL

FROM

BALANCED

SOURCE

24 VDC

SOURCE

POWER

VDC

PWR

MICLINE

OUTPUTS

RU-MX5ML

MADE IN U.S.A.

RDL

INPUT 1INPUT 2INPUT 3INPUT 4

VDC

PWR

C M

LINE MIC MICLINE

MICLINE

LINE

INPUT 5

MICLINE

OUTPUTS

CONNECT TO EXPAND

MIXING TO ANOTHER

RU-MX5ML

INPUT WIRING

SIGNAL

EQUIPMENT

UNBALANCED

FEEDING

SIGNAL

FEEDING

BALANCED

EQUIPMENT

OUTPUT WIRING

OF THE RED LED

ADJUST DESIRED INPUT KNOB

FOR BRIGHTEST GREEN LED

WITH MINIMAL FLASHING

LABEL

HERE

LABEL

HERE

LABEL

HERE

LABEL

HERE

LABEL

HERE

1. WRITE OR AFFIX PRINTED LETTERING ON LABEL STRIP

3. SLIDE LABEL STRIP INTO MIXER

2. PEEL OFF ADHESIVE BACKING

CONNECT ONE OR

BOTH OUTPUTS

CONNECT A MIC OR LINE TO INPUTS 1 THROUGH 4

CONNECT A LINE-LEVEL SOURCE TO INPUT 5

TYPICAL PERFORMANCE

Inputs (6): 4 selectable mic or line level; 1 line level; 1 direct MIX; detachable terminal block

Input Impedance: Mic: >1.2 kΩ balanced; Line: >10 kΩ balanced

Maximum Input Level: Mic: -20 dBu; Line: +24 dBu

Phantom: Switch-selectable 24 V (IEC 61938: 2013)

Gain: Mic: Off to 65 dB; Line: Off to 15 dB

Outputs (2): Mic: -45 dBu balanced; Line: +4 dBu balanced; detachable terminal block

Output Impedance: 150 Ω balanced

Frequency Response: Mic: 80 Hz to 40 kHz (±1 dB, < -6 dB at 20 Hz with integral high-pass filter)

Line: 10 Hz to 35 kHz (± 0.5 dB)

THD+N: Mic: < 0.03%; Line: <0.003%

Headroom: 20 dB (above +4 dBu output)

Noise: < -70 dB below +4 dBu output

(20 Hz to 20 kHz, all mic channels at 50 dB gain;

or one mic channel active at 60 dB gain)

< -90 dB below +4 dBu (20 Hz to 20 kHz, all channels off)

CMRR: Mic: > -65 dB (10 Hz to 10 kHz); Line: > -45 dB

Metering: Dual-LED VU Meter (calibrated to +4 dBu)

Power Requirement: GROUND-REFERENCED, 24 Vdc @ 75 mA

(120 mA max. including phantom); detachable terminal block

Dimensions: Height: 1.7 in. 4.3 cm; Width: 5.8 in. 15.0 cm; Depth: 4.8 in. 12.2 cm

Ambient Operating Environment: 0° C to 55° C

Power Requirements: 24 Vdc @ 65 mA, Ground-referenced

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specifications provided on product package.

Specifications are subject to change without notice.

Radio Design Labs Technical Support Centers

U.S.A. (800) 933-1780, (928) 778-3554; Fax: (928) 778-3506

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

891-3320D
