STICK-ON® SERIES

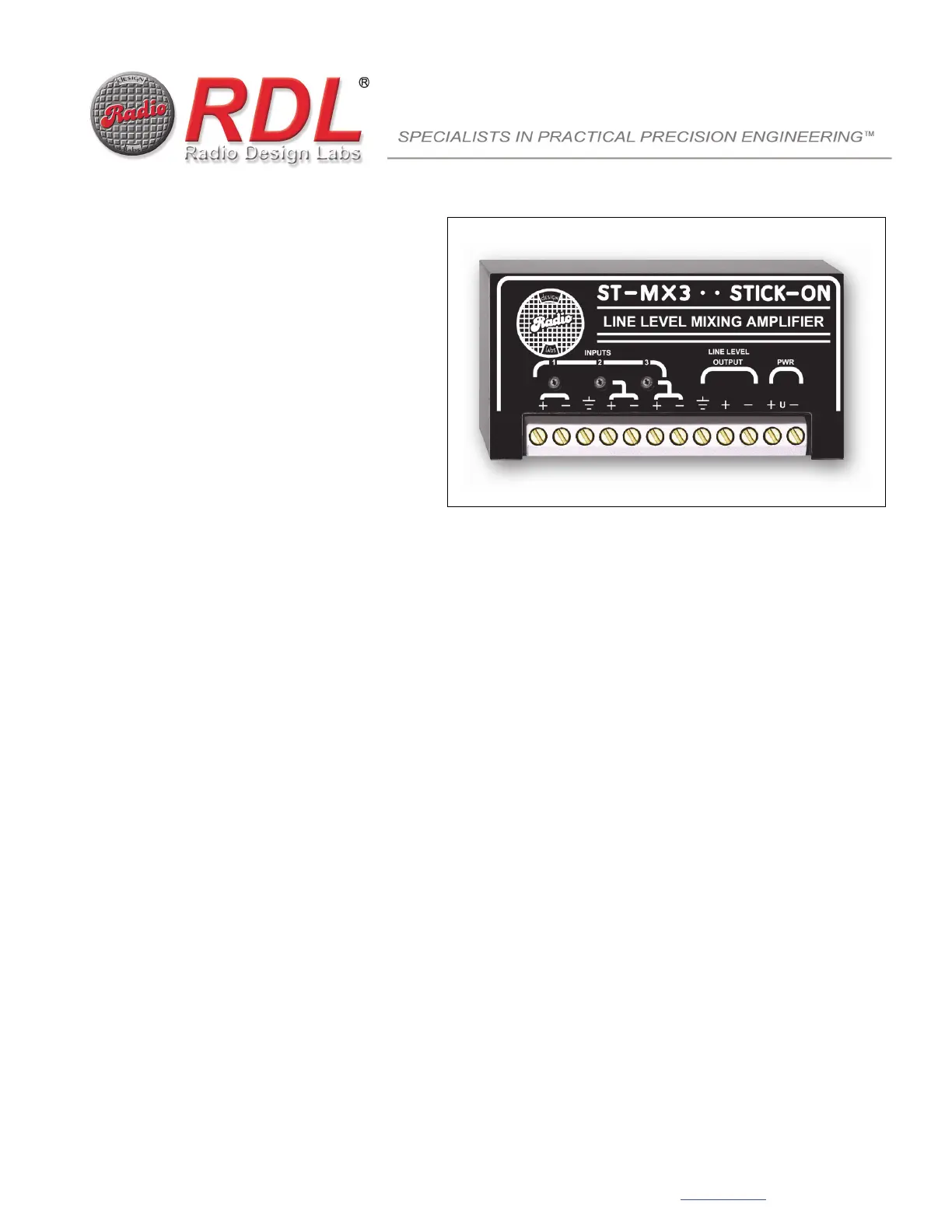

Model ST-MX3
Line Level Mixer
Mix Line-Level Signals
Three Individually Adjustable Inputs
Add Additional Inputs to an Existing Mixer
Combine Signals of Different Level,
Impedance or Bal. / Unbal. Configuration
Low-Noise and Low-Distortion Performance
RDL SupplyFlex™ Power Input Configuration
The ST-MX3 is part of a group of products in the STICK-ON series from Radio Design Labs. The durable adhesives provided with the ST-MX3
permit permanent or removable mounting. Numerous available mounting accessories, brackets, rack-mount and table top chassis are optionally
available to facilitate any system. The ST-MX3 gives you the advantage of a high performance audio mixer with a big plus, you can put it where
you need it, and you can combine modules to build larger mixing systems using whatever combination you need! STICK-ONs are designed, built
and rated for continuous duty in professional A/V systems.
APPLICATION: The ST-MX3 is a three-channel audio mixer for combining line-level signals to a
line-level output. Individual level control is provided for each input. Each input features a separate
preamplifier circuit, which isolates it from the other inputs. A single-turn trimmer is provided for each of the
three input preamps. Signals from the three preamps are actively summed and fed to the output
line-level driver amplifier. The line-input circuit design of the ST-MX3 allows the inputs to accept either
balanced to unbalanced signals, or either high or low impedance. The output is capable of driving into
either high or low impedance, balanced or unbalanced loads. Each output may be connected in parallel
with other ST-MX3s, or ST-UMX3s to form a multi-channel mixer to fit nearly any installation! The ST-MX3
features amplifier circuitry which produces the unsurpassed pure clarity for which Radio Design Labs
products are known! Some features are:
Ultra-low Distortion
Ultra-low Noise
Input Levels Individually Adjustable
Ample Headroom at Operating Level
Full Operation in either High or Low Impedance Circuits
Outputs Short-Circuit Protected
Positive Connections via Barrier Block, No Audio Connectors to Wire
The audio clarity, low noise, low distortion and versatility make this module ideally suited to a wide variety
of demanding audio applications. Use this module individually or in conjunction with other RDL modules
as part of a high quality, flexible audio/video system.
RDL
659 6th St.
Prescott, AZ., USA 86301
(928) 443-9391 FAX (928) 443-9392 www.rdlnet.com
STICK-ON® SERIES
Model ST-MX3
Line Level Mixer
TYPICAL PERFORMANCE
Inputs (3): 30 kΩ balanced or unbalanced bridging
Input Level: -20 dBu to +18 dBu (for +4 dBu output)
-24 dBu to +14 dBu (for 0 dBu output)
Output: 400 Ω to drive low or high impedance balanced or unbalanced lines
Output Level: +4 dBu nominal, (adjustable; unbalanced output 6 dB below balanced line level)
THD+N: < 0.03% (10 Hz to 20 kHz)
Frequency Response: 10 Hz to 20 kHz (± 0.5 dB)
Noise: < -80 dB (all inputs @ 10 dB gain, referenced to +4 dBu)
Headroom: 18 dB
Gain (each input): -14 dB to +24 dB Adjustable
CMRR: > 50 dB (50 to 120 Hz)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED or FLOATING, 24 Vdc @ 55 mA
Declaration of Conformity available from rdlnet.com.
Sole EMC specifications provided on product package.
Specifications are subject to change without notice.
Installation/Operation
Radio Design Labs Technical Support Centers
U.S.A. (800) 933-1780, (928) 778-3554; Fax: (928) 778-3506
Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
891-0008O
