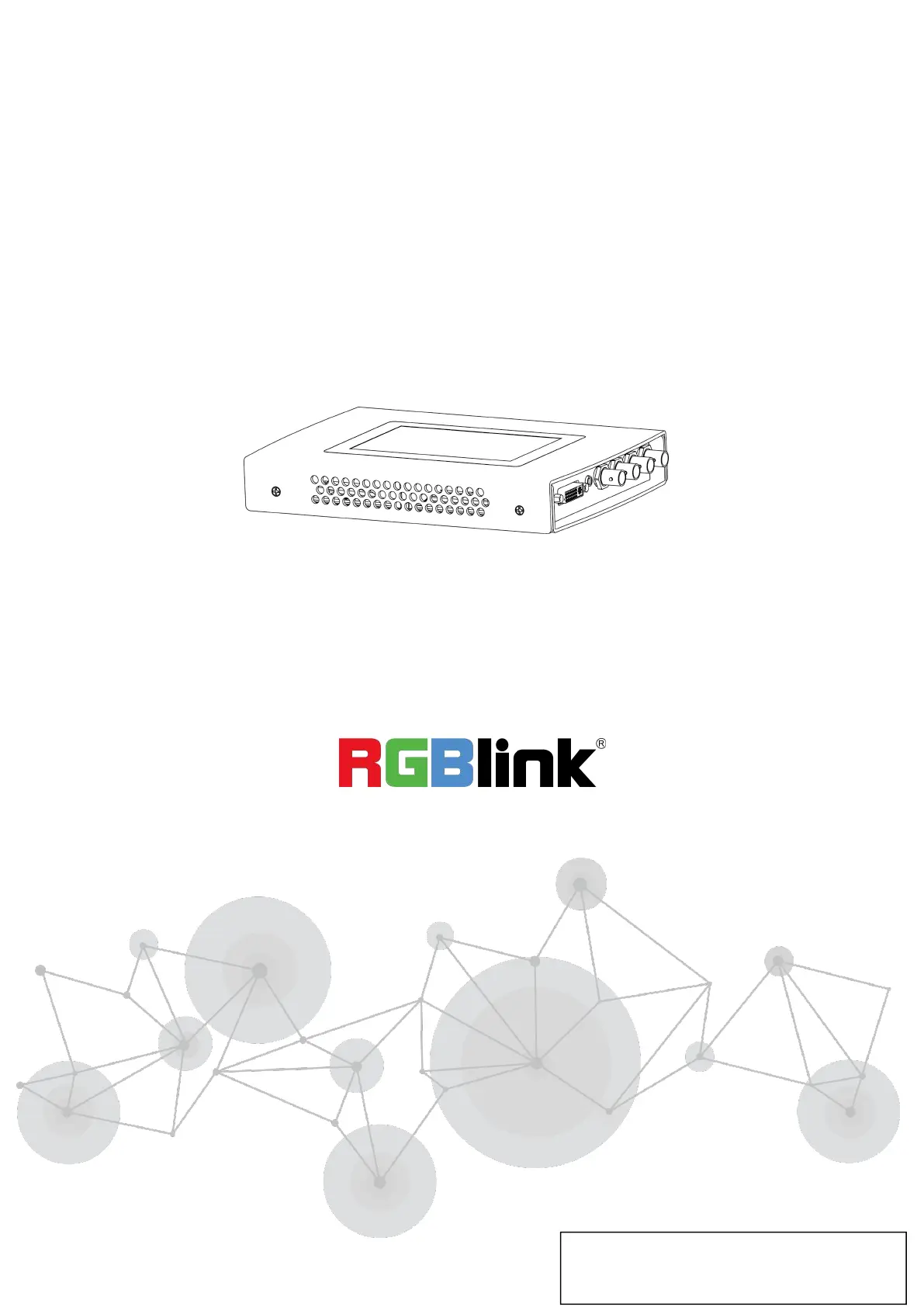

MSP 200PRO Quick Start
Touch Screen control
Output a range of signal types
Set and select from a range of common output
formats
Audio output test included
Genlock Y&HS outputs
Input live signals for preview and inspection
Test using MPEG from USB media as source
On board test pattern generator
On board time code generator
Genlock Y input
Remote control via USB connection
Preview digital input source on the display
Output (pass through) digital input source for
signal testing
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
Tel: 00865925771197 Fax: 00865925788216
Email: sales@rgblink.com http://www.rgblink.cn
1
CONTENT
Product Introduction..................................................................................................................................................
2
Packing Configuration.................................................................................................................................................
3
Hardware Orientation................................................................................................................................................
4
Interface Instruction............................................................................................................................................
4
Using Your Product.....................................................................................................................................................
5
Understanding the Display..................................................................................................................................
5
Understanding the Menus..................................................................................................................................
7
Input............................................................................................................................................................
7
Test Pattern.................................................................................................................................................
7
Analysis........................................................................................................................................................
9
Output.........................................................................................................................................................
9
EDID...........................................................................................................................................................
10
Genlock......................................................................................................................................................
11
TimeCode..................................................................................................................................................
12
Monitor.....................................................................................................................................................
12
Settings......................................................................................................................................................
12
Contact Information.................................................................................................................................................
14
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
Tel: 00865925771197 Fax: 00865925788216
Email: sales@rgblink.com http://www.rgblink.cn
2
Product Introduction
Format and Test Pattern Generation are just two of the many features of MSP 200PRO. MSP 200PRO allows on
board preview of an HDMI (or optionally SDI) source along with format inspection. There is wave form
monitoring and video monitoring capabilities too. Popular test patterns can be easy selected with motion or
without, and time code can be generated and displayed allowing inspection frame delay. MSP 200PRO also
includes a USB media input port as standard – use a MPEG4 or image as a test signal source, opening up many
possibilities for producing bespoke testing configurations.
Outputs as standard are (up to) 3G-SDI, CVBS and DVI, with DVI supporting both HDMI and VGA signals also.
Genlock is integrated too.
A compact touch friendly device MSP 200PRO is the essential device for the AV professional.
System Connection
RGBlink offers solutions to
demanding technical problems.
Any application questions, or
required further information,
please contact with our
customer Support Engineers.
MSP 200PRO System Connection Diagram
