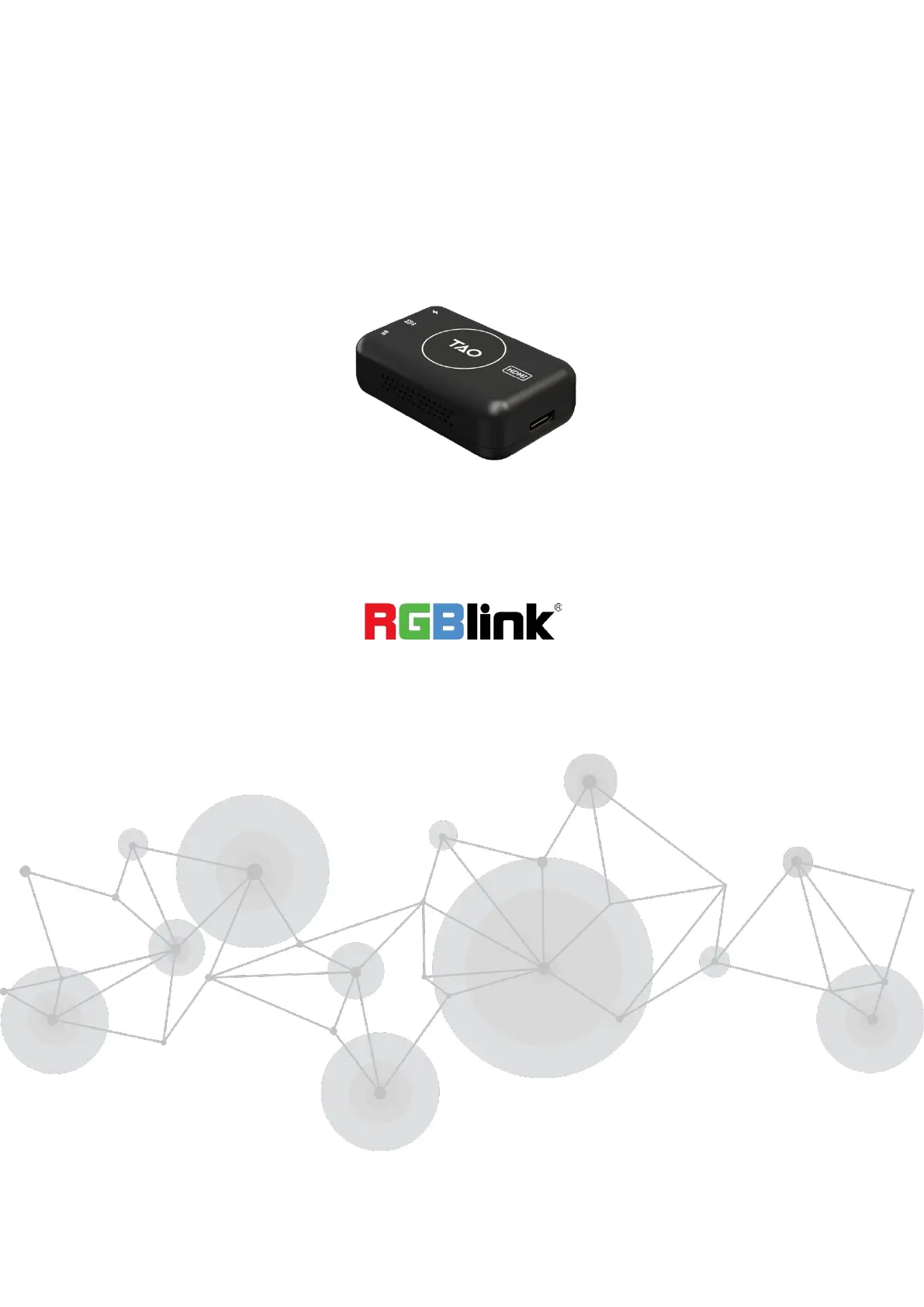

User Manual
TAO 1tiny
©Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com
2
Overview
About TAO 1tiny
TAO 1tiny is the essential accessory for compact webcam and ePTZ camera users, enabling those
cameras to become HDMI native devices connectable almost anywhere.
This tiny inline convertor- measuring at just 9x5x3cm, provides HDMI connectivity for cameras and
similar USB-C UVC capture devices, supporting popular VESA standard resolutions up to 4K
Video transcoded to HDMI is uncompressed with full fidelity maintained for superior visual
performance.
Parts Info
01 Type C Power Port
02 USB 2.0 COM Port
03 USB Type C Input Port
04 HDMI 2.0 Output Port
Note:
( )1 If the input UVC signal is 4K@30 and the HDMI OUT connecting to 4K monitor,the output resolution up to
4K@60.
( )2 Power of Adapter is not less than:5V/2A/10W;Do not use the USB port of the computer for power supply.
©Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com
3
Connecting TAO 1tiny
Installing TAO 1tiny
TAO 1tiny supports USB 3.0 (UVC compliance) to HDMI 2.0 output.It can work with USB camera and mini series.
1. How to Work With USB Camera
Please operate as shown in the following figure:
( )1 Connecting Power Port with power supply.
( )2 Connecting USB-C Input Port with USB Camera via USB-C cable.(TAO 1tiny can supply power to USB
camera:5V/1A)
( )3 Connecting HDMI 2.0 Output Port with monitor via HDMI cable.
If necessary,you can plug in USB Receiver into USB 2.0 Port to control USB camera via remote control.
2. How to Work With mini Series
Please operate as shown in the following figure:
( )1 Connecting Power Port of TAO 1tiny with power supply.
( )2 Connecting mini-pro with USB-C Input Port via USB 3.0 to USB-C cable.
( )3 Connecting HDMI 2.0 Output Port with monitor via HDMI cable.
