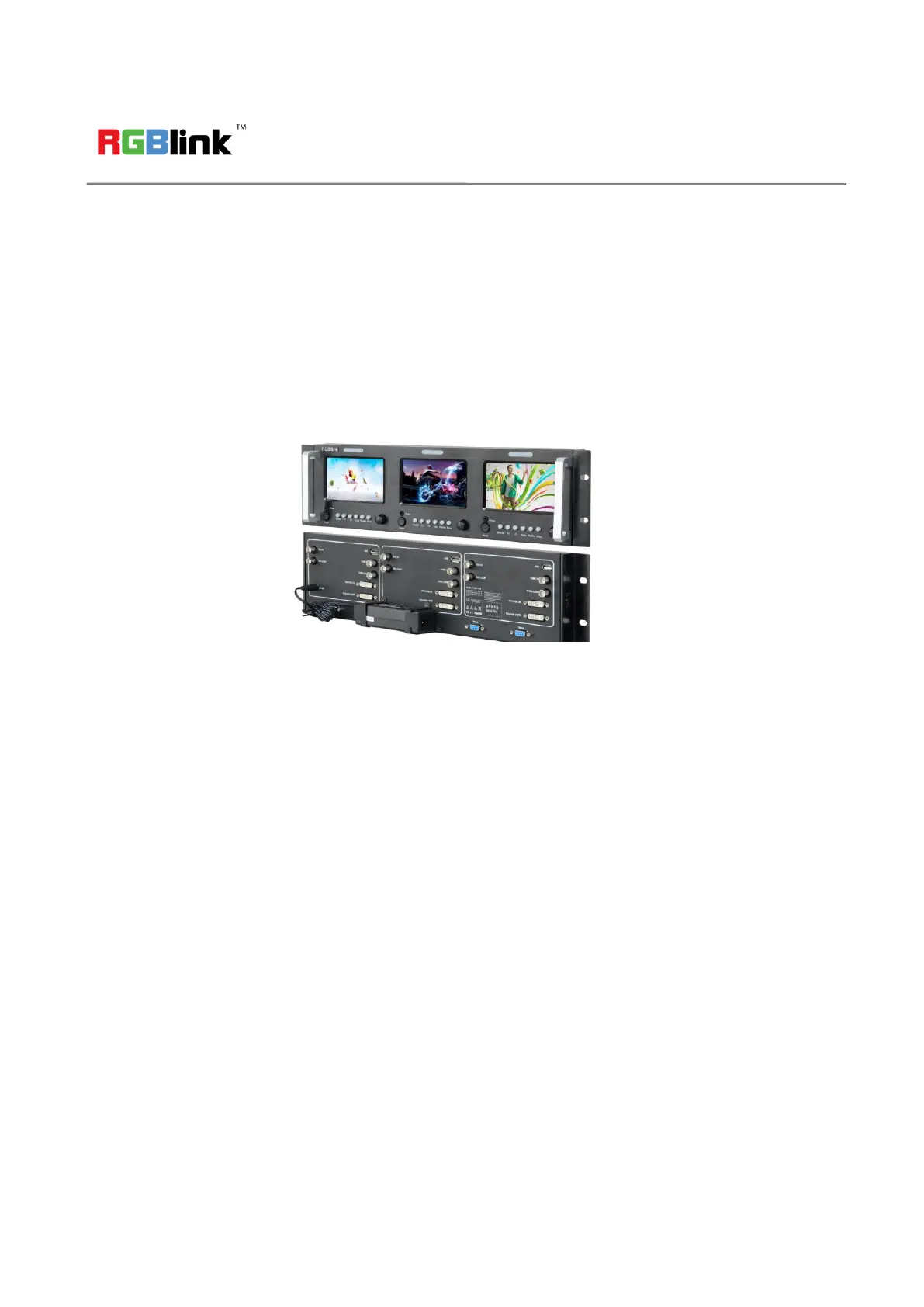

RMS Quick Start5533
VIEWSIZE THE WORLD
Standard 3 unit rack mount size, 5 inch LCD×3
800×3 (RGB) ×480 for each LCD
16:9 / 4:3 adjustable
SDI/HDMI embedded audio output via 3.5mm
earphone socket
Each LCD oponal TALLY module
Max input resoluon 2048×1152 or 2560×816
Underscan / Overscan switch
Customer editable video tle
Viewangle adjustable structure
Each input with loop through
Auto-idenfy input format
Auto input standard detecon
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C ：
Tel: 00865925771197 Fax: 00865925788216
Email: sales@rgblink.com http://www.rgblink.cn
1
CONTENT
Product Introduction ............................................................................................................................... 2
Packing Conguration ............................................................................................................................ 3
Hardware Orientation .............................................................................................................................. 4
Front Panel ......................................................................................................................................... 4
Back Panel ......................................................................................................................................... 5
Menu Operation ....................................................................................................................................... 6
Content ............................................................................................................................................... 6
MENU .......................................................................................................................................... 7
System Submenu ........................................................................................................................ 8
Picture Submenu 9 .........................................................................................................................
OSD Submenu .......................................................................................................................... 10
Display Submenu ...................................................................................................................... 11
F Key Submenu ........................................................................................................................ 12
VGA Setup Submenu ................................................................................................................ 13
System Operation .................................................................................................................................. 14
Content ............................................................................................................................................. 14
How to Turn On/Off the Monitor ................................................................................................ 15
How to Monitor the Audio .......................................................................................................... 15
How to Choose the Signal ........................................................................................................ 16
How to Use User Defined Function Key ................................................................................... 17
How to Display Aspect Ratio ..................................................................................................... 18
How to Display Current Settings ............................................................................................... 18
Contact Information ...............................................................................................................................19
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C ：
Tel: 00865925771197 Fax: 00865925788216
Email: sales@rgblink.com http://www.rgblink.cn
2
Product Introduction
RMS 5533 is a 19” 3RU standard rack mounting
LCD monitor, with 3 high resolution 5” LCD
panels of independent input controlling, 800×3
(RGB) ×480, and wide viewing angle. Each LCD
of RMS 5533 accepts 1 3G/HD/SD-SDI, 1 DVI, 1
composite video, each input with loop through
output. Support SDI and HDMI embedded audio
output and TALLY light control and display. RMS
5533 has a 2-pin pole 12V DC power connector
for all the 3 LCD panels.
The RMS 5533 is ideal for a wide range of
applications requiring monitoring of real time
display or content with the highest quality.
Because monitoring or preview the ready
output content is secure and important for
rental and staging, and broadcasting control,
and with utilizing high denition monitoring in
limit rack mount size are favored in this
environments which room is very limitation and
more info is required as possible.
