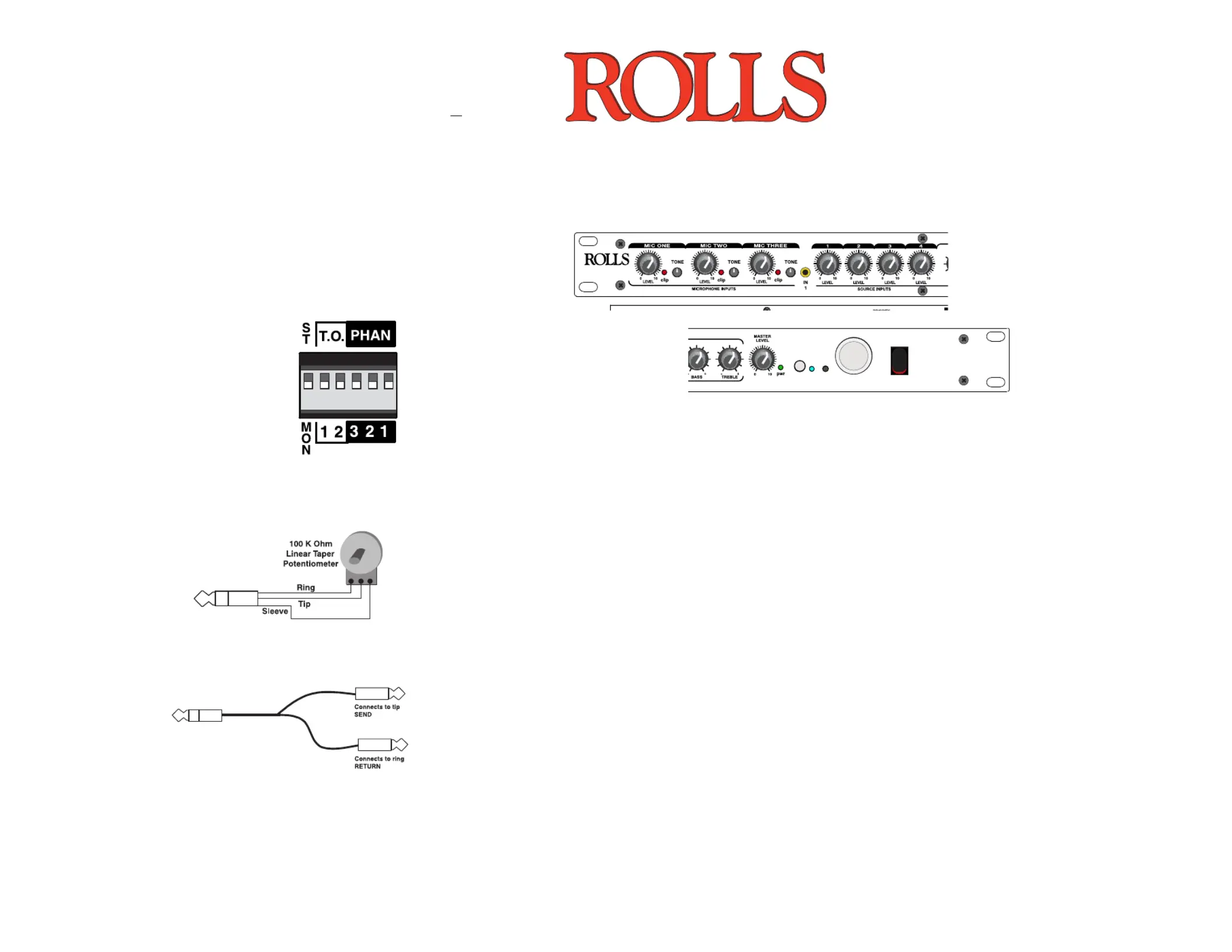

RM167
Mic/Source Mixer With Bluetooth
Quick Start Guide
ROLLS CORPORATION SALT LAKE CITY, UTAH 03/24
SPECIFICATIONS
Input Impedance: Mic: 600 Ohms XLR balanced
Line: 22K Ohms
Source:
22K
Ohms
gold plated RCA
Mic Insert: 22K Ohms 1/4” TS unbal.
Max Input Level: Mic: -14 dBV Mic level
+20 dB Line level
Source: 24 dBV
Connectors: 3: XLR, 6: Stereo RCA, 3: 1/4” TRS, 1: 1/4” TS, 1: 3.5mm
Phantom Power: +12 VDC
Output Level: +17 dBV max
Output Impedance: 51 Ohms
Max Gain: Mic: 60 dB
Source: 26 dB
Tone Controls: +/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
Noise Floor: - 80 dB, THD: <.025%, S/N Ratio: 96 dB
Size: 19” x 1.75” x 6” (48.3 x 4.5 x 15 cm)
Weight: 5 lbs. (2.3 kg)
NOTE: THIS GUIDE ASSUMES THE USER HAS A WORKING
KNOWLEDGE OF AUDIO ELECTRONICS, BALANCED AND
UNBALANCED CONNECTIONS, AND PROPER SIGNAL LEVEL
SETTING.
MADE IN USA
www.rolls.com
Remote Volume Control
To control the overall volume of the RM167 in a remote location, wire a 100K ohm Linear
Taper potentiometer to a 1/4” Tip-Ring-Sleeve plug as shown here.
Mic Insert
To connect a signal processor to the RM167 microphone signal(s), use an insert plug, or
cable wired as shown here.
To Mic Insert
RM167
Professional Bluetooth Audio mixer
ROLLSBT
BLUETOOTH ID
- Fast blinking blue unpaired
- Steady blue paired no audio signal
- Slow blinking blue paired with audio
RESET
BLUETOOTH
POWER
DIP SWITCH SETTINGS
- If a microphone requires phantom power, move the Mic channel’s corresponding
PHAN DIP switch to the down position. This applies 12 volts DC phantom power to the
indicated microphone.
- Talk over switch 1 (T.O. 1), when in the down position, all program material on all
source inputs will be “ducked” or muted when a signal is present at Mic 1. NOTE: MIC
ONE WILL NOT TALK OVER MIC2 OR MIC3. ONLY THE SOURCE INPUTS WILL BE TALKED
OVER. This function is used for paging.
- Talk over switch 2 (T.O. 2), when in the down position, Source 1,2, and 3 will be
“ducked” or muted by the signals at Source 4.
This function is for jukebox priority. With a jukebox connected to Source input 4, and
the Talk over switch 2 on (down), the other Source input signals such as background
music, will be muted and only the jukebox will be heard.
TO #1 - MIC
TO #2 - PRIOTIRY #4
- The Mono/Stereo switch selects the
output mode. When the switch is up,
the unit is in stereo mode. When the
switch is down, the stereo signals
are mixed to mono and sent to both
the Right and Left Main output jacks.
Either jack can be used as a mono
output.
RM167
Professional Bluetooth Audio mixer
ROLLSBT
BLUETOOTH ID
- Fast blinking blue unpaired
- Steady blue paired no audio signal
- Slow blinking blue paired with audio
MADE IN USA
www.rolls.com
RESET
BLUETOOTH
POWER
Mic 1 - 3: XLR inputs for dynamic or condenser microphones, or balanced line-level signals.
Mic/Line Switch: Pads the XLR Mic input by 30 dB when pressed in.
DIP SWITCH: Contains the small switches for engaging Mic 1 - 3 phantom power, the priority (Talk Over) functions, and the Mono/Stereo select.
MIC INSERT: 1/4” TRS insert jack for adding external processing to the Mic signals. Tip = send, ring = return.
SOURCE INPUTS: Stereo RCA jacks, Channels 1 - 4, for connection to stereo sources such as AM/FM tuners, cassette players, CD players, or video players.
RECORD OUT: Stereo RCA jacks, contains all mixed signals before the Remote Volume jack, and Master Level control.
SPARE: This RCA jack is not connected.
MUTE: RCA jack for connection to a tip-to-ground muting circuit. To mute all audio, connect the tip to ground.
REMOTE VOLUME: 1/4” TS jack for connection to a remote potentiometer for master volume control. 100K Ohm audio taper potentiometer is recommended.
MAIN OUTPUTS: 1/4” TRS balanced Right and Left Outputs.
MIC DUCK DEPTH: Adjusts the level of input signal required for ducking to occur. NOTE: The release time is eected by this setting, plus the level of input sig-
nal - the higher the input signal, the longer the release time.
PRIORITY #4 DUCK SENSITIVITY: Adjusts the level of input signal required for ducking to occur. NOTE: The release time is eected by this setting, plus the level
of input signal - the higher the input signal, the longer the release time.
IEC POWER INPUT: Connect to the IEC power cable - and properly grounded AC outlet.
120VAC 50/60Hz
www.rolls.com
WARNING: DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE. RISQUE DE CHOC - NE PAS ENLIVER
MIC DUCK
DEPTH
MADE IN USA
#4 PRIORITY
DUCK SENSITIVITY
TO #1 - MIC
TO #2 - PRIOTIRY #4
Mic 1 - 3: Adjust the level of signal from the corresponding Mic Input.
Clip 1 - 3: LED indicating overload in the channel. The LED lights 3 dB below clipping.
TONE 1 - 3: Adjusts the frequency content of the signal in the channel. When the control
is turned counter-clockwise, the high frequencies are cut, when the control is turned
clockwise, the low frequencies are cut.
IN 1: 3.5mm Input jack - resistor mixed to Source Input 1.
Source 1 - 4: Adjust the volume of input from the RCA Source Inputs, and the 3.5mm in.
Bass: Adjusts the low frequencies of the Source signals only.
Treble: Adjusts the high frequencies of the Source signals only.
Master Level: Adjusts the overall volume of the RM167 Main Outputs.
pwr: LED indicating power is applied to the RM167 and the unit is on.
Bluetooth antenna cover
and blue status led.
Reset button for disconnec-
tion of a paired device that
is no longer on, has discon-
nected from the RM167 or is
out of range. If the previously
connected device is still on
and in range the RM167 will
reconnect with the previously
paired device.
Bluetooth power indicator and
switch are to turn o the Blue-
tooth section of the RM167. The
RM167 mixer section will function
as normal when the Bluetooth has
been turned o. Bluetooth audio
is mixed to Source Input 1 level
control.
Bluetooth input section
