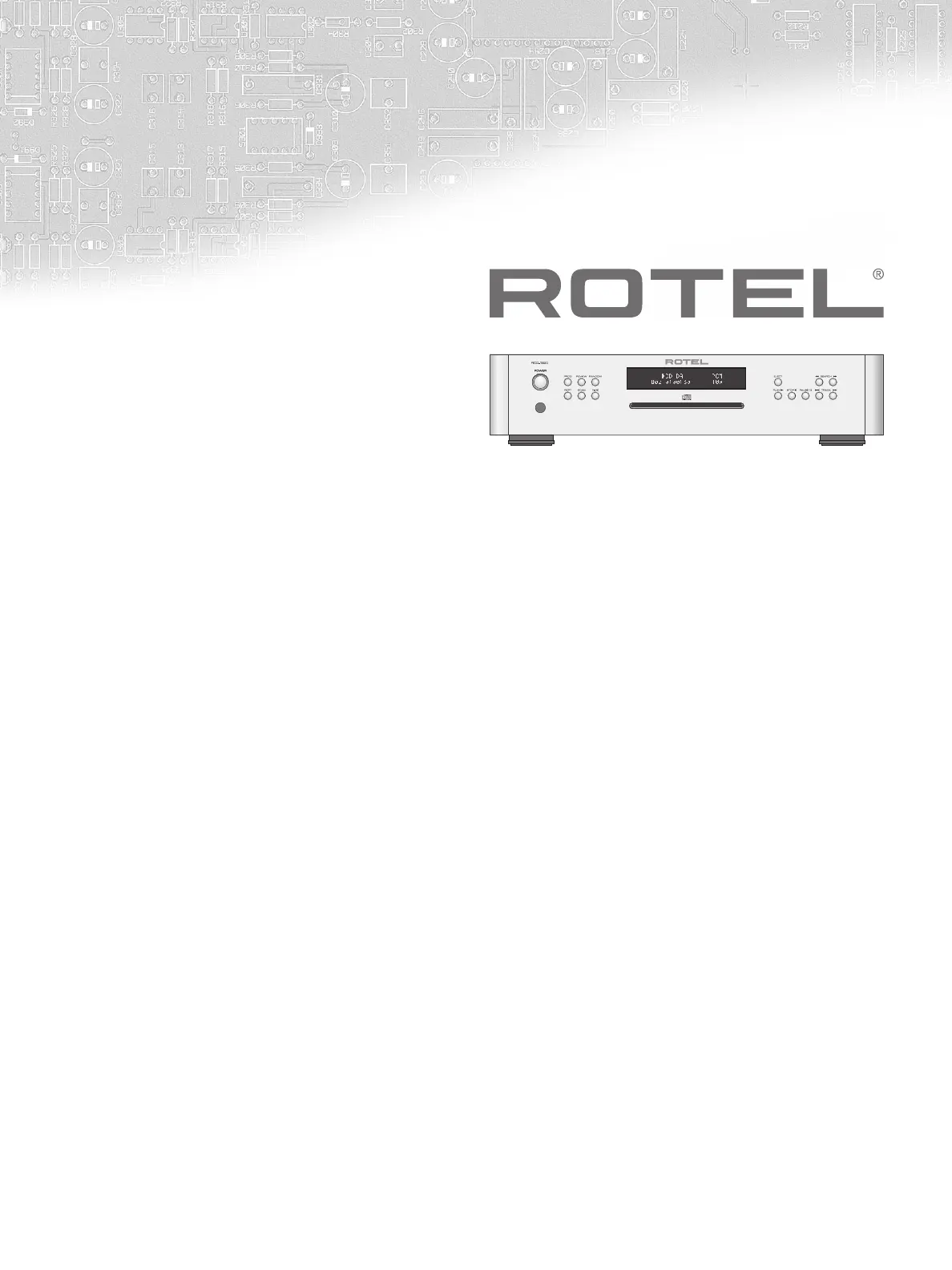

Owner’s Manual

Manuel de l’utilisateur

Bedienungsanleitung

Manual de Instrucciones

Gebruiksaanwijzing

Manuale di istruzioni

Instruktionsbok

àÌÒÚÛÍˆËﬂ ÔÓÎ¸ÁÓ‚‡ÚÂÎﬂ

RCD-1520

Stereo Compact Disc Player

Lecteur de disque compact

Stereo-CD-Player

Reproductor de Discos Compactos

Stereo CD-speler

Lettore Compact Disc Stereo

CD-spelare

ëD-ÔÓË„˚‚‡ÚÂÎ¸

2RCD-1520 Stereo Compcat Disc Player

WARNING: There are no user serviceable parts inside. Refer

all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do

not expose the unit to moisture or water. Do not expose the

unit to dripping or splashing. Do not place objects filled with

liquids, such as vases, on the unit. Do not allow foreign objects

to get into the enclosure. If the unit is exposed to moisture, or

a foreign object gets into the enclosure, immediately disconnect

the power cord from the wall. Take the unit to a qualified service

person for inspection and necessary repairs.

Read all the instructions before connecting or operating the

component.

Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions

and on the product itself. Follow all operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

Do not use this unit near water.

You must allow a minimum 10 cm or 4 inches of

unobstructed clearance around the unit.

Do not place the unit on a bed, sofa, rug, or similar surface that

could block the ventilation openings. If the unit is placed in a

bookcase or cabinet, there must be ventilation of the cabinet to

allow proper cooling.

Keep the component away from radiators, heat registers, stoves,

or any other appliance that produces heat.

Rotel products are designed to comply with

international directives on the Restriction of

Hazardous Substances (RoHS) in electrical and

electronic equipment and the disposal of Waste

Electrical and Electronic Equipment (WEEE). The

crossed wheelie bin symbol indicates compliance

and that the products must be appropriately

recycled or processed in accordance with these

directives.

This symbol means that this unit is double

insulated. An earth connection is not required.

Important Safety Instructions

WARNING: The rear panel power cord connector is the mains

power disconnect device. The apparatus must be located in an

open area that allows access to the cord connector.

The unit must be connected to a power supply only of the type

and voltage specified on the rear panel. (USA: 120 V/60Hz,

EC: 230V/50Hz)

Connect the component to the power outlet only with the

supplied power supply cable or an exact equivalent. Do not

modify the supplied cable. A polarized plug has two blades, with

one wider than the other. A grounding plug has two blades plus

a third grounding prong. These are provided for your safety.

Do not defeat grounding and/or polarization safety provisions.

If the supplied plug does not fit your outlet, please consult an

electrician for replacement of the obsolete outlet. Do not use

extension cords.

The main plug of the power cordset is a disconnect device of the

apparatus. In order to completely disconnect the apparatus from

the supply mains, the main plug of the power cordset should

be unplugged from the mains (AC) outlet. The stand-by LED

indicator will not be lit up to show the power cord is unplugged.

The disconnect device shall remain readily operable.

Do not route the power cord where it will be crushed, pinched,

bent, exposed to heat, or damaged in any way. Pay particular

attention to the power cord at the plug and where the cord exits

the back of the unit.

The power cord should be unplugged from the wall outlet during

a lightning storm or if the unit is to be left unused for a long

period of time.

Use only accessories specified by the manufacturer.

Use only with a cart, stand, rack, bracket

or shelf system recommended by Rotel. Use

caution when moving the unit in a stand or

rack to avoid injury from a tip-over.

Immediately stop using the component and have it inspected

and/or serviced by a qualified service agency if:

• Thepowersupplycordorplughasbeendamaged

• Objectshavefallenorliquidhasbeenspilledintotheunit

• Theunithasbeenexposedtorain

• Theunitshowssignsofimproperoperation

• Theunithasbeendroppedordamagedinanyway

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. : Visible laser DANGER

radiation when open and

interlock failed or bypassed.

Avoid direct exposure to beam.

3. : Do not open the top cover. There are no user CAUTION

serviceable parts inside the player; leave all servicing to

qualified service personnel.

WARNING!

To reduce the risk of electrical shock, fires, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose the unit to rain or moisture.

3. Do not touch the power cord or plug with wet hands.

English

Figure 1: Controls and Connections

Commandes et branchements

Bedienelemente und Anschlüsse

Controles y Conexiones

De bedieningsorganen en aansluitingen

Controlli e connessioni

Funktioner och anslutningar

é„‡Ì˚ ÛÔ‡‚ÎÂÌËﬂ Ë ‡Á˙ÂÏ˚

COMPACT DISC PLAYER

MODEL NO. RCD-1520

POWER CONSUMPTION : 25W

      

    P V D Q S

X T NH O :

Figure 2: RR-D97 Remote Control

Télécommande RR-D97

Fernbedienung RR-D97

Mando a Distancia RR-D97

De afstandsbediening RR-D97

Telecomando RR-D97

Fjärrkontroll RR-D97

èÛÎ¸Ú Ñì RR-D97

TIME CLEAR PROG REV

REPEAT RANDOM SCAN

>10

1 2 3

4 5 6

7 8

OFF

EJECT

%













X


