Assembly Instructions for Model: EFAV-II
Thank you for choosing the Sanus Systems Model EFAV-II. Every effort has
been made to ensure that your Sanus Systems furniture is perfect. If you have
questions or feel that there is a problem of any kind, please contact us at
800-359-5520 or at www.sanus.com. We can quickly help with any issues
regarding assembly or missing parts. Replacement parts for Sanus systems
products purchased through authorized dealers will be shipped directly to you.

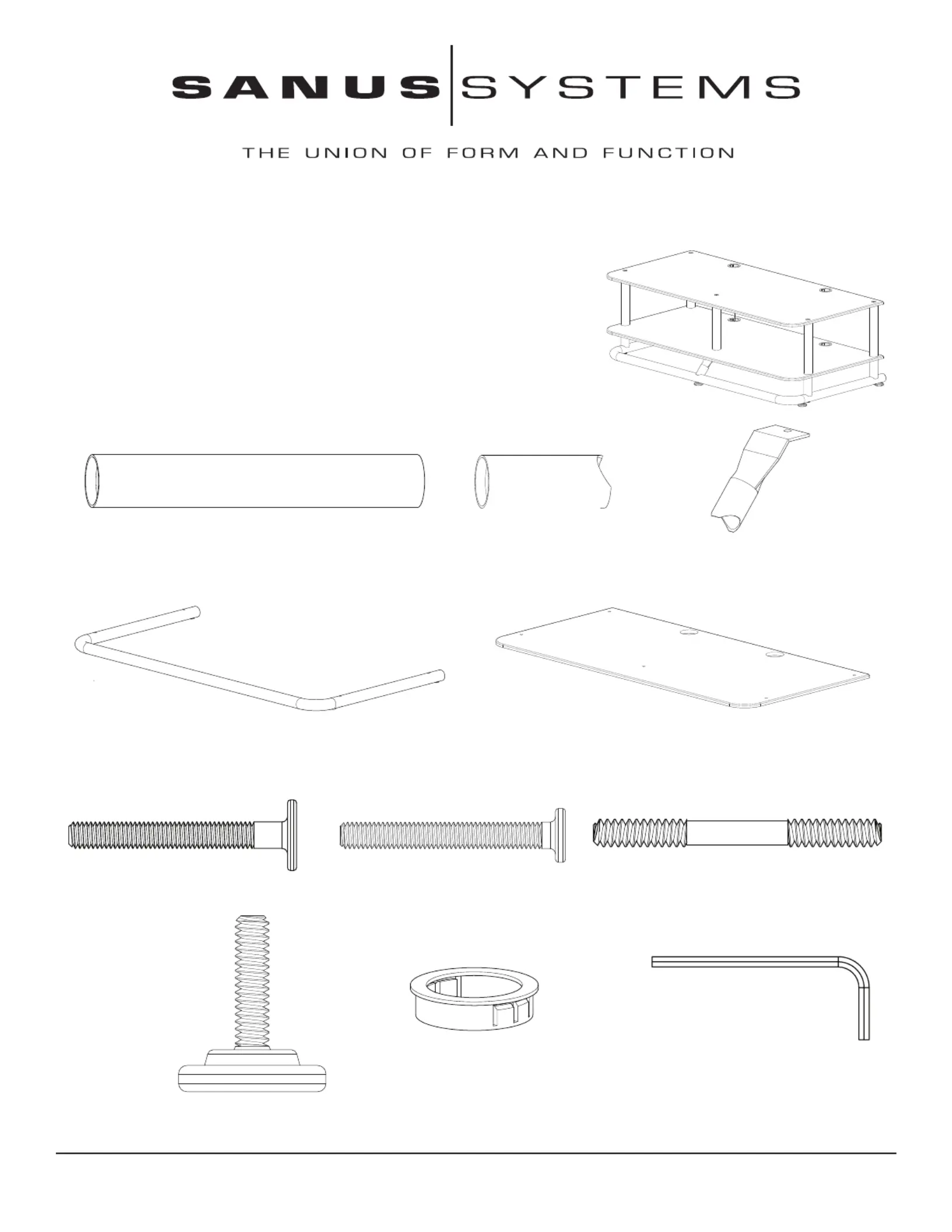

Supplied Parts List: ( )All threaded fasteners are shown full scale
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 2.01.06 (100009)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Allen Key - K
Qty. 1
Floor Glide - I
Qty. 5
Pan head Bolt - G
Qty. 5
Shelf Connector - H
Qty. 5
Angled Center Support - C
Qty. 1
3” Cope Tube - B
Qty. 4
8” Pillar - A
Qty. 5
Video Shelf - E
Qty. 2
Metal Base - D
Qty. 1
Top Bolt - F
Qty. 5
Wire Bushing - J
Qty. 4

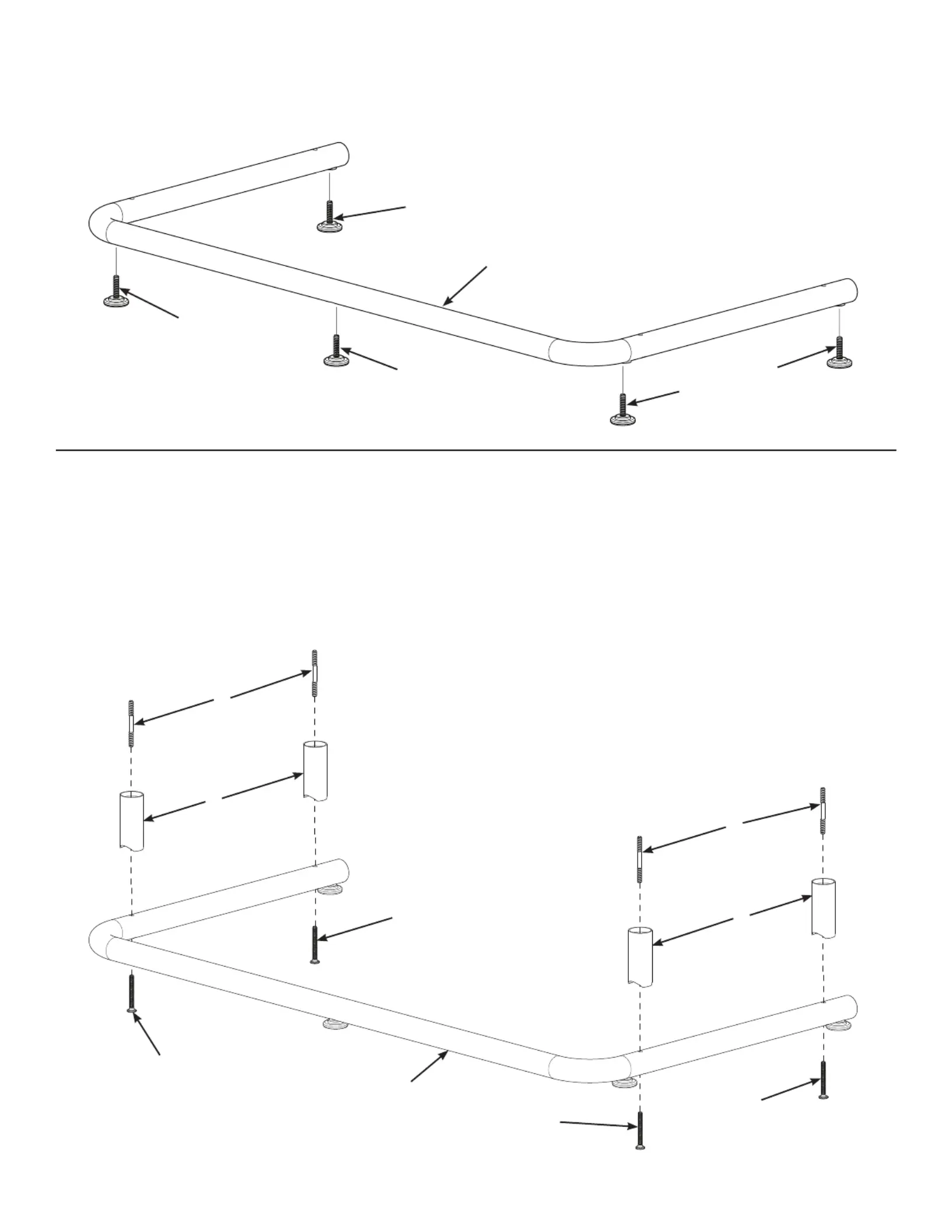

Step 1 - Attach Floor Glides to Metal Frame
Thread the ve Floor Glides (I D) into the Metal Base ( ).
Diagram 1
I
D
I
I
I
I
Step 2 - Attach 3” Cope Tubes to Metal Base
Thread a Shelf Connector ( ) securely into the four 3” Cope Tubes ( ).H B
NOTE: Do not tighten the Pan Head Bolts (G) until the entire EFAV-II is assembled.
Place a Pan Head Bolt ( ) through each of the four holes in the Metal Base ( ); then, thread them into the four 3” Cope G D
Tubes ( ). B
Diagram 2
G
D
G
G
GB
H
B
H

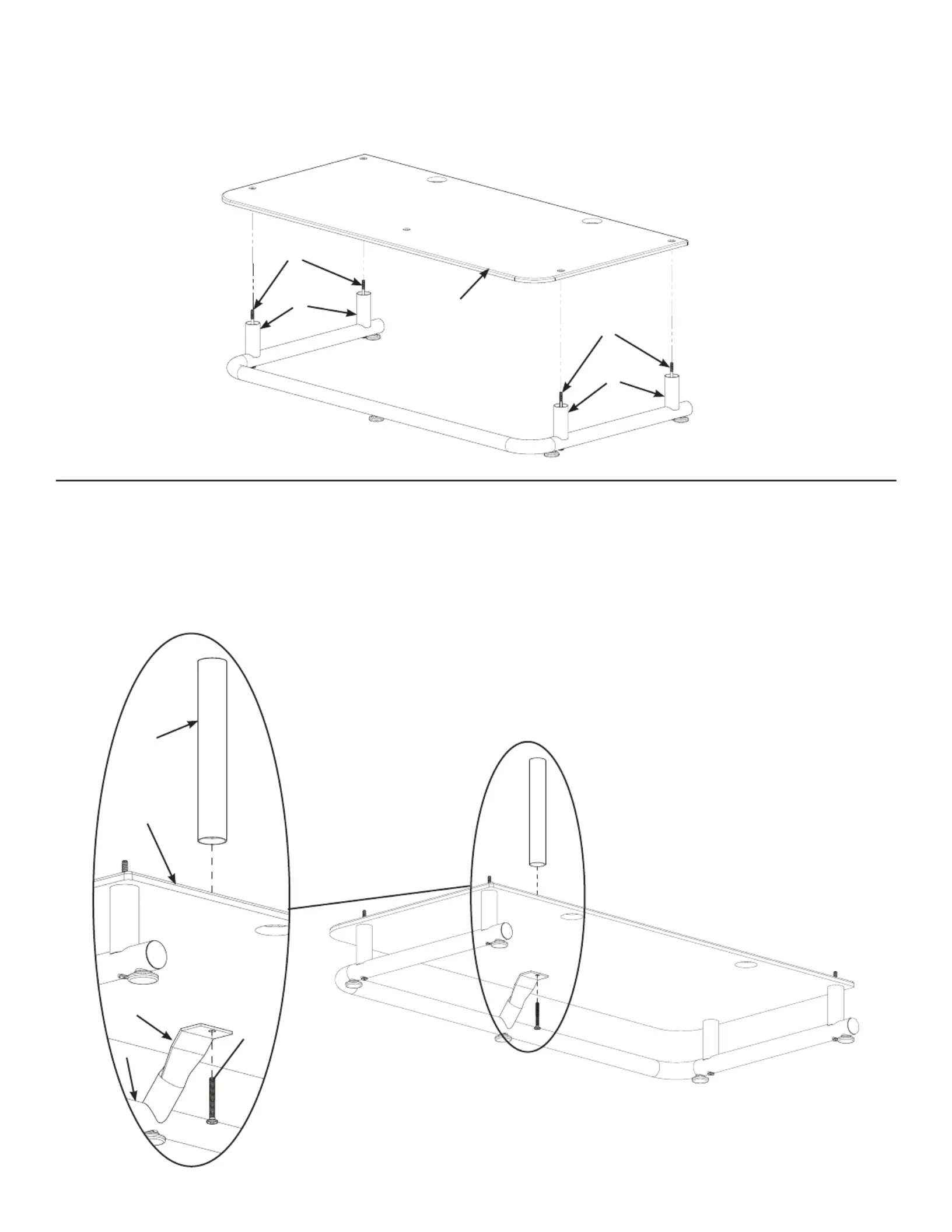

Step 3 - Place a Video Shelf on the Metal Base
Align four holes in a Video Shelf ( ) with the Shelf Connectors ( ) threaded into the 3” Cope Tubes ( ) in Step 2; then, place E H B
the Video Shelf onto the 3” Cope Tubes.
Diagram 3
H
H
E
B
B
Step 4 - Secure the Angled Center Support to the Video Shelf
NOTE: Make sure the coped end of the Angled Center Support (C) ts over the Metal Base (D).
Attach the Angled Center support ( ) to the bottom of the Video Shelf ( ) by threading a Pan Head Bolt ( ) up through the C E G
Angled Center Support, the Video Shelf, and into an 8” Pillar ( ).A
Diagram 4
A
DG
C
E
